基坑近接地铁车站主动土压力合力算法研究

张振波; 黄安; 周佳迪; 刘志春; 孙明磊

doi:10.11779/CJGE20230570

基坑近接地铁车站主动土压力合力算法研究 English Version

张振波^{1, 2,},
黄安³,
周佳迪⁴,
刘志春^3, ,,
孙明磊³

1.
石家庄铁道大学大型基础设施性能与安全省部共建协同创新中心, 河北石家庄 050043
2.
石家庄铁道大学安全工程与应急管理学院, 河北石家庄 050043
3.
石家庄铁道大学土木工程学院, 河北石家庄 050043
4.
北京市轨道交通设计研究院有限公司, 北京 100068

基金项目:

国家重点研发计划课题 2018YFC0808703

河北省高等学校科学技术研究项目 QN2021130

详细信息

作者简介:
张振波(1990—)，男，博士，讲师，硕士生导师，主要从事地下工程等方面的教学和科研工作。E-mail：zhangzb@stdu.edu.cn

通讯作者:
刘志春, E-mail: liuzhch01@163.com

中图分类号: TU432
计量
- 文章访问数: 311
- HTML全文浏览量: 45
- PDF下载量: 88
出版历程
- 收稿日期: 2023-06-19
- 网络出版日期: 2023-11-26
- 刊出日期: 2024-06-30

Algorithm for resultant force of active soil pressure of excavations adjacent to underground subway stations

1.
Structure Health Monitoring and Control Key Laboratory of Hebei Province, Shijiazhuang Tiedao University, Shijiazhuang 050043, China
2.
School of Safety Engineering and Emergency Management, Shijiazhuang Tiedao University, Shijiazhuang 050043, China
3.
School of Civil Engineering, Shijiazhuang Tiedao University, Shijiazhuang 050043, China
4.
Beijing Rail Transit Design and Research Institute Co., Ltd., Beijing 100068, China

摘要

摘要: 针对有限土体主动土压力合力计算公式复杂的问题，以既有地铁车站邻域内新建基坑工程为依托，根据既有地铁车站与基坑的位置关系提出多种有限土体破坏模式，采用薄层微元法，考虑土体与结构界面摩擦作用，建立主动土压力合力计算方法。通过调整新建与既有结构空间位置关系，得到了主动土压力合力等值图，并对其开展了参数分析，提出了主动土压力简便计算方法。研究结果表明：①提出了5种有限土体破坏模式，建立了相应的主动土压力计算公式；②随着近接距离的增加，主动土压力逐渐增大；随着既有地铁车站覆土厚度的增加，靠近基坑的时候主动土压力逐渐增大，远离基坑侧的主动土压力先增大后减小最后增大；③基坑深度对主动土压力影响大，内摩擦角有影响，墙土摩擦角基本上没有影响；④给出了有限土体主动土压力合力空间位置关系系数建议取值情况。通过以上研究，提出了一种简便的有限土体主动土压力合力计算方法，可以为近接工程设计与施工提供参考。
- 基坑工程 /
- 近接工程 /
- 有限土体 /
- 主动土压力 /
- 等值图
Abstract: Aiming at the problem of complex formula for calculating the resultant force of active soil pressure of limited soil, based on the newly built excavations in the vicinity of subway stations, multiple limited soil failure modes are proposed based on the positional relationship between the existing subway stations and the excavations. The thin-layer microelement method is used to consider the frictional effects between the soil and the structural interface, and a method for calculating the combined force of active soil pressure is established. By adjusting the spatial position relationship between the newly built and existing structures, an active soil pressure contour map is obtained, and the parameter analysis is conducted. Furthermore, a simple calculation method for active soil pressure is put forward. The research results indicate that: (1) Five finite soil failure modes are proposed, and the corresponding formulas for calculating the active soil pressure are established. (2) As the proximity distance increases, the active soil pressure gradually increases. As the thickness of the existing subway station cover increases, the active soil pressure gradually increases when approaching the excavation, and the active soil pressure on the side far from the excavation pit first increases, then decreases, and finally increases. (3) The depth of the excavation has a significant impact on the active soil pressure, the internal friction angle has an impact on the active soil pressure, and the wall-soil friction angle has basically no effect on the active soil pressure. (4) The value of the spatial position relationship coefficient of the combined force of active soil pressure is given. Through the above research, a simple method for the combined force of active pressure of limited soil is proposed to provide reference for the design and construction of adjacent projects.
- excavation engineering /
- adjacent project /
- limited soil /
- active soil pressure /
- contour map

HTML全文

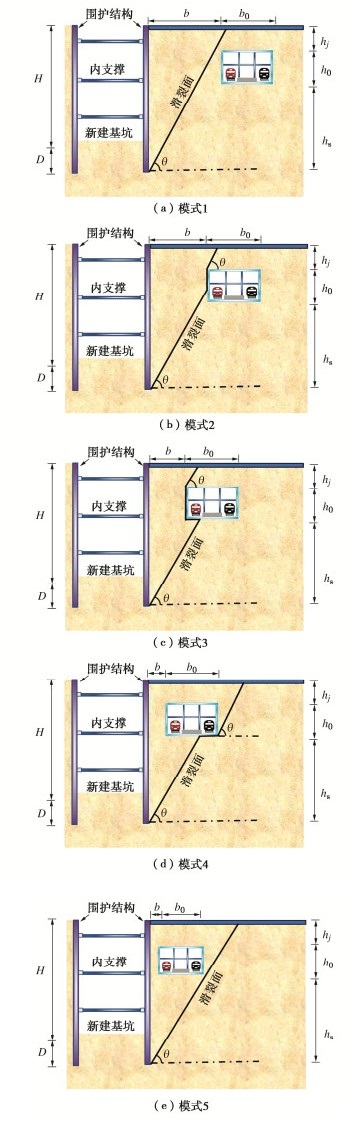

图 1 土体破坏模式

Figure 1. Failure modes of soil

下载: 全尺寸图片幻灯片

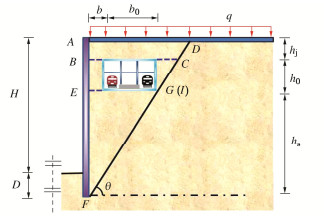

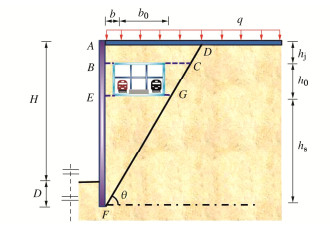

图 2 土体破坏模式4计算模型

Figure 2. Model for failure mode 4

下载: 全尺寸图片幻灯片

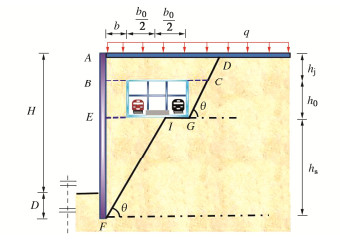

图 3 土体破坏模式5计算模型

Figure 3. Model for failure mode 5

下载: 全尺寸图片幻灯片

图 4 土体破坏模式4与5临界状态

Figure 4. Critical states of failure modes 4 and 5 for limited soil

下载: 全尺寸图片幻灯片

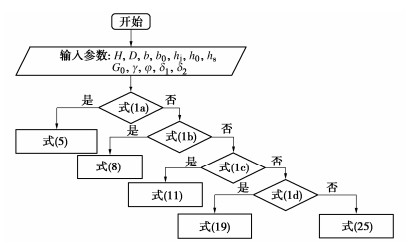

图 5 有限土压力计算程序流程图

Figure 5. Flowchart of calculation of limited soil pressure

下载: 全尺寸图片幻灯片

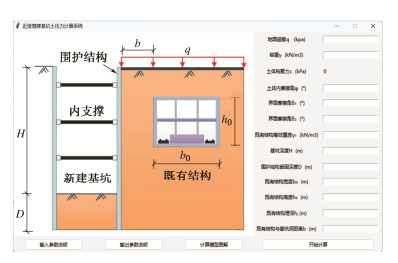

图 6 有限土压力计算程序主界面图

Figure 6. Interface of calculation program for finite soil pressure

下载: 全尺寸图片幻灯片

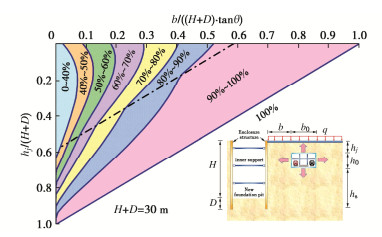

图 7 有限土压力等值图

Figure 7. Contour map of finite soil pressure

下载: 全尺寸图片幻灯片

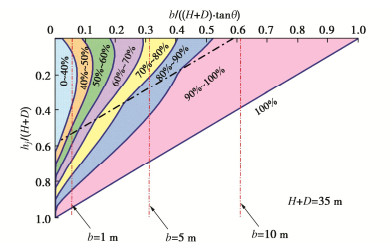

图 8 近接距离对等值图影响图

Figure 8. Impact of proximity on contour map

下载: 全尺寸图片幻灯片

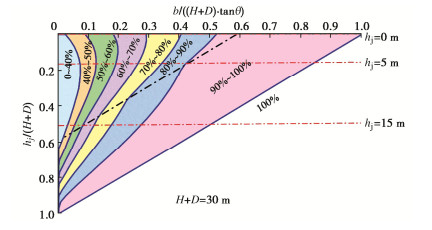

图 9 覆土深度对等值图影响图

Figure 9. Impact of burial depth on contour map

下载: 全尺寸图片幻灯片

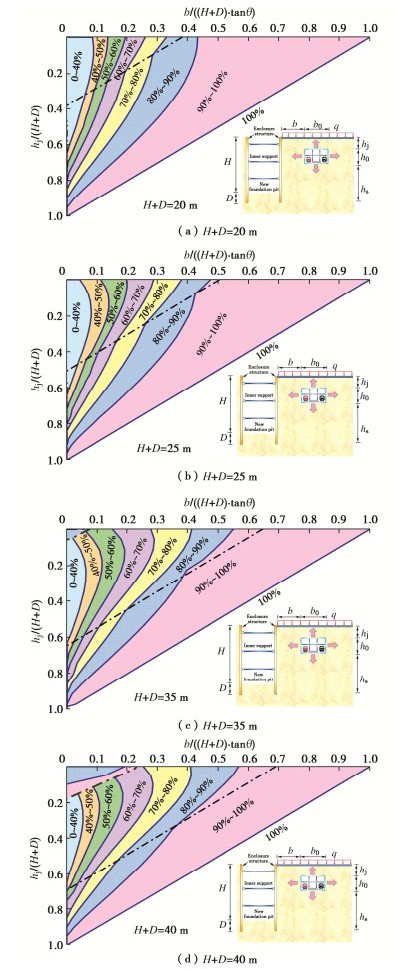

图 10 基坑深度对等值图影响图

Figure 10. Impact of pit depth on contour map

下载: 全尺寸图片幻灯片

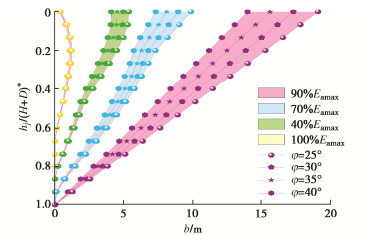

图 11 内摩擦角对等值图影响图

Figure 11. Impact of φ on contour map

下载: 全尺寸图片幻灯片

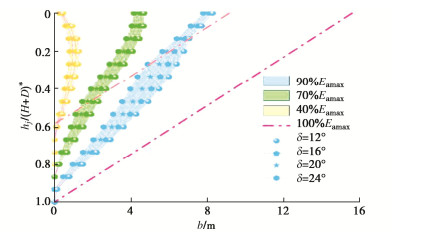

图 12 墙-土摩擦角对等值图影响图

Figure 12. Impact of δ on contour map

下载: 全尺寸图片幻灯片

H+D=20 m时空间位置关系系数 $\lambda$ 建议值

Table 1 Suggested values of coefficient of spatial position relationship when H+D=20 m (单位: m)

h_j	b
h_j	3	5	7	9	11	13	15	≥17
3	0.4	0.6	0.7	0.8	0.9	0.9	0.9	1
6	0.4	0.7	0.7	0.8	0.9	0.9	0.9	1
9	0.4	0.8	0.8	0.9	0.9	1	1	1
12	0.5	0.9	0.9	1	1	1	1	1
15	0.7	1	1	1	1	1	1	1
≥18	1	1	1	1	1	1	1	1

下载: 导出CSV

H+D=25 m时空间位置关系系数 $\lambda$ 建议值

Table 2 Suggested values of coefficient of spatial position relationship when H+D=25 m (单位: m)

h_j	b
h_j	3	5	7	9	11	13	15	≥17
3	0.4	0.5	0.6	0.6	0.7	0.8	0.8	1
6	0.4	0.5	0.6	0.7	0.8	0.8	0.9	1
9	0.5	0.6	0.7	0.8	0.9	0.9	0.9	1
12	0.6	0.7	0.8	0.9	0.9	1	1	1
15	0.7	0.8	0.9	0.9	1	1	1	1
18	0.8	0.9	1	1	1	1	1	1
≥21	1	1	1	1	1	1	1	1

下载: 导出CSV

H+D=30 m时空间位置关系系数 $\lambda$ 建议值

Table 3 Suggested values of coefficient of spatial position relationship when H+D=30 m (单位: m)

h_j	b
h_j	3	7	11	15	19	23	≥27
3	0.4	0.5	0.6	0.7	0.8	0.9	1
6	0.4	0.5	0.7	0.8	0.9	0.9	1
9	0.4	0.6	0.7	0.8	0.9	1	1
12	0.5	0.7	0.8	0.9	1	1	1
15	0.5	0.8	0.9	0.9	1	1	1
18	0.6	0.8	0.9	1	1	1	1
21	0.7	0.9	1	1	1	1	1
24	0.9	1	1	1	1	1	1
≥27	1	1	1	1	1	1	1

下载: 导出CSV

H+D=35 m时空间位置关系系数 $\lambda$ 建议值

Table 4 Suggested values of coefficient of spatial position relationship when H+D=35 m (单位: m)

h_j	b
h_j	3	7	11	15	19	23	27	31	≥35
3	0.5	0.6	0.6	0.7	0.8	0.8	0.8	0.9	1
6	0.4	0.5	0.6	0.7	0.8	0.8	0.9	1	1
9	0.4	0.5	0.6	0.7	0.8	0.9	1	1	1
12	0.4	0.6	0.7	0.8	0.9	0.9	1	1	1
15	0.5	0.6	0.8	0.9	0.9	1	1	1	1
18	0.5	0.7	0.9	0.9	1	1	1	1	1
21	0.6	0.8	0.9	1	1	1	1	1	1
24	0.7	0.9	1	1	1	1	1	1	1
27	0.8	0.9	1	1	1	1	1	1	1
30	0.9	1	1	1	1	1	1	1	1
≥33	1	1	1	1	1	1	1	1	1

下载: 导出CSV

H+D=40 m时空间位置关系系数 $\lambda$ 建议值

Table 5 Suggested values of coefficient of spatial position relationship when H+D=40 m (单位: m)

h_j	b
h_j	3	9	15	21	27	33	39	≥45
3	0.8	0.9	0.7	0.7	0.8	0.9	0.9	1
6	0.9	0.6	0.7	0.7	0.8	0.9	1	1
9	0.4	0.6	0.7	0.8	0.8	0.9	1	1
12	0.4	0.6	0.7	0.8	0.9	1	1	1
15	0.4	0.6	0.7	0.9	1	1	1	1
18	0.5	0.7	0.8	0.9	1	1	1	1
21	0.5	0.7	0.9	1	1	1	1	1
24	0.6	0.8	0.9	1	1	1	1	1
27	0.7	0.9	1	1	1	1	1	1
30	0.8	0.9	1	1	1	1	1	1
33	0.9	1	1	1	1	1	1	1
≥36	1	1	1	1	1	1	1	1

下载: 导出CSV
