Improvement of spheropolyhedral-based discrete element method and its application in fracture process of rock mass
-

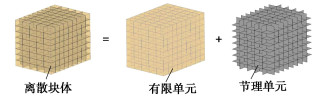

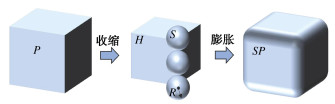

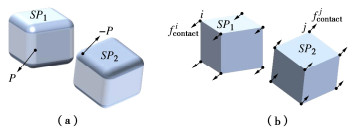

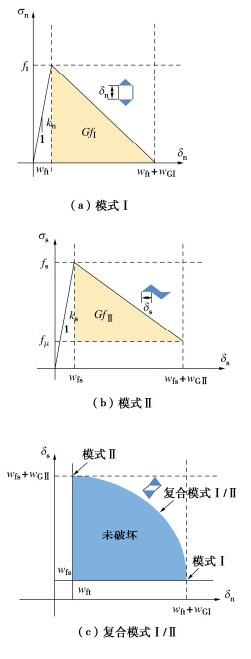

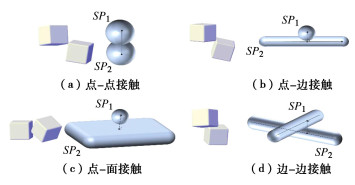

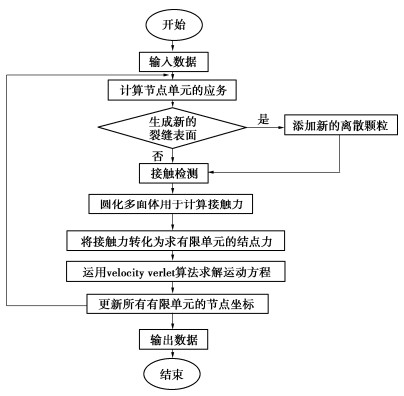

摘要: 为精确模拟岩体断裂的演化过程，将有限单元法与圆化多面体离散元法相结合，提出一种用于模拟断裂全过程的三维可变形圆化多面体离散单元法。为模拟块体的真实破坏状态，该方法将每个岩体颗粒都离散成有限单元，沿有限单元的边界嵌入无厚度节理单元，最后采用判断节理单元状态的方式来捕捉断裂过程产生的裂缝，岩体颗粒与断裂表面之间的接触相互作用通过圆化多面体离散元法求解。通过5个算例说明新方法的准确性和有效性，可用于模拟准脆性材料的断裂全过程，且能够捕捉裂缝萌生和扩展以及块体之间的碰撞和变形。Abstract: In order to accurately simulate the evolution process of fractures, a three-dimensional deformable spheropolyhedral-based discrete element method is proposed by combining the finite element method with the spheropolyhedral-based discrete element method to simulate the complete fracture process. This method simulates the failure state of rock masses in real life, discretizing each rock particle into a finite element and embedding the zero thickness joint element along the boundary of the finite element. Finally by judging the state of the joint element, the cracks generated during the fracture process are captured, and the contact interaction between rock particles and fracture surfaces is resolved by the spheropolyhedral-based discrete element method. The accuracy and effectiveness of the new method are demonstrated through five numerical examples. The numerical results show that the proposed method is feasible in simulating the complete fracture process of quasi-brittle materials, and can capture crack initiation and propagation, as well as collision and deformation between fragments.
-
-
![]()
图 3 岩体破裂过程的应力和位移
Figure 3. Stress and displacements of rock mass during failure process
![]()

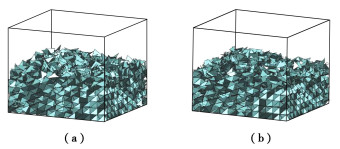

图 8 5346个四面体颗粒最终堆积形式
Figure 8. Final packing morphology exhibited by 5346 tetrahedral particles
![]()

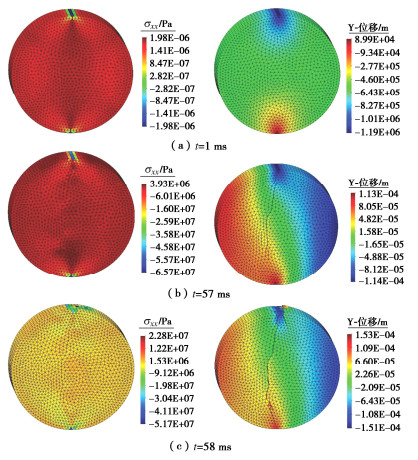

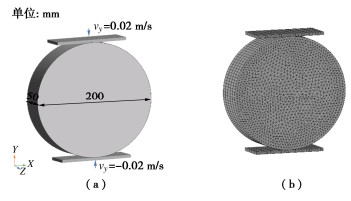

图 10 本文提出方法预测圆盘的断裂演化过程
Figure 10. Prediction of fracture evolution process of disk by proposed method
![]()

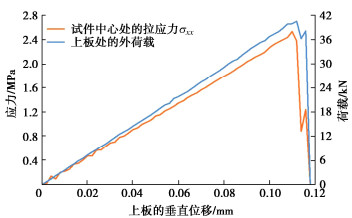

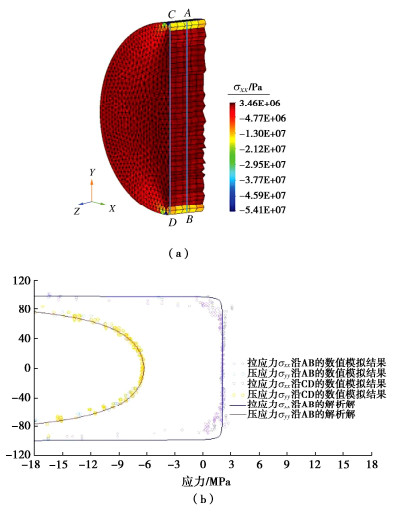

图 12 上板处的外荷载和试件中心处的拉应力
Figure 12. External loads on upper plate and tensile stresses at center of specimen
![]()

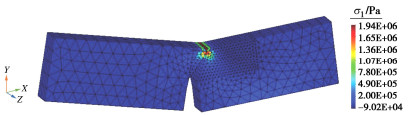

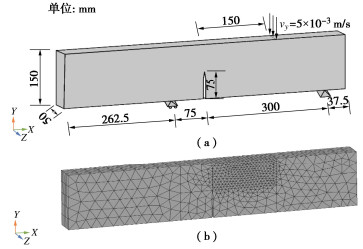

图 14 单缺口梁的变形结构(放大100倍)
Figure 14. Deformation struture of single notched beam (Amplified 100 times)
![]()

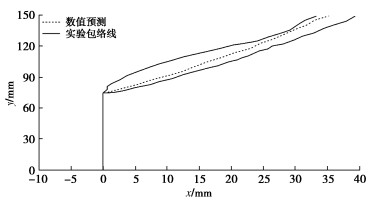

图 15 裂缝轨迹数值模拟结果与试验结果的对比
Figure 15. Comparison between numerical and experimental results of crack trajectory
![]()

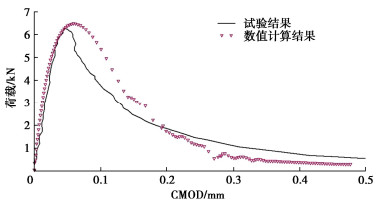

图 16 荷载与CMOD数值模拟与试验结果的对比
Figure 16. Comparison of numerical simulation and experimental results of load and CMOD
![]()

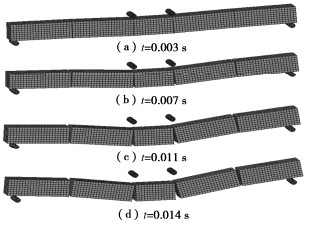

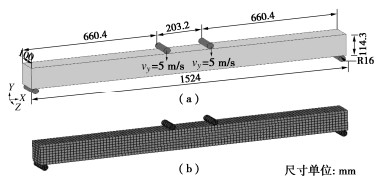

图 18 本文提出方法预测混凝土梁的断裂变化过程
Figure 18. Change process of fracture of concrete beam by proposed method
![]()

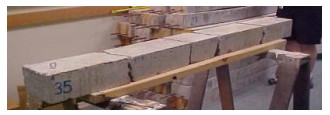

图 19 素混凝土最终断裂成5个部分[23]
Figure 19. Eventually fractured five parts of plain concrete beams
![]()

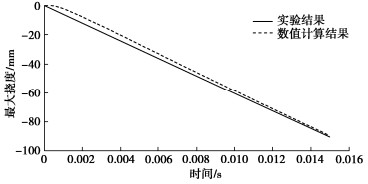

图 20 梁的最大挠度数值模拟与试验结果的对比
Figure 20. Comparison between numerical and experimental results of maximun deflection
![]()

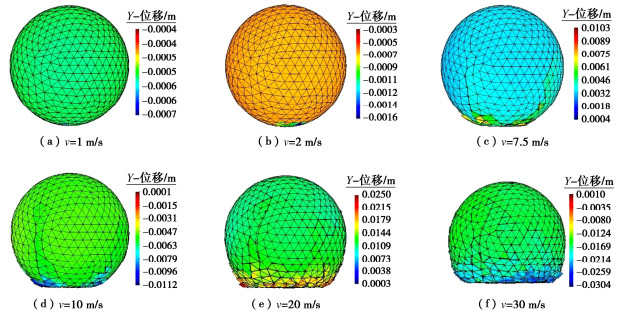

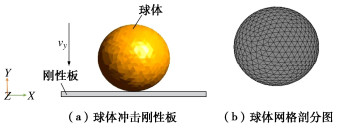

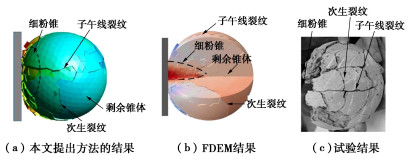

图 22 =0.75 ms时刻不同冲击速度下的断裂形态
Figure 22. Fracture patterns under different impact velocities when =0.75 ms
-
[1] 陈旭东, CHAN A H C, 杨健. 普通玻璃受冲击破坏的有限离散元方法分析[C]// 全国结构工程学术会议, 厦门, 2015. CHEN Xudong, CHAN A H C, YANG Jian. Analysis of the impact damage of monolithic glass using the combined finite-discrete element method[C]// National Conference on Structural Engineering, Xiamen, 2015. (in Chinese)
[2] 张开雨, 刘丰, 夏开文. 模拟脆性材料动态裂纹扩展的非连续变形分析方法[J]. 岩土工程学报, 2022, 44(1): 125-133. doi: 10.11779/CJGE202201012 ZHANG Kaiyu, LIU Feng, XIA Kaiwen. Numerical study on dynamic crack propagation of brittle materials by discontinuous deformation analysis[J]. Chinese Journal of Geotechnical Engineering, 2022, 44(1): 125-133. (in Chinese) doi: 10.11779/CJGE202201012
[3] 喻志发, 于长一, 刘丰, 等. 数值流形法在裂纹扩展中的应用[J]. 岩土工程学报, 2020, 42(4): 751-757. doi: 10.11779/CJGE202004019 YU Zhifa, YU Changyi, LIU Feng, et al. Application of numerical manifold method in crack propagation[J]. Chinese Journal of Geotechnical Engineering, 2020, 42(4): 751-757. (in Chinese) doi: 10.11779/CJGE202004019
[4] CUNDALL P A., STRACK O D L. A discrete numerical model for granular assemblies[J]. Géotechnique, 1979, 29: 47-65. doi: 10.1680/geot.1979.29.1.47
[5] 陈凌霄, 田文祥, 马刚, 等. 模拟准脆性材料热开裂的热力耦合格构离散单元法[J]. 浙江大学学报(工学版), 2022, 56(9): 1750-1760, 1771. https://www.cnki.com.cn/Article/CJFDTOTAL-ZDZC202209008.htm CHEN Lingxiao, TIAN Wenxiang, MA Gang, et al. Thermal-mechanical coupled lattice discrete element method for simulating thermal cracking of quasi-brittle materials[J]. Journal of Zhejiang University (Engineering Science), 2022, 56(9): 1750-1760, 1771. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-ZDZC202209008.htm
[6] 张卫杰, 高玉峰, 黄雨, 等. 水土耦合SPH数值模型的正则化修正及其应用[J]. 岩土工程学报, 2018, 40(2): 262-269. doi: 10.11779/CJGE201802006 ZHANG Weijie, GAO Yufeng, HUANG Yu, et al. Normalized correction of soil-water-coupled SPH model and its application[J]. Chinese Journal of Geotechnical Engineering, 2018, 40(2): 262-269. (in Chinese) doi: 10.11779/CJGE201802006
[7] 李腊梅, 冯春. 一种非连续介质中热传导过程的数值模拟方法[J]. 工程力学, 2016, 33(1): 25-31, 46. https://www.cnki.com.cn/Article/CJFDTOTAL-GCLX201601005.htm LI Lamei, FENG Chun. A numerical simulation method for heat conduction in discontinuous media[J]. Engineering Mechanics, 2016, 33(1): 25-31, 46. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-GCLX201601005.htm
[8] 毛佳, 赵兰浩, 刘勋楠, 等. 滑坡过程数值模拟的三维距离势离散元法[J]. 中国矿业大学学报, 2020, 49(6): 1094-1100. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGKD202006008.htm MAO Jia, ZHAO Lanhao, LIU Xunnan, et al. Numerical simulation of landslides with the three-dimensional distance potential discrete element method[J]. Journal of China University of Mining & Technology, 2020, 49(6): 1094-1100. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-ZGKD202006008.htm
[9] 严成增, 孙冠华, 郑宏, 等. 基于局部单元劈裂的FEM/DEM自适应分析方法[J]. 岩土力学, 2014, 35(7): 2064-2070. https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX201407041.htm YAN Chengzeng, SUN Guanhua, ZHENG Hong, et al. Adaptive FEM/DEM analysis method based on local splitting elements[J]. Rock and Soil Mechanics, 2014, 35(7): 2064-2070. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX201407041.htm
[10] ZHANG H, CHEN G Q, ZHENG L, et al. Detection of contacts between three-dimensional polyhedral blocks for discontinuous deformation analysis[J]. International Journal of Rock Mechanics and Mining Sciences, 2015, 78: 57-73. doi: 10.1016/j.ijrmms.2015.05.008
[11] MUNJIZA A. The Combined Finite-Discrete Element Method[M]. Chichester, West Sussex, England: Wiley, 2004.
[12] 叶继红, 齐念. 基于离散元法与有限元法耦合模型的网壳结构倒塌过程分析[J]. 建筑结构学报, 2017, 38(1): 52-61. https://www.cnki.com.cn/Article/CJFDTOTAL-JZJB201701006.htm YE Jihong, QI Nian. Collapse process simulation of reticulated shells based on coupled DEM/FEM model[J]. Journal of Building Structures, 2017, 38(1): 52-61. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-JZJB201701006.htm
[13] 严成增. FDEM-TM方法模拟岩石热破裂[J]. 岩土工程学报, 2018, 40(7): 1198-1204. doi: 10.11779/CJGE201807005 YAN Chengzeng. Simulating thermal cracking of rock using FDEM-TM method[J]. Chinese Journal of Geotechnical Engineering, 2018, 40(7): 1198-1204. (in Chinese) doi: 10.11779/CJGE201807005
[14] ZHAO L H, LIU X N, MAO J, et al. A novel discrete element method based on the distance potential for arbitrary 2D convex elements[J]. International Journal for Numerical Methods in Engineering, 2018, 115: 238-67. doi: 10.1002/nme.5803
[15] 刘璐, 龙雪, 季顺迎. 基于扩展多面体的离散单元法及其作用于圆桩的冰载荷计算[J]. 力学学报, 2015, 47(6): 1046-1057. https://www.cnki.com.cn/Article/CJFDTOTAL-LXXB201506018.htm LIU Lu, LONG Xue, JI Shunying. Dilated polyhedra based discrete element method and its application of ice load on cylindrical pile[J]. Chinese Journal of Theoretical and Applied Mechanics, 2015, 47(6): 1046-1057. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-LXXB201506018.htm
[16] GALINDO-TORRES S A, PEDROSO D M. Molecular dynamics simulations of complex-shaped particles using Voronoi-based spheropolyhedra[J]. Phys Rev E Stat Nonlin Soft Matter Phys, 2010, 81(6 pt 1): 061303.
[17] HILLERBORG A, MODÉER M, PETERSSON P E. Analysis of crack formation and crack growth in concrete by means of fracture mechanics and finite elements[J]. Cement and Concrete Research, 1976, 6(6): 773-781. doi: 10.1016/0008-8846(76)90007-7
[18] ZHOU X P, CHENG H. Multidimensional space method for geometrically nonlinear problems under total lagrangian formulation based on the extended finite-element method [J]. Journal of Engineering Mechanics, 2017, 143(7): 04017036. doi: 10.1061/(ASCE)EM.1943-7889.0001241
[19] 王璐, 徐绯, 杨扬. 完全拉格朗日SPH在冲击问题中的改进和应用[J]. 力学学报, 2022, 54(12): 3297-3309. doi: 10.6052/0459-1879-22-214 WANG Lu, XU Fei, YANG Yang. Improvement of the total Lagrangian sph and its application in impact problems[J]. Chinese Journal of Theoretical and Applied Mechanics, 2022, 54(12): 3297-3309. (in Chinese) doi: 10.6052/0459-1879-22-214
[20] ZHENG F, LEUNG Y F, ZHU J B, et al. Modified predictor-corrector solution approach for efficient discontinuous deformation analysis of jointed rock masses [J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2019, 43(2): 599-624. doi: 10.1002/nag.2881
[21] PATEL S, MARTIN C D. Evaluation of tensile Young's modulus and Poisson's ratio of a Bi-modular rock from the displacement measurements in a Brazilian test[J]. Rock Mechanics and Rock Engineering, 2018, 51(2): 361-373. doi: 10.1007/s00603-017-1345-5
[22] GÁLVEZ J C, ELICES M, GUINEA G V, et al. Mixed mode fracture of concrete under proportional and nonproportional loading[J]. International Journal of Fracture, 1998, 94(3): 267-284. doi: 10.1023/A:1007578814070
[23] MURRAY Y, ABU-ODEH A, BLIGH R. Evaluation of LS-DYNA Concrete material model 159[R]. United States: Federal Highway Administration, Office of Research, Development, and Technology, 2007.
[24] KHANAL M, SCHUBERT W, TOMAS J. Ball impact and crack propagation-simulations of particle compound material[J]. Granular Matter, 2004, 5(4): 177-184. doi: 10.1007/s10035-003-0149-3
-
