XFEM-based investigation on sliding regularities of soil slopes
-
摘要: 近年来对于边坡稳定的研究不再局限于安全系数的分析，而是越来越多地关注边坡可能的失稳模式和失稳过程，以提供更具针对性的防治建议。基于XFEM构造模拟土质边坡失稳滑裂过程的方法，将边坡失稳过程概化为滑裂面的发生、扩展和贯通的过程。采用黏聚裂缝模型和摩擦接触理论描述滑裂面上的接触行为，并设计一种扇形扩展控制域来表述滑裂面前端的应力集中和重分布行为，进而合理判断滑裂面的扩展时机和方向。模拟分析了一种人工设计土坡在坡顶堆载作用下的滑裂面扩展规律，比较了土体弹性模量和内摩擦角对于滑裂规律的影响。结果表明，所提方法可以合理有效地模拟边坡失稳滑裂过程，两种参数对于滑裂规律的影响符合一般认知，并根据模拟结果对推移式滑坡的发展速度和成层边坡的局部张拉裂缝给出了细观解释。Abstract: In recent years, the researches on slope stability are no longer limited to the analysis of safety factor, but more and more attention is paid to the possible failure modes and processes of slopes so as to provide more targeted prevention and control suggestions. It is aimed to establish a method for simulating the failure and sliding process of soil slopes based on the XFEM, in which the sliding process of slopes is generalized into the process of the initiation, expansion and connection of the sliding surface. The contact behavior of the sliding surface is described by the cohesive fracture model and the frictional contact theory, and a fan-shaped expansion control domain is designed to describe the stress concentration and redistribution behavior of the front end of the sliding surface so as to judge the expansion time and direction of the sliding surface reasonably. The expansion regularities of sliding surface of a manually designed soil slope with heap loading on the top are simulated and analyzed. The influences of elastic modulus and internal friction angle of soil on the sliding regularities are compared. The results show that the proposed method can simulate the failure and sliding process of soil slopes reasonably and effectively. The influences of the two parameters on the sliding regularities are consistent with the general cognition, and the simulated results may provide a mesoscopic explanation for the development speed of thrust-type landslide and the local tensile cracks of the stratified slopes.
-
Keywords:
- XFEM /
- thrust-type landslide /
- sliding surface /
- stratified soil slope /
- sliding regularity
-
-
![]()

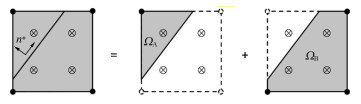

图 1 被不连续界面贯穿单元及其积分示意图
Figure 1. Schematic diagram of an element cut by discontinuous interface and its integration
![]()

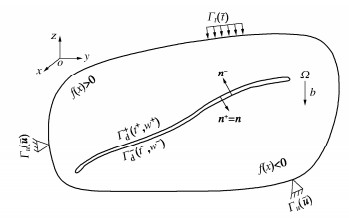

图 2 边界非线性初边值问题示意图
Figure 2. Schematic diagram of nonlinear initial boundary value problem
![]()

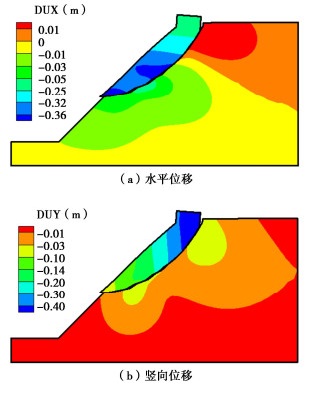

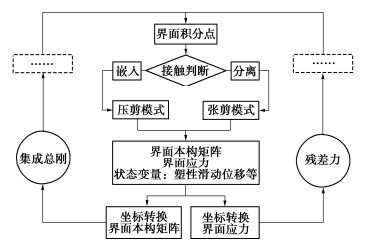

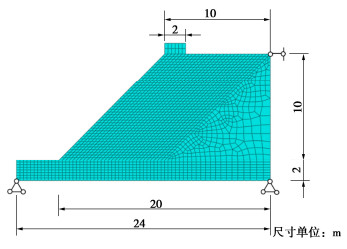

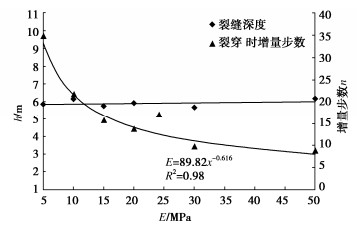

图 7 不同弹性模量下滑裂面深度与位移荷载的变化
Figure 7. Variation of depth of sliding surface and displacement load with elastic modulus
![]()

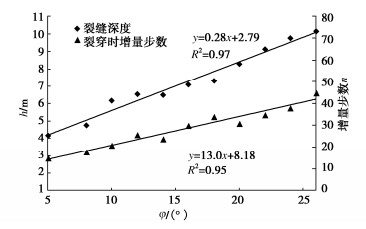

图 8 滑裂面深度与位移荷载随内摩擦角的变化
Figure 8. Variation of depth of sliding surface and displacement load with internal friction angle
![]()

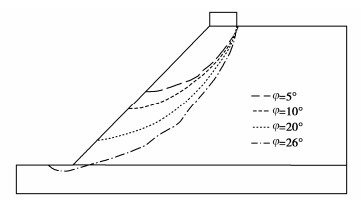

图 9 不同内摩擦角下的滑裂面形态
Figure 9. Variation of morphology of sliding surface with internal friction angle
![]()

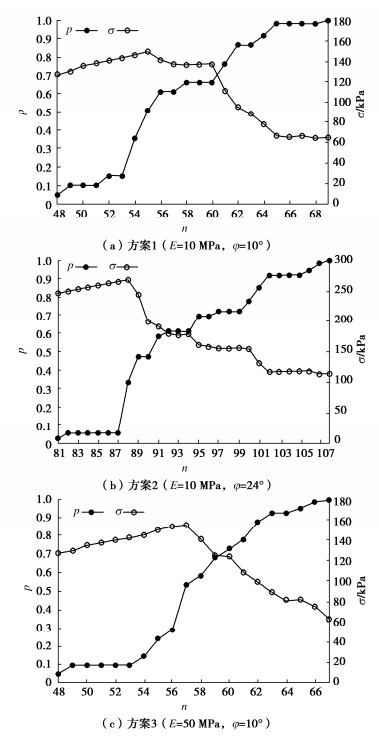

图 10 滑裂面扩展过程中反力的变化图
Figure 10. Variation of counter force during surface expansion of sliding
![]()

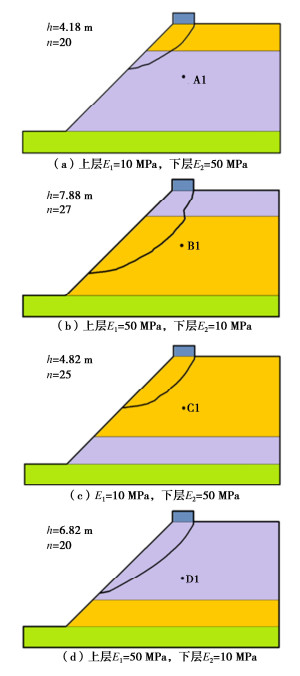

图 11 两种成层土坡不同弹性模量的计算结果
Figure 11. Calculated results of different elastic moduli of two stratified soil slopes
![]()

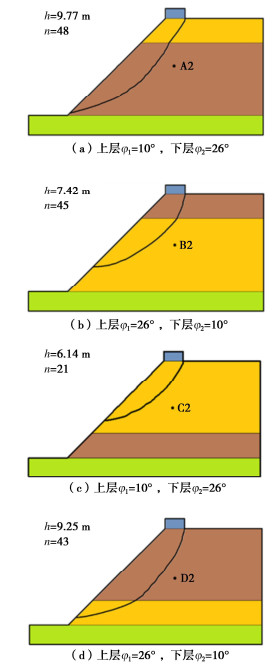

图 12 两种成层土坡不同内摩擦角的计算结果
Figure 12. Calculated results of different internal friction angles of two stratified soil slopes
![]()

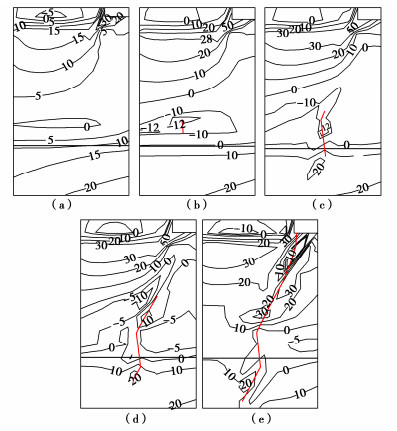

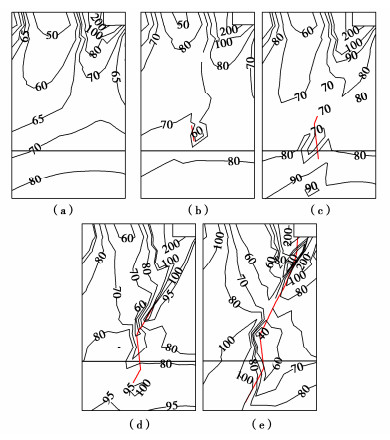

图 13 大主应力等值线图和滑裂面发展轨迹（kPa）
Figure 13. Contours of major principal stress and trajectory of slding surface (kPa)
-
