基于空间面变化的横观各向同性破坏准则研究

许萍; 邵生俊; 房凌云; 孙志军

doi:10.11779/CJGE202206007

基于空间面变化的横观各向同性破坏准则研究 English Version

1.
西安理工大学水利水电学院, 陕西西安 710048
2.
西安理工大学土木与建筑工程学院岩土工程研究所, 陕西西安 710048

基金项目:

国家自然科学基金青年基金项目 51808445

陕西省科技创新团队 2022TD-01

陕西省自然科学基础研究项目 2022JM-216

详细信息

作者简介:
许萍(1986—)，女，陕西西安人，讲师，主要从事岩土材料测试及土石坝灾害防治。E-mail：xuping1986@xaut.edu.cn

中图分类号: TU43
计量
- 文章访问数: 058
- HTML全文浏览量: 0
- PDF下载量: 0115
出版历程
- 收稿日期: 2021-05-16
- 网络出版日期: 2022-09-22
- 刊出日期: 2022-05-31

Cross-isotropic strength criteria based on spatial plane variation

1.
Institute of Water Resources and Hydro-electric Engineering, Xi'an University of Technology, Xi'an 710048, China
2.
Institute of Geotechnical Engineering, Xi'an University of Technology, Xi'an 710048, China

摘要

摘要: 自然界中的岩土类材料受天然沉积作用影响，往往具有显著的横观各向同性特征。土结构单元在不同方向上的强度和变形的差异是影响大型土木水利工程设计和施工时需要考虑的主要问题，开展岩土材料横观各向同性研究对实际工程结构安全稳定相关研究具有重要的科学意义。在对八面体主应力空间域强度变化与空间滑动面、应力状态三者关系研究的基础上，定义一个反映应力条件与材料特性的综合参数，通过分析该参量与破坏应力、应力状态的关系，明确了该参量的物理意义，并基于空间面强度理论考虑3个主应力空间面发生滑动破坏，假定该空间面上剪应力和法向应力之比为常数，建立考虑岩土材料的空间滑动面随着空间应力域应力条件变化的横观各向同性破坏准则。通过与试验结果对比表明，所建议的基于空间面变化的横观各向同性破坏准则可以较好地反映材料的强度特性，特别对主应力轴发生偏转时应力域的强度预测具有较好的适用性。
- 空间滑动面 /
- 应力条件 /
- 横观各向同性 /
- 破坏准则
Abstract: The geotechnical materials in nature are affected by the natural sedimentation and often have significant cross-isotropic characteristics. The difference in strength and deformation of structural units of soil in different directions is the main issue that should be considered when affecting the design and construction of large-scale civil and hydraulic projects. The research on the cross isotropy of geotechnical materials is of great scientific significance to the safety and stability of actual engineering structures. Based on the study on the relationship among the strength variation of octahedral principal stress space domain, the spatial mobilized plane and the stress state, a comprehensive parameter reflecting the stress conditions and material properties is defined. By analyzing the relationship among this parameter, the failure stress and the stress state, the physical meaning of the parameter is clarified, and based on the space plane strength theory, the sliding failure of the three principal stress planes is considered. It is assumed that the space on the ratio of the shear stress to the normal stress is constant, and a cross-isotropic failure criterion is established considering that the spatial sliding surface of geomaterials changes with the stress conditions of the spatial stress domain. Compared with the experimental results, it is shown that the cross-isotropic failure criterion based on the spatial mobilized plane variation can better reflect the strength characteristics of the materials, and it is particularly applicable to the strength prediction of the stress region when the principal stress axis deflects.
- spatial mobilized plane /
- stress condition /
- cross isotropy /
- failure criterion

HTML全文

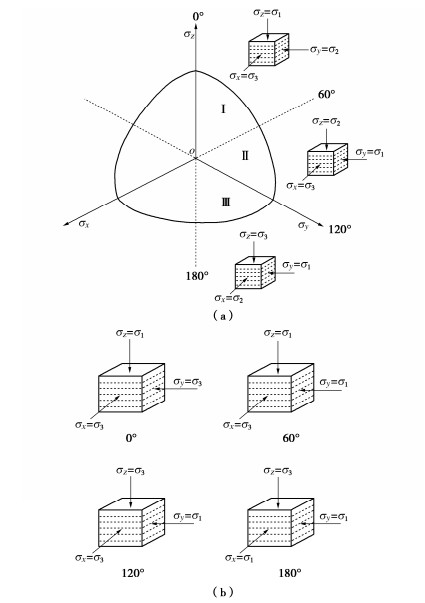

图 1 主应力状态与八面体应力空间的关系

Figure 1. Relationship between principal stress state and spatial domain of octahedral stress

下载: 全尺寸图片幻灯片

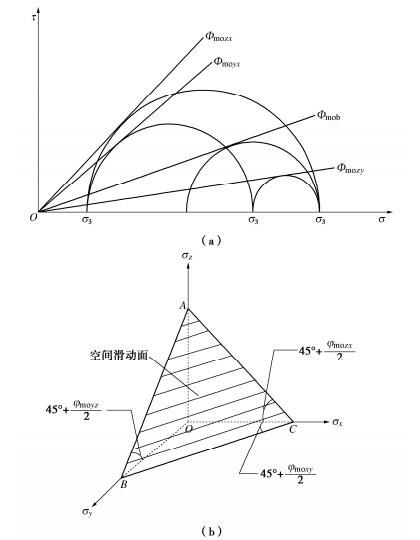

图 2 空间滑动面示意图

Figure 2. Schematic diagram of generalized space plane

下载: 全尺寸图片幻灯片

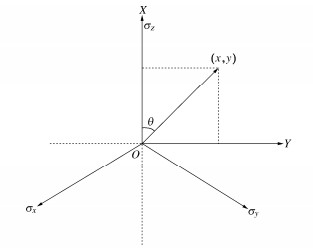

图 3 应力空间示意图

Figure 3. Diagram of principal stress space

下载: 全尺寸图片幻灯片

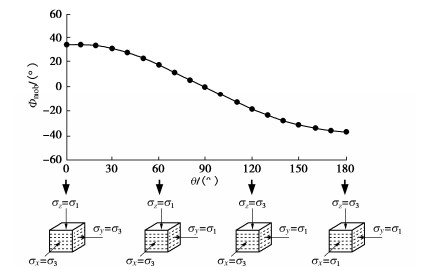

横观各向同性参数 ${\varPhi _{{\text{mob}}}}$ 随径向偏角 $\theta$ 变化

Variation of anisotropic parameter ${\varPhi _{{\text{mob}}}}$ with radial declination $\theta$

下载: 全尺寸图片幻灯片

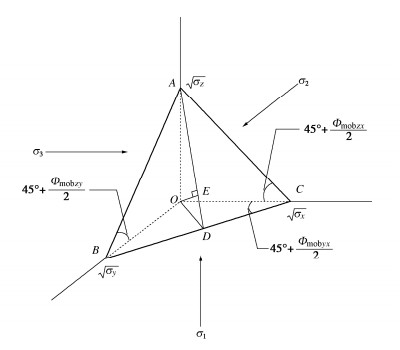

图 5 空间滑动面上的应力

Figure 5. Stresses on spatial mobilized plane

下载: 全尺寸图片幻灯片

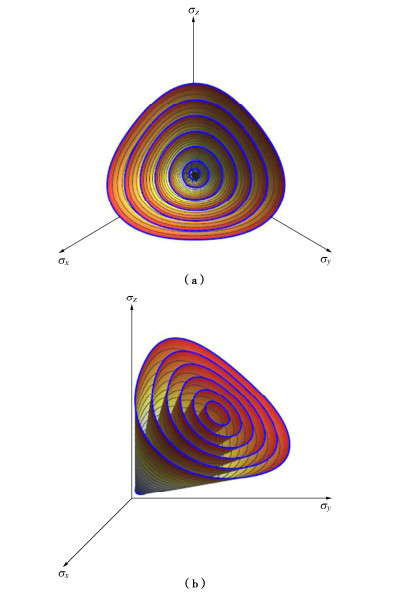

图 6 偏平面上的空间面变化的横观各向同性破坏准则

Figure 6. Cross-isotropic failure criteria on deviatoric plane under rotation of principal stress space

下载: 全尺寸图片幻灯片

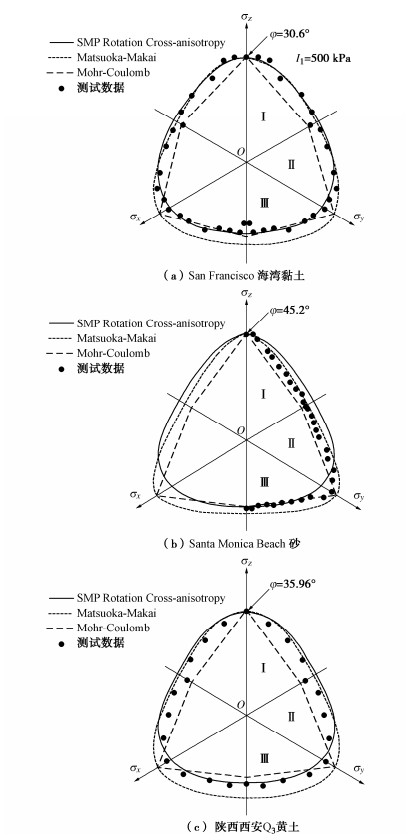

图 7 横观各向同性破坏准则比较

Figure 7. Comparison between test results and failure criteria for cross-anisotropic loess

下载: 全尺寸图片幻灯片
