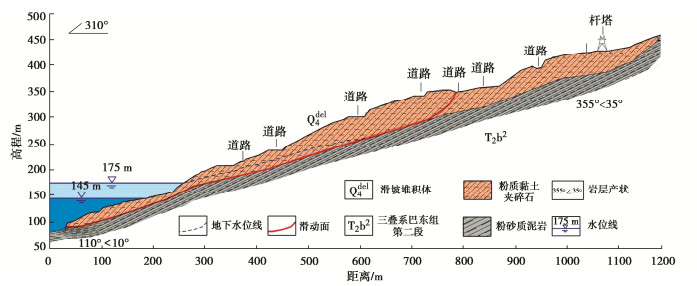

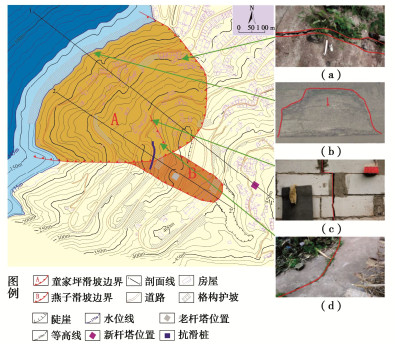

Strength characteristics of slip zone soils of Tongjiaping landslide in Three Gorges Reservoir area based on seepage-ring shear tests
-

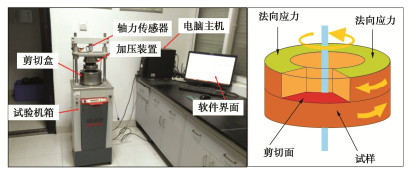

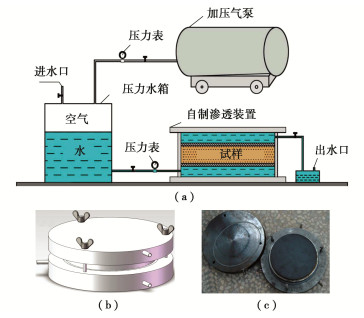

摘要: 滑带土对于滑坡的变形演化起到至关重要的控制作用，开展不同渗透条件下滑带土强度特性研究，对水库堆积层滑坡动态稳定性评价具有重要意义。针对目前在库岸堆积层滑坡滑带土渗透-力学特性方面研究薄弱的问题，以三峡库区童家坪滑坡滑带土为研究对象，采用ARS环剪仪和自主研发的渗透-环剪耦合装置，开展了多种渗透条件下的环剪试验，研究了不同渗透循环次数、循环渗透压变化量、初始渗透压以及恒定渗透压作用下滑带土残余强度特性。试验结果表明：试样在渗透-环剪试验中易出现“应变软化”现象，并且随渗透循环次数的增加而愈发明显；渗透循环会显著削弱滑带土的黏聚力的大小；在相同剪切应力条件下，经渗透作用的各滑带土试样剪应力变化趋势基本一致，残余强度与渗透压呈负相关关系。研究成果揭示了不同渗透-环剪条件下滑带土力学强度弱化规律，为水库运行条件下堆积层滑坡力学机制研究提供了基础。Abstract: The slip zone soil plays an important role in controlling the deformation and evolution of landslides. It is of great significance to study the strength characteristics of slip zone soils under different seepage conditions for the dynamic stability evaluation of reservoir accumulation landslides. In view of the current weak researches on the seepage-mechanical properties of soils of reservoir accumulation landslides, the Tongjiaping landslide slip zone soil in the Three Gorges Reservoir area is taken as an example to study the residual strength characteristics based on the ring shear tests under different seepage conditions. The ARS ring shear apparatus and the self-developed coupling devices for seepage-ring shear are employed to operate different shear modes of cyclic seepage pressure on the strength variation characteristics of the slip zone soil. The experimental results indicate that the phenomenon of 'strain softening' easily appears, meanwhile, it is promoted by the increase of seepage cycle. Additionally, the seepage cycle significantly weakens the cohesion of the slip zone soil. Moreover, under the same shear stress condition, the change trend of the shear stress under the action of seepage is basically the same, however, the residual strength is negatively correlated with the seepage pressure. The research results reveal the weakening laws of mechanical strength of the sliding zone soil under seepage cycle, which provides a basis for the studies on the mechanical mechanism of accumulation landslides under reservoir operation.
-
Keywords:
- Three Gorges Reservoir /
- slip zone soil /
- ring shear test /
- seepage cycle /
- residual strength
-
-
![]()

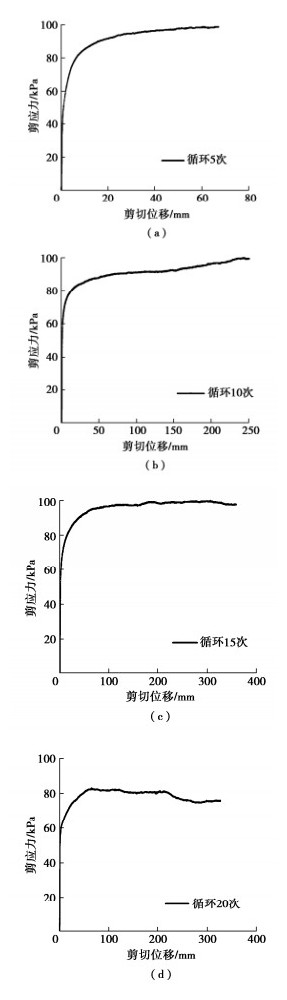

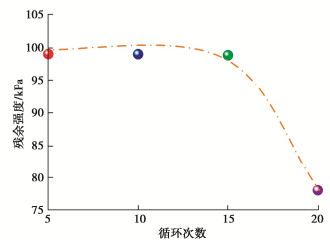

图 7 不同循环次数下滑带土残余强度特征
Figure 7. Residual strength characteristics of slip zone soil under different cycles
![]()

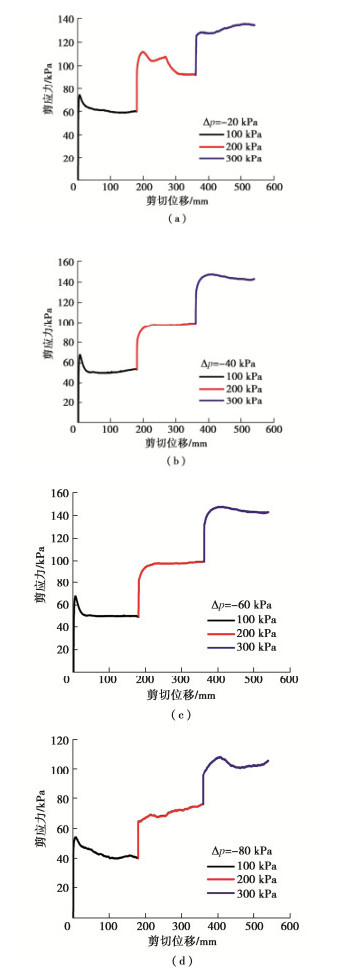

图 8 不同渗透压变化量下的τ-s曲线
Figure 8. τ-s curves under different change amounts of seepage pressure
![]()
图 9 不同渗透压变化量下滑带土残余强度特征
Figure 9. Residual strength characteristics of slip zone soil with different change amount of osmotic pressure
![]()
图 10 不同渗透压变化量条件滑带土残余强度包线
Figure 10. Residual strength envelopes of sliding zone soil under different change amounts of seepage pressure
![]()

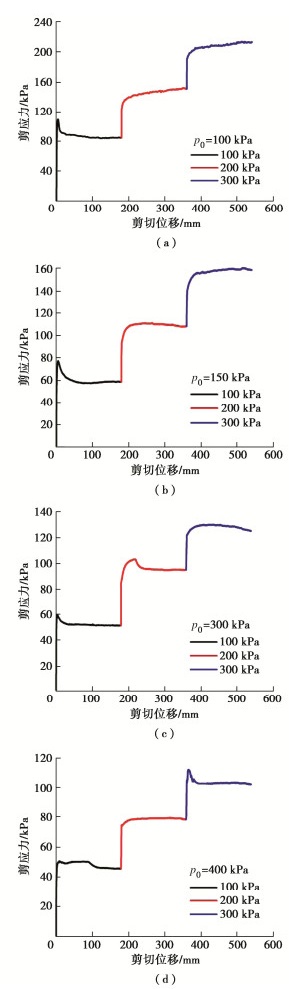

图 12 不同初始渗透压条件下滑带土残余强度特征
Figure 12. Residual strength characteristics of slip zone soil under different initial seepage pressures
![]()
图 13 不同初始渗透压条件下滑带土残余强度包线
Figure 13. Residual strength envelope of sliding zone soil under different initial seepage pressures
![]()

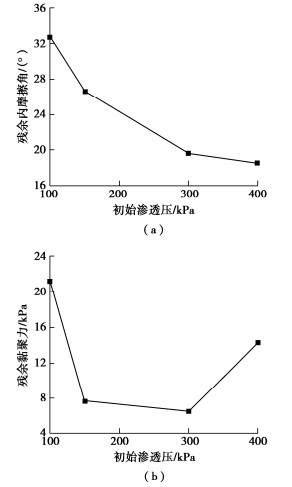

图 14 不同初始渗透压力条件下滑带土残余强度参数变化曲线
Figure 14. Variation curves of residual strength parameters of slip zone soil under different initial seepage pressures
![]()

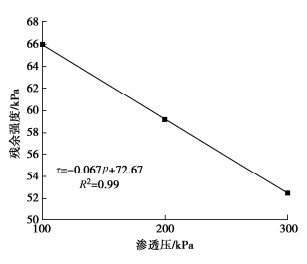

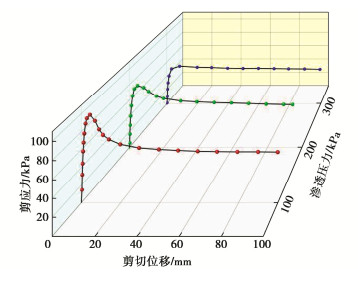

图 16 不同恒定渗透压下滑带土残余强度特征
Figure 16. Peak strength characteristics of slip zone soil under different constant seepage pressures

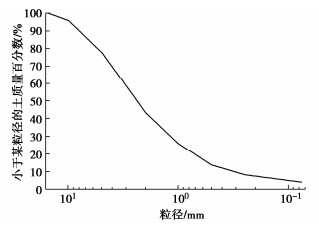

表 1 滑带土基本物理力学性质指标
Table 1 Basic physical and mechanical properties indexes of slip zone soil
天然含水率/% 饱和含水率/% 天然干密度/(g·cm-3) 土颗粒相对质量密度 液限/% 塑限/% 土样性质 19.58 29.43 1.51 2.72 28.9 17.8 碎土石
下载: 导出CSV
表 2 滑带土渗透环剪试验方案
Table 2 Scheme of seepage-ring shear tests on slip zone soil
试样编号 渗透压力/kPa 循环次数 有效法向应力/kPa 剪切速率/(mm·min-1) 备注 S1-1 200~150 5 200 0.5 不同渗透压循环次数N S1-2 10 S1-3 15 S1-4 20 S2-1 200~180 5 100，200，300 0.5 不同渗透压变化量Δp S2-2 200~160 S2-3 200~140 S2-4 200~120 S3-1 100~50 5 100，200，300 0.5 不同初始渗透压p0 S3-2 150~100 S3-3 300~250 S3-4 400~350 S4-1 100 — 100 0.5 恒定渗透压pc S4-2 200 S4-3 300
下载: 导出CSV
表 3 不同渗透压变化量条件下滑带土残余强度特征参数
Table 3 Residual strength characteristics of slip zone soil under different change amounts of seepage pressure
试验编号 渗透压变化量/kPa 不同轴压下残余强度/kPa 残余强度参数 100 kPa 200 kPa 300 kPa φr/(°) cr/kPa S2-1 -20 59.94 103.67 135.42 20.81 24.20 S2-2 -40 54.03 97.49 142.00 23.75 9.83 S2-3 -60 50.52 97.00 140.00 24.23 6.36 S2-4 -80 40.29 71.72 101.87 17.22 9.71
下载: 导出CSV
表 4 不同初始渗透压条件下滑带土残余强度特征参数
Table 4 Residual strength characteristics of slip zone soil under different initial seepage pressures
试验编号 初始渗透压/kPa 不同轴压下残余强度/kPa 残余强度参数 100 kPa 200 kPa 300 kPa φr/(°) cr/kPa S3-1 100 85.21 150.22 213.69 32.72 21.23 S3-2 150 57.96 106.97 157.95 26.56 7.64 S3-3 300 42.06 77.86 113.31 19.61 6.49 S3-4 400 45.76 78.88 103.15 18.54 14.33
下载: 导出CSV
-
[1] TANG H M, LI C D, HU X L, et al. Evolution characteristics of the Huangtupo landslide based on in situ tunneling and monitoring[J]. Landslides, 2015, 12(3): 511-521. doi: 10.1007/s10346-014-0500-2
[2] 黄波林, 殷跃平, 张枝华, 等. 三峡工程库区岩溶岸坡消落带岩体劣化特征研究[J]. 岩石力学与工程学报, 2019, 38(9): 1786-1796. doi: 10.13722/j.cnki.jrme.2018.1535 HUANG Bolin, YIN Yueping, ZHANG Zhihua, et al. Study on deterioration characteristics of shallow rock mass in water the level fluctuation zone of Karst bank slopes in Three Gorges Reservoir area[J]. Chinese Journal of Rock Mechanics and Engineering, 2019, 38(9): 1786-1796. (in Chinese) doi: 10.13722/j.cnki.jrme.2018.1535
[3] 殷跃平, 闫国强, 黄波林, 等. 三峡水库消落带斜坡岩体劣化过程地质强度指标研究[J]. 水利学报, 2020, 51(8): 883-896. https://www.cnki.com.cn/Article/CJFDTOTAL-SLXB202008001.htm YIN Yueping, YAN Guoqiang, HUANG Bolin, et al. Geological strength index of the slope rock mass deterioration process of the hydro-fluctuation belt in the Three Gorges Reservoir, China[J]. Journal of Hydraulic Engineering, 2020, 51(8): 883-896. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-SLXB202008001.htm
[4] 贺可强, 王荣鲁, 李新志, 等. 堆积层滑坡的地下水加卸载动力作用规律及其位移动力学预测: 以三峡库区八字门滑坡分析为例[J]. 岩石力学与工程学报, 2008, 27(8): 1644-1651. doi: 10.3321/j.issn:1000-6915.2008.08.014 HE Keqiang, WANG Ronglu, LI Xinzhi, et al. Load-unload dynamic law of groundwater level and dynamic displacement prediction of debris landslide—a case study of bazimen landslide in Three Gorges Reservoir[J]. Chinese Journal of Rock Mechanics and Engineering, 2008, 27(8): 1644-1651. (in Chinese) doi: 10.3321/j.issn:1000-6915.2008.08.014
[5] 成国文, 李善涛, 李晓, 等. 万州近水平地层区堆积层滑坡成因与变形破坏特征[J]. 工程地质学报, 2008, 16(3): 17-23. https://www.cnki.com.cn/Article/CJFDTOTAL-GCDZ200803004.htm CHENG Guowen, LI Shantao, LI Xiao, et al. Forming causes and deformation-destruction characters of accumulative stratum landslide in horizontal stratum in Wanzhou[J]. Journal of Engineering Geology, 2008, 16(3): 17-23. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-GCDZ200803004.htm
[6] 许强. 滑坡的变形破坏行为与内在机理[J]. 工程地质学报, 2012, 20(2): 145-151. doi: 10.3969/j.issn.1004-9665.2012.02.001 XU Qiang. Theoretical studies on prediction of landslides using slope deformation process data[J]. Journal of Engineering Geology, 2012, 20(2): 145-151. (in Chinese) doi: 10.3969/j.issn.1004-9665.2012.02.001
[7] LIAO K, WU Y P, MIAO F S, et al. Effect of weakening of sliding zone soils in hydro-fluctuation belt on long-term reliability of reservoir landslides[J]. Bulletin of Engineering Geology and the Environment, 2021, 80(5): 3801-3815. doi: 10.1007/s10064-021-02167-9
[8] 田斌, 戴会超, 王世梅. 滑带土结构强度特征及其强度参数取值研究[J]. 岩石力学与工程学报, 2004, 23(17): 2887-2892. doi: 10.3321/j.issn:1000-6915.2004.17.007 TIAN Bin, DAI Huichao, WANG Shimei. Strength chracteristics of soil in slide zone and determination of its parameters[J]. Chinese Journal of Rock Mechanics and Engineering, 2004, 23(17): 2887-2892. (in Chinese) doi: 10.3321/j.issn:1000-6915.2004.17.007
[9] TAN Q W, TANG H M, FAN L, et al. In situ triaxial creep test for investigating deformational properties of gravelly sliding zone soil: example of the Huangtupo 1# landslide, China[J]. Landslides, 2018, 15(12): 2499-2508. doi: 10.1007/s10346-018-1062-5
[10] 龙建辉, 李同录, 雷晓锋, 等. 黄土滑坡滑带土的物理特性研究[J]. 岩土工程学报, 2007, 29(2): 289-293. doi: 10.3321/j.issn:1000-4548.2007.02.023 LONG Jianhui, LI Tonglu, LEI Xiaofeng, et al. Study on physical properties of soil in sliding zone of loess landslip[J]. Chinese Journal of Geotechnical Engineering, 2007, 29(2): 289-293. (in Chinese) doi: 10.3321/j.issn:1000-4548.2007.02.023
[11] 周翠英, 牟春梅. 软土破裂面的微观结构特征与强度的关系[J]. 岩土工程学报, 2005, 27(10): 1136-1141. doi: 10.3321/j.issn:1000-4548.2005.10.005 ZHOU Cuiying, MU Chunmei. Relationship between micro-structural characters of fracture surface and strength of soft clay[J]. Chinese Journal of Geotechnical Engineering, 2005, 27(10): 1136-1141. (in Chinese) doi: 10.3321/j.issn:1000-4548.2005.10.005
[12] 曹世超, 黄志全, 吴琦, 等. 巨型蠕滑滑坡滑带土特征强度特性试验研究[J]. 工程地质学报, 2019, 27(2): 341-349. https://www.cnki.com.cn/Article/CJFDTOTAL-GCDZ201902015.htm CAO Shichao, HUANG Zhiquan, WU Qi, et al. Experimental study on characteristic strength characteristics of slip zone of the giant creep landslide[J]. Journal of Engineering Geology, 2019, 27(2): 341-349. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-GCDZ201902015.htm
[13] MIAO F S, WU Y P, LI L W, et al. Weakening laws of slip zone soils during wetting–drying cycles based on fractal theory: a case study in the Three Gorges Reservoir (China)[J]. Acta Geotechnica, 2020, 15(7): 1909-1923. doi: 10.1007/s11440-019-00894-8
[14] SKEMPTON A W. Residual strength of clays in landslides, folded strata and the laboratory[J]. Géotechnique, 1985, 35(1): 3-18. doi: 10.1680/geot.1985.35.1.3
[15] GRATCHEV I B, SASSA K. Shear strength of clay at different shear rates[J]. Journal of Geotechnical and Geoenvironmental Engineering, 2015, 141(5): 06015002. doi: 10.1061/(ASCE)GT.1943-5606.0001297
[16] 张荣, 吴益平, 李小伟, 等. 不同含水率下滑带土抗剪强度特性研究[J]. 科学技术与工程, 2015, 15(15): 195-199. https://www.cnki.com.cn/Article/CJFDTOTAL-KXJS201515037.htm ZHANG Rong, WU Yiping, LI Xiaowei, et al. Research on shear strength of slide zone soil in different water content[J]. Science Technology and Engineering, 2015, 15(15): 195-199. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-KXJS201515037.htm
[17] 吴迪, 简文彬, 徐超. 残积土抗剪强度的环剪试验研究[J]. 岩土力学, 2011, 32(7): 2045-2050. doi: 10.3969/j.issn.1000-7598.2011.07.022 WU Di, JIAN Wenbin, XU Chao. Research on shear strength of residual soils by ring shear tests[J]. Rock and Soil Mechanics, 2011, 32(7): 2045-2050. (in Chinese) doi: 10.3969/j.issn.1000-7598.2011.07.022
[18] 刘动, 陈晓平. 滑带土环剪剪切面的微观观测与分析[J]. 岩石力学与工程学报, 2013, 32(9): 1827-1834. doi: 10.3969/j.issn.1000-6915.2013.09.014 LIU Dong, CHEN Xiaoping. Microscopic observation and analysis of ring shear surface of slip zone soil[J]. Chinese Journal of Rock Mechanics and Engineering, 2013, 32(9): 1827-1834. (in Chinese) doi: 10.3969/j.issn.1000-6915.2013.09.014
[19] SUZUKI M, VAN HAI N, YAMAMOTO T. Ring shear characteristics of discontinuous plane[J]. Soils and Foundations, 2017, 57(1): 1-22.
[20] 王顺, 项伟, 崔德山, 等. 不同环剪方式下滑带土残余强度试验研究[J]. 岩土力学, 2012, 33(10): 2967-2972. https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX201210016.htm WANG Shun, XIANG Wei, CUI Deshan, et al. Study of residual strength of slide zone soil under different ring-shear tests[J]. Rock and Soil Mechanics, 2012, 33(10): 2967-2972. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX201210016.htm
[21] 范志强, 唐辉明, 谭钦文, 等. 滑带土环剪试验及其对水库滑坡临滑强度的启示[J]. 岩土工程学报, 2019, 41(9): 1698-1706. http://manu31.magtech.com.cn/Jwk_ytgcxb/CN/abstract/abstract18001.shtml FAN Zhiqiang, TANG Huiming, TAN Qinwen, et al. Ring shear tests on slip soils and their enlightenment to critical strength of reservoir landslides[J]. Chinese Journal of Geotechnical Engineering, 2019, 41(9): 1698-1706. (in Chinese) http://manu31.magtech.com.cn/Jwk_ytgcxb/CN/abstract/abstract18001.shtml
[22] 廖建民, 吴益平, 欧光照, 等. 采用环剪仪对滑带土抗剪强度特性的研究[J]. 武汉理工大学学报, 2013, 35(10): 92-95. https://www.cnki.com.cn/Article/CJFDTOTAL-WHGY201310019.htm LIAO Jianmin, WU Yiping, OU Guangzhao, et al. Shear strength behavior of slide zone soil in ring shear tests[J]. Journal of Wuhan University of Technology, 2013, 35(10): 92-95. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-WHGY201310019.htm
[23] DUONG N T, SUZUKI M, VAN HAI N. Rate and acceleration effects on residual strength of Kaolin and Kaolin–bentonite mixtures in ring shearing[J]. Soils and Foundations, 2018, 58(5): 1153-1172.
[24] BHAT D R, YATABE R, BHANDARY N P. Study of preexisting shear surfaces of reactivated landslides from a strength recovery perspective[J]. Journal of Asian Earth Sciences, 2013, 77: 243-253.
-
