Coupled material point method and characteristic finite element method for saturated porous media
-

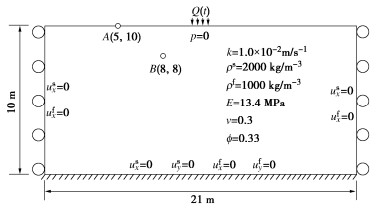

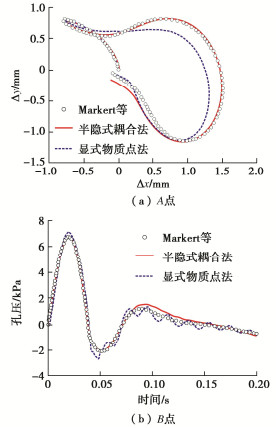

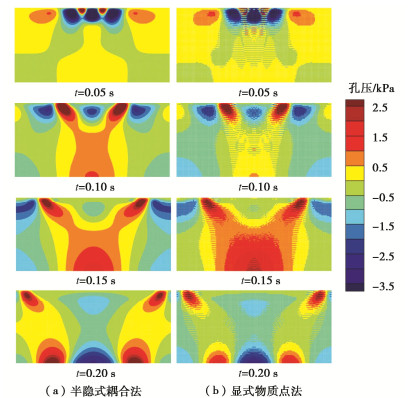

摘要: 物质点法是当下用于分析饱和孔隙介质大变形问题的常用手段。然而，传统的显式物质点法直接采用弱可压缩的泊松方程计算孔隙水压力，存在着孔隙水压力震荡以及压力边界难以施加等问题。鉴于此，提出了一个适用于饱和孔隙介质的耦合物质点-特征有限元方法。该算法将孔隙水视为不可压缩流体，基于特征线分裂算法的思想，将存在对流项的液相动量方程采用特征线法进行时间离散，并利用投影法分步计算固、液相中的压力和速度。应用此算法对一维饱和土柱的固结以及二维弹性地基中波的传播问题进行了数值模拟，所得结果与参考解基本相一致。计算结果表明新算法可以很好地克服显式物质点法在计算固结问题时产生的孔隙水压力震荡现象。Abstract: The material point method (MPM) is a common approach to analyze the large deformation of the saturated porous media. However, the pore pressure oscillations caused by the weak-compressibility fluid, and the complication to apply the pressure boundary are the main challenges in the conventional explicit MPM. In this study, a novel algorithm, which couples the MPM and characteristic finite element method (FEM) for the saturated porous media with the incompressible fluid, is proposed. Inspired by the characteristic-based split (CBS) method, the characteristic-based procedure is applied to the temporal discretion of the fluid momentum equation to avoid the instability induced by the convective term, and the projection method is introduced to split the velocity and pressure in the solid and fluid phases. Several numerical tests, involving the consolidation of one-dimensional saturated soil column and the wave propagation in two-dimensional elastic foundation, are conducted to examine the performance of the proposed method. The simulated results agree with the reference solutions, which indicates that the new algorithm can greatly overcome the water pressure oscillation of the consolidation problem in comparison with the explicit MPM.
-
-
![]()
图 2 不同时刻孔隙水压力沿深度的分布
Figure 2. Distribution of pore water pressure along height at different time
![]()
图 3 土柱中部孔隙水压力随时间的消散曲线
Figure 3. Dissipation curves of pore water pressure at middle of soil column
![]()
图 4 大变形条件下孔隙水压力沿深度随时间的分布
Figure 4. Distribution of pore water pressure along height with time under large deformation
![]()
图 5 小渗透系数下初始固结阶段孔压的分布
Figure 5. Distribution of pore pressure at initial consolidation stage with small permeability coefficient
-
[1] ZIENKIEWICZ O C. Computational geomechanics with special reference to earthquake engineering[M]. Chichester: John Wiley, 1999.
[2] HUANG M S, YUE Z Q, THAM L G, et al. On the stable finite element procedures for dynamic problems of saturated porous media[J]. International Journal for Numerical Methods in Engineering, 2004, 61(9): 1421-1450. doi: 10.1002/nme.1115
[3] 黄茂松, 魏星. 循环荷载饱和土动力学问题稳定有限元解法[J]. 岩土工程学报, 2005, 27(2): 173-177. doi: 10.3321/j.issn:1000-4548.2005.02.008 HUANG Maosong, WEI Xing. Stabilized finite elements for dynamic problems of saturated soil subjected to cyclic loading[J]. Chinese Journal of Geotechnical Engineering, 2005, 27(2): 173-177. (in Chinese) doi: 10.3321/j.issn:1000-4548.2005.02.008
[4] SULSKY D, CHEN Z, SCHREYER H L. A particle method for history-dependent materials[J]. Computer Methods in Applied Mechanics and Engineering, 1994, 118(1/2): 179-196.
[5] SOGA K, ALONSO E, YERRO A, et al. Trends in large-deformation analysis of landslide mass movements with particular emphasis on the material point method[J]. Géotechnique, 2016, 66(3): 248-273. doi: 10.1680/jgeot.15.LM.005
[6] JIN Y F, YIN Z Y, LI J, et al. A novel implicit coupled hydro-mechanical SPFEM approach for modelling of delayed failure of cut slope in soft sensitive clay[J]. Computers and Geotechnics, 2021, 140: 104474. doi: 10.1016/j.compgeo.2021.104474
[7] WANG L, ZHANG X, ZHANG S, et al. A generalized Hellinger-Reissner variational principle and its PFEM formulation for dynamic analysis of saturated porous media[J]. Computers and Geotechnics, 2021, 132: 103994. doi: 10.1016/j.compgeo.2020.103994
[8] BUI H H, NGUYEN G D. Smoothed particle hydrodynamics (SPH) and its applications in geomechanics: From solid fracture to granular behaviour and multiphase flows in porous media[J]. Computers and Geotechnics, 2021, 138: 104315. doi: 10.1016/j.compgeo.2021.104315
[9] WEN X, ZHAO W, WAN D. An improved moving particle semi-implicit method for interfacial flows[J]. Applied Ocean Research, 2021, 117: 102963. doi: 10.1016/j.apor.2021.102963
[10] LIU X, WANG Y, LI D. Numerical simulation of the 1995 rainfall-induced Fei Tsui road landslide in Hong Kong: new insights from hydro-mechanically coupled material point method[J]. Landslides, 2020, 17: 2755-2775. doi: 10.1007/s10346-020-01442-2
[11] YERRO A, ALONSO E E, PINYOL N M. Run-out of landslides in brittle soils[J]. Computers and Geotechnics, 2016, 80: 427-439. doi: 10.1016/j.compgeo.2016.03.001
[12] YERRO A, ALONSO E E, PINYOL N M. The material point method for unsaturated soils[J]. Géotechnique, 2015, 65(3): 201-217. doi: 10.1680/geot.14.P.163
[13] BANDARA S, SOGA K. Coupling of soil deformation and pore fluid flow using material point method[J]. Computers and Geotechnics, 2015, 63: 199-214. doi: 10.1016/j.compgeo.2014.09.009
[14] 张洪武, 王鲲鹏, 陈震. 基于物质点方法饱和多孔介质动力学模拟(Ⅰ): 耦合物质点方法[J]. 岩土工程学报, 2009, 31(10): 1505-1511. doi: 10.3321/j.issn:1000-4548.2009.10.005 ZHANG Hongwu, WANG Kunpeng, CHEN Zhen. Material point method for dynamic analysis of saturated porous media (Ⅰ): coupling material point method[J]. Chinese Journal of Geotechnical Engineering, 2009, 31(10): 1505-1511. (in Chinese) doi: 10.3321/j.issn:1000-4548.2009.10.005
[15] 张洪武, 王鲲鹏, 陈震. 基于物质点方法饱和多孔介质动力学模拟(Ⅱ): 饱和多孔介质与固体间动力接触分析[J]. 岩土工程学报, 2009, 31(11): 1672-1679. doi: 10.3321/j.issn:1000-4548.2009.11.005 ZHANG Hongwu, WANG Kunpeng, CHEN Zhen. Material point method for dynamic analysis of saturated porous media (Ⅱ): dynamic contact analysis between saturated porous media and solid bodies[J]. Chinese Journal of Geotechnical Engineering, 2009, 31(11): 1672-1679. (in Chinese) doi: 10.3321/j.issn:1000-4548.2009.11.005
[16] 张洪武, 王鲲鹏. 基于物质点方法饱和多孔介质动力学模拟(Ⅲ): 两相物质点方法[J]. 岩土工程学报, 2010, 32(4): 507-513. http://www.cgejournal.com/cn/article/id/12438 ZHANG Hongwu, WANG Kunpeng. Material point method for dynamic analysis of saturated porous media (Ⅲ): two-phase material point method[J]. Chinese Journal of Geotechnical Engineering, 2010, 32(4): 507-513. (in Chinese) http://www.cgejournal.com/cn/article/id/12438
[17] BECACHE E, RODRIGUEZ J, TSOGKA C. The finite element method with Lagrangian multipliers[J]. Numerische Mathematik, 1973, 20(3): 179-192. doi: 10.1007/BF01436561
[18] YANG J, YIN Z Y, LAOUAFA F, et al. Three-dimensional hydromechanical modeling of internal erosion in dike-on-foundation[J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2020, 44(8): 1200-1218. doi: 10.1002/nag.3057
[19] YANG J, YIN Z Y, LAOUAFA F, et al. Analysis of suffusion in cohesionless soils with randomly distributed porosity and fines content[J]. Computers and Geotechnics, 2019, 111: 157-171. doi: 10.1016/j.compgeo.2019.03.011
[20] GAWIN D, SCHREFLER B A, GALINDO M. Thermo- hydro-mechanical analysis of partially saturated porous materials[J]. Engineering Computations, 1996, 13(7): 113-143. doi: 10.1108/02644409610151584
[21] SCHREFLER B A, ZHAN X Y, SIMONI L. A coupled model for water flow, airflow and heat flow in deformable porous media[J]. International Journal of Numerical Methods for Heat & Fluid Flow, 1995, 5(6): 531-547.
[22] PAN S Y, YAMAGUCHI Y, SUPPASRI A, et al. MPM-FEM hybrid method for granular mass-water interaction problems[J]. Computational Mechanics, 2021, 68(1): 155-173. doi: 10.1007/s00466-021-02024-2
[23] HEINRICH J C, HUYAKORN P S, ZIENKIEWICZ O C, et al. An 'Upwind' finite element scheme for two-dimensional convective transport equation[J]. International Journal for Numerical Methods in Engineering, 1977, 11(1): 131-143. doi: 10.1002/nme.1620110113
[24] HEINRICH J C, ZIENKIEWICZ O C. Quadratic finite element schemes for two-dimensional convective-transport problems[J]. International Journal for Numerical Methods in Engineering, 1977, 11(12): 1831-1844. doi: 10.1002/nme.1620111207
[25] LÖHNER R, MORGAN K, ZIENKIEWICZ O C. The solution of non-linear hyperbolic equation systems by the finite element method[J]. International Journal for Numerical Methods in Fluids, 1984, 4(11): 1043-1063. doi: 10.1002/fld.1650041105
[26] YAMAGUCHI Y, TAKASE S, MORIGUCHI S, et al. Solid-liquid coupled material point method for simulation of ground collapse with fluidization[J]. Computational Particle Mechanics, 2020, 7(2): 209-223. doi: 10.1007/s40571-019-00249-w
[27] KULARATHNA S, LIANG W J, ZHAO T C, et al. A semi-implicit material point method based on fractional-step method for saturated soil[J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2021, 45(10): 1405-1436. doi: 10.1002/nag.3207
[28] CHORIN A J. Numerical solution of the Navier-Stokes equations[J]. Mathematics of Computation, 1968, 22(104): 745-762. doi: 10.1090/S0025-5718-1968-0242392-2
[29] ZIENKIEWICZ O C, TAYLOR R L, NITHIARASU P. The Finite Element Method for Fluid Dynamics[M]. Oxford: Butterworth-Heinemann, 2014.
[30] GAN Y, SUN Z, CHEN Z, et al. Enhancement of the material point method using B-spline basis functions[J]. International Journal for Numerical Methods in Engineering, 2018, 113(3): 411-431. doi: 10.1002/nme.5620
[31] KARL T. Theoretical Soil Mechanics[M]. Hoboken: John Wiley & Sons, Inc., 1943.
[32] BREUER S. Quasi-static and dynamic behavior of saturated porous media with incompressible constituents[M]//Porous Media: Theory and Experiments. Dordrecht: Springer Netherlands, 1999.
[33] MARKERT B, HEIDER Y, EHLERS W. Comparison of monolithic and splitting solution schemes for dynamic porous media problems[J]. International Journal for Numerical Methods in Engineering. 2010, 82(11): 1341-1383.
[34] SOGA K, KULARATHNA S. Solving dynamic soil deformation-fluid flow coupling problems using material point method[M]// Challenges and Innovations in Geomechanics. Cham: Springer International Publishing, 2021.
-
