Temperature effects and prediction model of thermal conductivity of soil
-
摘要: 考虑环境温度变化对土体导热系数的影响，对于地下热工项目的优化设计和安全评价是必要的。利用热探针法测试了不同温度下红黏土、粉土、软土和膨润土的导热系数，分析了土体导热系数的温度效应及其影响因素，建立了考虑导热系数温度效应的加权几何平均模型，并与传统的预测模型进行对比分析。试验结果表明：土体导热系数随温度的增加而增大，其温度效应随干密度的增大而减小，温度对非饱和土体导热系数的影响较大，对于干燥和饱和土体导热系数的影响较微弱。温度对土体导热系数的影响可能取决于水汽潜热传输作用的变化，土中可提供潜热传输的水分和水汽运移通道越多，土体导热系数的温度效应越显著。模型计算结果表明，提出的加权几何平均模型预测性能良好，且较好预测了含水率和干密度对土体导热系数温度效应的影响，而Tarnawski模型、Gori模型、Leong模型预测精度均低于加权几何平均模型。Abstract: Considering the influences of environmental temperature on thermal conductivity of soil is necessary for the optimization design and safety assessment of underground thermal engineering projects. The thermal conductivities of lateritic clay, silt clay, soft clay and bentonite at different temperatures are measured by using the thermal probe method, and the temperature effects of thermal conductivity of soil and its influencing factors are analyzed. A weighted geometric average model considering the temperature effects of thermal conductivity of soil is then established, and is compared with the traditional predictive models. The test results show that the thermal conductivity of soil increases with the increase of temperature, and its temperature effects decrease with the increase of dry density. The temperature has a great influence on the thermal conductivity of unsaturated soil, but a weak influence on the thermal conductivity of dry and saturated soil. The temperature effects of thermal conductivity of soil may depend on the change of the latent heat transfer of vapor. The more the moisture and vapor migration channels that can provide for the latent heat transfer of vapor in soil, the more significant the temperature effects of thermal conductivity of soil. The calculated results show that the proposed weighted geometric average model provides the best fitting to the measured data against the three other traditional models, and can predict well the influences of water content and dry density on the temperature effects of thermal conductivity of soil, while the prediction accuracy of the Tarnawski model, Gori model and Leong model is lower than that of the weighted geometric average model.
-
-
![]()
图 1 不同温度下试样的导热系数测试
Figure 1. Measurement of thermal conductivity of samples subjected to different temperatures
![]()

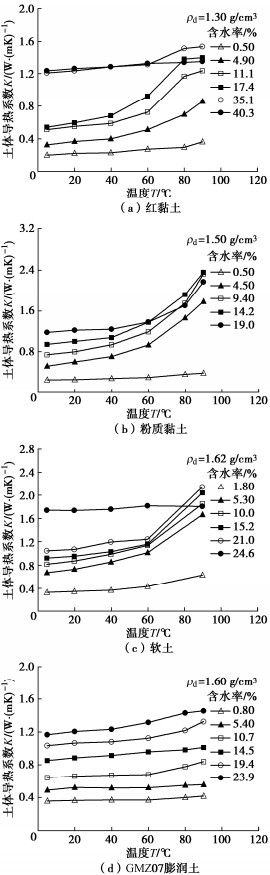

图 3 不同含水率试样导热系数随温度的变化
Figure 3. Change in thermal conductivity of samples with different water contents with temperature
![]()

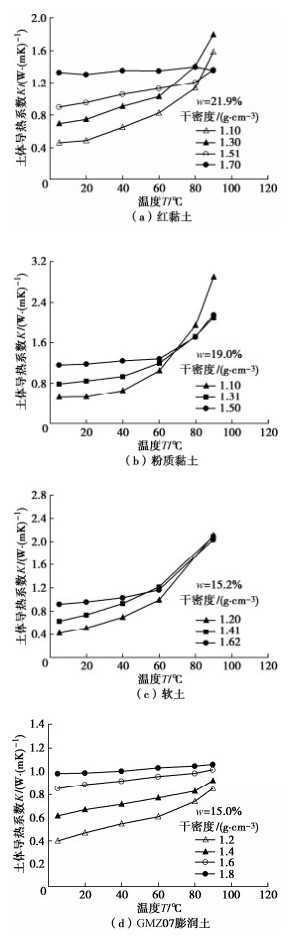

图 4 不同干密度试样导热系数随温度的变化
Figure 4. Change in thermal conductivity of samples with different dry densities with temperature
![]()

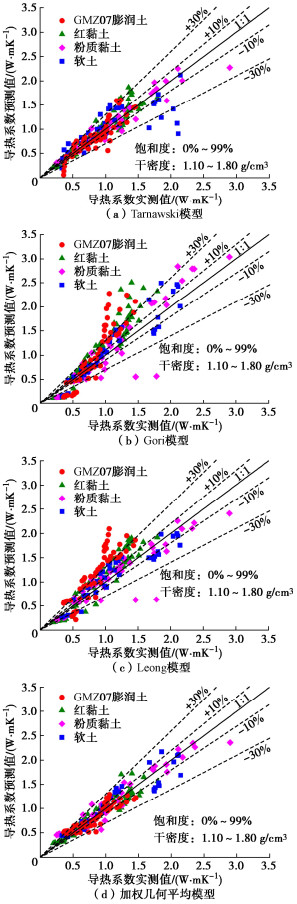

图 5 导热系数模型预测值和实测值对比
Figure 5. Comparison of measured and predicted thermal conductivities of soil
![]()

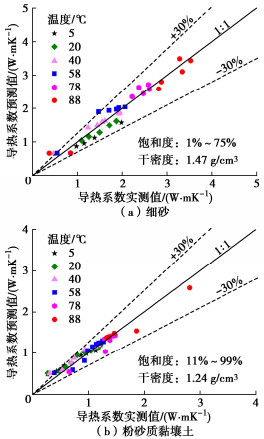

图 6 平均几何模型预测值和实测值对比
Figure 6. Comparison between predicted and measured values of average geometric model
![]()
图 7 含水率对土体导热系数温度效应影响的预测
Figure 7. Prediction of influences of water content on temperature effects of thermal conductivity of soil
![]()
图 8 干密度对土体导热系数温度效应影响的预测
Figure 8. Prediction of influences of dry density on temperature effects of thermal conductivity of soil
表 1 供试土样的基本物性指标
Table 1 Physical property indexes of soil samples
土样 相对质量密度 液限/ % 塑限/% 塑性指数 颗粒级配/% 砂粒2~0.05 mm 粉粒0.05~0.002 mm 黏粒 < 0.002 mm 红黏土 2.74 61.8 38.1 23.7 7.89 47.02 45.09 粉质黏土 2.72 27.6 16.5 11.1 27.10 52.54 20.36 软土 2.73 40.6 20.5 20.1 3.75 69.44 26.81 GMZ07膨润土 2.76 163.0 32.0 131.0 — 56.40 43.60
下载: 导出CSV
表 2 供试土样的矿物成分
Table 2 Mineral compositions of soil samples
单位: % 土样 蒙脱石 高岭石 伊利石 长石 石英 其他 红黏土 — 50.7 12.0 9.9 12.7 14.7 粉质黏土 — 51.0 19.0 — 11.5 18.5 软土 — — 31.2 — 23.0 45.8 GMZ07膨润土 62.0 — — 11.0 10.0 17.0
下载: 导出CSV
-
