Intelligent identification and extraction of geometric parameters for surface fracture networks of rocky slopes
-
摘要: 作为高陡岩质边坡建模的重要先决条件,快速精准地进行岩坡表面裂隙网络的参数化建模近年来成为了研究的热点。研究引入深度学习技术与智能算法聚类思想,提出了一种结合无人机摄影技术的高陡边坡坡面裂隙网络智能识别与几何参数提取的方法。采用空洞卷积算法对传统U-net分割识别网络进行改进,并运用GMM-EM算法对识别出的二值图中的裂隙进行聚类,最后引入RANSAC算法实现裂隙面的几何参数自动提取并运用DICE相似系数对识别结果进行对比分析。结果表明,该方法裂隙提取的准确率高于97%,相较于传统算法有所提高。同时,将该方法应用于云南鲁奎山铁矿边坡工程,实现了高陡岩坡表面裂隙信息的快速采集,为后续高陡岩质节理边坡建模提供了必要的技术支撑。Abstract: As an important prerequisite for modeling the high steep rocky slope, a fast and accurate parametric modeling for fracture networks of rocky slopes has become a popular research topic in recent years. Focusing on the deep learning and intelligent algorithmic clustering method, a UAV photography-based joint detection technique is proposed to identify and extract the geometric parameters of the fracture network on high steep slope surface. A dilated convolution is adopted to improve the traditional U-net segmentation network, and a GMM-EM algorithm is employed to cluster the segmented fractures on the binary images. Finally, a RANSAC algorithm is used to perform the extraction process of geometric parameter of the fracture network. Seen from the comparative results of DICE similar index, the accuracy of segmentation recognition is more than 97%, which shows that the proposed fracture extraction technique is more efficient and accurate than other traditional algorithms. The improved technique is applied to the slope of Lukuishan open pit, implementing the in-site rapid data extraction of fracture networks on the slope surface. This technique may provide an effective technical support for the refined modeling of high and steep rocky slopes.
-
-
![]()

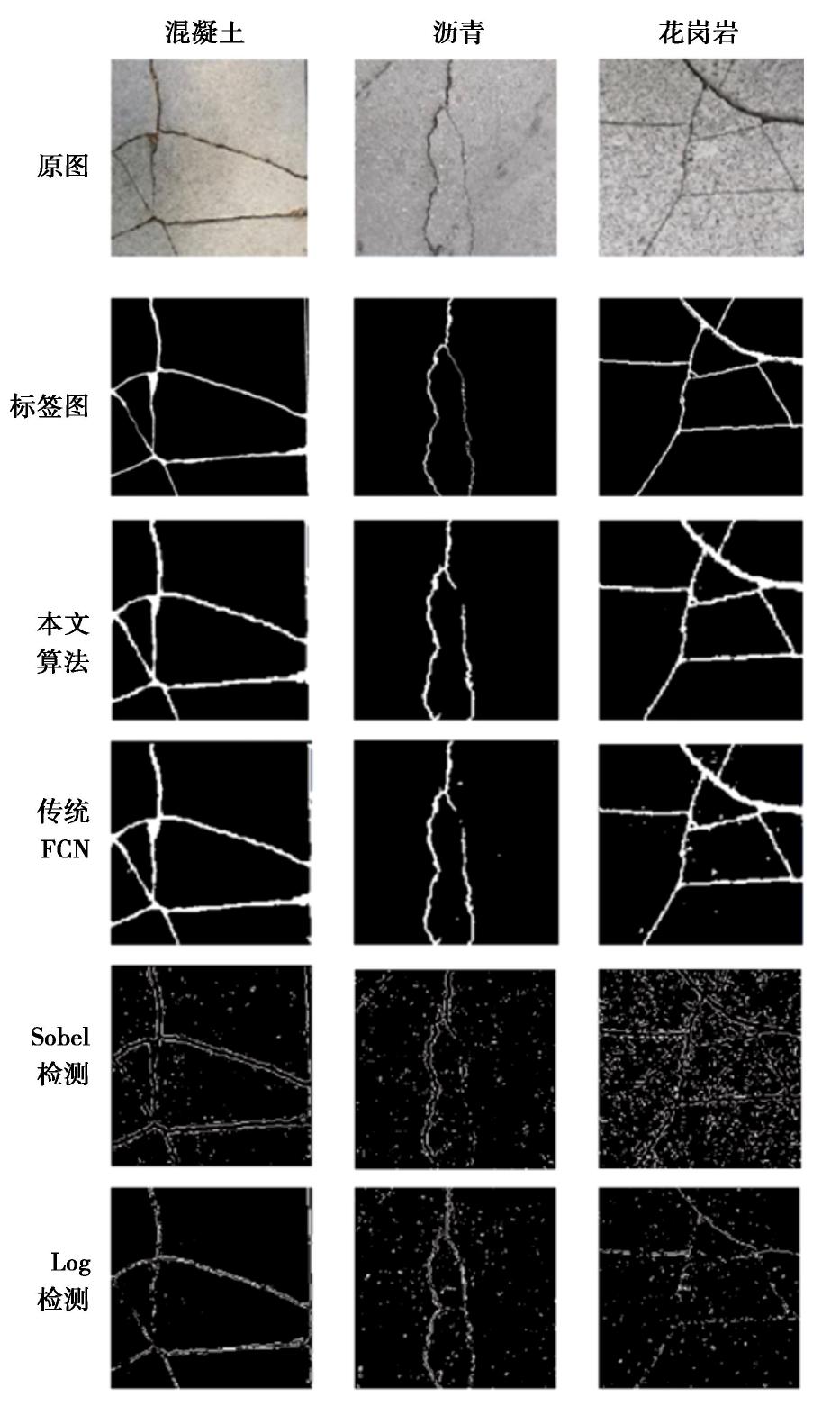

图 4 改进U-net法与其他裂隙检测方法的结果对比
Figure 4. Comparison of results between improved U-net method with other fracture detection methods
![]()

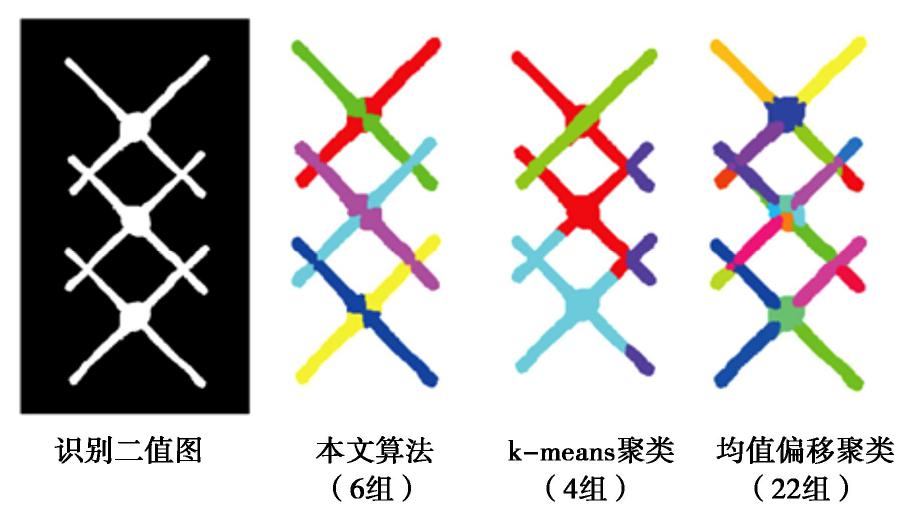

图 6 GMM-EM聚类算法与其他算法的结果对比
Figure 6. Comparison of clustering results of GMM-EM algorithm with other algorithms
![]()

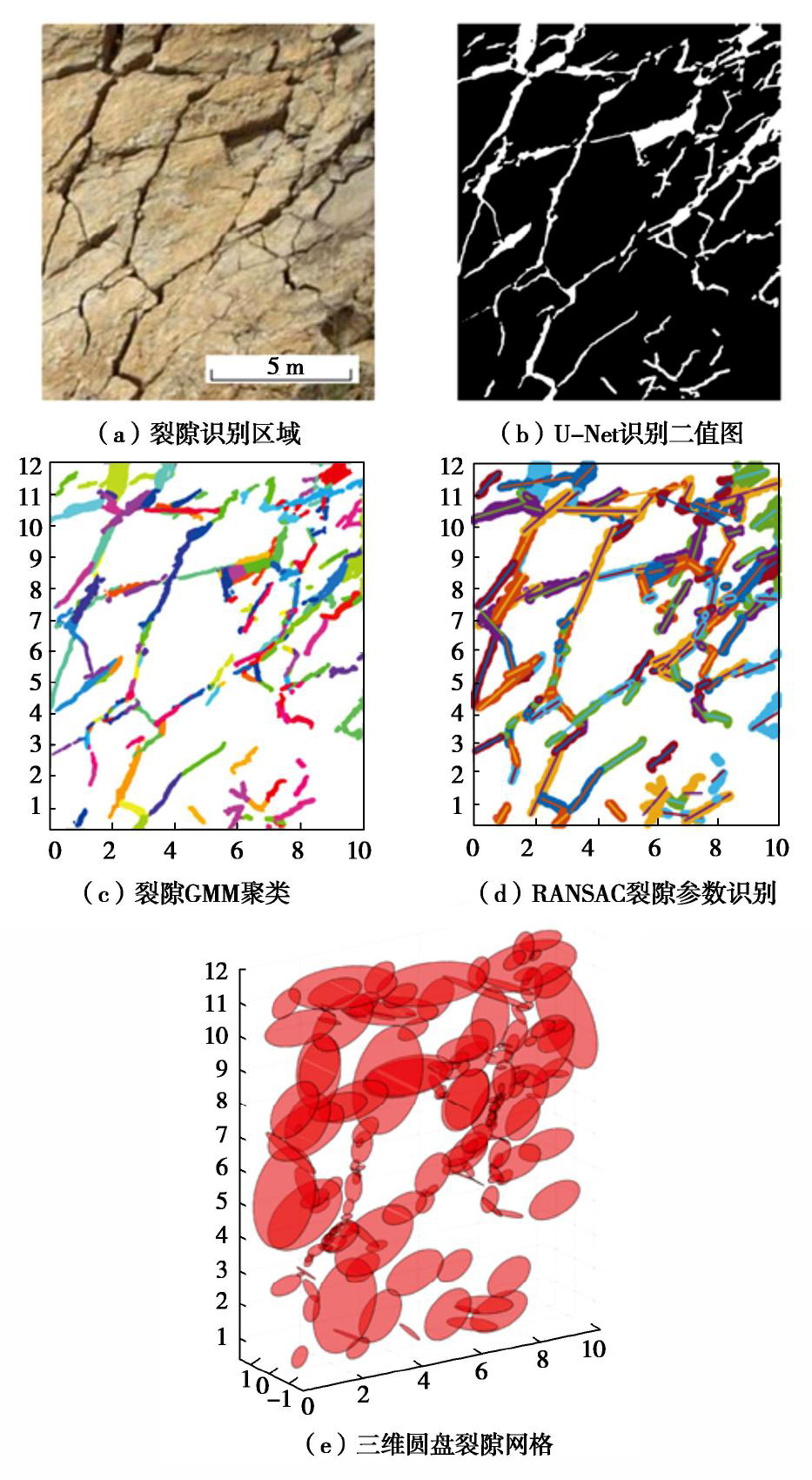

图 9 云南鲁奎山边坡裂隙面提取
Figure 9. Extraction of slope fracture surface in Lukuishan open-pit slope
表 1 改进U-net网络计算参数
Table 1 Configuration of improved U-net network equipment
项目 参数 项目 参数 CPU Intel i7-8500 Cuda 10.0 GPU NVIDIA GeforceGTX 1080 语言 Python 3.6 RAM DDR 416G 系统 Vmware+linux 框架 Pytorch 1.7
下载: 导出CSV
表 2 各种边缘检测方法的DICE相似值对比
Table 2 Comparison of DICE similarity index in each edge detection algorithm
(%) 岩体种类 标签图 本文算法 传统FCN Sobel检测 Log检测 混凝土 100 98.32 95.21 76.63 83.18 沥青 100 97.32 96.32 69.64 77.21 花岗岩 100 98.82 91.23 58.01 68.47
下载: 导出CSV
-
