Experimental study on remediation of chromium-contaminated mucky clay by electrokinetic soil flushing method considering temperature
-
摘要: 自行设计了温控电动联合淋洗试验装置,开展了铬污染淤泥质黏土室内土柱试验,分析了电流、电解质溶液pH的变化以及淋洗液种类、外加电压、温度对铬去除效果的影响。结果表明：电动联合淋洗法可以有效去除土体中的重金属铬,当电压较小为15 V,淋洗液为十二烷基苯磺酸钠（SDS）和草酸（OA）时,Cr(Ⅵ)的去除率分别高达95.86%和95.91%,Cr(总)的去除率分别为81.31%和78.08%。升高温度有助于草酸与铬的络合作用及铬的迁移,当温度升高至45℃时,Cr(Ⅵ)与Cr(总)的去除率可高达99.65%与82.50%；而当淋洗液为SDS时,升高温度使Cr(总)的去除率降低了10.99%。电压提高到55V对铬迁移的促进作用有限,淋洗剂为SDS和草酸时,Cr(VI)的去除率分别提高2.58%和3.05%,Cr(总)的去除率分别提高9.29%和3.78%,从节能角度考虑可采用较低的电压。电动联合淋洗法可有效去除污染土中水溶态及弱酸提取态的铬,降低污染土的毒性,并使土粒之间的孔隙变小,土粒结构更为紧密。Abstract: A series of column tests on chromium-contaminated mucky clay are conducted in lab using the self-designed electrokinetic soil flushing apparatus considering temperature. The changes of the current and electrolyte solution pH, and the effects of the type of leaching agent, applied voltage and temperature on the removal behavior of chromium are analyzed. The results show that the chromium in soil can be removed effectively by the electrokinetic soil flushing method. When the voltage is 15 V, using sodium dodecylbenzene sulfonate (SDS) and oxalic acid (OA) as leaching agent, the removal ratio of Cr(VI) is 95.86% and 95.91% respectively, and the removal ratio of Cr (total) is 81.31% and 78.08% respectively. Raising temperature to 45℃ can promote complexation of oxalic acid and chromium leading to the migration of chromium, the removal ratio of Cr (VI) and Cr (total) reaches 99.65% and 82.50% respectively. However, raising temperature results in the removal ratio of Cr(total) by 10.99% when using SDS as leaching agent. Raising the voltage to 55 V, the chromium migration has slight effect on its migration. When using SDS and OA as leaching agents, the removal ratio of Cr(VI) can increase by 2.58% and 3.05% respectively, and that of Cr (total) can increase by 9.29% and 3.78% respectively. Lower voltage can be selected for the sake of saving energy. The water-soluble and weak acid-extracted chromium can be efficiently removed by the electrokinetic soil flushing method and the toxicity of contaminated soil can be reduced. After remediation, the soil structure is changed, and the pores between soil particles become smaller and the soil is more compacted.
-
-
![]()

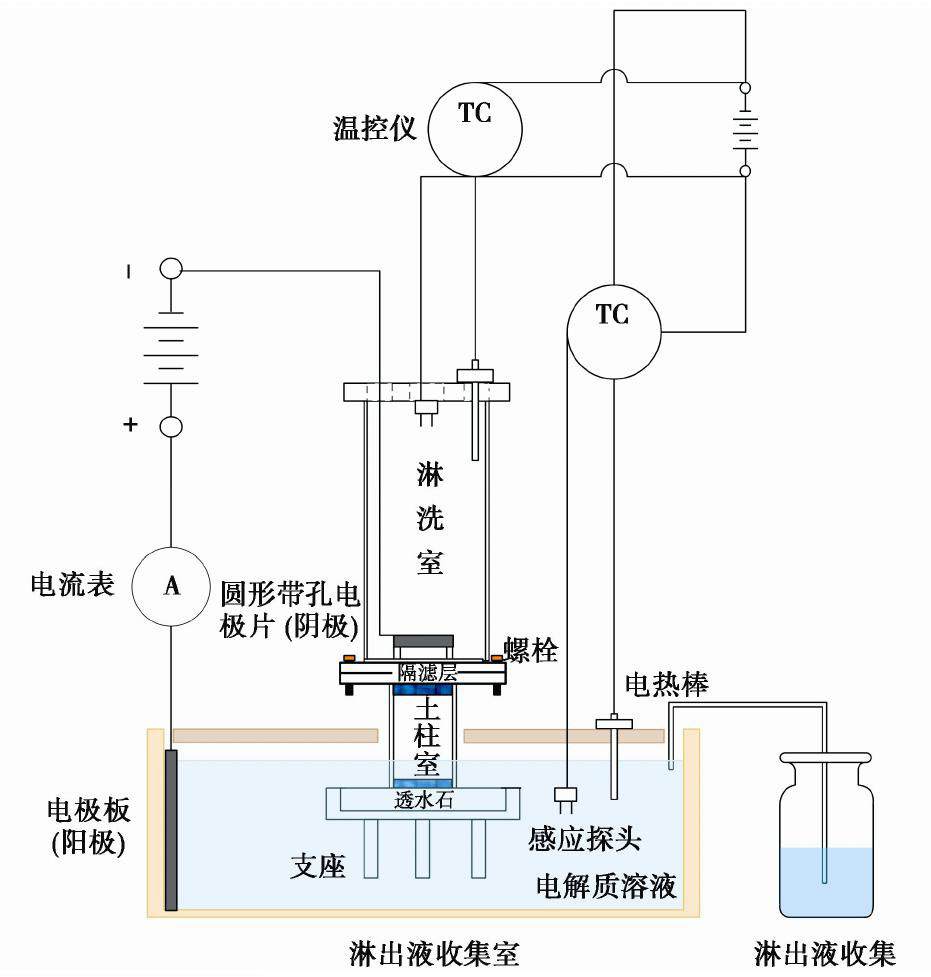

图 1 温控电动联合淋洗试验装置
Figure 1. Experimental apparatus of electrokinetic enhanced soil flushing considering temperature
![]()

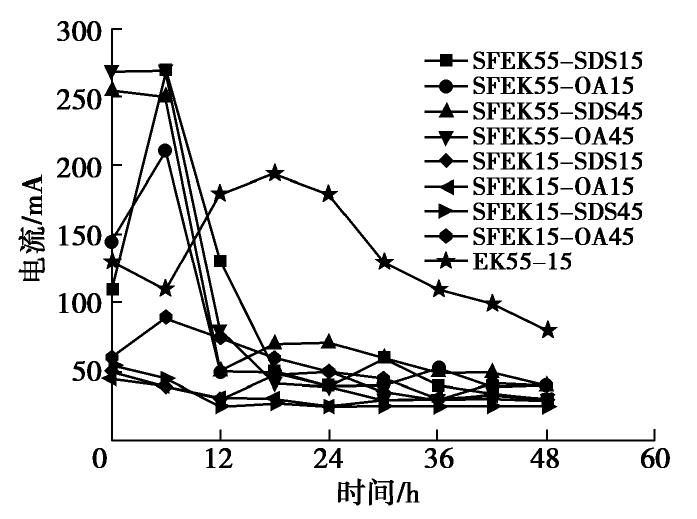

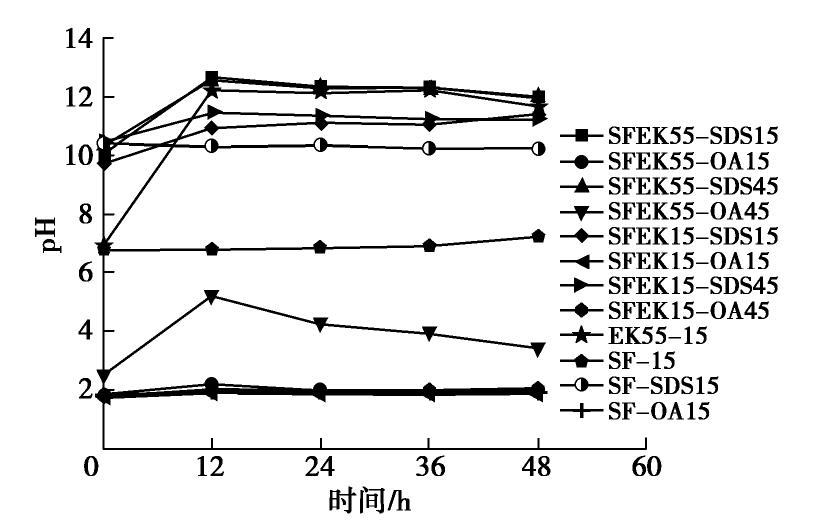

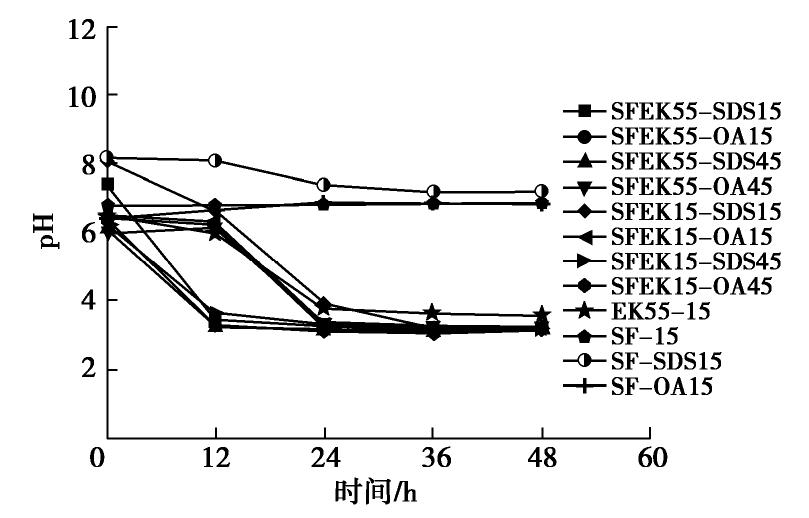

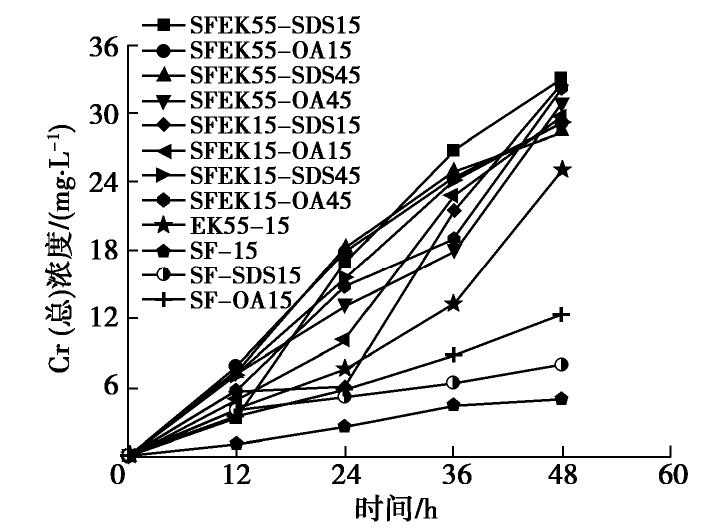

图 5 淋出液中Cr（总）浓度随时间变化
Figure 5. Variation of Cr (total) concentration in leachates with elapsed time
![]()

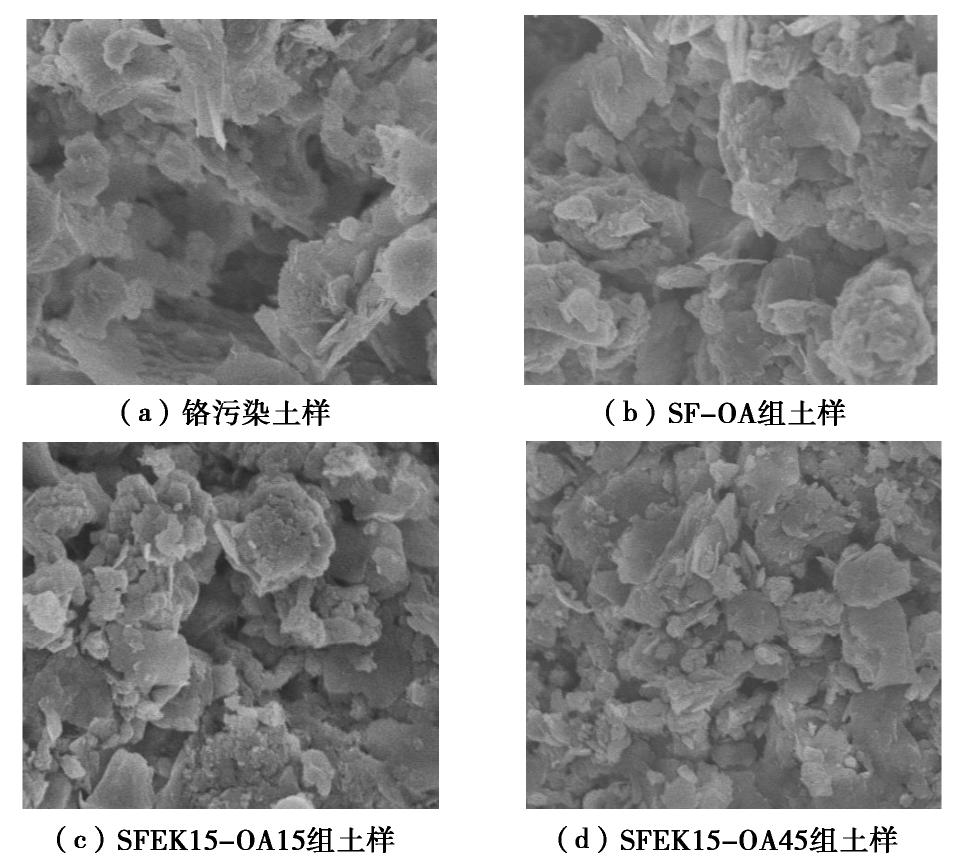

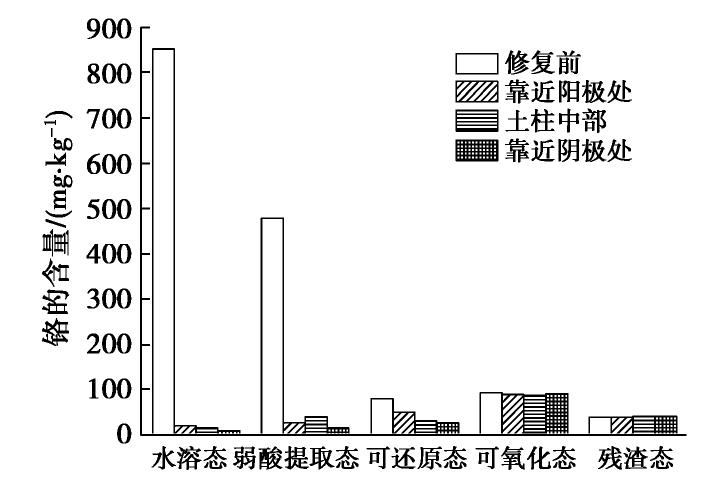

图 7 污染土和SFEK15-OA45组土柱中铬形态
Figure 7. Speciation of chromium in contaminated soil and in soil column of group SFEK15-OA45
表 1 试验分组
Table 1 Experimental groups
序号 编号 淋洗液种类 电压/V 温度/℃ 1 SFEK55-SDS15 0.5%KCl,0.5%SDS 55 15 2 SFEK55-SDS45 0.5%KCl,0.5%SDS 55 45 3 SFEK15-SDS15 0.5%KCl,0.5%SDS 15 15 4 SFEK15-SDS45 0.5%KCl,0.5%SDS 15 45 5 SFEK55-OA15 0.5%KCl,0.5%OA 55 15 6 SFEK55-OA45 0.5%KCl,0.5%OA 55 45 7 SFEK15-OA15 0.5%KCl,0.5%OA 15 15 8 SFEK15-OA45 0.5%KCl,0.5%OA 15 45 9 EK55-15 0.5%KCl 55 15 10 SF-15 0.5%KCl 0 15 11 SF-SDS15 0.5%KCl,0.5%SDS 0 15 12 SF-OA15 0.5%KCl,0.5%OA 0 15
下载: 导出CSV
表 3 土柱中Cr（总)残余浓度、Cr（总）去除率及能耗
Table 3 Residual concentrations and removal ratios of Cr (total) in soil columns and energy consumption
序号 编号 Cr（总）浓度/(mg·kg-1) R 2/% 能耗/(kW·h-1) E/(kW·h·g-1) 淋出液中铬（总）浓度/(mg·L-1) 1 2 3 4 5 1 SFEK55-SDS15 139 122 107 109 108 88.86 10.36 52.87 33.1 2 SFEK55-SDS45 254 264 247 204 193 77.87 10.14 59.04 28.5 3 SFEK15-SDS15 231 194 201 183 172 81.31 1.28 7.13 32.6 4 SFEK15-SDS45 232 229 238 240 238 77.58 0.96 5.61 29.2 5 SFEK55-OA15 251 261 157 183 144 81.03 8.27 46.28 29.2 6 SFEK55-OA45 242 213 148 180 136 82.50 8.74 48.07 30.9 7 SFEK15-OA15 244 249 255 211 192 78.08 1.08 6.25 29.8 8 SFEK15-OA45 191 199 209 195 197 81.12 1.87 10.43 32.3 9 EK55-15 332 365 378 298 211 69.83 111.62 25.1 10 SF-15 849 923 965 938 751 15.70 5.1 11 SF-SDS15 623 879 923 801 610 26.93 8.1 12 SF-OA15 599 833 978 721 543 30.02 12.3
下载: 导出CSV
表 2 土柱中Cr(Ⅵ)残余浓度与Cr(Ⅵ)总去除率
Table 2 Residual concentrations and total removal ratios of Cr(VI) in soil columns
序号 编号 Cr(Ⅵ)浓度/(mg·kg-1) R 1/% 1 2 3 4 5 1 SFEK55-SDS15 12 15 15 15 15 98.33 2 SFEK55-SDS45 7 5 6 4 5 99.37 3 SFEK15-SDS15 49 42 37 29 21 95.86 4 SFEK15-SDS45 36 36 34 38 32 95.91 5 SFEK55-OA15 12 12 10 9 7 98.84 6 SFEK55-OA45 6 3 3 2 1 99.65 7 SFEK15-OA15 36 36 34 38 32 95.91 8 SFEK15-OA45 12 15 18 18 12 98.26 9 EK55-15 66 51 89 62 54 92.51 10 SF-15 617 721 850 692 611 18.81 11 SF-SDS15 539 721 844 692 455 24.40 12 SF-OA15 534 792 721 631 432 27.67
下载: 导出CSV
-
