考虑颗粒破碎的堆石料剪胀特性研究

石北啸; 刘赛朝; 吴鑫磊; 常伟坤

doi:10.11779/CJGE202107023

考虑颗粒破碎的堆石料剪胀特性研究 English Version

石北啸^{1, 2,},
刘赛朝^3, ,,
吴鑫磊³,
常伟坤³

1.
南京水利科学研究院岩土工程研究所,江苏　南京　210024
2.
水利部水库大坝安全重点实验室,江苏　南京　210024
3.
河北工程大学水利水电学院,河北　邯郸　056038

基金项目:

国家重点研发计划课题 2018YFC1508502

国家自然科学基金项目 51679149

国家自然科学基金项目 51779152

国家自然科学基金项目 U1765203

详细信息

作者简介:
石北啸(1976— ),男,博士后,正高级工程师,主要从事粗颗粒料力学试验研究与土石坝安全的工程咨询工作。E-mail：shibeixiao@nhri.cn

通讯作者:
刘赛朝, E-mail：1143319854@qq.com

中图分类号: TV641.43
计量
- 文章访问数: 0148
- HTML全文浏览量: 0
- PDF下载量: 0164
出版历程
- 收稿日期: 2020-08-02
- 网络出版日期: 2022-12-02
- 刊出日期: 2021-06-30

Dilatancy behaviors of rockfill materials considering particle breakage

1.
Geotechnical Engineering Department, Nanjing Hydraulic Research Institute, Nanjing 210024, China
2.
Key Laboratory of Reservoir and Dam Safety of the Ministry of Water Resources, Nanjing 210024, China
3.
School of Water Resources and Hydropower, Hebei University of Engineering, Handan 056038, China

摘要

摘要: 针对某高堆石坝的筑坝堆石料开展大型三轴排水剪切试验,研究堆石料在不同孔隙比及不同应力状态下的颗粒破碎与剪胀特性关系,结果表明,不同孔隙比堆石料在低围压下都表现出剪胀,但随围压增大,堆石料的剪胀现象均逐渐消失并转为剪缩。提出了破坏剪胀率概念,用以描述堆石料颗粒破碎与其剪胀特性的关系,试验发现,随着堆石料颗粒破碎率增加,破坏剪胀率呈幂函数规律减小,剪胀现象逐渐消失；随着堆石料初始孔隙比增加,破坏剪胀率减小,但试验围压越大,初始孔隙比对剪胀特性的影响越小。基于上述试验结果,提出了堆石料初始孔隙比与其剪胀性和颗粒破碎的关系式,用于不同围压下堆石料剪胀特性的预测。
- 堆石料 /
- 三轴试验 /
- 相变应力比 /
- 破坏剪胀率
Abstract: In order to study the relationship between particle breakage and dilatancy characteristics of rockfill materials under different porosity and stress conditions, the large-scale triaxial tests are carried out on the rockfill materials of a high rockfill dam. The results show that the of rockfill materials with different porosities exhibit different degrees of dilatancy under low confining pressure. As the confining pressure increases, the dilatancy phenomenon of the rockfill materials gradually disappears and turns into shrinkage. Therefore, the concept of breaking dilatancy ratio is put forward and used to describe the relationship between particle breakage and dilatancy characteristics. It is found that as the crushing rate of rockfill particles increases, the breaking dilatancy rate decreases in the form of a power function, and the dilatancy phenomenon gradually disappears. As the initial porosity of the rockfill materials increases, the failure dilatancy decreases, but the larger the confining pressure, the less the initial porosity has a smaller effect on the dilatancy characteristics. Based on the above test results, the relationship among the initial porosity of the rockfill materials, their dilatancy and particle breakage is established to predict the dilatancy of the rockfill materials under different confining pressures.
- rockfill /
- triaxial test /
- phase transformation stress ratio /
- failure dilatancy ratio

HTML全文

本文撰写及修订过程中,得到了南京水利科学研究院陈生水正高级工程师提供的帮助和指导,在此诚恳致谢。

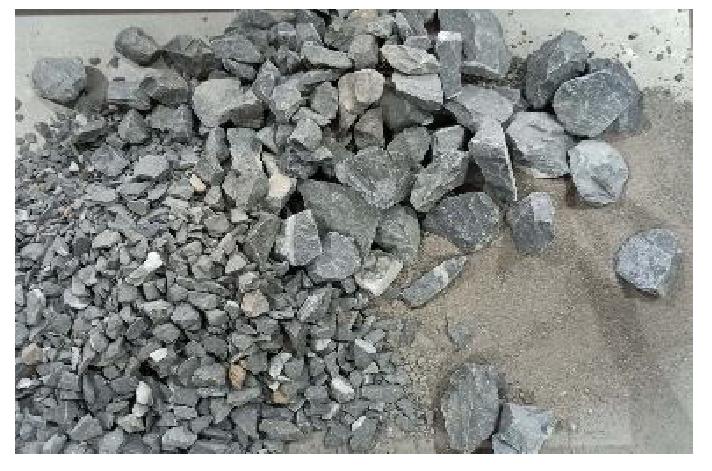

图 1 不同粒径混合堆石料

Figure 1. Rockfill materials with different particle sizes

下载: 全尺寸图片幻灯片

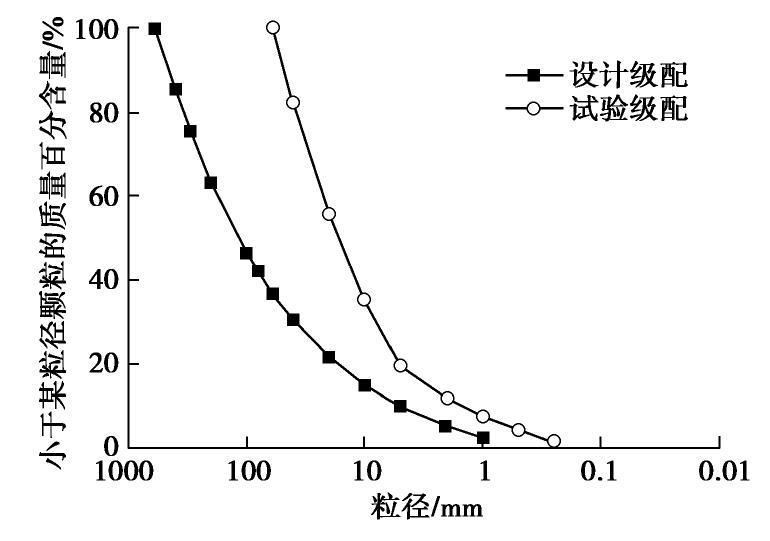

图 2 设计与试验级配曲线

Figure 2. Grain-size distribution curves of design and test

下载: 全尺寸图片幻灯片

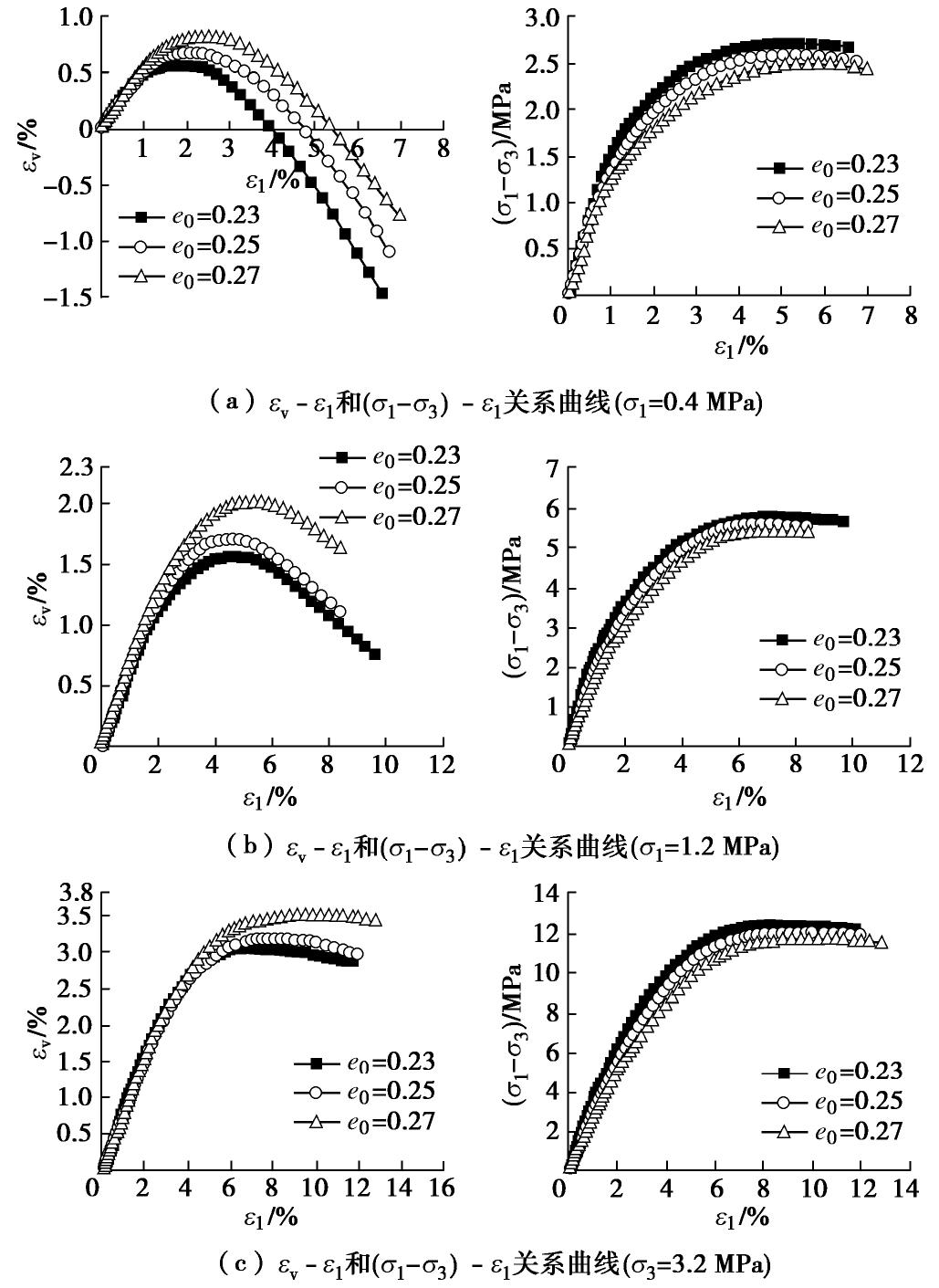

图 3 不同孔隙率的 $ε_{v}$ $ε_{v}$ – $ε_{1}$ $ε_{1}$ 和 $（ σ_{1} - σ_{3} ）$ $（ σ_{1} - σ_{3} ）$ – $ε_{1}$ $ε_{1}$ 关系曲线

Figure 3. Relationship curves of $ε_{v}$ $ε_{v}$ – $ε_{1}$ $ε_{1}$ and $（ σ_{1} - σ_{3} ）$ $（ σ_{1} - σ_{3} ）$ – $ε_{1}$ $ε_{1}$ under different porosities

下载: 全尺寸图片幻灯片

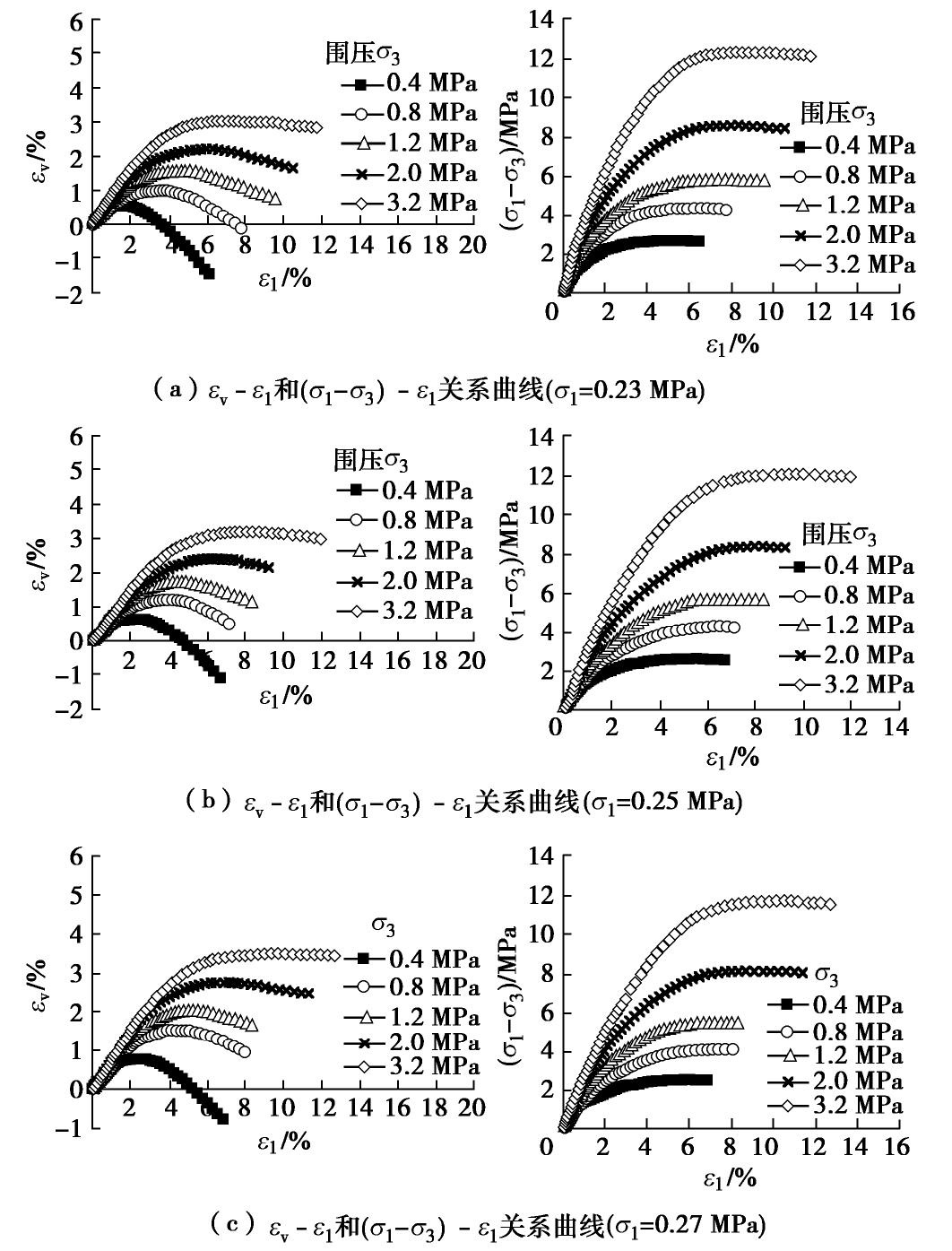

图 4 不同围压下 $ε_{v}$ $ε_{v}$ – $ε_{1}$ $ε_{1}$ 和 $（ σ_{1} - σ_{3} ）$ $（ σ_{1} - σ_{3} ）$ – $ε_{1}$ $ε_{1}$ 关系曲线

Figure 4. Relationship curves of $ε_{v}$ $ε_{v}$ – $ε_{1}$ $ε_{1}$ and $（ σ_{1} - σ_{3} ）$ $（ σ_{1} - σ_{3} ）$ – $ε_{1}$ $ε_{1}$ under different confining pressures

下载: 全尺寸图片幻灯片

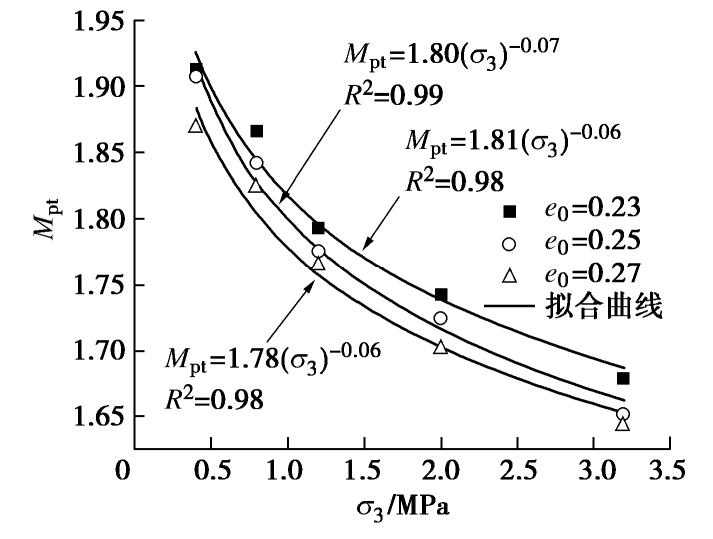

图 5 $M_{pt}$ $M_{pt}$ – $σ_{3}$ $σ_{3}$ 关系曲线

Figure 5. Relationship between $M_{pt}$ $M_{pt}$ and $σ_{3}$ $σ_{3}$

下载: 全尺寸图片幻灯片

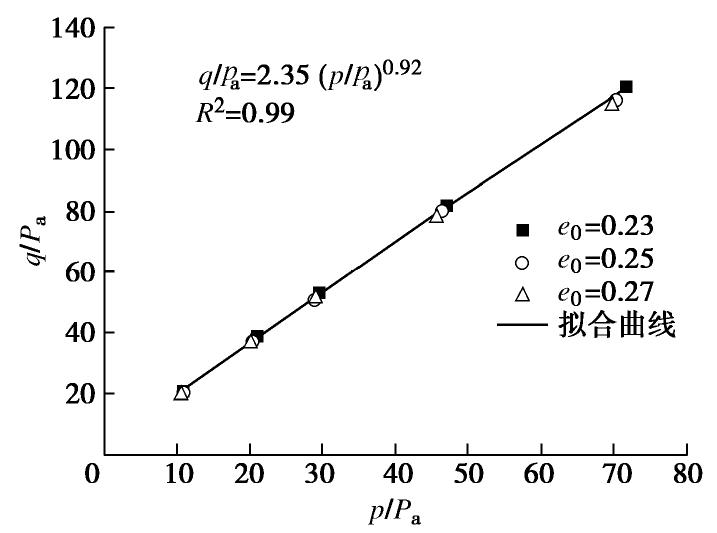

图 6 $q / p_{a} - p / p_{a}$ $q / p_{a} - p / p_{a}$ 关系曲线

Figure 6. Relationship between $q / p_{a}$ $q / p_{a}$ and $p / p_{a}$ $p / p_{a}$

下载: 全尺寸图片幻灯片

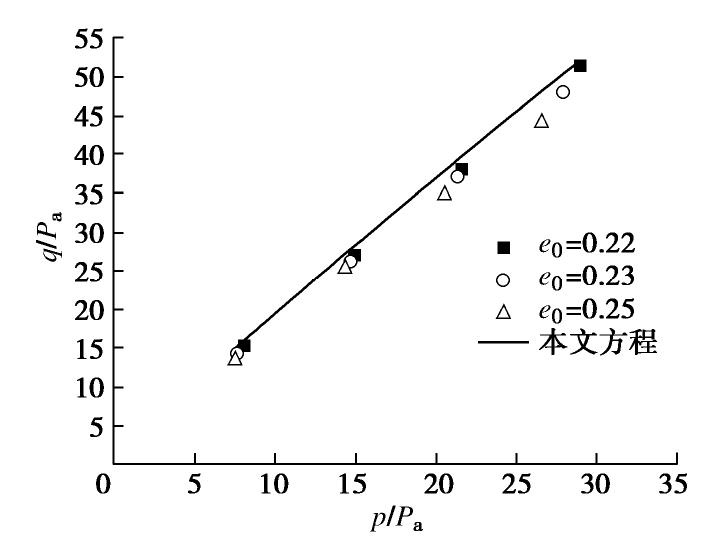

图 7 浙江某水电站工程料 $q / p_{a} - p / p_{a}$ $q / p_{a} - p / p_{a}$ 关系

Figure 7. Relationship between $q / p_{a}$ $q / p_{a}$ and $p / p_{a}$ $p / p_{a}$ of rockfill materials of a hydropower station in Zhejiang

下载: 全尺寸图片幻灯片

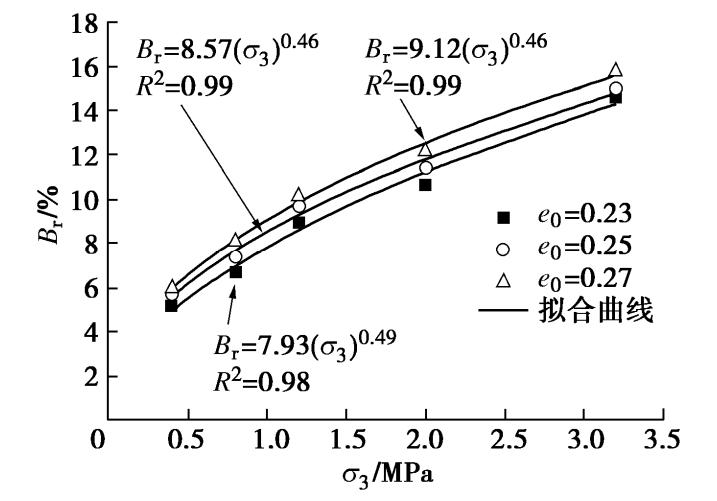

图 8 $B_{r} - σ_{3}$ $B_{r} - σ_{3}$ 关系曲线

Figure 8. Relationship between of $B_{r}$ $B_{r}$ and $σ_{3}$ $σ_{3}$

下载: 全尺寸图片幻灯片

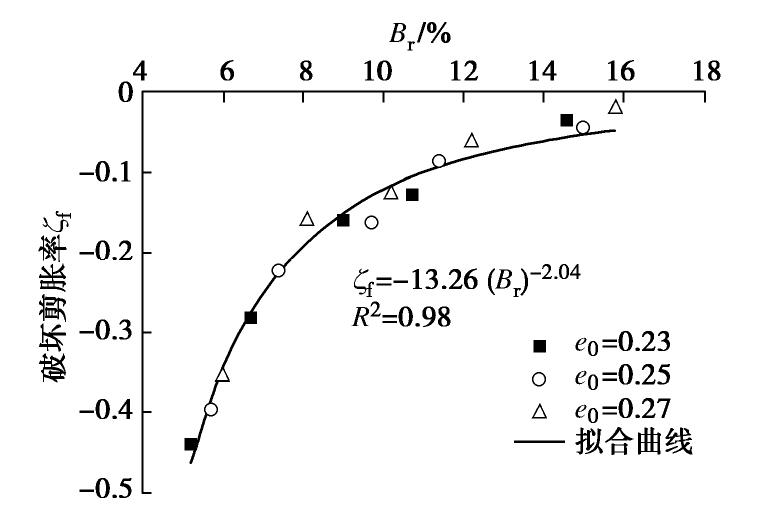

图 9 $ζ_{f} - B_{r}$ $ζ_{f} - B_{r}$ 关系曲线

Figure 9. Relationship between $ζ_{f}$ $ζ_{f}$ and $B_{r}$ $B_{r}$

下载: 全尺寸图片幻灯片

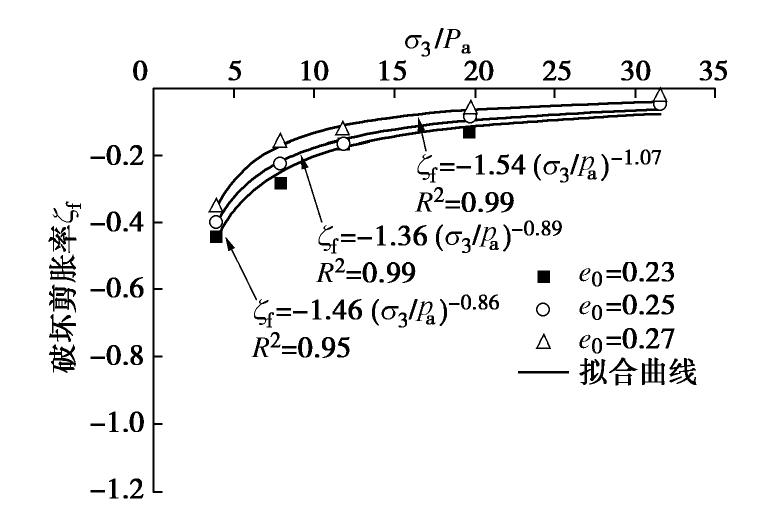

图 10 $ζ_{f} - σ_{3}$ $ζ_{f} - σ_{3}$ 关系曲线

Figure 10. Relationship between $ζ_{f}$ $ζ_{f}$ and $σ_{3}$ $σ_{3}$

下载: 全尺寸图片幻灯片

图 11 $ζ_{f} - e_{0}$ $ζ_{f} - e_{0}$ 关系曲线

Figure 11. Relationship between $ζ_{f}$ $ζ_{f}$ and $e_{0}$ $e_{0}$

下载: 全尺寸图片幻灯片

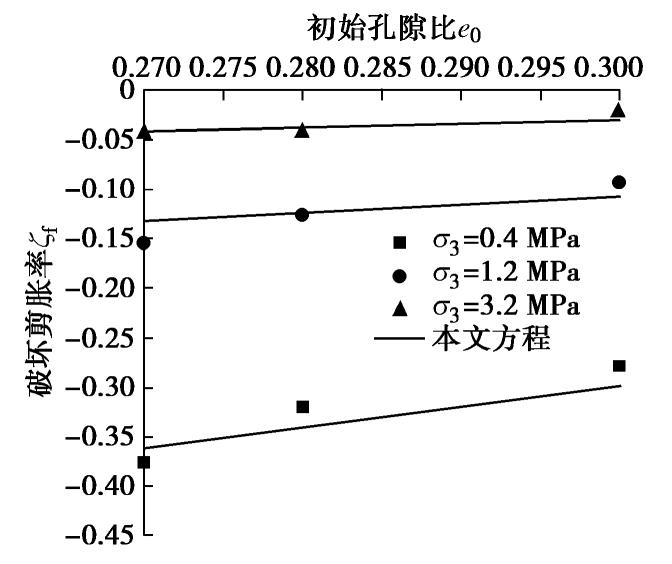

图 12 $ζ_{f} - e_{0}$ $ζ_{f} - e_{0}$ 关系曲线

Figure 12. Relationship between $ζ_{f}$ $ζ_{f}$ and $e_{0}$ $e_{0}$

下载: 全尺寸图片幻灯片

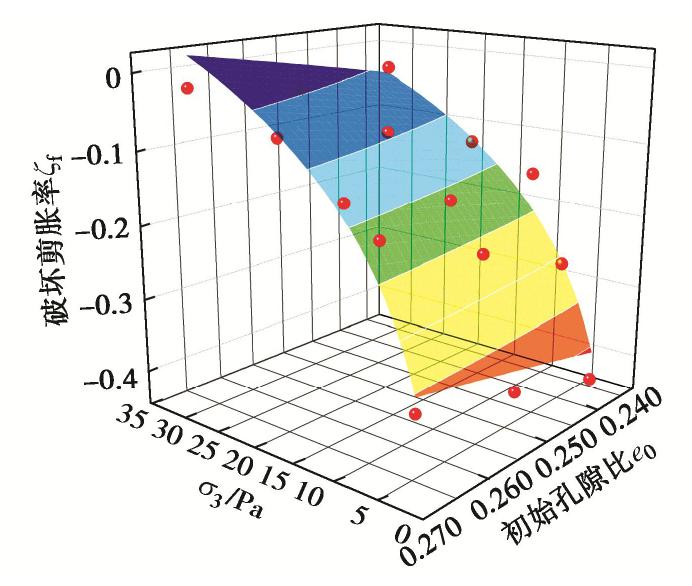

图 13 $ζ_{f} - σ_{3} - e_{0}$ $ζ_{f} - σ_{3} - e_{0}$ 关系曲线

Figure 13. Relationship among $ζ_{f}$ $ζ_{f}$ , $σ_{3}$ $σ_{3}$ and $e_{0}$ $e_{0}$

下载: 全尺寸图片幻灯片

表 1 试验堆石料物理性质

Table 1 Physical properties of rockfill materials

试验编号	制样干密度/(g·cm^-3)	土粒相对质量密度G_s	初始孔隙比e₀
1	2.20	2.71	0.23
2	2.17	2.71	0.25
3	2.14	2.71	0.27

下载: 导出CSV

表 2 不同孔隙比及围压下颗粒破碎率 $B_{r}$ $B_{r}$

Table 2 Values of particle breakage ratio $B_{r}$ $B_{r}$ under different porosities and confining pressures

初始孔隙比 $e_{0}$ $e_{0}$	$B_{r}$ $B_{r}$ /%
初始孔隙比 $e_{0}$ $e_{0}$	$σ_{3}$ $σ_{3}$ =0.4 MPa	$σ_{3}$ $σ_{3}$ =0.8 MPa	$σ_{3}$ $σ_{3}$ =1.2 MPa	$σ_{3}$ $σ_{3}$ =2.0 MPa	$σ_{3}$ $σ_{3}$ =3.2 MPa
0.23	5.2	6.7	9.0	10.7	14.6
0.25	5.7	7.4	9.7	11.4	15.0
0.27	6.0	8.1	10.2	12.2	15.8

下载: 导出CSV
