靶向激活产脲酶微生物加固钙质砂试验研究

董博文; 刘士雨; 俞缙; 蔡燕燕; 涂兵雄

doi:10.11779/CJGE202107017

靶向激活产脲酶微生物加固钙质砂试验研究 English Version

董博文^1,,
刘士雨^{1, 2, ,},
俞缙¹,
蔡燕燕¹,
涂兵雄¹

1.
华侨大学福建省隧道与城市地下空间工程技术研究中心,福建　厦门　361021
2.
华侨大学福建省智慧基础设施与监测重点实验室,福建　厦门　361021

基金项目:

国家自然科学基金项目 51978292

福建省自然科学基金项目 2019J01048

详细信息

作者简介:
董博文(1996— ),男,硕士研究生,主要从事微生物岩土材料与工程方面的研究工作。E-mail：hqudbw@stu.hqu.edu.cn

通讯作者:
刘士雨, E-mail：scholarrain@163.com

中图分类号: TU43
计量
- 文章访问数: 310
- HTML全文浏览量: 27
- PDF下载量: 108
出版历程
- 收稿日期: 2020-07-16
- 网络出版日期: 2022-12-02
- 刊出日期: 2021-06-30

Experimental study on reinforcement of calcareous sand by targeting activation of microbes producing urease

1.
Fujian Research Center for Tunneling and Urban Underground Space Engineering, Huaqiao University, Xiamen 361021, China
2.
Key Laboratory for Intelligent Infrastructure and Monitoring of Fujian Province, Huaqiao University, Xiamen 361021, China

摘要

摘要: 针对产脲酶微生物设计了6种不同的靶向激活方案,进行钙质砂的生物矿化加固试验。通过无侧限抗压测试、碳酸钙生成量测定、SEM和XRD试验分析,评价钙质砂的加固效果,得出最佳靶向激活方案,最后通过高通量测序的分析结果分析激活前后的钙质砂中微生物群落的变化情况。结果表明：①靶向激活方案中YE和NH₄Cl的浓度会显著影响激活的效果,其中0.2 g/L的YE、100 mmol/L的NH₄Cl、初始pH值为9.0的激活方案效果最好；②钙质砂中新生成的方解石含量越多、分布越均匀,则钙质砂的加固效果越好,在最佳的激活方案下矿化加固后砂柱的平均UCS值可提高至350 kPa；③靶向激活改变了微生物的群落组成,使产脲酶微生物成为优势物种。
- 靶向激活 /
- 钙质砂 /
- 生物矿化 /
- 方解石 /
- 微生物群落
Abstract: Six different targeted activation schemes for urea-producing microorganisms are designed for the biomineralization and reinforcement of calcareous sand. Through unconfined compression tests, calcium carbonate production measurements, SEM and XRD test analysis, the reinforcement effects of calcareous sand are evaluated, and the best targeted activation scheme is obtained. Finally, the changes of microbial community in the calcareous sand before and after activation are analyzed by high-throughput sequencing analysis results. The results show that: (1) the concentration of YE and NH₄Cl in the targeted activation plan will significantly affect the activation effects, among which the activation plan with 0.2g/L YE, 100 mmol/L NH₄Cl and initial pH value of 9.0 has the best effects. (2) The more calcite content and distribution of the calcareous sand is newly generated, the better the reinforcement effects of calcareous sand will be. Under the optimal activation scheme, the average UCS value of sand columns after mineralization reinforcement can be increased to 350 kPa. (3) The targeted activation changes the microbial community composition, making urea-producing microorganisms the dominant species.
- biostimulation /
- calcareous sand /
- biocementation /
- calcite /
- microbial community

HTML全文

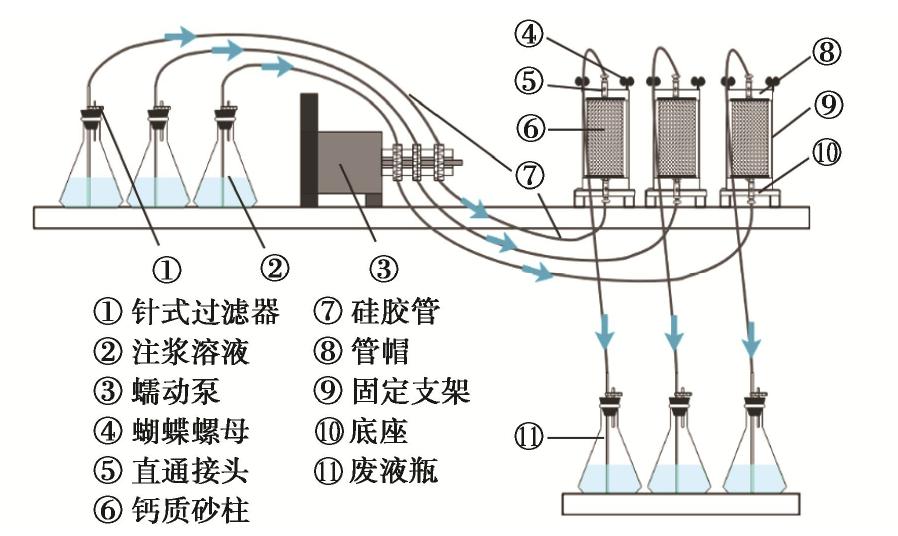

图 1 蠕动泵注浆加固钙质砂示意图

Figure 1. Schematic diagram of peristaltic pump grouting to strengthen calcareous sand

下载: 全尺寸图片幻灯片

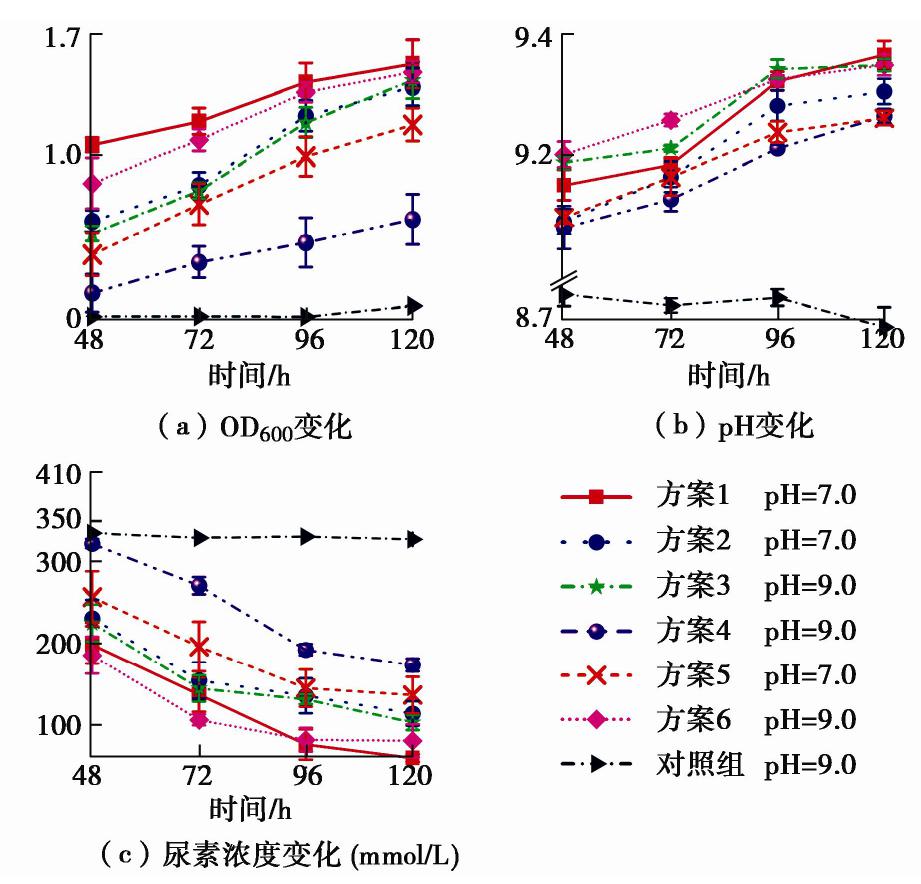

图 2 钙质砂砂柱内生物化学变化情况

Figure 2. Biochemical changes in calcareous sand columns

下载: 全尺寸图片幻灯片

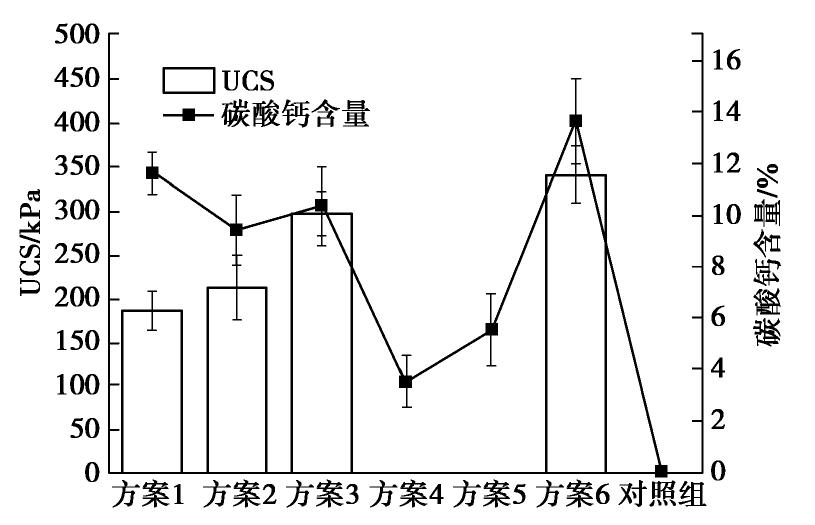

图 3 不同试验组UCS值和碳酸钙含量的关系

Figure 3. The relationship between UCS value and calcium carbonate content in different test groups

下载: 全尺寸图片幻灯片

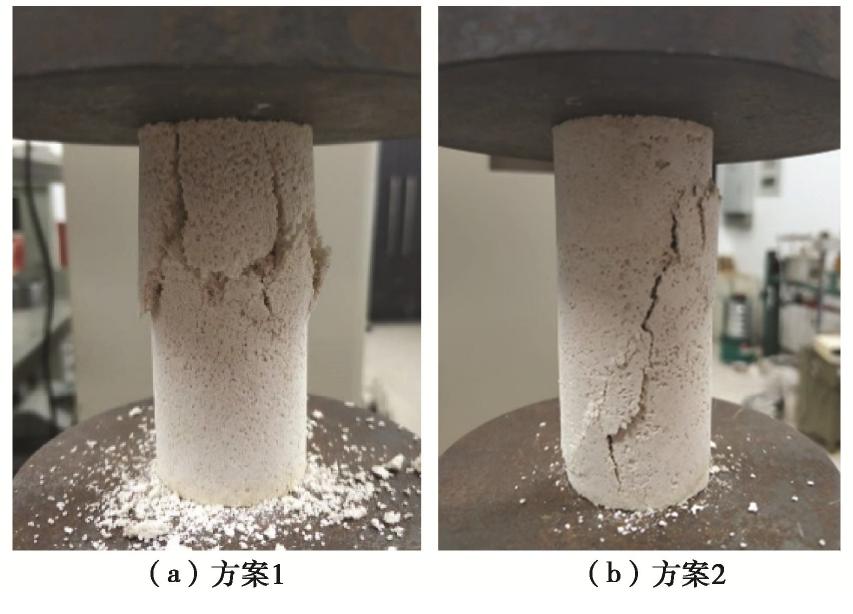

图 4 方案1与方案6两种砂柱破坏照片

Figure 4. Photographs of destruction of two sand columns in Scheme 1 and Scheme 6

下载: 全尺寸图片幻灯片

图 5 不同放大倍数下的钙质砂内部SEM图像

Figure 5. SEM images of calcareous sand under different magnifications

下载: 全尺寸图片幻灯片

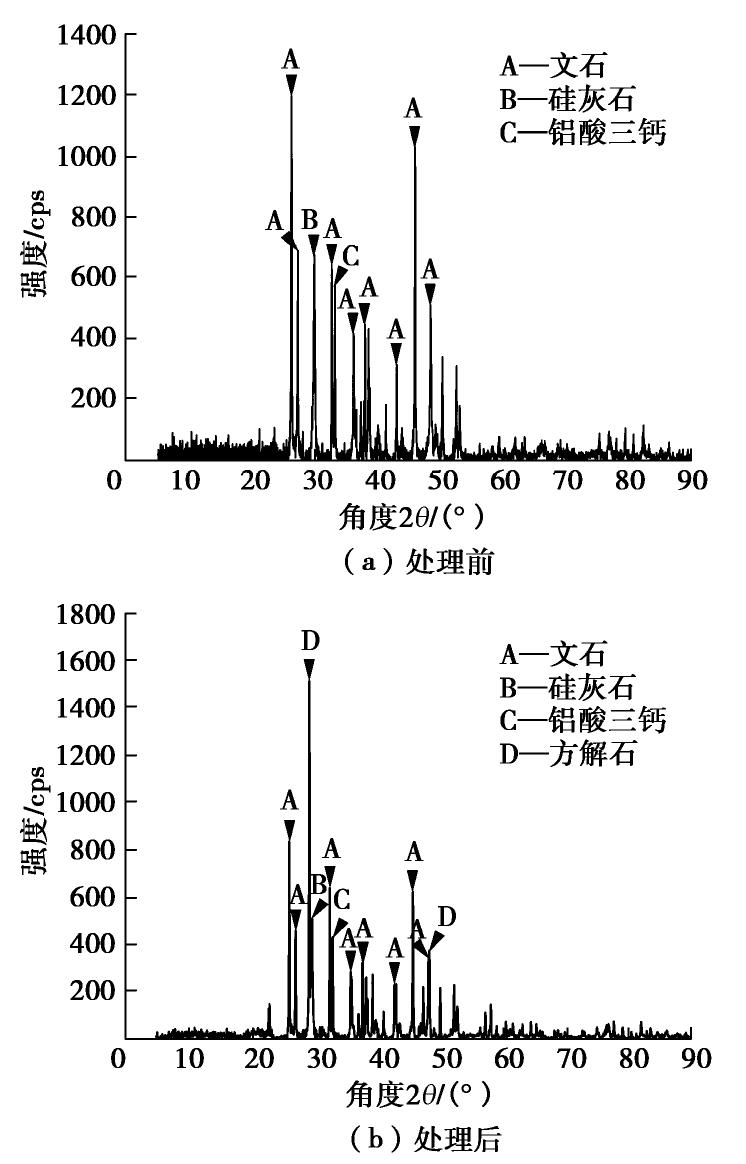

图 6 处理前和处理后的钙质砂XRD分析

Figure 6. XRD analysis of calcareous sand before treatment and after treatment

下载: 全尺寸图片幻灯片

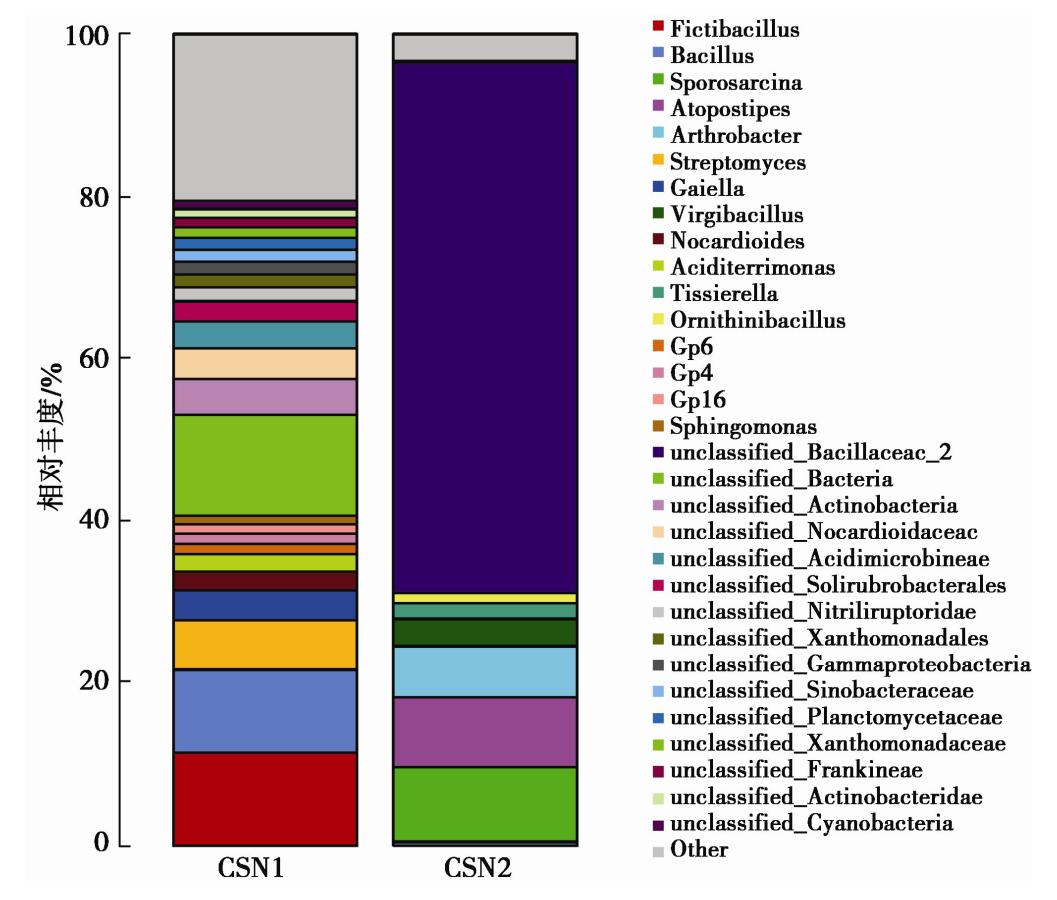

图 7 激活前后钙质砂属水平的相对丰度变化

Figure 7. Changes of relative abundance of calcareous sand at genus level before and after activation

下载: 全尺寸图片幻灯片

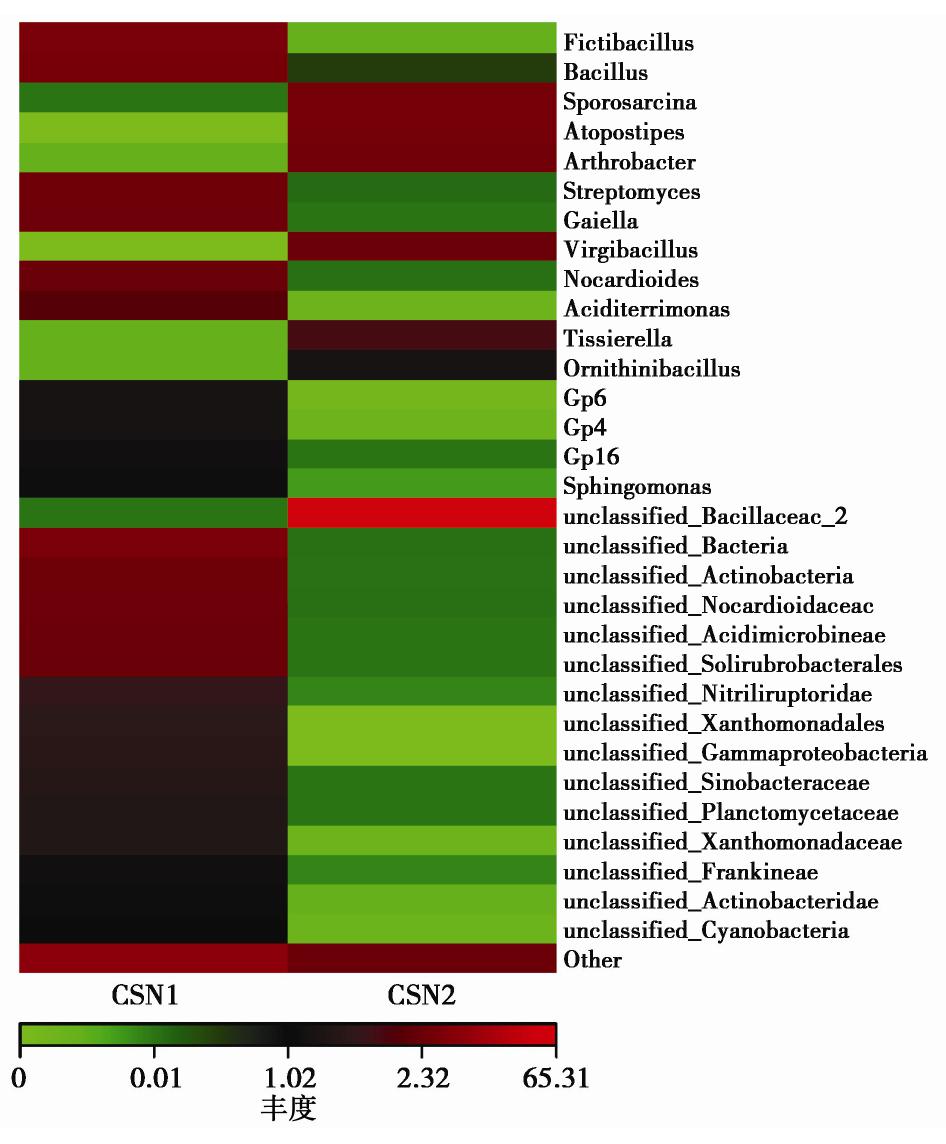

图 8 激活前后钙质砂属水平上的微生物丰度热图

Figure 8. Heatmap of microbial abundance at calcareous genus level before and after activation

下载: 全尺寸图片幻灯片

表 1 靶向激活方案

Table 1 Targeted activation solutions

方案名称 YE/(g·L^-1) 氯化铵/(mmol·L^-1) pH

方案1 1.0 12.5 7.0
方案2 0.2 12.5 7.0
方案3 0.2 12.5 9.0
方案4 0.2 200.0 9.0
方案5 0.1 12.5 7.0
方案6 0.2 100.0 9.0
对照组 0.2 100.0 9.0

下载: 导出CSV

表 2 激活前后钙质砂群落的Alpha多样性分析

Table 2 Alpha diversity analysis of calcareous sand community before and after activation

试样 OTUs Shannon Chao Simpson Coverage

CSN1 900 5.12 900.04 0.02 0.99
CSN2 170 2.03 252.83 0.27 0.99

下载: 导出CSV
