高置换率散体材料桩-不透水桩多元组合桩复合地基固结分析

卢萌盟; 敖祖瑞; 李东旭; 李传勋

doi:10.11779/CJGE202107010

高置换率散体材料桩-不透水桩多元组合桩复合地基固结分析 English Version

卢萌盟^{1, 2,},
敖祖瑞^{1, 2, ,},
李东旭^{1, 2},
李传勋³

1.
中国矿业大学力学与土木工程学院,江苏　徐州　221006
2.
中国矿业大学深部岩土力学与地下工程国家重点实验室,江苏　徐州　221006
3.
江苏大学土木工程与力学学院,江苏　镇江　212013

基金项目:

国家自然科学基金项目 51878657

国家自然科学基金项目 51878320

江苏省高校青蓝工程项目

详细信息

作者简介:
卢萌盟(1979— ),男,博士,教授,博士生导师,主要从事软黏土力学及地基处理方面的教学和科研工作。E-mail：lumm@cumt.edu.cn

通讯作者:
敖祖瑞, E-mail：azr96@cumt.edu.cn

中图分类号: TU470
计量
- 文章访问数: 0139
- HTML全文浏览量: 0
- PDF下载量: 094
出版历程
- 收稿日期: 2020-10-29
- 网络出版日期: 2022-12-02
- 刊出日期: 2021-06-30

Consolidation analysis of composite foundation with multiple and reinforcements by granular columns with high replacement ratio impervious piles

LU Meng-meng^{1, 2,},
AO Zu-rui^{1, 2, ,},
LI Dong-xu^{1, 2},
LI Chuan-xun³

1.
School of Mechanics and Civil Engineering, China University of Mining and technology, Xuzhou 221006, China
2.
State Key Laboratory of Geomechanics and Deep Underground Engineering, China University of Mining and Technology, Xuzhou 221006, China
3.
Faculty of Civil Engineering and Mechanics, Jiangsu University, Zhenjiang 212013, China

摘要

摘要: 多元复合地基是近年出现的一种新型的复合地基形式,其利用两种或者两种以上的桩型对地基土进行加固,以期达到提高地基承载力,减小工后沉降,加速地基固结的作用。以高置换率散体材料桩联合不排水桩的多元复合地基为研究对象,通过引入散体材料桩内径、竖向渗流,对散体材料桩和土体均采用固结方程进行求解,同时考虑多元桩和土体共同承担外部荷载,推导了该多元组合型复合地基的固结控制方程及解析解答,并对解答的合理性进行了验证,最后对多元组合型复合地基的固结性状进行分析。
- 复合地基 /
- 高置换率 /
- 固结 /
- 散体材料桩 /
- 不透水桩
Abstract: The composite foundation with multiple reinforcements is a newly emerging technique to stabilize soft soils. By this technique, two or more types of differenent piles are combined to stabilize soft soils by increasing the bearing capacity, reducing the post-construction settlement and accelerating the consolidation rate. The composite foundation stabilized by the granular columns with high replacement ratio and impervious piles are selected for analysis. By considering the radial and vertical flows within the granular columns, the consolidation of the granular columns is analyzed in the same way as that for the surrounding soils. Moreover, the surcharge loads are considerd to be supported by the granular columns, the impervious piles and the soft soils together. Then the governing equation for consolidation of this type of composite foundation and the corresponding analytical solutions are derived. The rationality of the solution is futher discussed and verified. Finally, the consolidation behavior of the composite foundation is analysed.
- composite foundation /
- high replacement ratio /
- consolidation /
- granular column /
- impervious pile

HTML全文

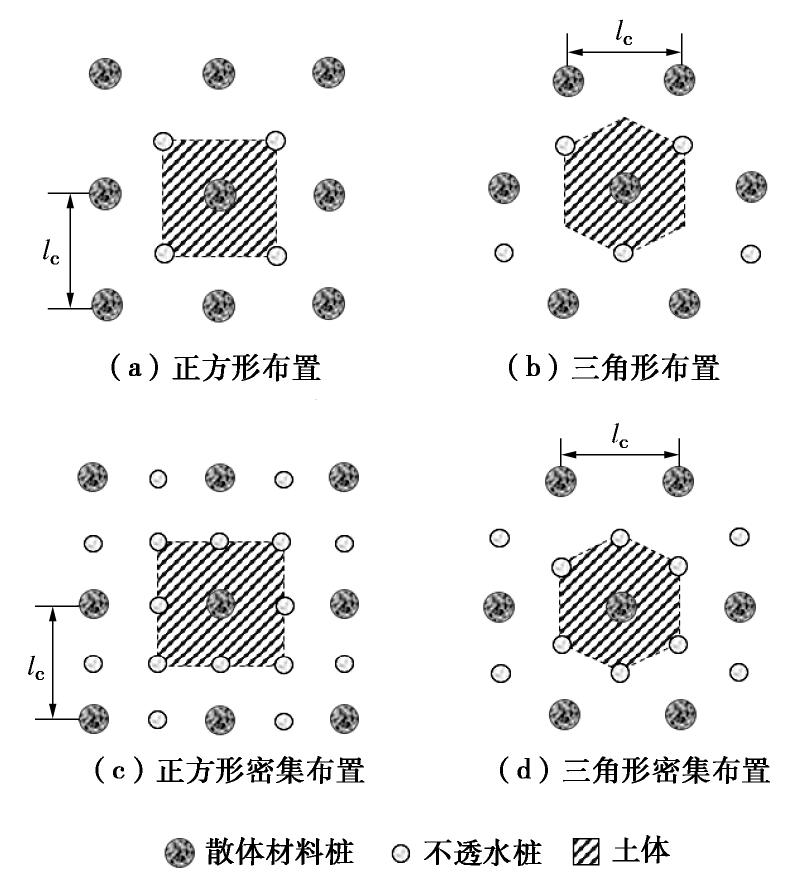

图 1 多元复合地基布置方式图

Figure 1. Layout of composite foundation with multiple reinforcements

下载: 全尺寸图片幻灯片

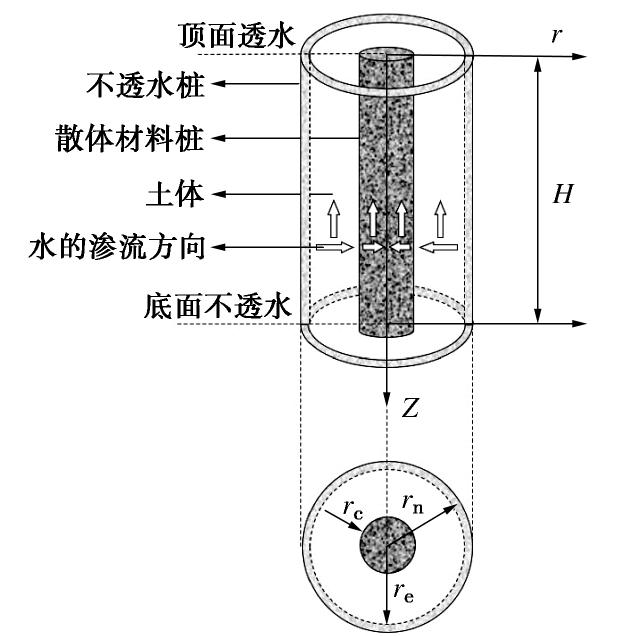

图 2 组合桩复合地基固结计算模型

Figure 2. Computational model for combined composite foundation

下载: 全尺寸图片幻灯片

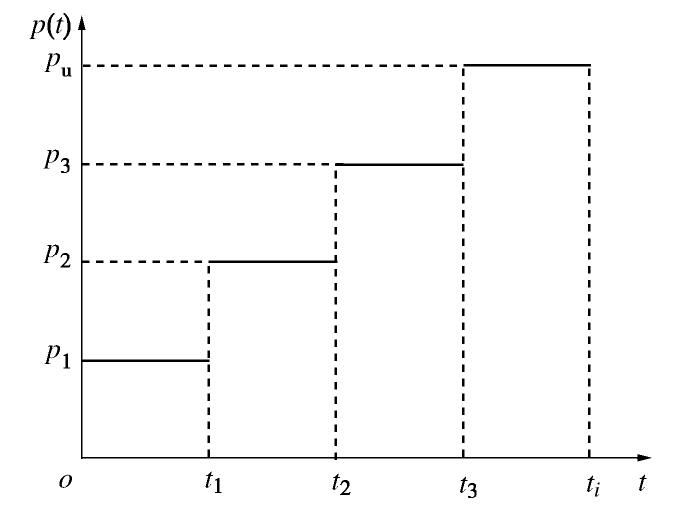

图 3 多级瞬时荷载加载形式

Figure 3. Multi-stage instantaneous loading

下载: 全尺寸图片幻灯片

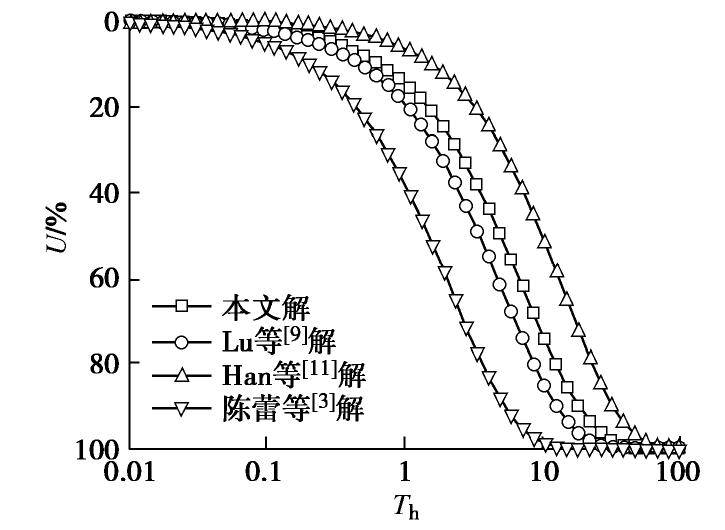

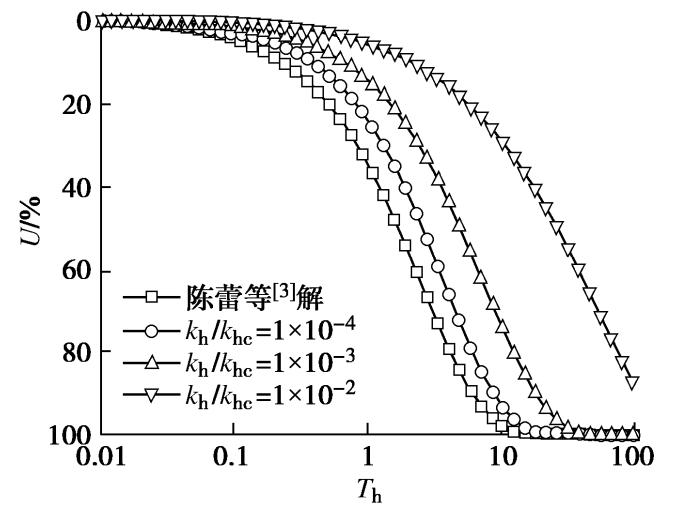

图 4 4种模型固结速度比较

Figure 4. Comparison of consolidation of four models

下载: 全尺寸图片幻灯片

图 5 桩体水平渗透系数对固结速度的影响

Figure 5. Influences of horizontal permeability coefficient of granular columns on consolidation

下载: 全尺寸图片幻灯片

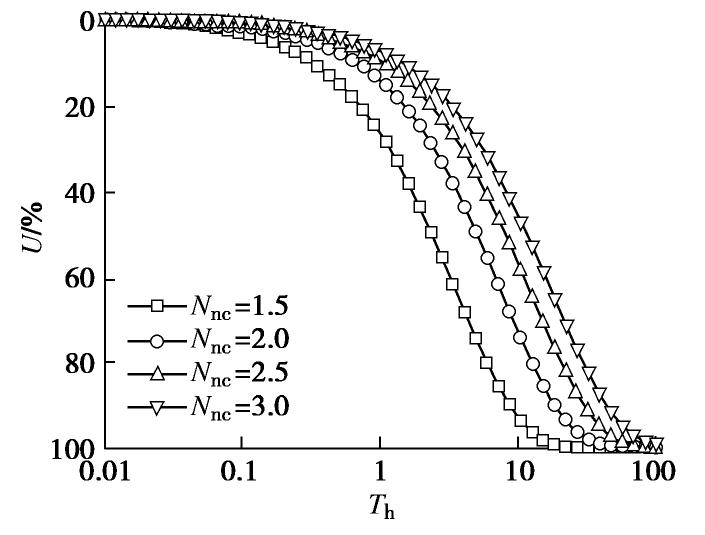

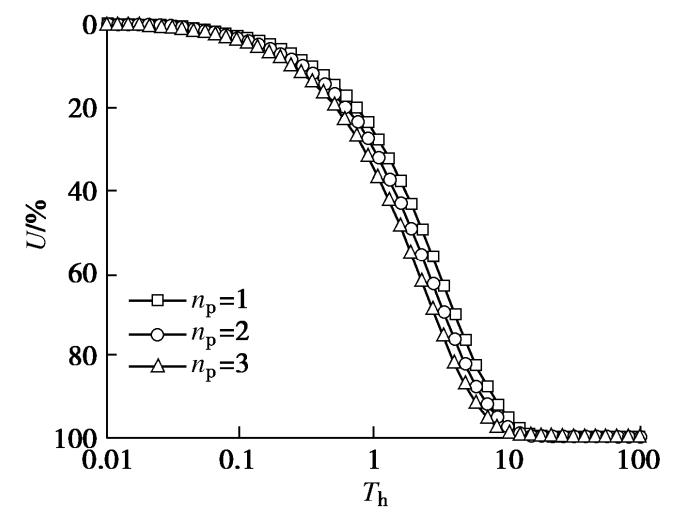

图 6 不透水桩置换率对地基固结的影响

Figure 6. Influences of replacement ratio of impervious piles on consolidation

下载: 全尺寸图片幻灯片

图 7 散体材料桩桩径对固结度的影响

Figure 7. Influences of radius of granular columns on degree of consolidation

下载: 全尺寸图片幻灯片

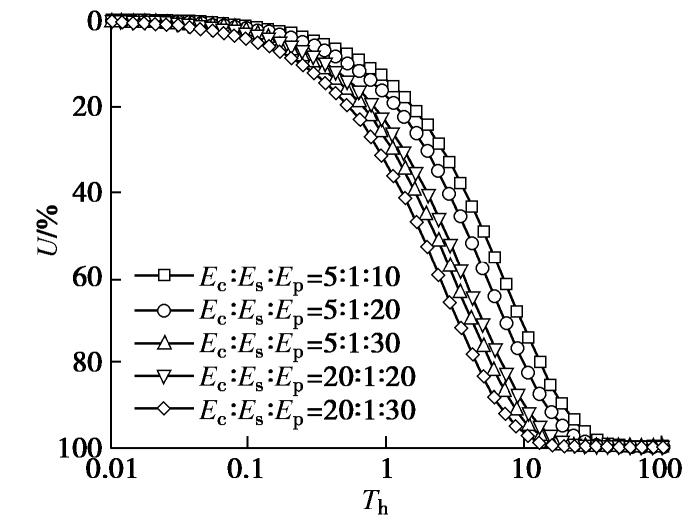

图 8 压缩模量比对地基固结的影响

Figure 8. Influences of confined compression modulus ratio on consolidation

下载: 全尺寸图片幻灯片

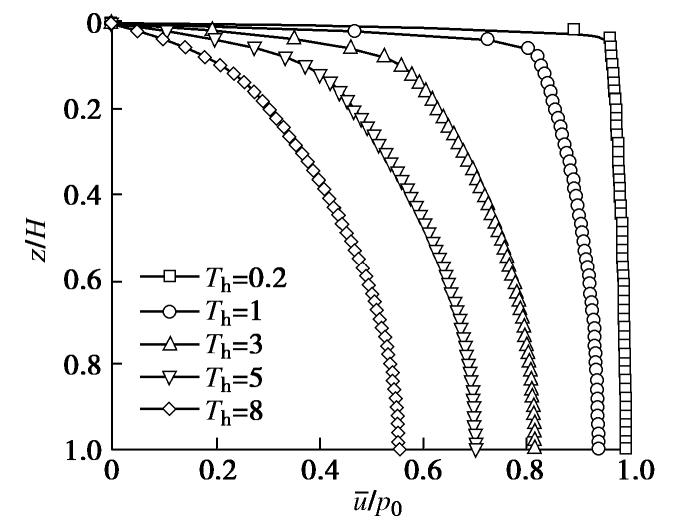

图 9 不同时刻下平均孔压随深度的变化曲线

Figure 9. Variation curves of average excess pore water pressure with depth at different time

下载: 全尺寸图片幻灯片

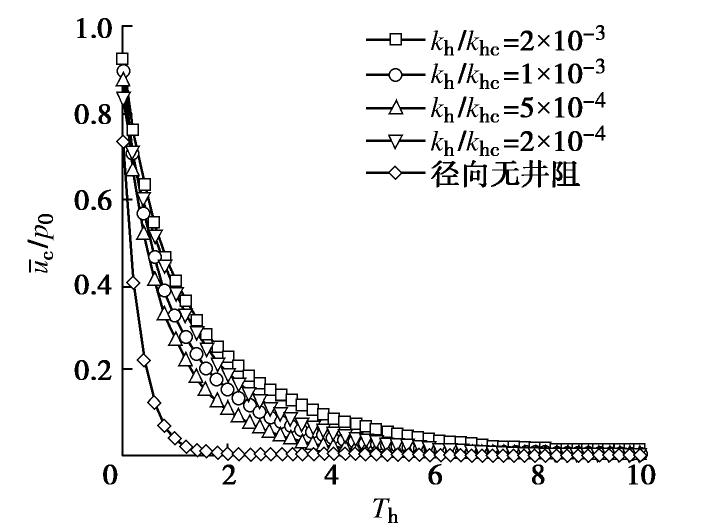

图 10 桩内径向渗透系数与土体渗透系数比不同对桩体内平均孔压的影响

Figure 10. Influences of permeability coefficient ratios on average excess pore water pressure

下载: 全尺寸图片幻灯片

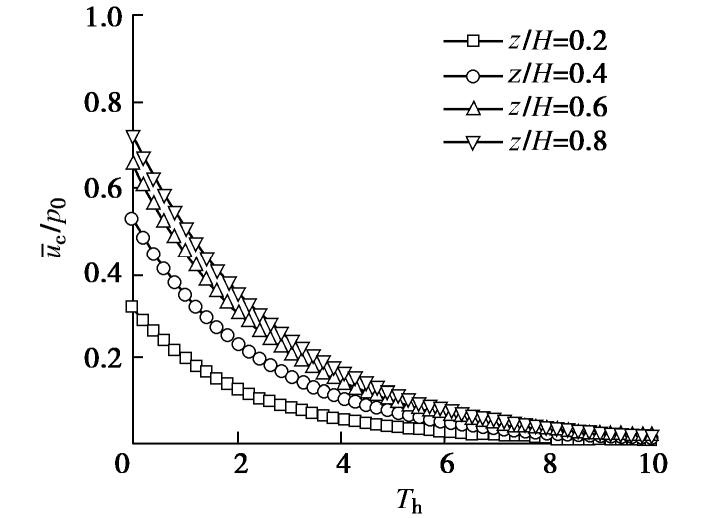

图 11 桩体内平均孔压在不同深度处随时间的消散曲线

Figure 11. Time-dependent dissipation curves of average excess porepressure at different depths

下载: 全尺寸图片幻灯片

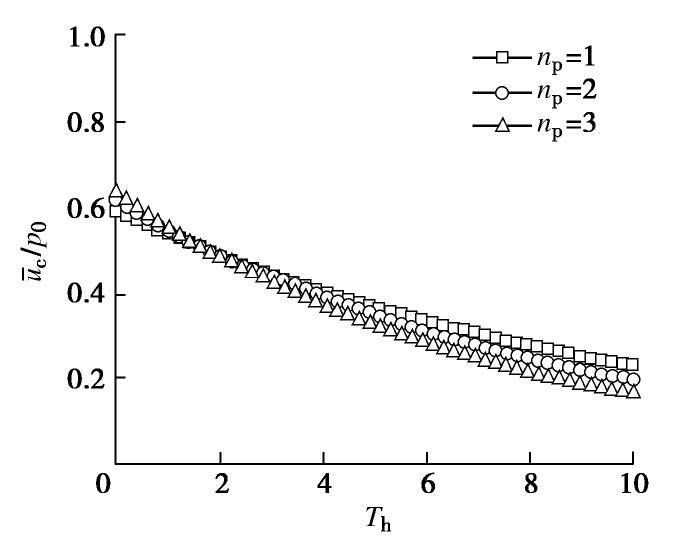

图 12 不透水桩数量对桩体内平均孔压的影响

Figure 12. Influences of number of impervious piles on average pore water pressure

下载: 全尺寸图片幻灯片

表 1 模型参数取值表

Table 1 Values of model parameters

参数	取值	参数	取值
H/r_c	30	k_h/k_vc	0.001
r_e/r_c	3.063	k_hc/k_vc	1
r_n/r_c	3.103	E_c/E_s	5
r_s/r_c	1	E_p/E_s	10
k_h/k_v	2	Y_Y	1.649
k_h/k_s	1	z/H	0.500
注：r_s为土体涂抹区半径,k_s为涂抹区渗透系数。本文不考虑涂抹效应,故有r_s/r_c=1, k_h/k_s=1。

下载: 导出CSV

参考文献(16)

[1]	HAN J, YE S L. A theoretical solution for consolidation rates of stone column-reinforced foundations accounting for smear and well resistance effects[J]. International Journal of Geomechanics, 2002, 2(2): 135-151. doi: 10.1061/(ASCE)1532-3641(2002)2:2(135)
[2]	WANG X S, JIAO J J. Analysis of soil consolidation by vertical drains with double porosity model[J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2004, 28(14): 1385-1400. doi: 10.1002/nag.391
[3]	陈蕾, 刘松玉, 洪振舜. 排水粉喷桩复合地基固结计算方法的探讨[J]. 岩土工程学报, 2007, 29(2): 198-203. doi: 10.3321/j.issn:1000-4548.2007.02.008 CHEN Lei, LIU Song-yu, HONG Zhen-shun. Study of consolidation calculation of soft ground improved by dry jet mixing combined with vertical drain method[J]. Chinese Journal of Geotechnical Engineering, 2007, 29(2): 198-203. (in Chinese) doi: 10.3321/j.issn:1000-4548.2007.02.008
[4]	LIU S Y, HAN J, ZHANG D W, et al. A combined DJM-PVD method for soft ground improvement[J]. Geosynthetics International, 2008, 15(1): 43-54. doi: 10.1680/gein.2008.15.1.43
[5]	刘吉福. 路堤下等应变复合地基的固结分析[J]. 岩石力学与工程学报, 2009, 28(增刊11): 3042-3050. https://www.cnki.com.cn/Article/CJFDTOTAL-YSLX2009S1069.htm LIU Ji-fu. Analysis of consolidation of equal-strain composite ground under embankment[J]. Chinese Journal of Rock Mechanics and Engineering, 2009, 28(S1): 3042-3050. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YSLX2009S1069.htm
[6]	ZHENG G, LIU S Y, CHEN R P. State of advancement of column-type reinforcement element and its application in China[C]//US-China Workshop on Ground Improvement Technologies 2009. Orlando, 2009.
[7]	林森. CFG桩—碎石桩组合型复合地基的应用实例及问题分析[J]. 建筑科学, 2010, 26(3): 97-99. doi: 10.3969/j.issn.1002-8528.2010.03.023 LIN Sen. The analysis and application of CFG pile-gravel pile composite foundation[J]. Building Science, 2010, 26(3): 97-99. (in Chinese) doi: 10.3969/j.issn.1002-8528.2010.03.023
[8]	叶观宝, 张振, 邢皓枫, 等. 组合型复合地基固结分析[J]. 岩土工程学报, 2011, 33(1): 45-49. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201101010.htm YE Guan-bao, ZHANG Zhen, XING Hao-feng, et al. Consolidation of combined composite foundation[J]. Chinese Journal of Geotechnical Engineering, 2011, 33(11): 45-49. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201101010.htm
[9]	LU M M, JING H W, ZHOU A N, et al. Analytical models for consolidation of combined composite ground improved by impervious columns and vertical drains[J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2018, 42(6): 871-888. doi: 10.1002/nag.2770
[10]	XIE K H, LU M M, LIU G B. Equal strain consolidation for stone columns reinforced foundation[J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2010, 33(15): 1721-1735.
[11]	于春亮, 张爱军, 赵庆玉, 等. 透水桩与不透水桩组合型复合地基固结解析分析[J]. 岩土力学, 2017, 38(11): 3255-3260, 3270. doi: 10.16285/j.rsm.2017.11.022 YU Chun-liang, ZHANG Ai-jun, ZHAO Qing-yu, et al. Analytical analysis for consolidation of composite foundation reinforced by permeable and impermeable piles[J]. Rock and Soil Mechanics, 2017, 38(11): 3255-3260, 3270. (in Chinese) doi: 10.16285/j.rsm.2017.11.022
[12]	LU M M, JING H W, WANG B, et al. Consolidation of composite ground improved by granular columns with medium and high replacement ratio[J]. Soils and Foundations, 2017, 57(6): 1088-1095. doi: 10.1016/j.sandf.2017.08.033
[13]	谢康和, 曾国熙. 等应变条件下的砂井地基固结解析理论[J]. 岩土工程学报, 1989, 11(2): 3-17. doi: 10.3321/j.issn:1000-4548.1989.02.002 XIE Kang-he, ZENG Guo-xi. Analytical theory for consolidation of sand drain under equal strain assumption[J]. Chinese Journal of Geotechnical Engineering, 1989, 11(2): 3-17. (in Chinese) doi: 10.3321/j.issn:1000-4548.1989.02.002
[14]	LU M M, SLOAN S W, INDRARATNA B, et al. A new analytical model for consolidation with multiple vertical drains[J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2016, 40(11): 1623-1640. doi: 10.1002/nag.2508
[15]	LU M M, XIE K H, GUO B. Consolidation theory for a composite foundation considering radial and vertical flows within the column and the variation of soil permeability within the disturbed soil zone[J]. Canadian Geotechnical Journal, 2010, 47(2): 207-217. doi: 10.1139/T09-086
[16]	BALAAM N P, BOOKER J R. Analysis of rigid rafts supported by granular piles[J]. International Journal for Numerical & Analytical Methods in Geomechanics, 191, 5(4): 379-403.
