Model tests on characteristics and evolution of tunnel collapse in soil-sand interbedded strata
-
摘要: 塌方作为软弱地层隧道施工建设的一个重大安全风险,在层状地层隧道建设中尤其值得格外关注。隧道塌方的预防和管控得益于其表现及演变规律的全面掌控。以第四系土砂互层地层隧道为研究对象,通过相似模型试验并结合数字图像处理技术,首次研究得出土砂互层地层隧道塌方特征及演变规律。结果表明：①围岩破坏非瞬间破坏、而呈渐进性破坏,破坏始于拱脚处围岩裂隙发育并向上扩展、拱脚处围岩产生局部掉块,接着拱顶上方围岩小范围塌落,裂隙扩展和失稳塌落循序渐进,拱顶上方围岩大范围塌落,最终使得拱顶上方围岩不断离层破坏。②土砂互层地层隧道拱顶上方围岩破坏表现为“层内围岩剪切破坏,层间围岩离层弯曲破坏”的塌方特征,互层特性对塌方影响显著,跨厚比越大、砂土比越大,塌方破坏越显著。③塌方对拱顶上方围岩沉降主要影响范围为1倍隧道跨度,隧道施工建设中应加强上述范围内围岩加固。所得结果能够为土砂互层地层隧道施工建设过程中的塌方防控提供借鉴。Abstract: As a major safety risk in the construction of tunnels in soft strata, collapse deserves special attention in the construction of tunnels in layered strata. In order to prevent and control tunnel collapse, it is necessary to fully grasp the characteristics and evolution law of collapse. A tunnel in the Quaternary soil-sand interbedded strata is taken as the research object. By using model tests and digital image processing technology, the collapse characteristics and evolution laws of the tunnel in soil-sand interbedded strata are studied for the first time. The results show that: (1) The failure of the surrounding rock is not instantaneous, but gradual. It starts from the cracks in the surrounding rock at the foot of the arch and expands upward, and local falling of the surrounding rock is induced. Then the surrounding rock above the vault of the arch collapses in a small range, the crack expansion and instability occur step by step, and the surrounding rock above the vault of the arch collapses in a large range and eventually breaks away from the stratum contineously. (2) The collapse of the surrounding rock above the vault of the arch of the tunnel in the soil-sand interbedded stratum is characterized by "shear failure of the surrounding rock in the stratum and bending failure of the surrounding rock in the interbedded stratum". The interbedded characteristics have a significant influence on the collapse. The larger the ratio of span to depth and the larger the ratio of sand to soil, the more obvious the collapse failure. (3) The main influence range of the collapse on the settlement of the surrounding rock above the vault of the arch is 1 times the tunnel span, and the reinforcement of the surrounding rock should be strengthened in the above area during tunnel construction. The results may provide reference for the prevention and control of the collapse in the process of the tunnel construction in soil-sand interbedded strata.
-
全球性的气候问题与突发自然灾害使得岩土及地下工程灾变问题不断凸现，给岩土工程安全与运营构成巨大挑战。岩土体作为地球表面最为广泛存在的地质材料具有复杂的物理力学特性与显著的时空变异性。岩土工程物理模拟试验技术通过融合多学科知识模拟和再现岩土体在自然与工程状态下的物理力学行为，为复杂岩土工程问题的解决提供强力支撑。“交通强国”等重大国家战略的实施也给岩土工程带来了巨大的历史机遇。岩土工程防灾减灾问题由于其普遍性、迫切性和前沿性也成为岩土及地下工程领域研究的新热点。随着科技的进步，岩土工程物理模拟试验技术也正从传统的重力场模拟、离心试验，向数字与智能化转变，而世界级超大型试验设备的建设，更将极大驱动我国岩土工程物理模拟试验技术的未来发展。
为促进我国岩土工程物理模拟试验技术学术交流，由中国水利学会岩土力学专业委员会和中国土木工程学会土力学及岩土工程分会共同主办，交通运输部天津水运工程科学研究院、南京水利科学研究院、中交天津港湾工程研究院有限公司以及天津大学承办的第十届岩土工程物理模拟学术研讨会于2024年8月在天津市滨海新区举行。本届会议是继武汉(2011年)、杭州(2013)、北京(2017)、喀什(2023)会议后全国岩土工程物理模拟试验技术领域的又一次学术盛会。会议筹备期间共收到投稿论文113篇，经过审稿委员会的审议向《岩土工程学报》（增刊）推荐稿件51篇，并在学报2024年增刊1专刊出版。同时，本届研讨会举办了砂土场地桩基水平承载力平行试验，并以特邀报告、主题报告、青年学者报告等在内的形式开展广泛深入的交流，展现最新模拟技术和研究成果，探讨岩土工程物理模拟试验技术在交通强国基础设施建设与防灾减灾研究中的应用，以促进岩土工程物理模拟试验技术对我国重大战略和重大工程的技术支撑作用。
感谢对本届会议召开鼎力相助的交通运输部天津水运工程科学研究院及各有关单位，感谢向本届会议投稿的各位专家和同行，感谢审稿专家对本次会议审稿工作的辛勤付出。尤其是《岩土工程学报》编辑部，为使本届会议的论文集面世，做了大量工作，专门编辑出版了本期增刊，特此表示感谢。
第十届全国岩土工程物理模拟学术研讨会组委会 -
![]()

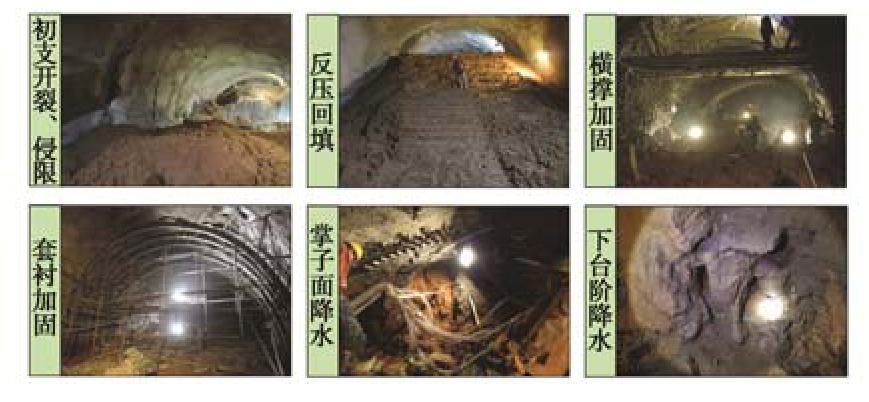

图 2 隧道围岩失稳破坏及相应施工措施
Figure 2. Instability and failure of surrounding rock and corresponding construction measures
![]()

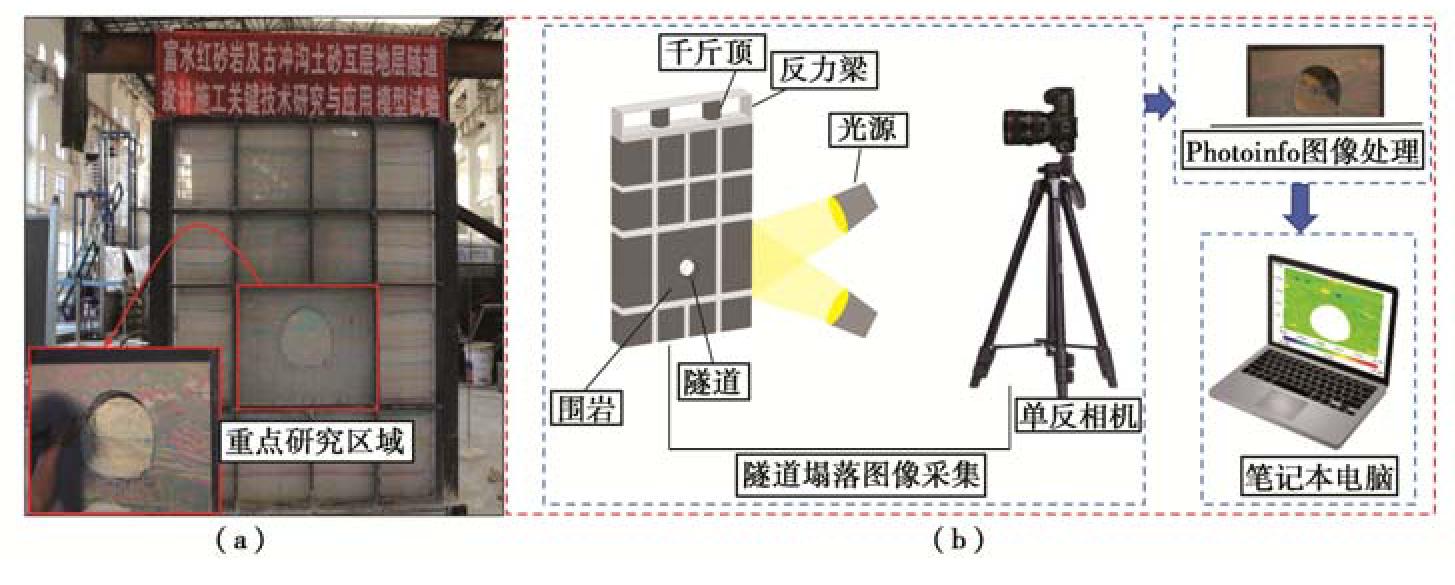

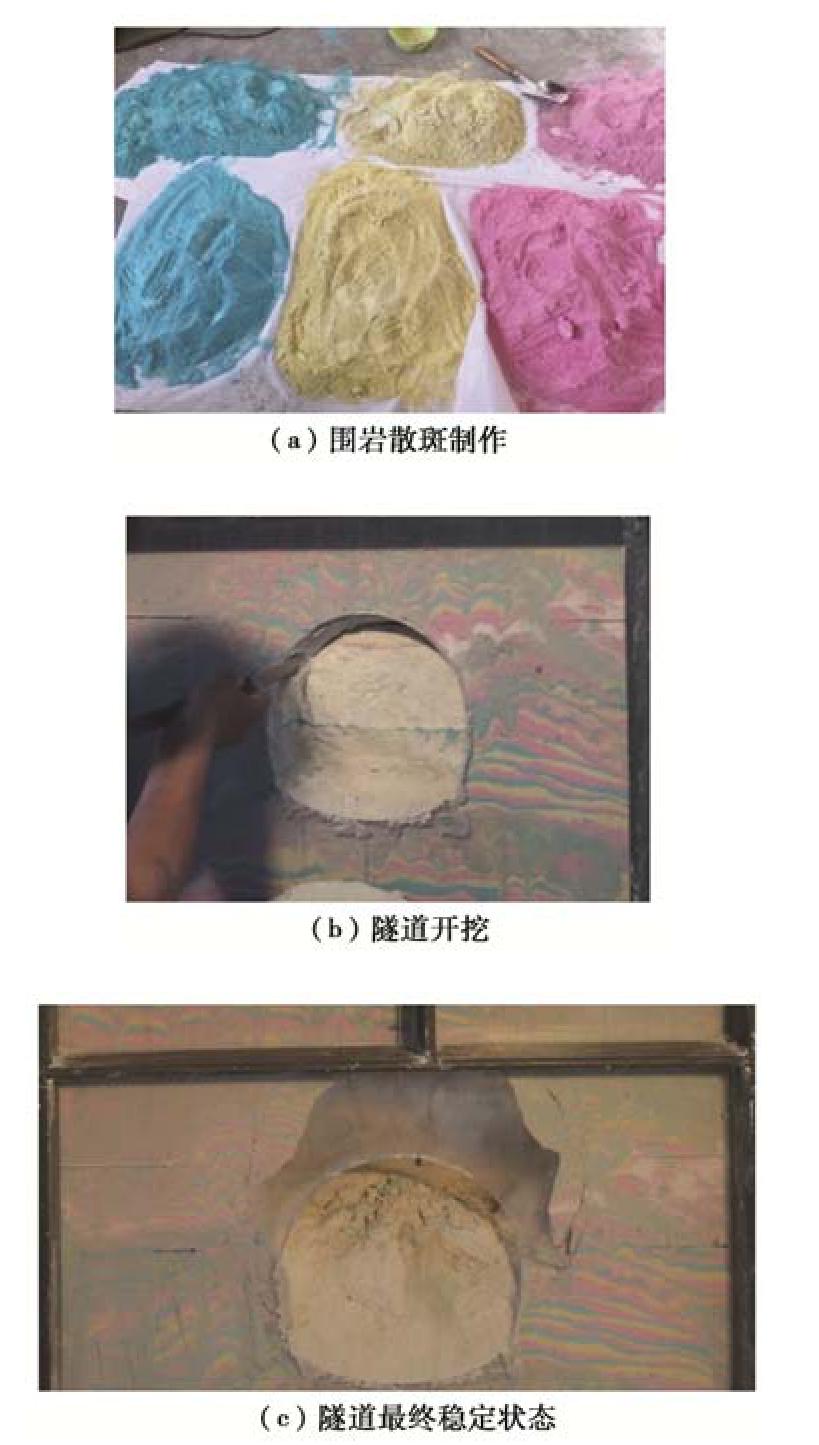

图 7 隧道开挖相似模型试验关键流程图（部分）
Figure 7. Part of key flow chart of similarity model tests on excavation of tunnel
![]()

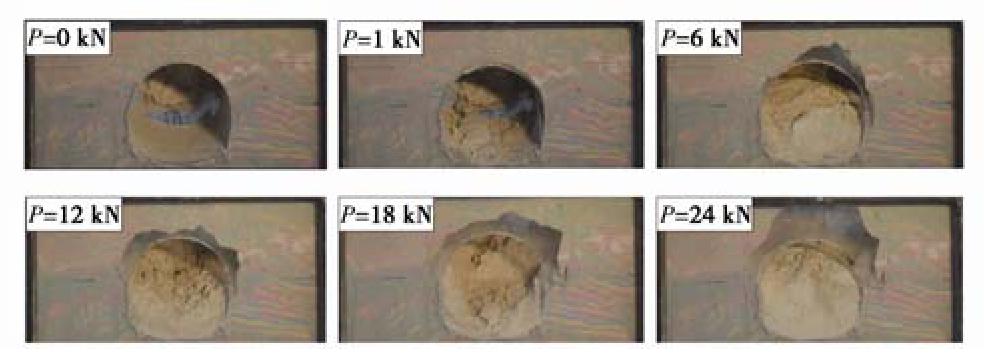

图 9 隧道围岩渐进性破坏过程（以试验工况2为例）
Figure 9. Progressive failure process of surrounding rock of tunnel (Case 2)
![]()

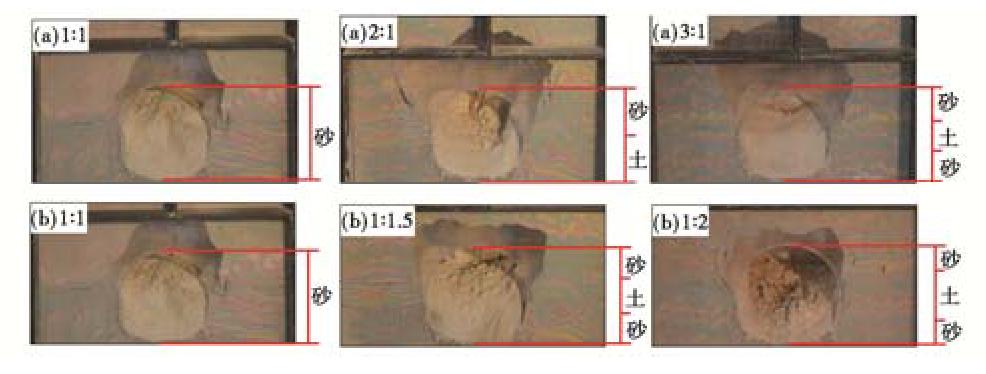

图 10 不同互层特性下隧道塌落的最终稳定状态
Figure 10. Final stable state of tunnel collapse under different interbedding characteristics
![]()

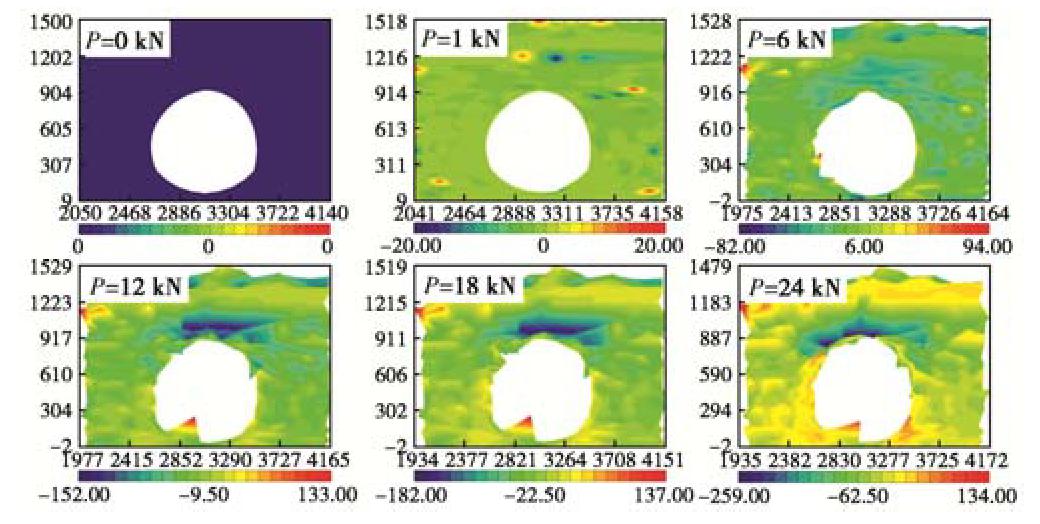

图 11 隧道围岩竖直方向全场位移云图
Figure 11. Cloud chart of vertical displacement of surrounding rock of tunnel
![]()

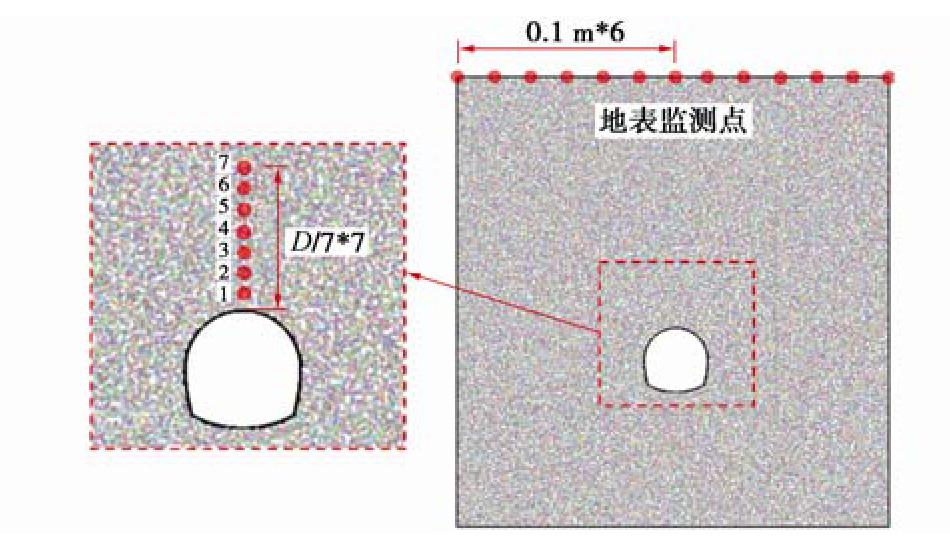

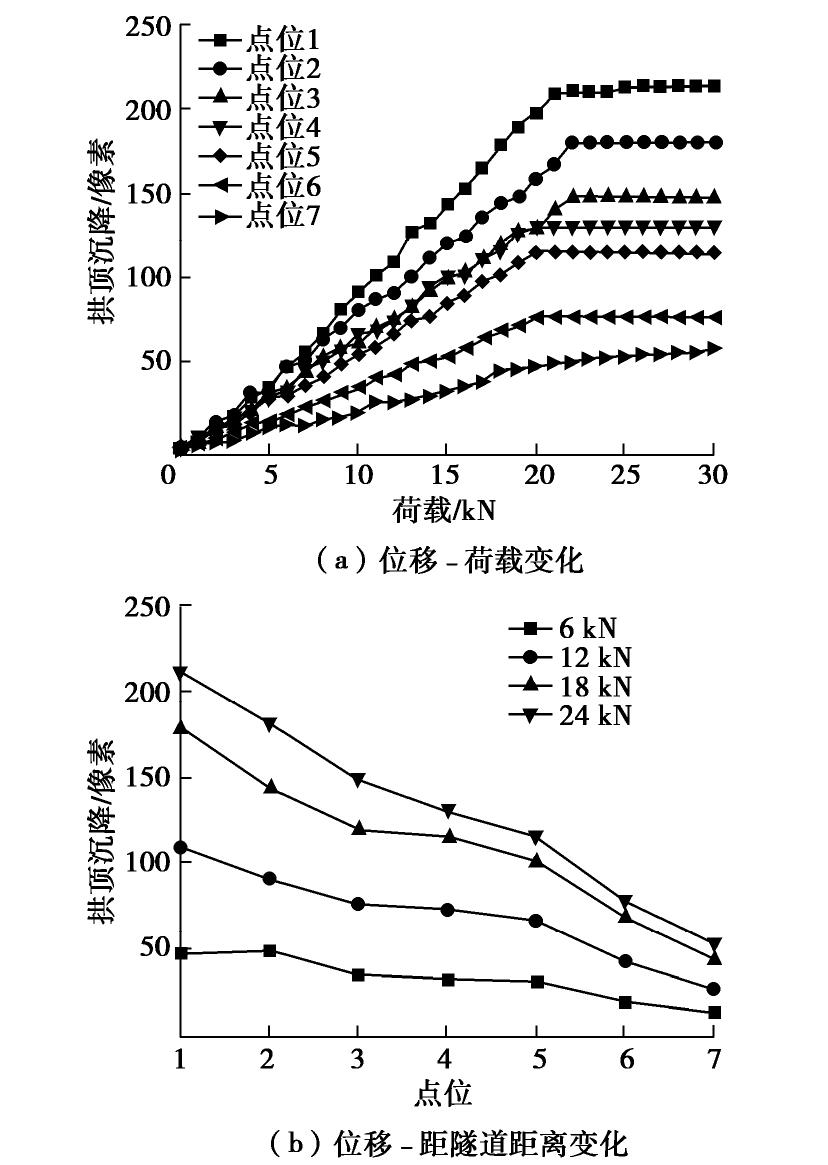

图 12 拱顶上方围岩沉降变化规律（试验工况2）
Figure 12. Change of settlement of surrounding rock above vault of arch (Case 2)
![]()

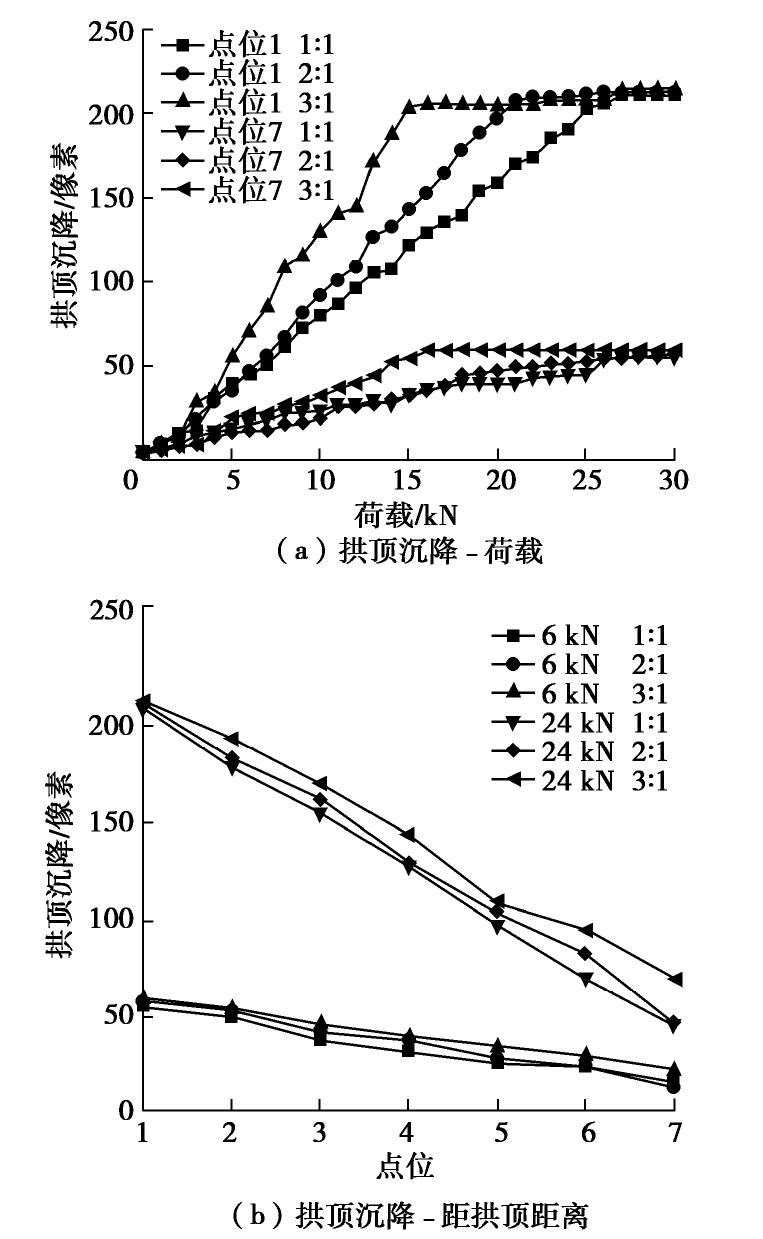

图 13 跨厚比对拱顶上方围岩沉降的影响规律
Figure 13. Influences of ratio of span to depth on settlement of surrounding rock above vault of arch crown
![]()

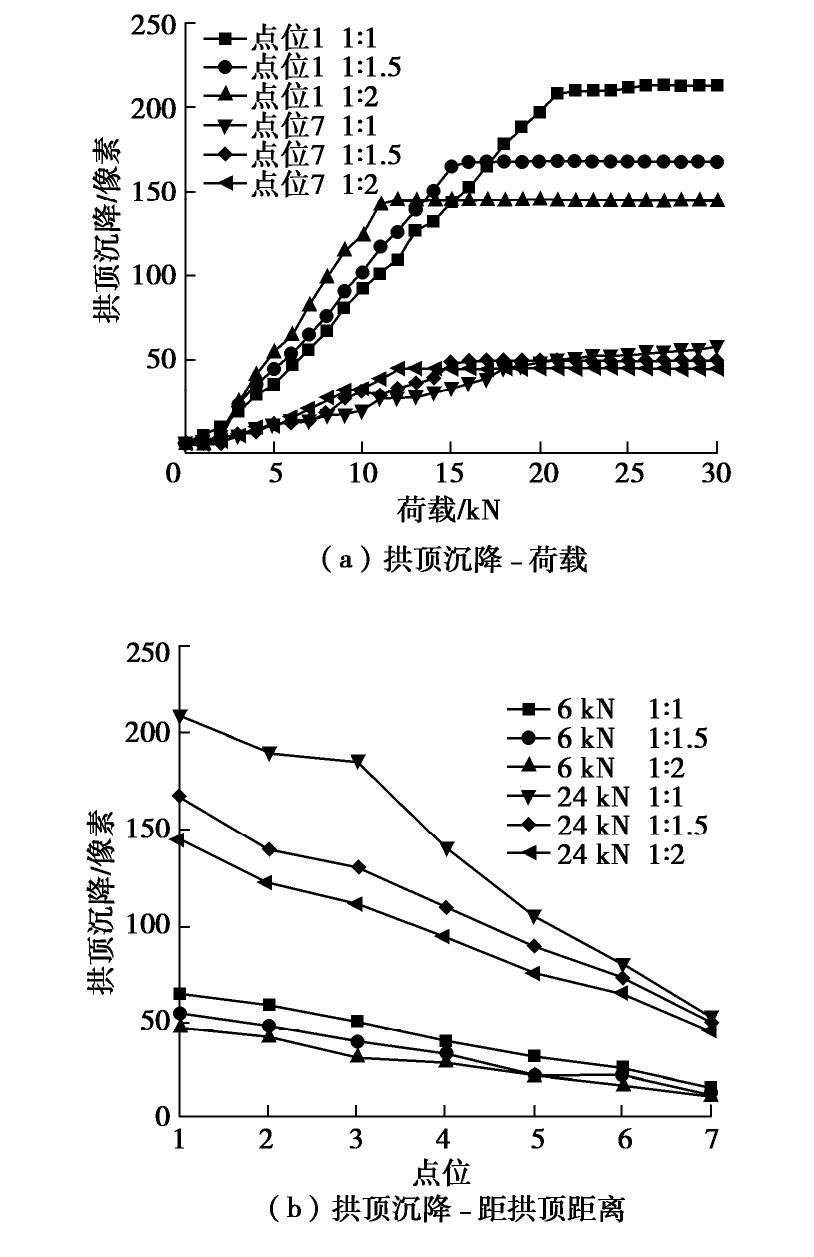

图 14 层厚比对拱顶上方围岩沉降的影响规律
Figure 14. Influences of layer thickness ratio on settlement of surrounding rock above vault of arch
表 1 隧道支护参数
Table 1 Supporting parameters of tunnel
围岩级别及衬砌类型 初期支护 二次衬砌 C25喷射混凝土 格栅钢架 拱墙 仰拱 围岩级别 衬砌类型 部位 厚度/cm 部位 型号/间距 厚度/cm 厚度/cm VI Ⅵ 全环 37 全环 H300@0.5 m 60 60
下载: 导出CSV
表 2 相似模型试验参数相似比设计
Table 2 Similarity ratio design of model test parameters
参数 几何 重度 应变 内摩擦角 泊松比 弹性模量 黏聚力 应力 位移 相似比 50 1 1 1 1 50 50 50 50
下载: 导出CSV

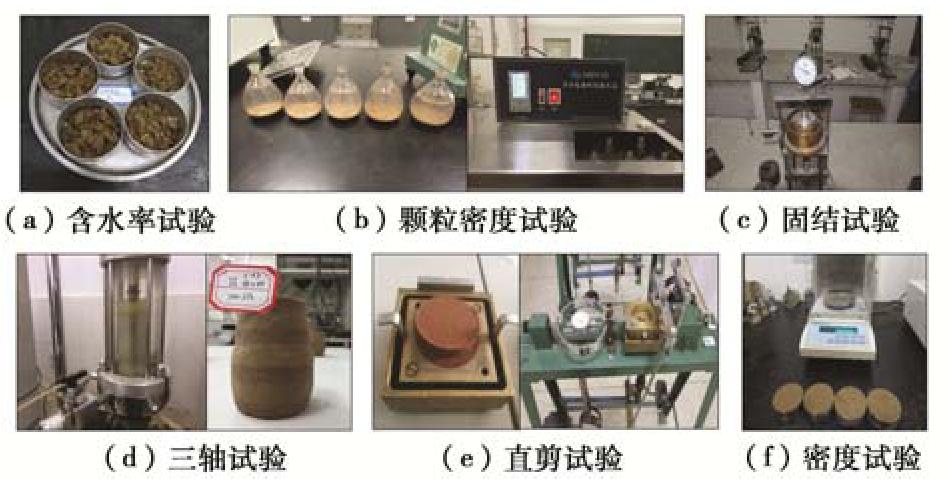

表 3 砂层围岩物理力学参数设计
Table 3 Design of physical and mechanical parameters of surrounding rock of sand
砂层围岩 重度/(kN·m-3) 弹性模量/MPa 泊松比 黏聚力/kPa 内摩擦角φ/(°) 隧道原型实测值 20.50 20.530 0.25 16.580 28.76 相似理论计算值 20.50 0.411 0.25 0.332 28.76 相似模型试验值 19.68 0.408 0.23 0.301 29.50
下载: 导出CSV
表 4 土层围岩物理力学参数设计
Table 4 Design of physical and mechanical parameters of surrounding rock of soil
土层围岩 重度/(kN·m-3) 弹性模量/MPa 泊松比 黏聚力/kPa 内摩擦角φ/(°) 隧道原型实测值 19.86 46.20 0.30 56.60 23.20 相似理论计算值 19.86 0.924 0.30 1.132 23.20 相似模型试验值 19.23 0.910 0.30 0.990 22.10
下载: 导出CSV
表 5 相似模型试验工况设计

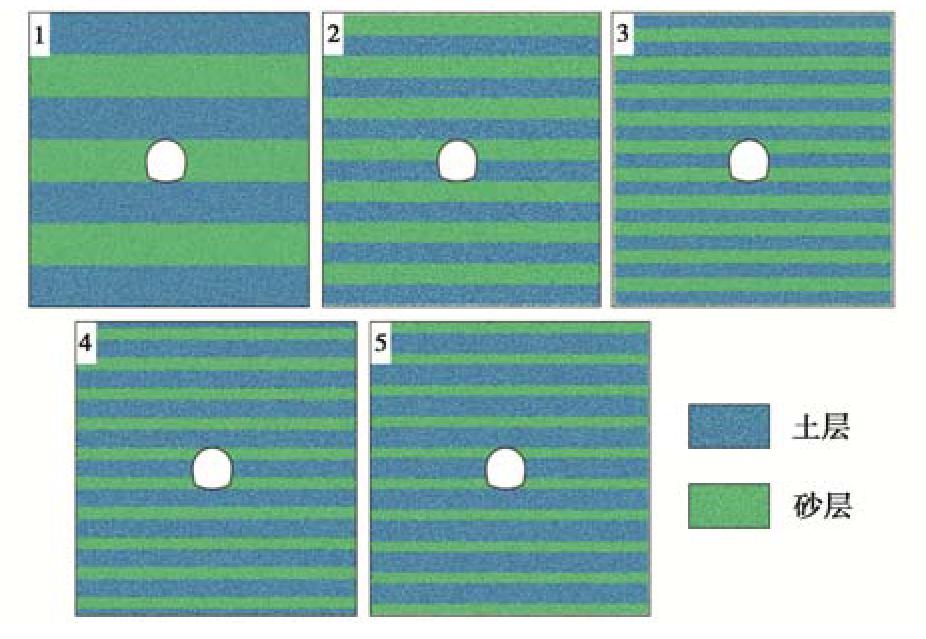

Table 5 Cases of similarity model tests
