Fracture failure mechanism and fracture criterion of compacted clay under compression and shear action
-
摘要: 土体既有裂缝的开裂问题通常被认为是拉剪应力导致,而实际工程中压实黏土多处于压剪应力状态,为探究压剪作用下压实黏土中既有裂缝的起裂机理,对压剪闭合裂缝应力场和断裂准则进行了理论分析,开展了含中心裂缝压实黏土单轴压缩试验,研究了裂缝倾角、裂缝长度及裂缝形态对压剪断裂性状的影响,揭示了压实黏土中闭合裂缝压剪张拉断裂机理,充分验证了闭合裂缝压剪张拉断裂准则在压实黏土中的适用性。根据试验结果与理论预测曲线对比分析,本文压实黏土的临界尺寸rc为2 mm左右,明显小于常用经验公式估算值12 mm,讨论了rc经验估算公式存在的问题。此外,尝试性地引入T应力,建立了非闭合裂缝的压剪-张拉断裂准则,解释了闭合裂缝和非闭合裂缝的差异化起裂行为,并说明了其局限性及其产生原因。Abstract: Soil cracks are often considered to be caused by tensile-shear stress. In actual engineering, the compacted clay is mostly under compressive-shear stress state. In order to explore the crack initiation mechanism of the existing cracks in the compacted clay under compressive-shear stress state, the stress field and fracture criterion of the closed crack are analyzed theoretically. The uniaxial compression tests on the compacted clay with central cracks are carried out. The influence of dip angle, length and shape of cracks on the tensile fracture behavior of the compacted clay are investigated. The applicability of the compression-shear closed-crack tension fracture criterion considering T-stress in the compacted clay is verified, and the compression-shear tension fracture mechanism of closed cracks in the compacted clay is revealed. According to the comparative analysis of the test results and the theoretical prediction curve, the critical size rc of the compacted clay is about 2 mm, which is obviously smaller than the estimated value of 12 mm by the empirical formula used in the rock field. Through detailed discussion, it is shown that the formula applied in the rock field is not suitable for the compacted clay. In addition, the T-stress is introduced tentatively to establish a compression-shear-tension fracture criterion for open cracks. The differential initiation behavior of closed and open cracks is explained, and its limitations are shown.
-
Keywords:
- compressive shear stress /
- closed crack /
- fracture criterion /
- compacted clay /
- T-stress
-
-
![]()

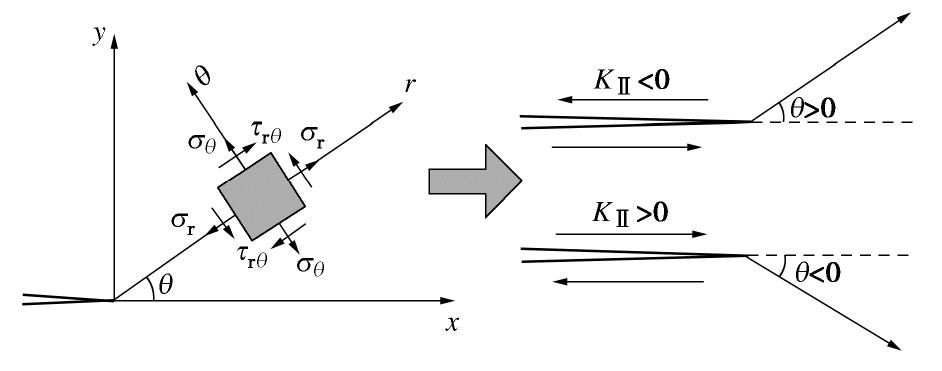

图 1 裂缝尖端应力场及裂缝起裂方向定义
Figure 1. Stress field at crack tip and definition of crack initiation direction
![]()

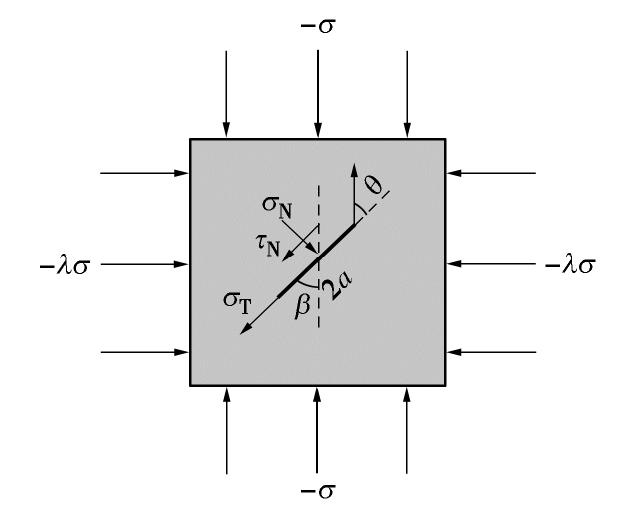

图 2 双向压缩作用下中心斜裂缝的应力场
Figure 2. Stress field of inclined crack under biaxial compression
![]()

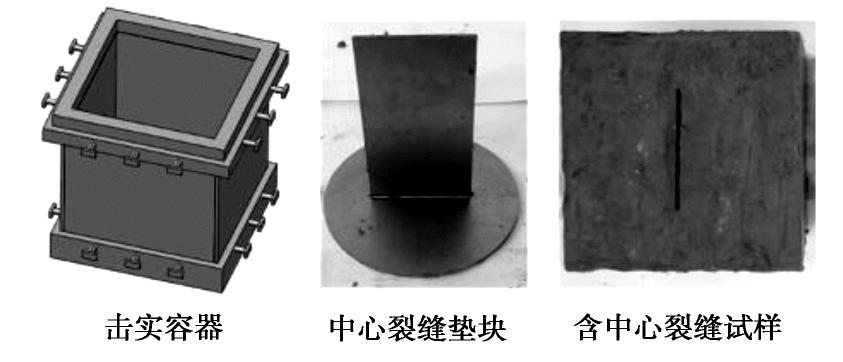

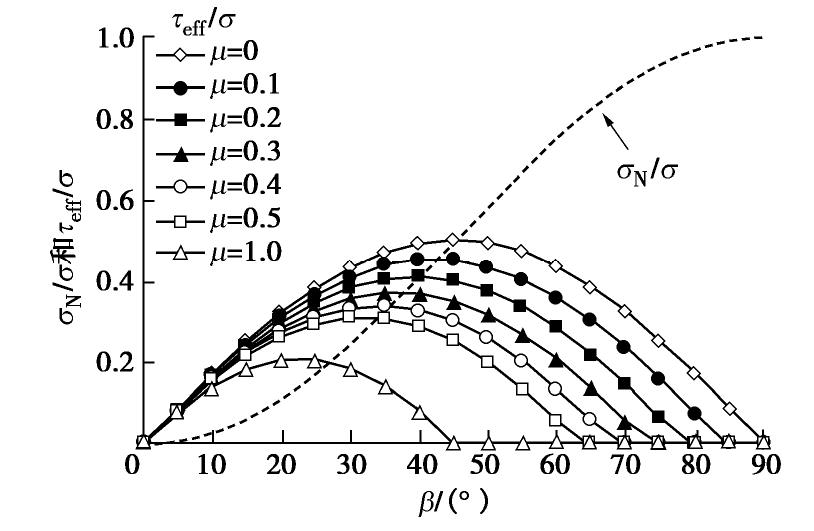

图 4 单向受压时裂缝面受力状态
Figure 4. Stress distribution on crack surface under uniaxial compression
![]()

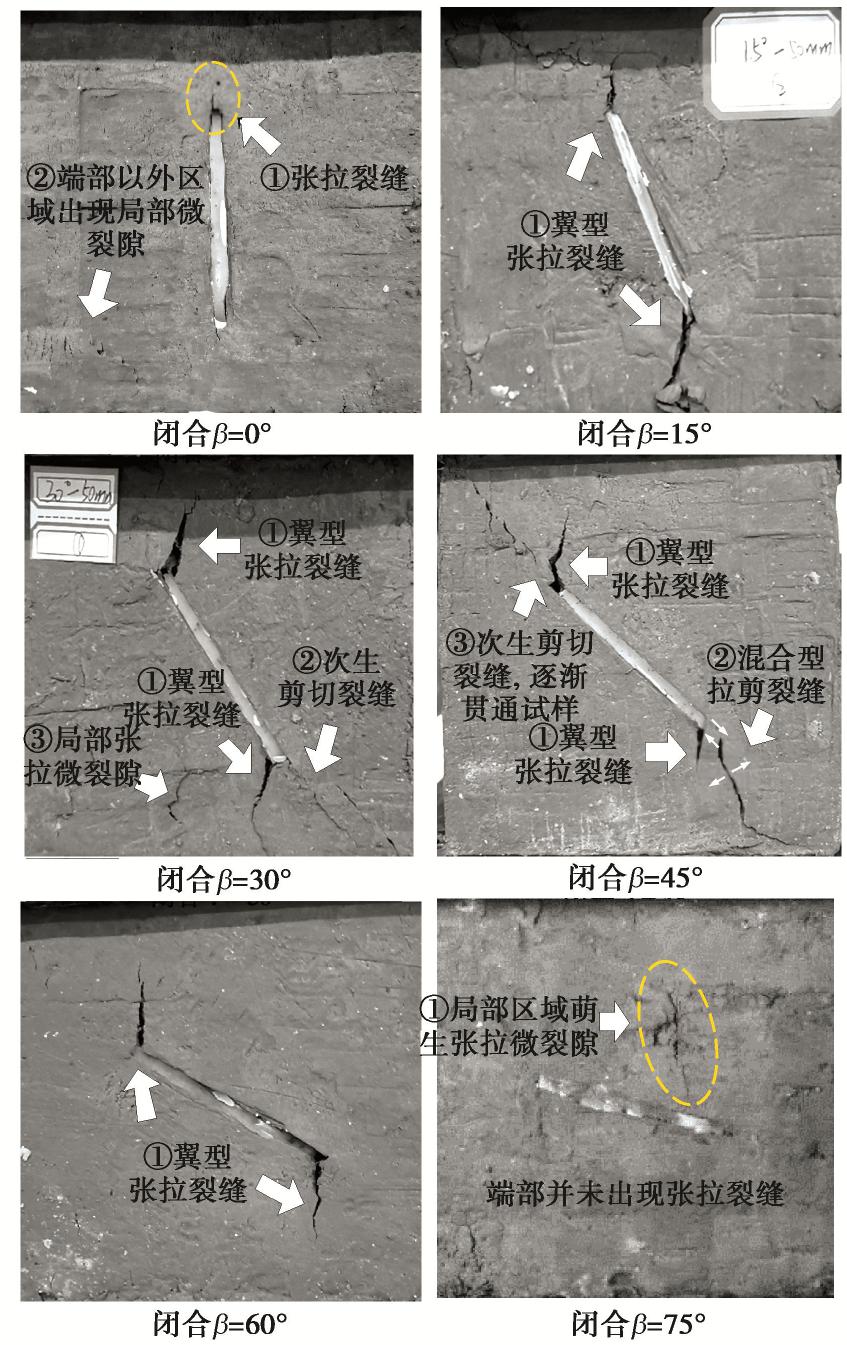

图 5 裂缝倾角对闭合裂缝起裂特征的影响（2a/W = 0.5）
Figure 5. Effects of β on initiation characteristics of closed cracks
![]()

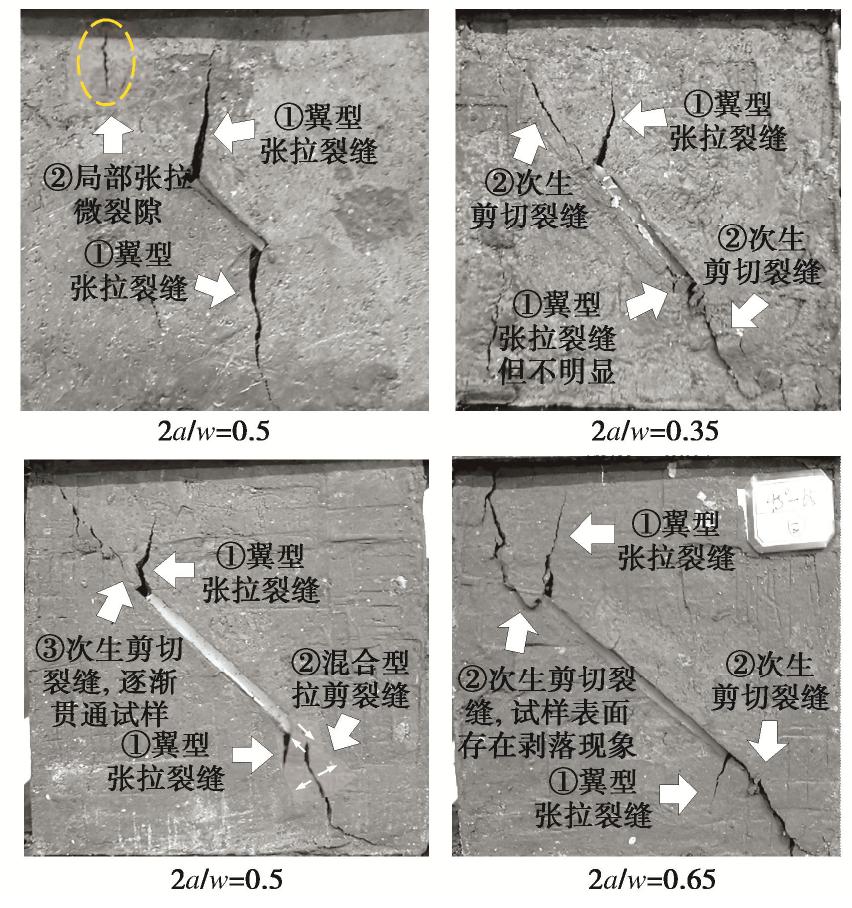

图 6 裂缝长度对闭合裂缝起裂特征的影响（β = 45°）
Figure 6. Effects of 2a on initiation characteristics of closed cracks
![]()

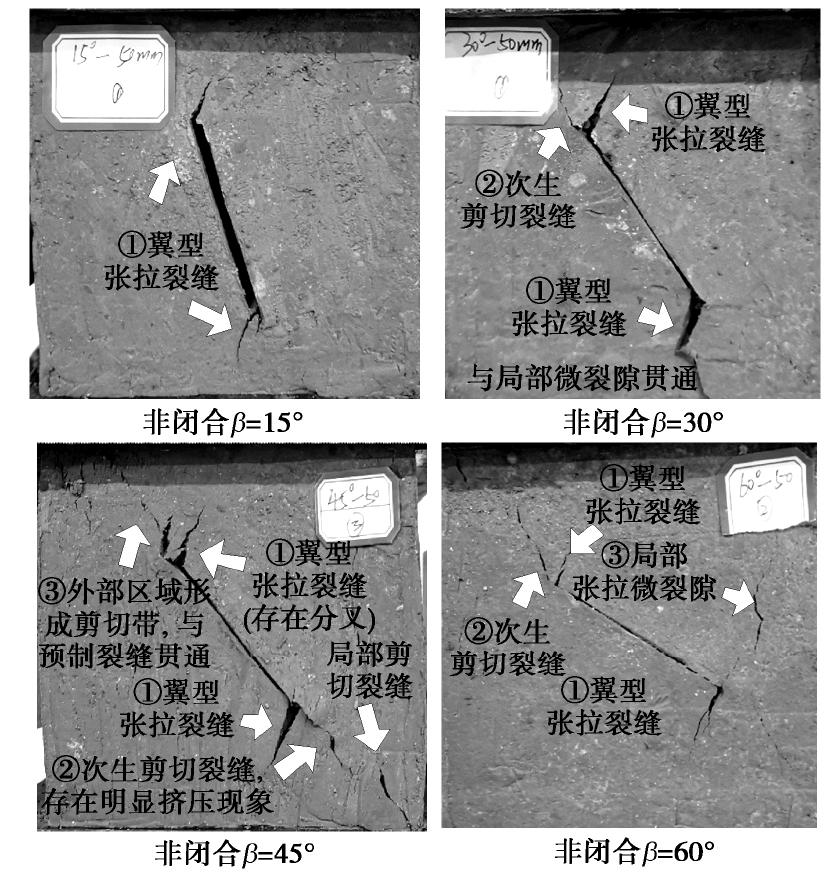

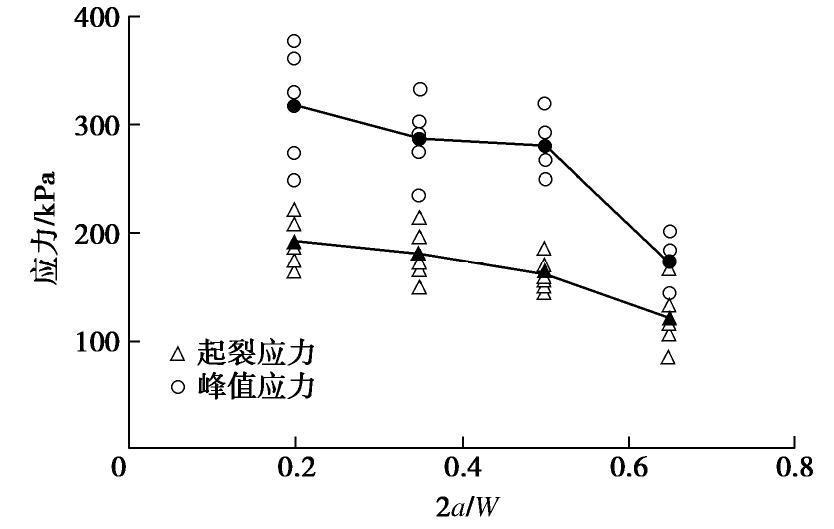

图 9 裂缝长度对闭合裂缝试样峰值应力和起裂应力的影响
Figure 9. Effects of crack length on peak stress and initiation stress of closed crack samples
![]()

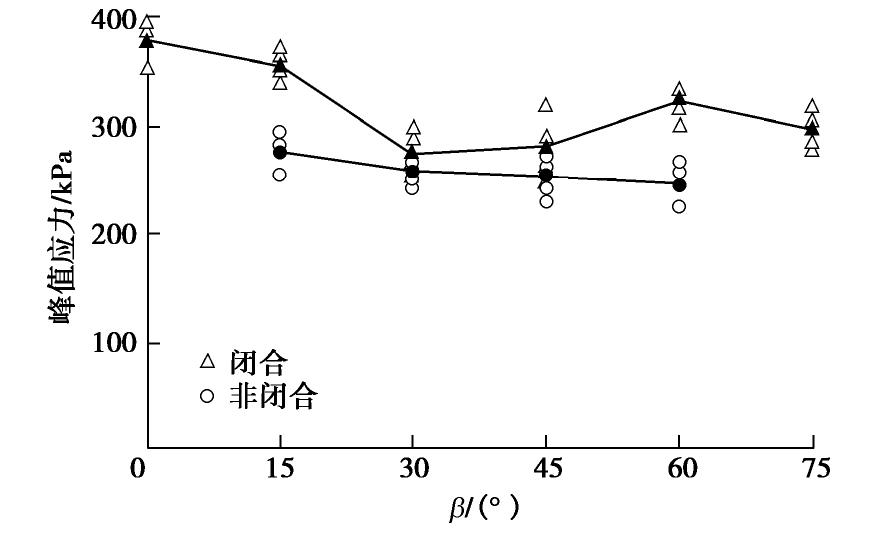

图 10 裂缝倾角对含裂缝试样峰值应力的影响
Figure 10. Effects of angles on peak stress of fracture samples
![]()

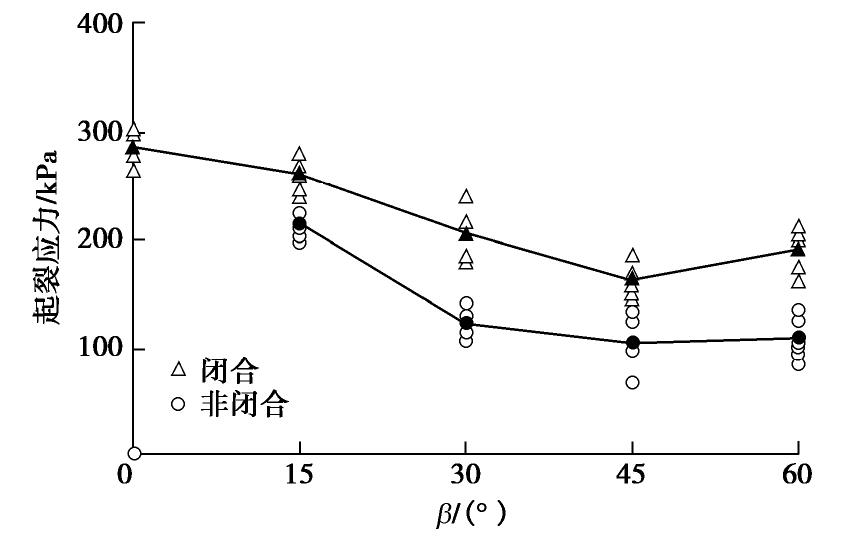

图 11 裂缝倾角对含裂缝试样起裂应力的影响
Figure 11. Effects of angles on initiation stress of fracture samples
![]()

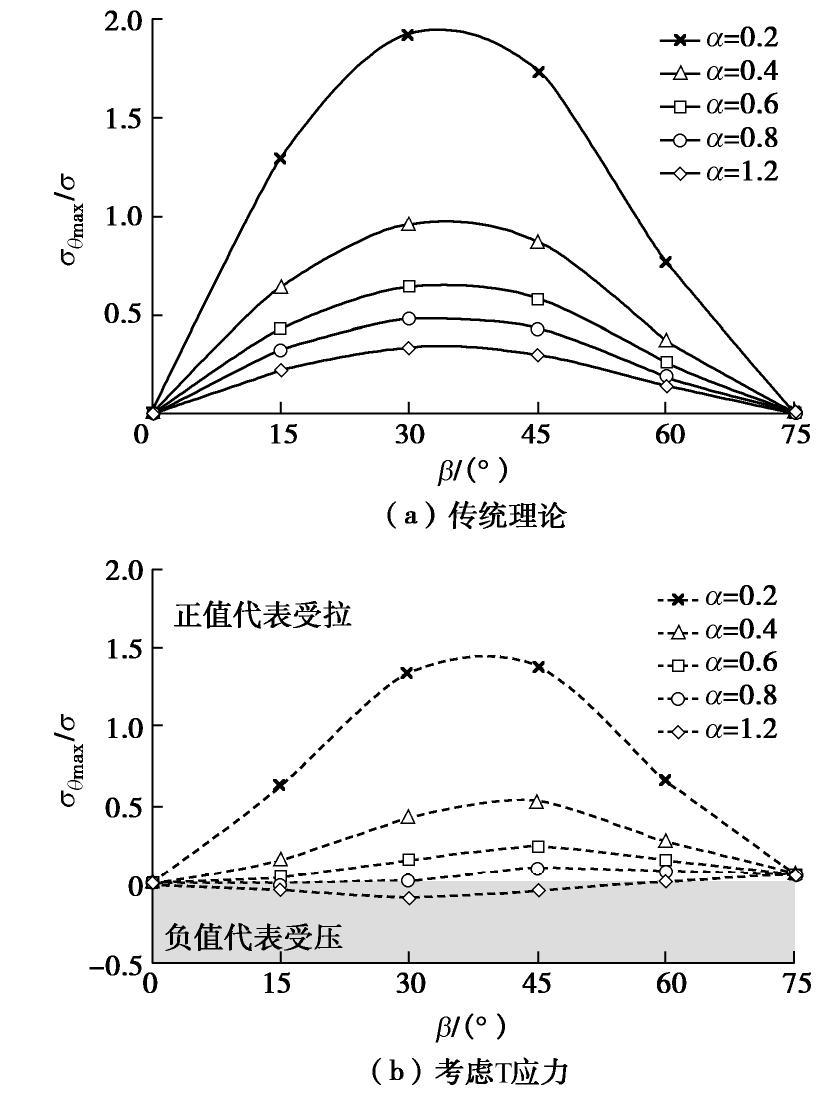

图 12 α对裂缝尖端最大周向应力的影响（μ = 0.38）
Figure 12. Effects of α on maximum tangential stress of crack tip
![]()

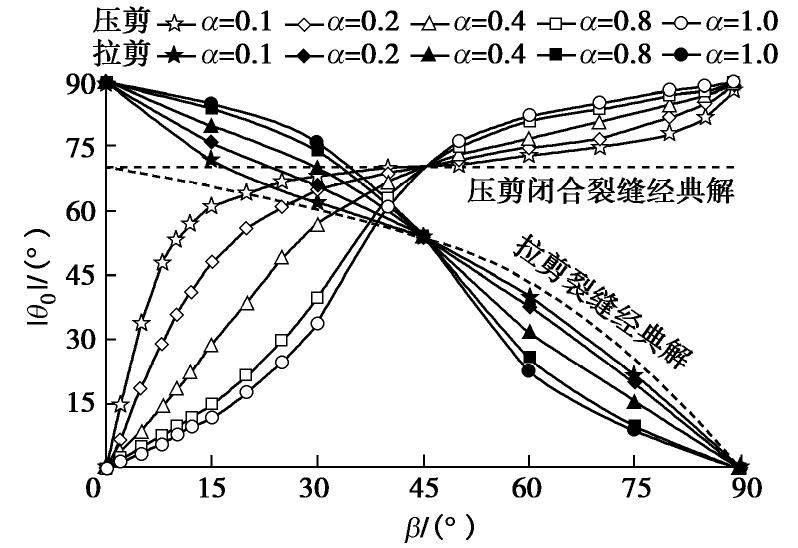

图 13 不同应力状态下α对起裂角的影响
Figure 13. Effects of α oninitiation angle under different stress states
![]()

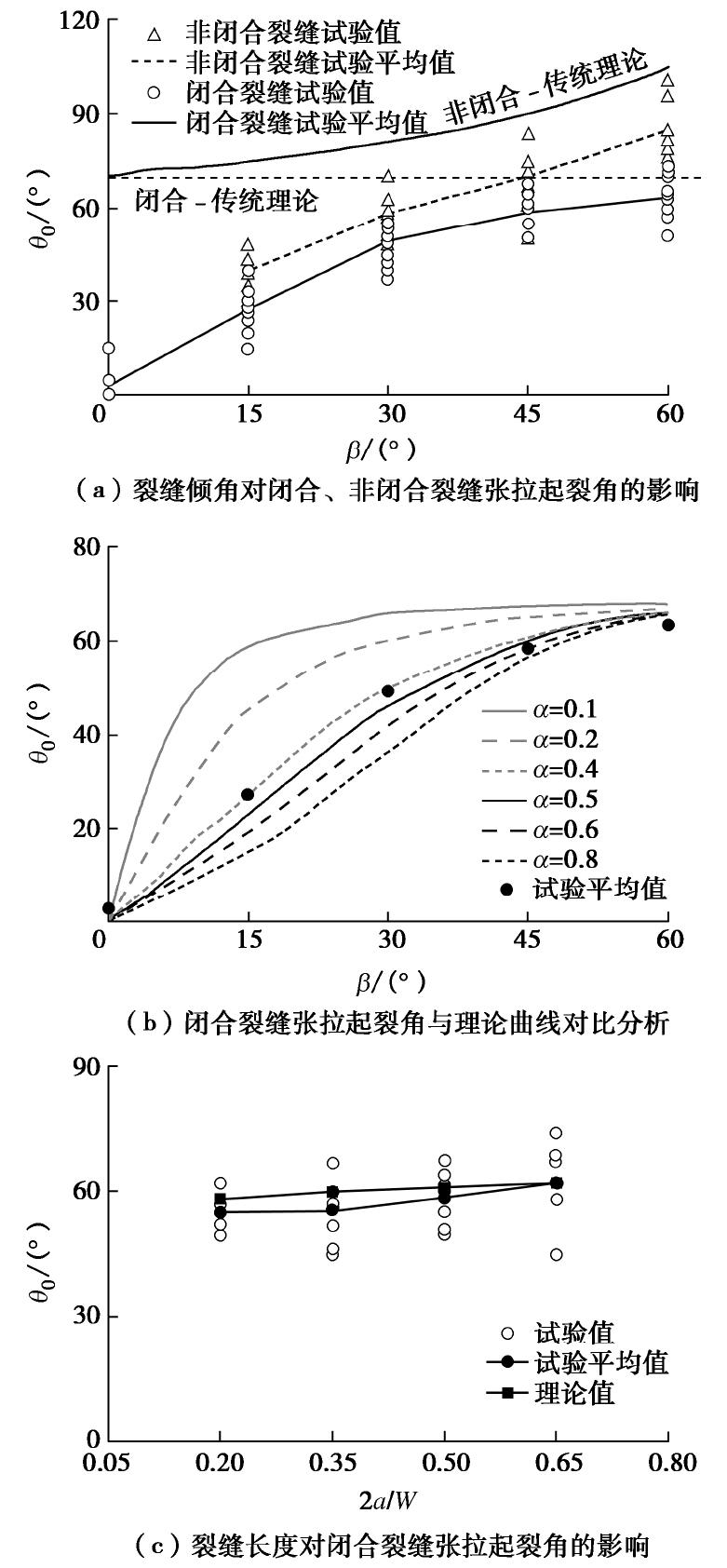

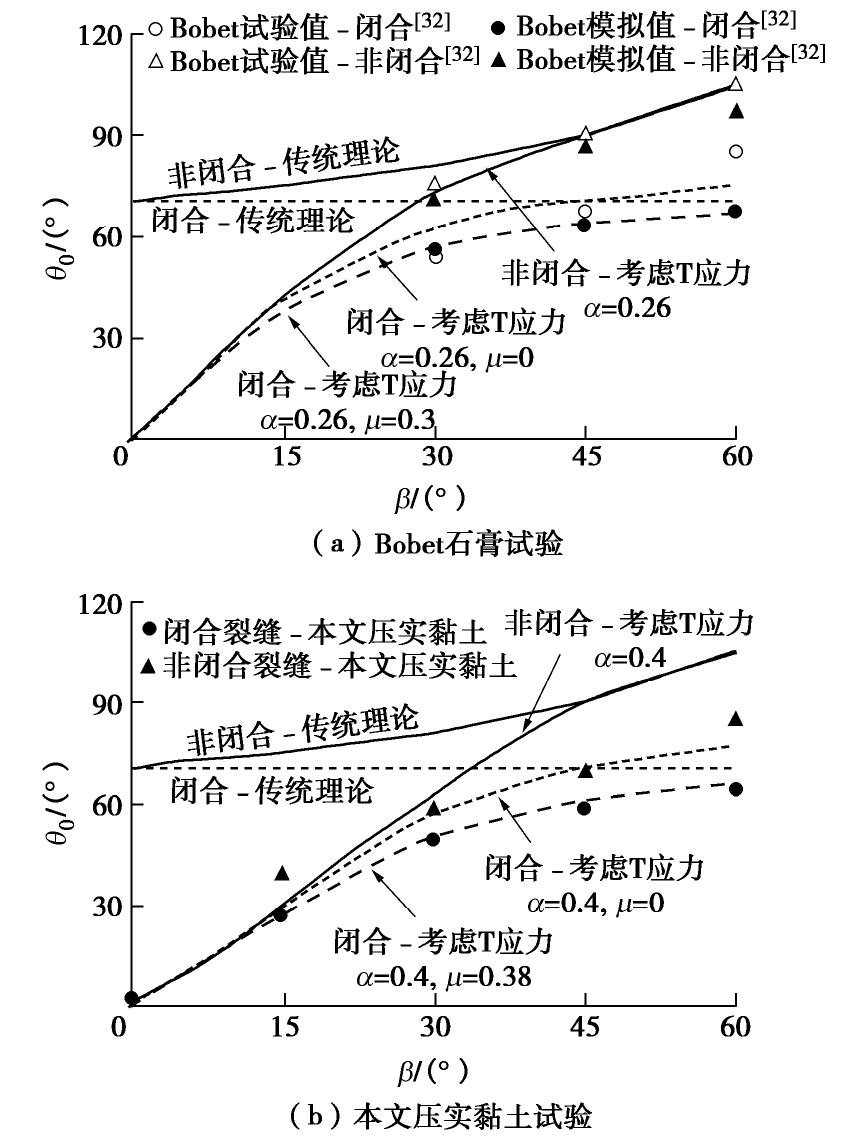

图 14 非闭合裂缝和光滑闭合裂缝的张拉起裂角
Figure 14. Initiation angles of open cracks and smoothly closed cracks
表 1 试验土料强度特性
Table 1 Strength properties of test clay
KIC/(kPa·m0.5) σt /kPa c/kPa φ/(°) 17 62 68 22
下载: 导出CSV
表 2 试验方案
Table 2 Test schemes
类型 裂缝倾角β/(°) 无量纲裂缝长度2a/W 闭合 0,15,30,45,60,75 0.5 闭合 45 0.2,0.35,0.65 非闭合 15,30,45,60 0.5 注： W为试样的边长,100 mm。
下载: 导出CSV
-
