Microscopic interpretation of time-dependent strength of clay considering plate-like particle interactions
-
摘要: 为了探寻黏土强度时效性的微观机理,将时效强度与板状黏土颗粒搭接方式和相互作用势能联系起来,颗粒间的相互作用力使颗粒朝着势能较低的位置搭接,当颗粒间相互作用势能最低时,时效强度达到稳定值。提出了可考虑两板状颗粒间夹角θ和距离d影响的颗粒相互作用总势能公式,可用Zeta电位代替表面电位来计算势能,计算结果与实际情况相吻合。通过计算可知：①黏土时效强度与电解质浓度有很大关系,电解质浓度较低时（≤10-3 mol/L）,两颗粒相互垂直时的总势能最低；电解质浓度较高时（≥10-1 mol/L）,两颗粒相互平行时的总势能最低,时效强度几乎不变,甚至会减小；中间电解质浓度是过渡状态；②两黏土颗粒的稳定搭接方式主要是垂直和平行,两颗粒之间总会趋于向稳定搭接方式转化,这也是时效强度经历一定时间而达到稳定值的过程；③解释了黏土触变强度恢复的原因,即颗粒会一直趋于搭接强度最高的垂直稳定搭接。Abstract: In order to explore its micro-mechanism, the time-dependent strength of clay is related to the overlapping mode and interaction potential of plate-like clay particles. The interaction force between the particles causes the particles to overlap toward a position with a lower potential energy. When the potential energy between the particles is the lowest, the time-dependent strength reaches a stable value. A total potential energy formula is proposed to consider the interaction between two adjacent plate-like particles with certain angle θ and distance d, where the Zeta potential can be used instead of surface potential to calculate the potential energy. The calculated results of the total potential energy are consistent with the actual situations. It is shown: (1) The time-dependent strength of clay has a close relationship with the electrolyte content. When the electrolyte concentration is low (≤10-3 mol/L), the total potential energy is the lowest while the two adjacent particles are perpendicular. When the electrolyte concentration is high (≥10-1 mol/L), the total potential energy is the lowest while the two adjacent particles are parallel, and the time-dependent strength is almost unchanged, or even reduced. (2) The stable overlap of clay particles is mainly vertical and parallel. The two adjacent particles will always tend to be overlapped each other in one of these two ways, and so it takes some time for clay to reach a stable value of the time-dependent strength. (3) The reason for the restoration of thixotropic strength of general clay may be explained as that particles will always tend to overlap vertically, and this overlap way leads to the highest strength of clay.
-
-
![]()

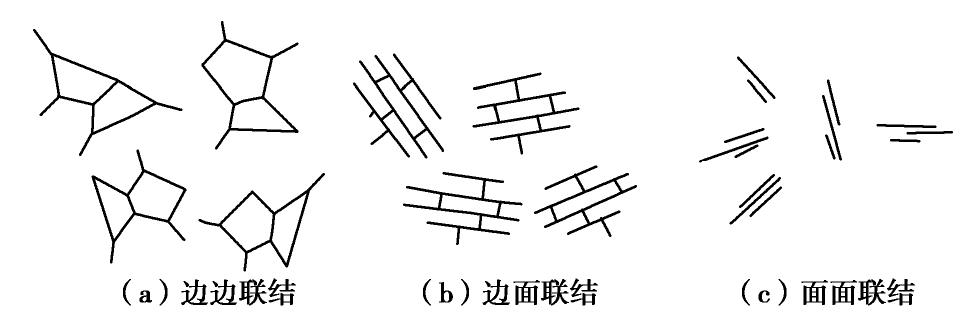

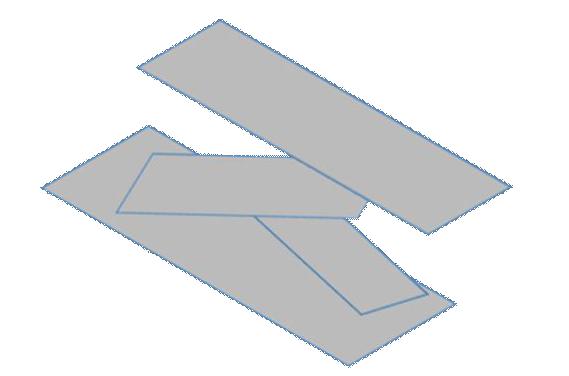

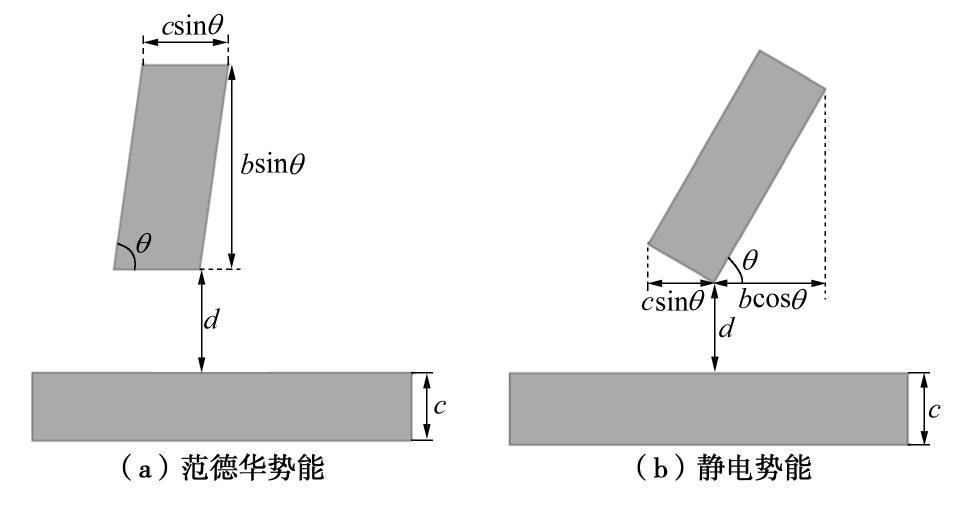

图 2 计算板状颗粒相互作用势能示意图
Figure 2. Schematic diagram of calculating potential energy between plate-like particles
![]()

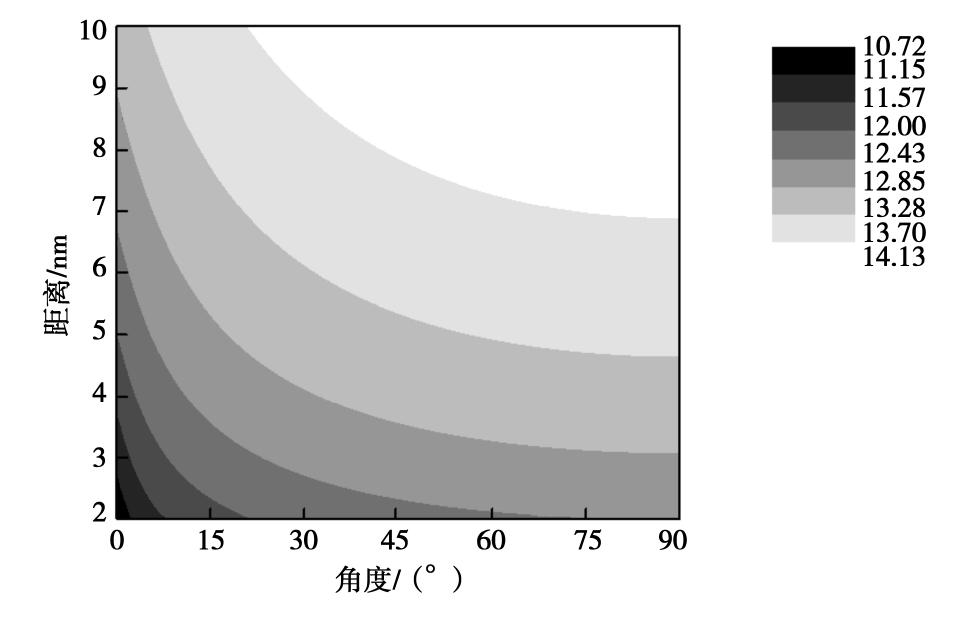

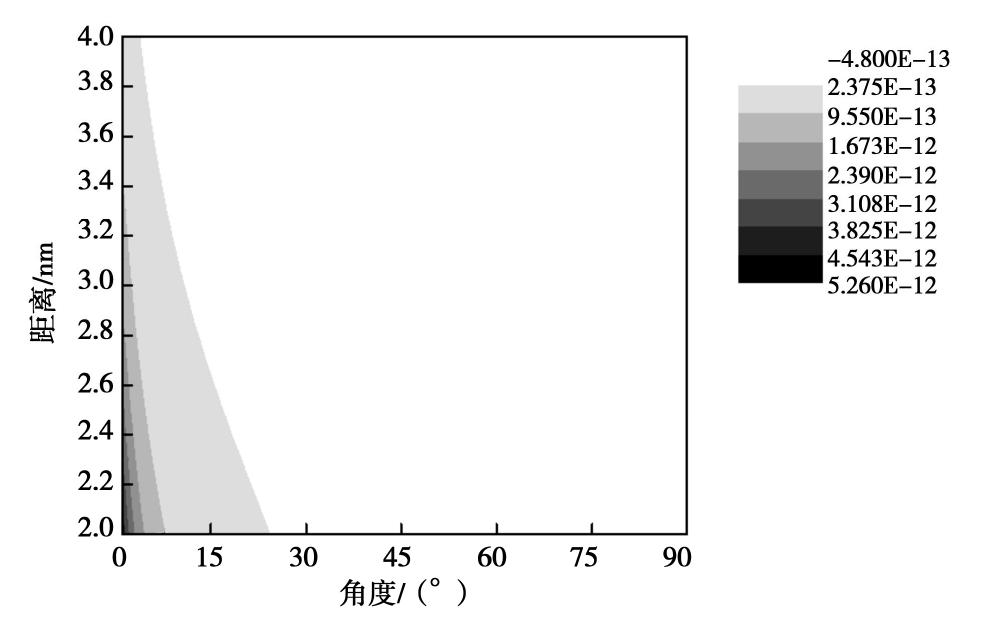

图 5 小距离低浓度电解质条件下的颗粒静电势能分布
Figure 5. Distribution of electrostatic potential energy of particles with short distance and low concentration electrolyte
![]()

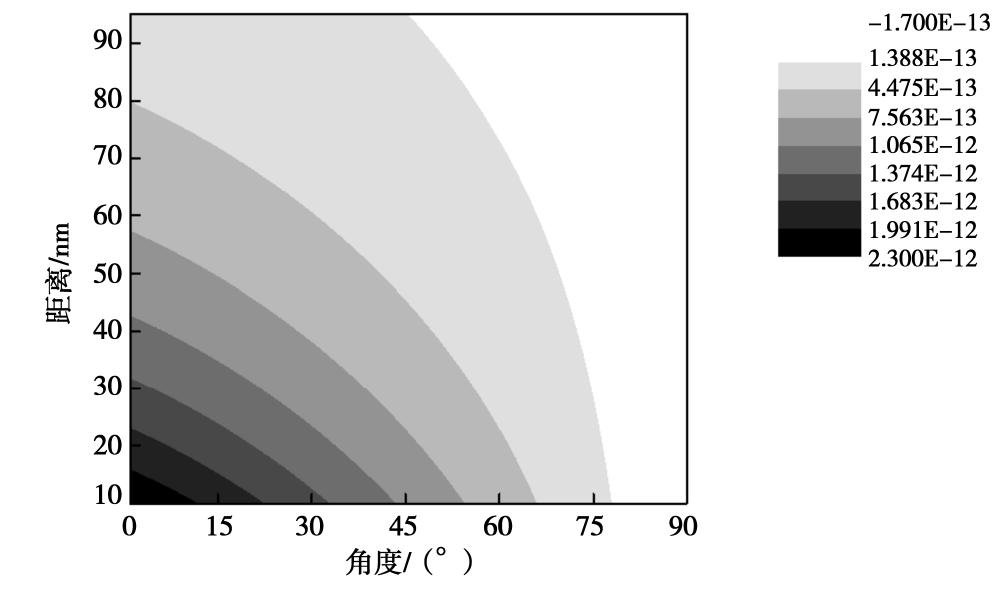

图 6 大距离低浓度电解质条件下的颗粒静电势能分布
Figure 6. Distribution of electrostatic potential energy of particles with large distance and low concentration electrolyte
![]()

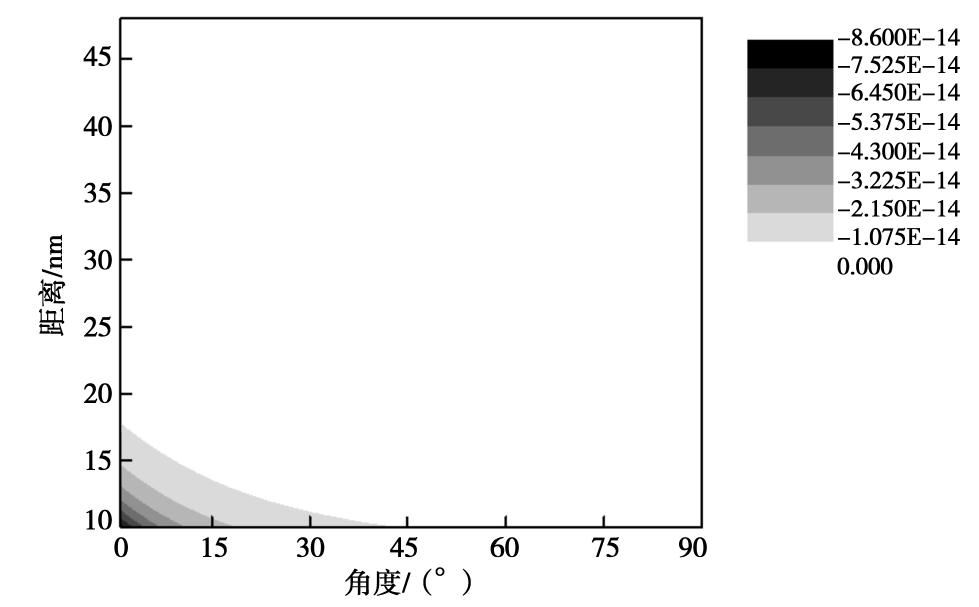

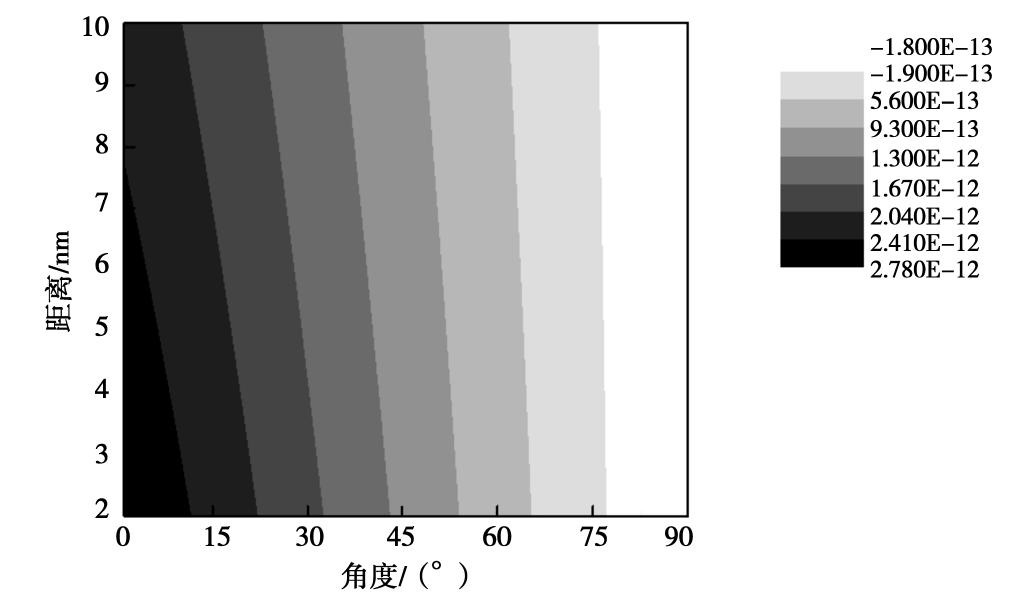

图 7 高浓度电解质条件下的颗粒静电势能
Figure 7. Electrostatic potential energies of particles with high concentration electrolyte
![]()

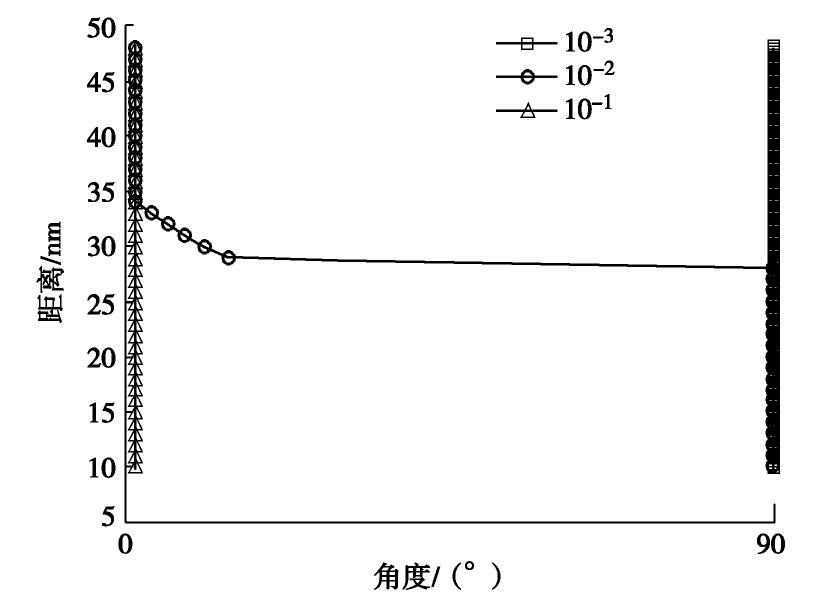

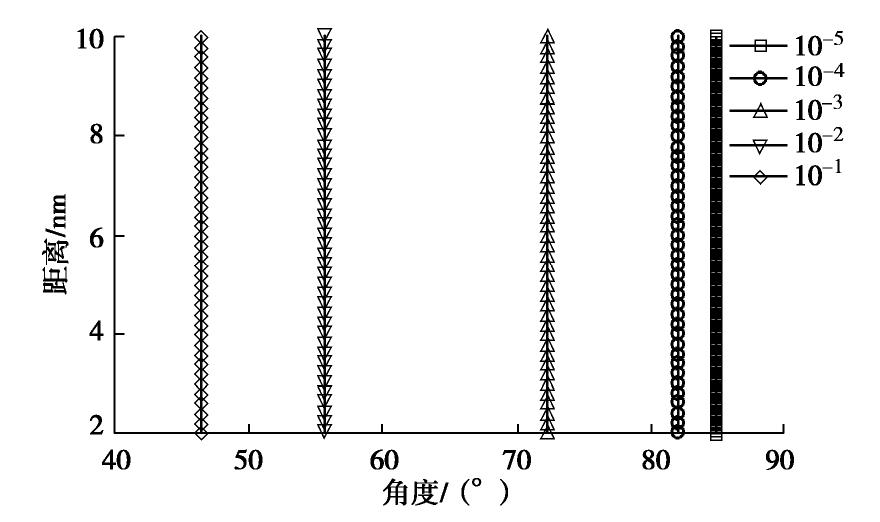

图 8 不同电解质浓度条件下的颗粒静电零势能位置
Figure 8. Positions of zero potential energy of static electricity with different electrolyte contents
![]()

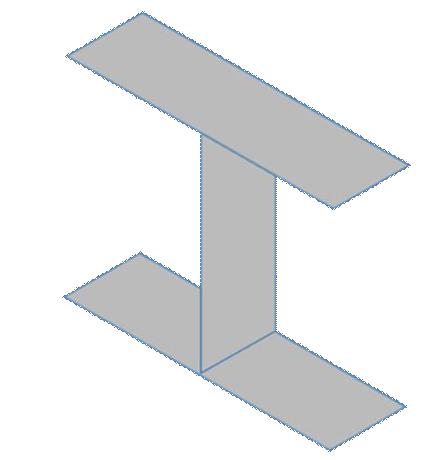

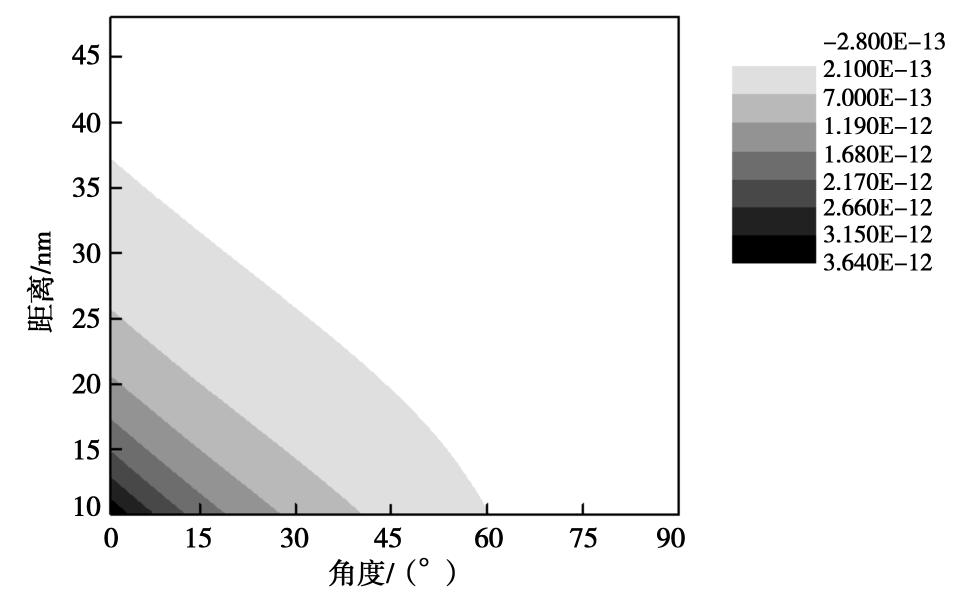

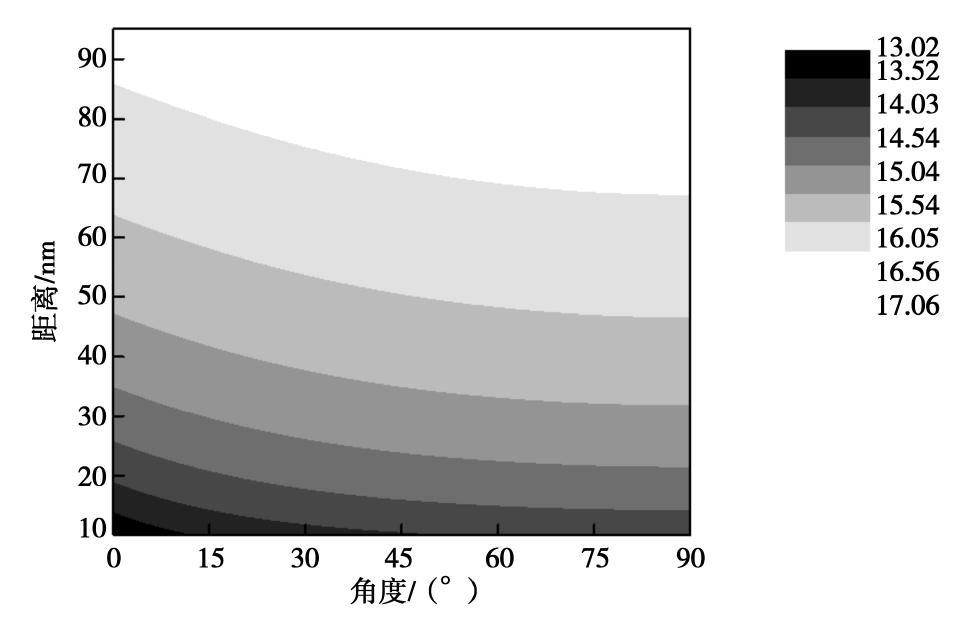

图 13 低浓度电解质条件下的颗粒势能分布
Figure 13. Distribution of potential energy of particles with low concentration electrolyte
![]()
图 14 高浓度电解质条件下的颗粒势能分布
Figure 14. Distribution of potential energy of particle with high concentration electrolyte
![]()
图 15 不同电解质浓度条件下的颗粒最低势能分布
Figure 15. Distribution of lowest potential energy of particles under different electrolyte concentrations
![]()

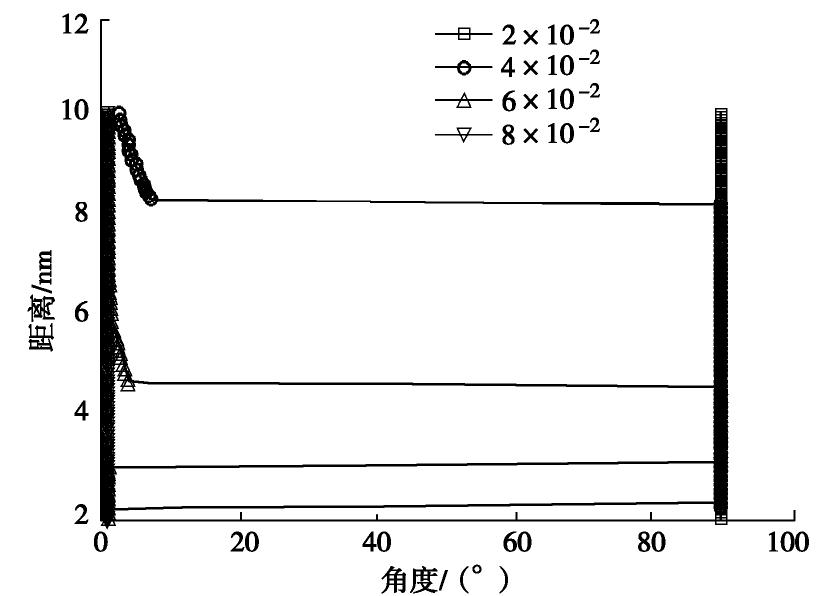

图 16 小距离高电解质浓度条件下的颗粒最低势能分布
Figure 16. Distribution of lowest potential energy of particles under high electrolyte concentration and small distance
![]()

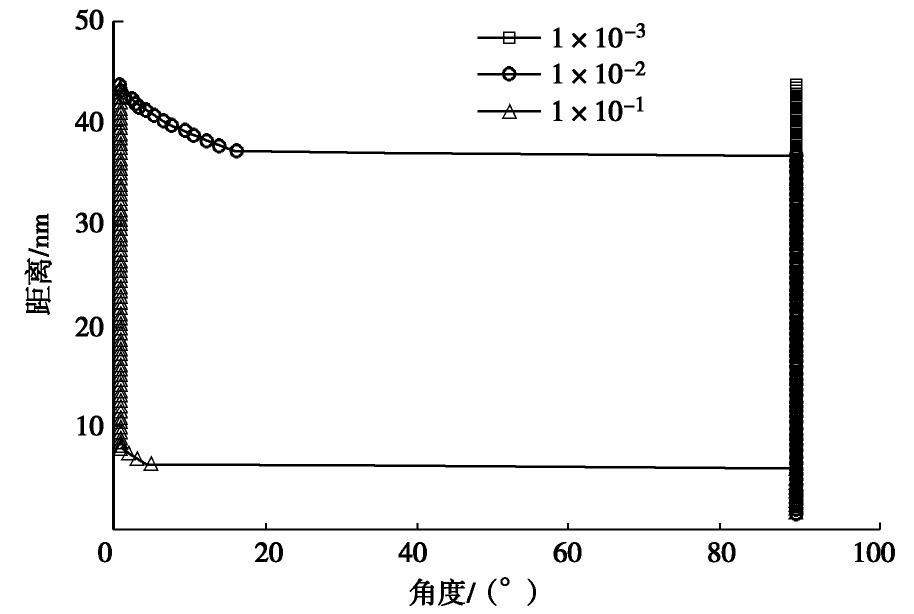

图 17 由表面电位得到的最低势能分布
Figure 17. Distribution of lowest potential energy derived from surface potential
表 1 一价阳离子浓度与κ的关系
Table 1 Relationship between monovalent cation concentration and κ
浓度/(mol·L-1) 10-5 10-4 10-3 10-2 10-1 κ/(m-1) 107 3.3×107 108 3.3×108 109
下载: 导出CSV

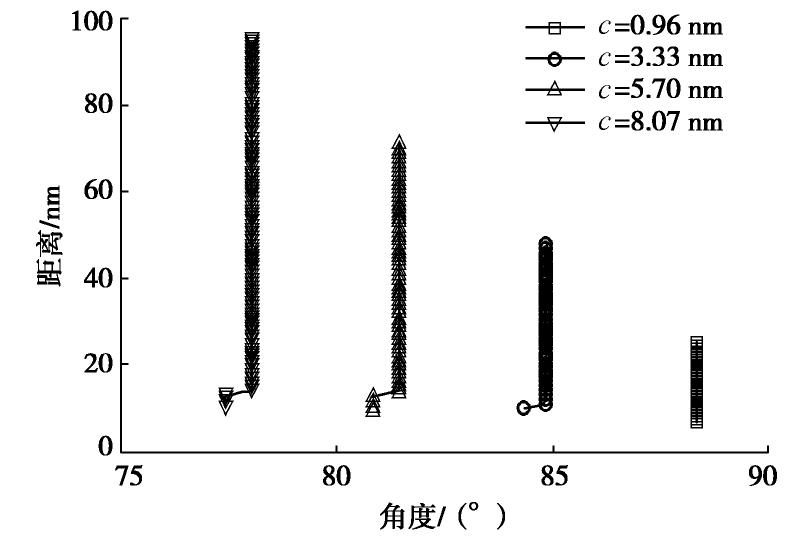

表 2 不同厚度c颗粒的表面平均间距范围
Table 2 Ranges of average surface spacing of particles with different c
(nm) c 0.96 3.33 5.70 8.07 下限 7 10 10 10 上限 25 48 72 95
下载: 导出CSV
表 3 Zeta电位与表面电位的量值
Table 3 Values of Zeta potential and surface potential
电位 电解质浓度/(mol·L-1) 10-5 10-4 10-3 10-2 10-1 表面电位 -330.4 -271.9 -213.8 -157.1 -103.8 γ2 0.9947 0.9829 0.9462 0.8418 0.6047 Zeta电位 -46.2 -45.2 -41.5 -37.2 -28.4 γ2 0.1868 0.1798 0.1546 0.1268 0.0767 γ2 增大倍数5.32 5.47 6.12 6.64 7.88
下载: 导出CSV
-
