植被对土质覆盖层水分运移和存储影响试验研究

焦卫国; 詹良通; 季永新; 贺明卫; 刘振男

doi:10.11779/CJGE202007010

植被对土质覆盖层水分运移和存储影响试验研究 English Version

1.
贵州理工学院土木工程学院,贵州　贵阳　550003
2.
浙江大学软弱土与环境土工教育部重点实验室,浙江　杭州　310058
3.
贵州中建建筑科研设计院有限公司,贵州　贵阳　550006

基金项目:

黔科合基础项目 [2017]1079

黔科合基础项目 [2017]1513-4

黔科合 LH字[2016]7096

中建四局科技研发项目 CSCEC4B-2015-KT-03

六盘水市科技支撑计划项目 52020-2018-01-04

详细信息

作者简介:
焦卫国(1983—),男,博士,副教授,从事非饱和土力学,环境土工方面的研究和教学工作。E-mail：805810460@qq.com

中图分类号: TU47
计量
- 文章访问数: 0206
- HTML全文浏览量: 0
- PDF下载量: 0185
出版历程
- 收稿日期: 2019-05-02
- 网络出版日期: 2022-12-05
- 刊出日期: 2020-06-30

Experimental study on effects of vegetation on water transport and storage in soil cover

1.
School of Civil Engineering, Guizhou Institute of Technology, Guiyang 550003, China
2.
Geotechnical Research Institute, Zhejiang University, Hangzhou 310058, China
3.
Guizhou Construction Science Research and Dsign Institute of CSCEC Co., Ltd., Guiyang 550006, China

摘要

摘要: 植被在土质覆盖层水分存储–释放环节中扮有重要的角色,对防渗能力有重要的影响。在填埋场现场建设了大尺寸黄土土质覆盖层试验基地（长×宽：30 m×20 m）,在基地不同测试区种植了植被并进行了土质覆盖层现场降雨试验。实测验证了黄土土质覆盖层最大储水能力；分析了有植被条件下黄土土质覆盖层水分运移和渗透特性；对比了植被条件对覆盖层水分运移和储水能力的影响。结果表明：①有植被条件黄土土质覆盖层可用储水量理论值S_fac为278.32 mm,实测值 ${S^{'}}_{fac}$ 为259.82 mm,实测值比理论值小18.50 mm（小6.65%）；②植被种植增大了根系生长区的渗透系数,无植被条件饱和渗透系数k_s为8.27×10^-5 cm/s,有植被条件饱和渗透系数k_s大于8.27×10^-5 cm/s。无植被时水分首先在覆盖层浅部土层存储,随着降雨的继续逐渐下渗至深层土；有植被时水分在土层全断面存储；③须根系、初期植被条件对毛细阻滞覆盖层储水能力影响较小。有植被条件实测可用储水量 ${S^{'}}_{fac}$ 为259.82 mm,无植被条件为251.95 mm,前者仅比后者大7.87 mm（大3.12%）。有植被条件实测总储水量 ${S^{'}}_{fac}$ 为381.90 mm,无植被条件为374.03 mm,前者比后者大7.87 mm（大2.10%）。有、无植被条件黄土土质覆盖层储水能力接近,一方面是由于须根植被根系深度分布较浅（0～50 cm）；另一方面是由于植被生长时间短未能经历一个完整的生长周期对土体结构影响不显著。
- 垃圾填埋场 /
- 土质覆盖层 /
- 植被 /
- 须根 /
- 水分运移 /
- 储水能力
Abstract: Vegetation plays an important role in water storage and release of soil cover and in impermeable capability of soil. A large-scale loess soil cover (30 m×20 m) is built in field. The vegetation is planted in different areas and rainfall tests are carried out. The maximum water storage capacity is measured. The water transport, saturated permeability coefficient, effects of vegetation on water transport and storage capacity are analyzed and compared. The results show that: (1) The theoretical value of available water storage with vegetation is 278.32 mm, the measured one is 259.82 mm, and the latter is 18.5 mm (6.65%) smaller than the former. (2) The vegetation increases the saturated permeability coefficient of root growth area. It is 8.267×10^-5 cm/s without vegetation, and is more than 8.267×10^-5 cm/s with vegetation. Without vegetation, water is stored in shallow soil layer firstly and gradually infiltrates into deep soil, but it is stored in the whole section of soil with vegetation. (3) The fibrous root and initial vegetation have some influences on water storage capacity of soil cover. The available water storage measured in the tests is 259.82 mm with vegetation and 251.95 mm without vegetation. The former is only 7.87 mm (3.12%) larger than the latter. The total water storage measured in the tests is 381.90 mm with vegetation and 374.03 mm without vegetation. The former is only 7.87 mm (2.10%) larger than the latter. The water storage capacity of soil cover with or without vegetation is similar. It may be that, on one hand, the vegetation with fibrous root system is shallow (0~50 cm), on the other hand, the short growth period of vegetation has no significant effects on soil structure.
- landfill /
- soil cover /
- vegetation /
- fibrous root /
- water transport /
- water storage capacity

HTML全文

感谢浙江大学建筑工程学院环境土工课题组对本文试验提供的支持与帮助。

图 1 土质覆盖层现场试验基地（有植被条件）

Figure 1. Field test base of soil cover (with vegetation)

下载: 全尺寸图片幻灯片

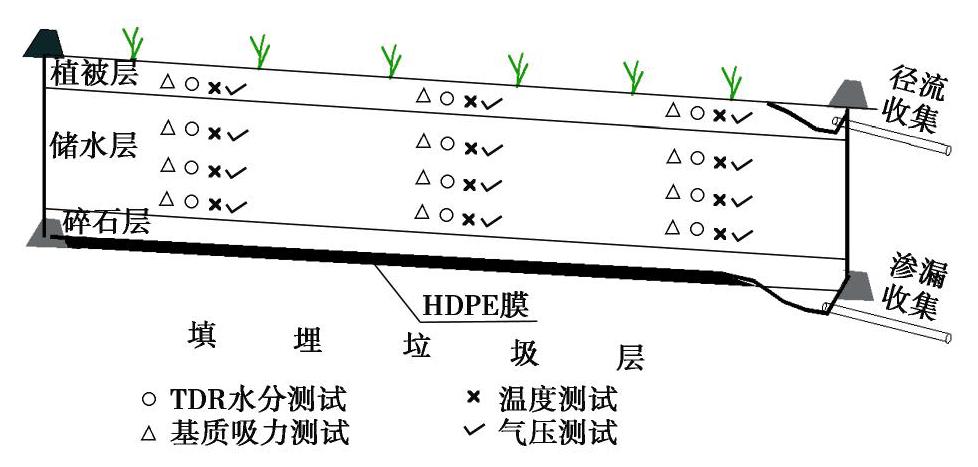

图 2 覆盖层土层结构和仪器埋设剖面

Figure 2. Structure of soil cover and embedment of instruments

下载: 全尺寸图片幻灯片

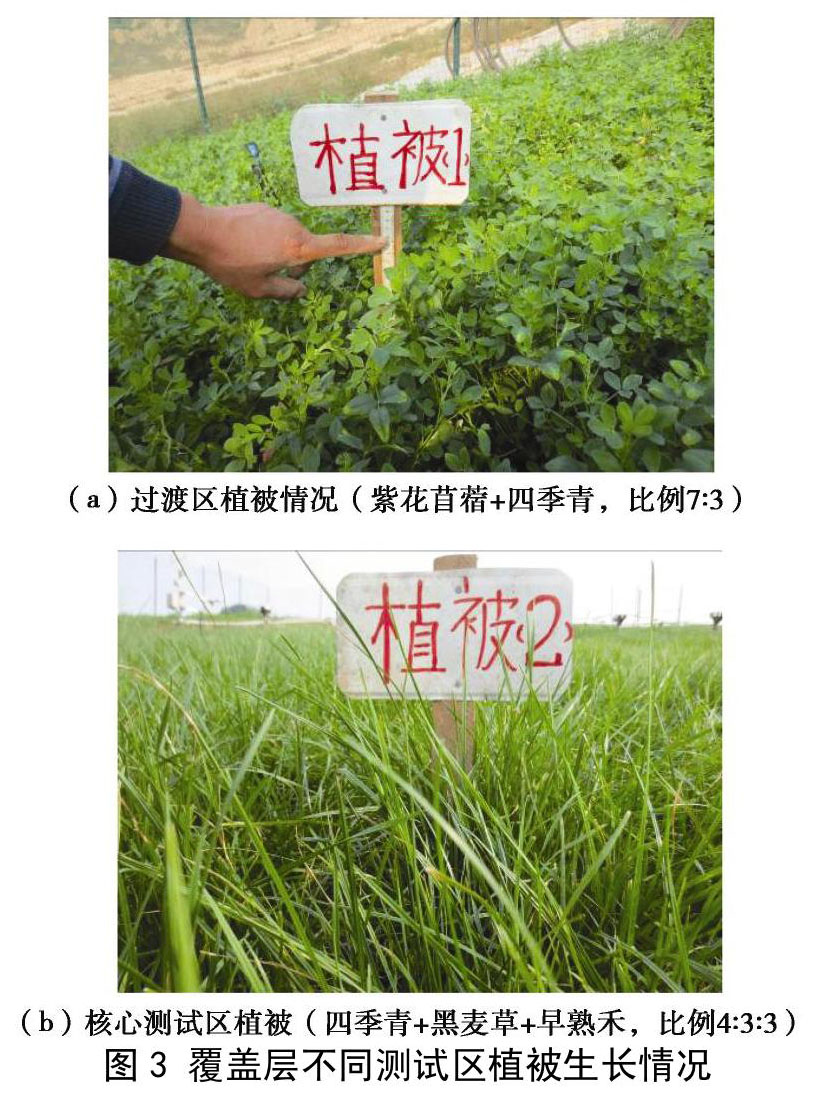

图 3 覆盖层不同测试区植被生长情况

Figure 3. Vegetation growth in different test areas of soil cover

下载: 全尺寸图片幻灯片

图 4 核心测试区植被叶面积指数与植被自然高度间关系

Figure 4. Relationship between leaf area index and natural height of vegetation in core test area

下载: 全尺寸图片幻灯片

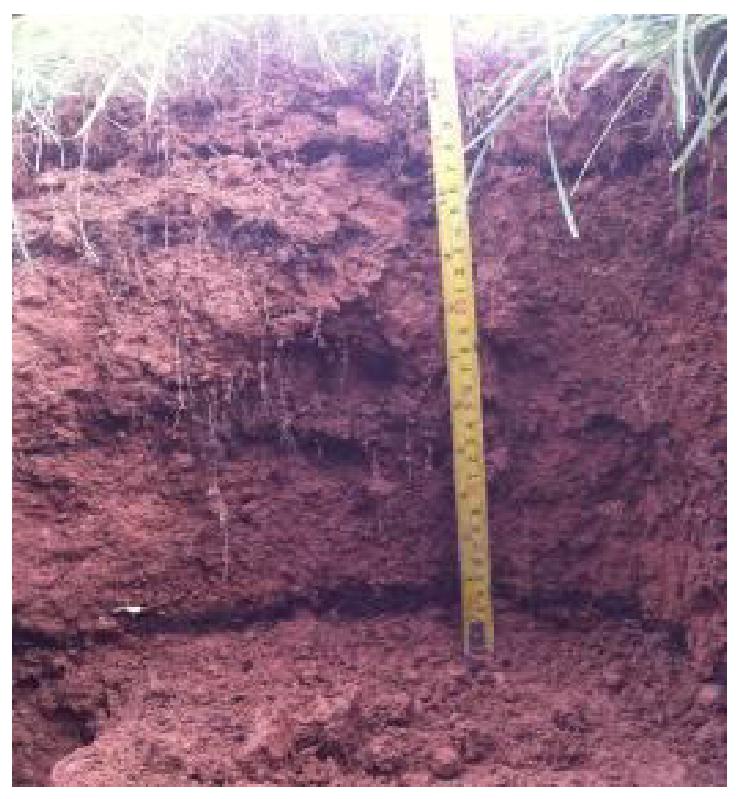

图 5 核心测试区植被根系分布深度观测

Figure 5. Observation of root depth of vegetation in core test area

下载: 全尺寸图片幻灯片

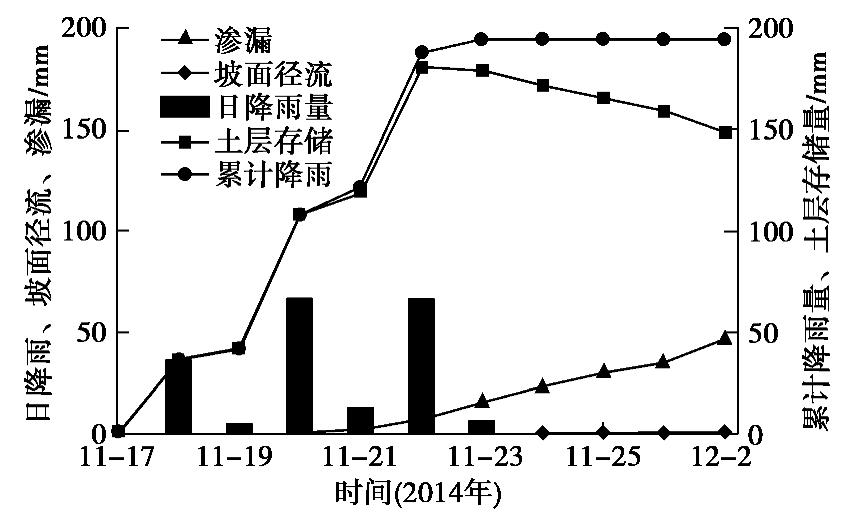

图 6 现场降雨试验覆盖层各水量分配和变化规律

Figure 6. Distribution of water in field rainfall experiments

下载: 全尺寸图片幻灯片

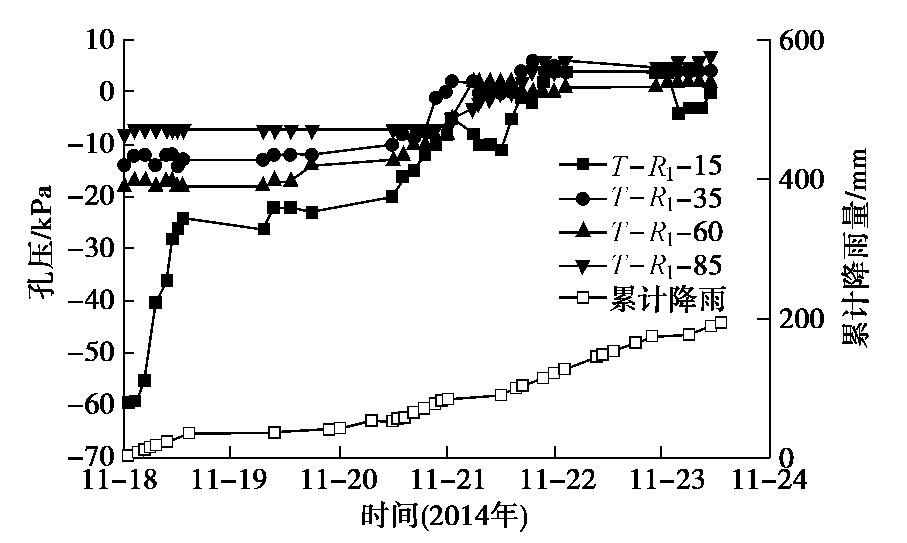

图 7 坡顶孔压随降雨时间变化

Figure 7. Variation of pore water pressure with rainfall time

下载: 全尺寸图片幻灯片

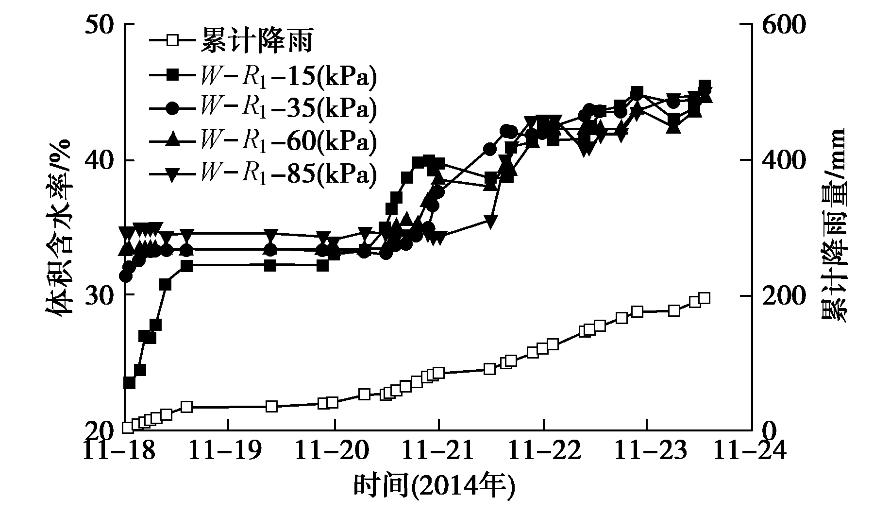

图 8 坡顶体积含水率随降雨时间变化

Figure 8. Variation of volumetric water content with rainfall time

下载: 全尺寸图片幻灯片

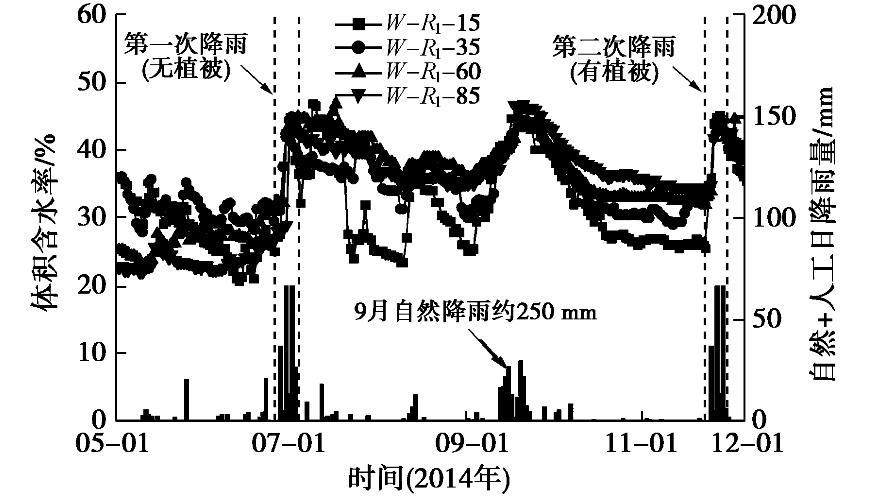

图 9 有、无植被条件两次降雨事件期间自然气候--降雨情况

Figure 9. Natural climate rainfall experienced by cover in two rainfall events (with and without vegetation)

下载: 全尺寸图片幻灯片

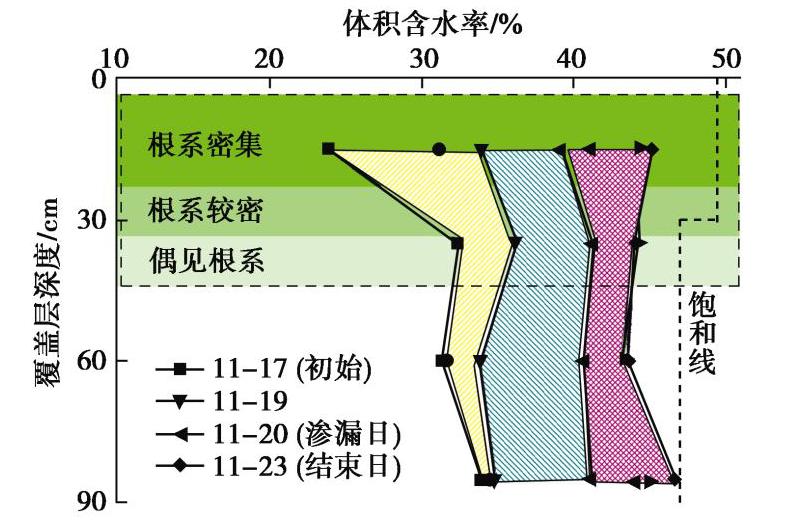

图 10 有植被条件降雨试验典型日期坡中剖面土层体积含水率

Figure 10. Volumetric water content of middle slope on typical date in rainfall experiments with vegetation

下载: 全尺寸图片幻灯片

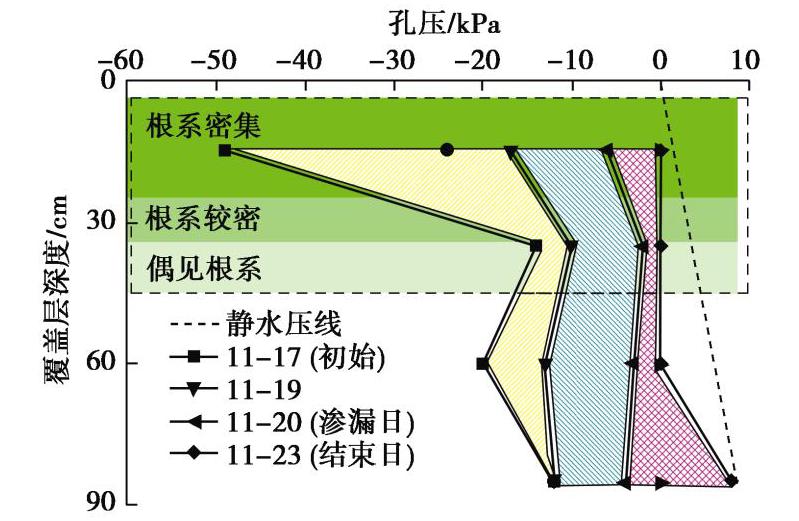

图 11 有植被条件降雨试验典型日期坡中剖面土层孔压

Figure 11. Pore water pressure of middle slope on typical date in rainfall experiments with vegetation

下载: 全尺寸图片幻灯片

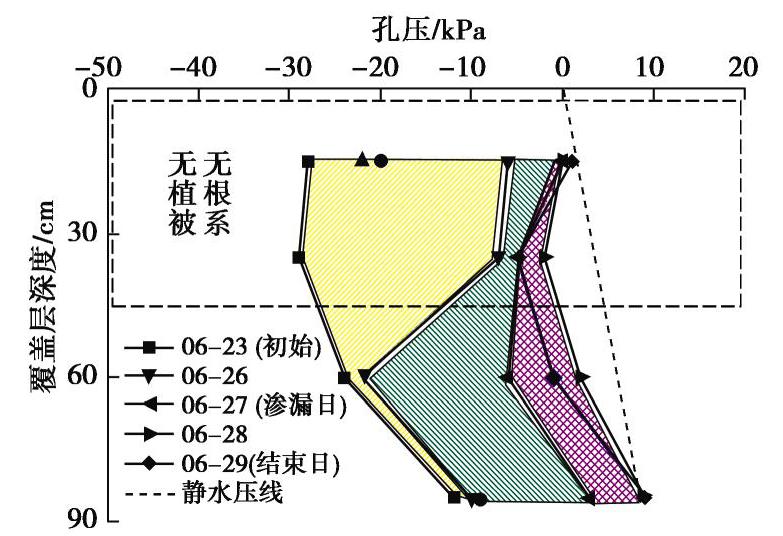

图 12 无植被极端降雨试验坡中不同深度土层孔压随典型降雨天数变化规律

Figure 12. Pore water pressure of middle slope on typical date in rainfall experiments without vegetation

下载: 全尺寸图片幻灯片

图 13 有植被条件土质覆盖层实测储水能力分析

Figure 13. Analysis of measured water storage capacity of soil cover with vegetation

下载: 全尺寸图片幻灯片

表 1 黄土基本参数

Table 1 Parameters of loess

土样名称	界限粒径含量/%			w_L/%	w_P/%	I_P
土样名称	>0.075 mm	0.075~0.005 mm	<0.005 mm	w_L/%	w_P/%	I_P
Q₃黄土	2.21	71.83	26.00	36.7	22.0	14.7

下载: 导出CSV

表 2 单位面积植被叶湿质量、叶面积和叶面积指数

Table 2 Leaf wet mass, leaf area and leaf area index per unit area of vegetation

植被高度/cm		质量/kg	叶面积/m²	叶面积指数
叶片拉直长	自然状态	质量/kg	叶面积/m²	叶面积指数
6~7	5	0.18	0.39	0.39
15~20	10	0.49	1.16	1.16
24~27	20	1.10	2.67	2.67
*核心测试区植被参数。

下载: 导出CSV

表 3 现场降雨试验覆盖层各水量分配

Table 3 Distribution of water in field rainfall experiments (mm)

日期	坡面径流	土层存储（包含蒸发量）	渗漏	累计降雨
11-17	0	0	0	0
11-18	0	36.63	0	36.63
11-19	0	41.73	0	41.73
11-20*	0	105.88	2.45	108.33
11-21	0	114.47	7.18	121.65
11-22	0	174.15	14.1	188.25
11-23*	0	174.5	20.35	194.85
11-24	0	169.4	25.45	194.85
11-25	0	165.4	29.45	194.85
11-26	0	162.45	32.4	194.85
11-27—12-02	0	157.81	37.04	194.85
累计值	0	157.81	37.04	194.85
百分率/%	0	80.99	19.01	100
注：*11月20日出现渗漏,11月23日降雨停止,雨停后渗漏继续到12月2日。

下载: 导出CSV

表 4 土层实际存储量分析

Table 4 Analysis of actual storage of soil layer (mm)

日期	大事件	参考腾发量	土层实际储水量		差异 $Δ S$ =S₁–S₂
日期	大事件	参考腾发量	水量平衡法S₁	TDR实测法S₂	差异 $Δ S$ =S₁–S₂
11-18	降雨开始	4.00	—	—	—
11-20	渗漏开始	13.40	92.48	89.97	2.51
11-23	降雨结束	19.00	155.50	148.40	7.10
11-26—12-02	渗漏停止	32.70	125.11	118.30	6.81

下载: 导出CSV

表 5 有、无植被条件可用储水能力、总储水能力实测值对比

Table 5 Comparison of measured values of available water and total water storage capacities with and without vegetation

参数	理论值/mm	实测值/mm		有、无植被对比
参数	理论值/mm	有植被	无植被	有、无植被对比
可用储水量S_fac	278.32	259.82	251.95	有植被比无植被大3.12%
总储水量S_foc	400.40	381.90	374.03	有植被比无植被大2.10%

下载: 导出CSV
