Phase transition of pore solution in saline soil during cooling process
-
摘要: 降温过程中,盐渍土中孔隙溶液的相变过程直接影响着土体的物理力学性质。以大同盆地的盐渍土为研究对象,研究了不同类型盐渍土的孔隙溶液在降温过程中的相变过程。结果表明NaCl可以显著降低土体的冻结温度,NaCl盐渍土的冻结温度与溶液的冻结温度相比有一定的偏差,且随含盐量的增加,这种偏差逐渐增大。当浓度超过二次相变点浓度后,土体的冻结温度保持不变,冻结温度的偏差达到最大。NaCl盐渍土二次相变温度受冰结晶量的影响显著,冰晶含量越多,二次相变的温度越低。Na2SO4和Na2CO3对冻结温度的影响较小,当浓度低于二次相变点的浓度时,土体的冻结温度主要受盐分浓度的影响；若浓度高于二次相变浓度,盐分结晶量使得土体二次相变的温度进一步降低。受孔隙半径的影响,土体孔隙溶液中盐分的溶解度比一般溶液中的更高。通过比较相图与试验结果,发现土体的相变规律和溶液的相变规律有一定的相似性,盐渍土孔隙溶液二次相变过程为盐晶体和冰晶体共同生成的过程。在较高含盐量的情况下,Na2SO4盐渍土和Na2CO3盐渍土的冻结温度点实际上是土体的二次相变点的温度。Abstract: The phase transition of pore solution directly affects the physical and mechanical properties of soil during the cooling process. Taking the saline soil of Datong Basin as the research object, the phase transition processes of different saline soils are investigated. The results show that sodium chloride can significantly reduce the freezing temperature of soil. There is a certain deviation between the freezing temperatures of soil and those of free solution, which increase gradually with the increase of salt content. When the concentration exceeds the eutectic point, the freezing temperature of soil remains unchanged, and the deviation of freezing temperature reaches the maximum. The second transition temperature of sodium chloride saline soil is affected by the amount of ice formation. The more the ice crystal content is, the lower the secondary transition temperature is. The sodium sulfate and sodium carbonate have little effect on the freezing temperature. When the concentration is lower than that of the eutectic point, the freezing temperature of saline soil is mainly affected by the salt concentration. If the concentration is higher than that of the eutectic point, the salt crystallization makes the eutectic point temperature of soil further reduce. Under the influence of pore radius, the solubility of salt in pore solution is higher than that in general solution. By comparing the experimental results with the phase diagram, there is a certain similarity between soil and solution. It can be concluded that the secondary phase transition process in saline soil is the formation of salt crystal and ice crystal simultaneously. In the case of high salt content, the freezing temperature of sodium sulfate and sodium carbonate saline soil is actually the eutectic point temperature of the soil.
-
-
![]()

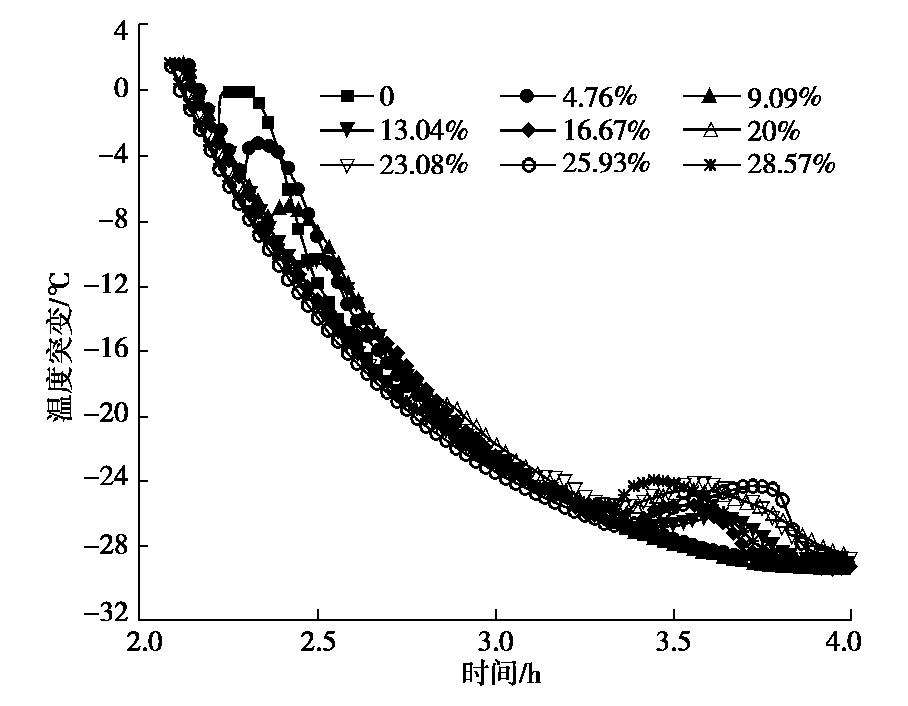

图 3 NaCl盐渍土在降温过程中的温度变化曲线
Figure 3. Variation curves of temperature of NaCl saline soil during cooling process
![]()

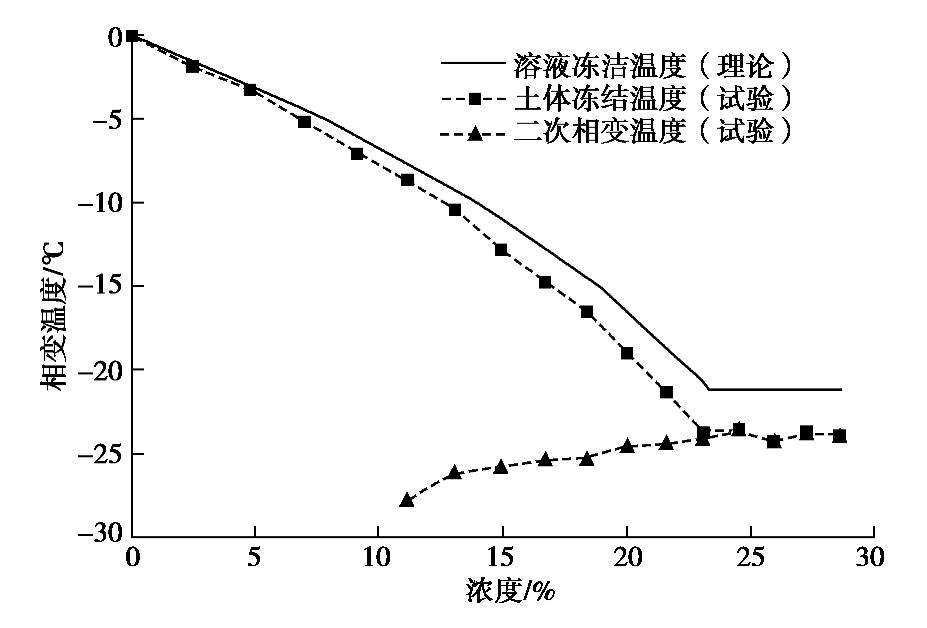

图 4 NaCl盐渍土中孔隙溶液相变温度与相图的对比
Figure 4. Comparison of phase transition temperature and phase diagram of pore solution in NaCl saline soil
![]()

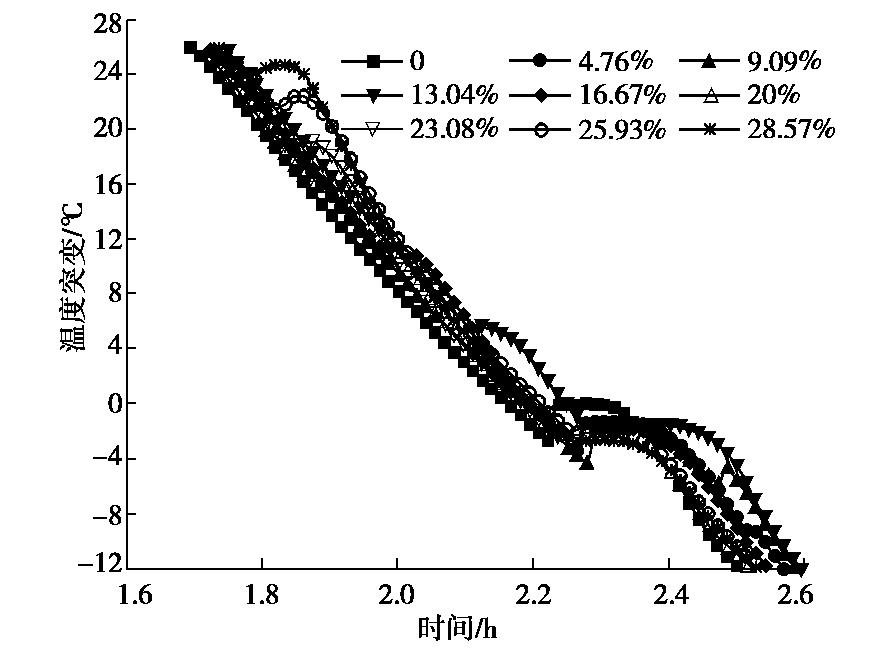

图 5 Na2SO4盐渍土在降温过程中的温度变化曲线
Figure 5. Variation curves of temperature of Na2SO4 saline soil during cooling process
![]()

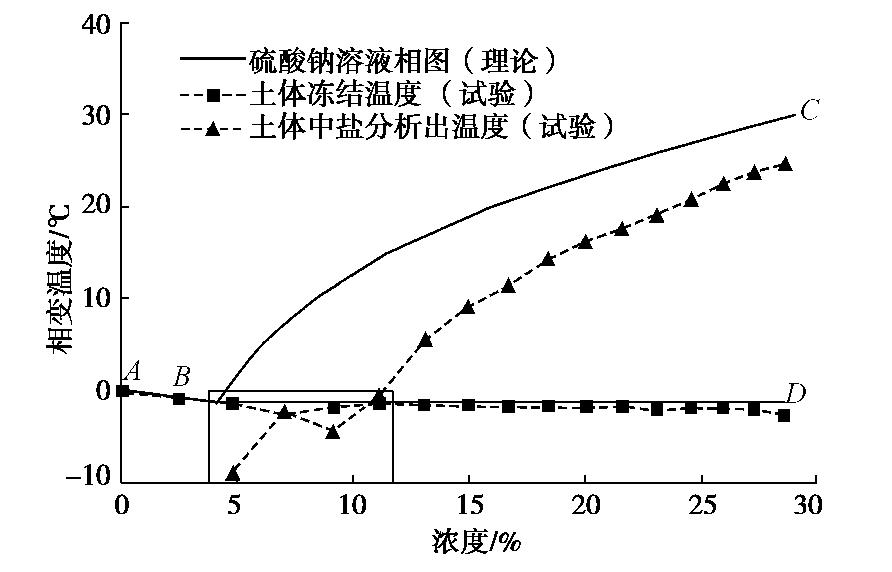

图 6 Na2SO4盐渍土中孔隙溶液相变温度与相图的对比
Figure 6. Comparison of phase transition temperature and phase diagram of pore solution in Na2SO4 saline soil
![]()

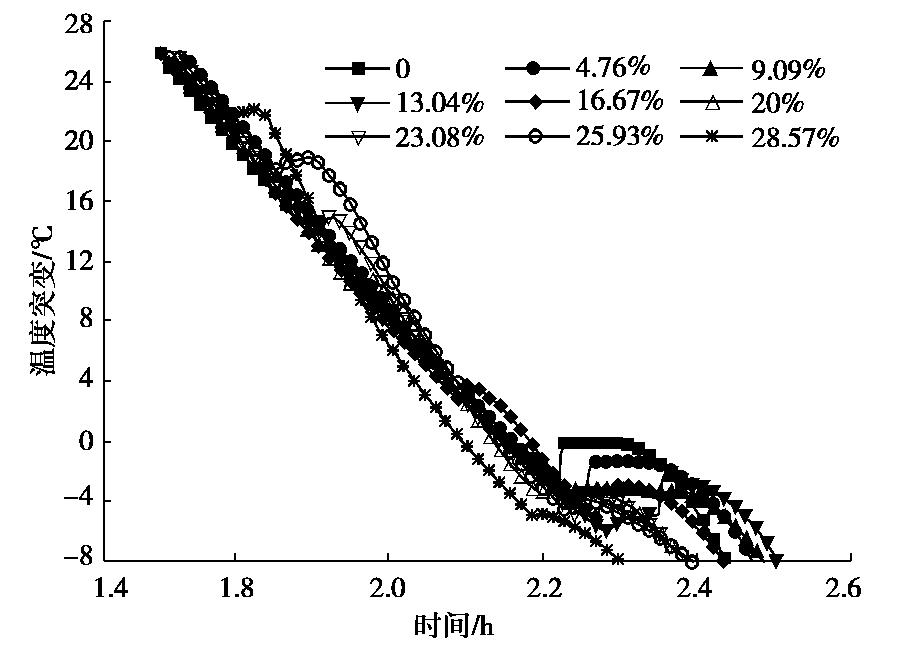

图 7 Na2CO3盐渍土在降温过程中的温度变化曲线
Figure 7. Variation curves of temperature of Na2CO3 saline soil during cooling process
![]()

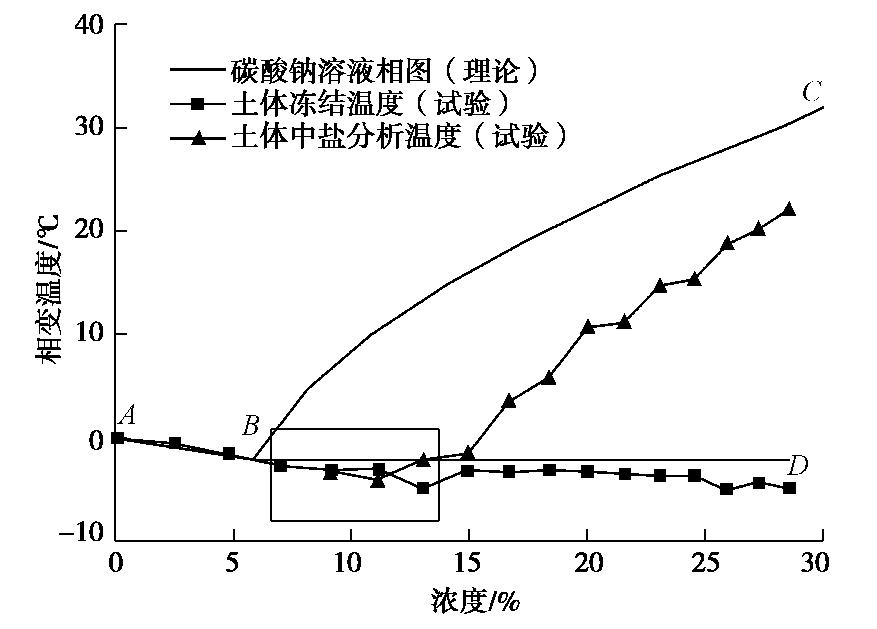

图 8 Na2CO3盐渍土中孔隙溶液相变温度与相图的对比
Figure 8. Comparison of phase transition temperature and phase diagram of pore solution in Na2CO3 saline soil
-
[1] 徐学祖, 王家澄, 张立新. 冻土物理学[M]. 北京: 科学出版社, 2010. XU Xue-zu, WANG Jia-cheng, ZHANG Li-xin. Physics of Frozen Soils[M]. Beijing: Science Press, 2010. (in Chinese)
[2] 陈肖柏, 邱国庆, 王雅卿, 等. 重盐土在温度变化时的物理化学性质和力学性质[J]. 中国科学(A辑), 1988(4): 429-438. https://www.cnki.com.cn/Article/CJFDTOTAL-JAXK198804010.htm CHEN Xiao-bai, QIU Guo-qing, WANG Ya-Qing. The physical chemical properties and mechanical properties of Saline soil during temperature change process[J]. Science in China (Series A), 1988(4): 429-438. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-JAXK198804010.htm
[3] 房建宏, 霍明, 章金钊, 等. 多年冻土及盐渍土地区公路工程技术[M]. 兰州: 兰州大学出版社, 2011. FANG Jian-hong, HUO Ming, ZHANG Jin-zhao, et al. Technology for Highway Engineering in Permafrost and Saline Soil Regions[M]. Lanzhou: Lanzhou University Press, 2011. (in Chinese)
[4] 陈锦, 李东庆, 邴慧, 等. 含盐量对冻结粉土单轴抗压强度影响的试验研究[J]. 工程力学, 2013, 13(12): 18-23. https://www.cnki.com.cn/Article/CJFDTOTAL-GCLX201312005.htm CHEN Jin, LI Dong-qin, BING Hui, et al. The experimental study on the uniaxial compressive strength of frozen silt with different salt content[J]. Engineering Mechanics, 2013, 13(12): 18-23. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-GCLX201312005.htm
[5] 邓友生, 何平, 周成林. 含盐土导热系数的试验研究[J]. 冰川冻土, 2004, 26(3): 319-323. https://www.cnki.com.cn/Article/CJFDTOTAL-BCDT200403013.htm DENG You-sheng, HE Ping, ZHOU Cheng-lin. An experimental research on the thermal conductivity coefficient of saline soil[J]. Journal of Glaciology and Geocryology, 2004, 26(3): 319-323. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-BCDT200403013.htm
[6] 邓友生, 何平, 周成林, 等. 含盐土渗透系数变化特征的试验研究[J]. 冰川冻土, 2006, 28(5): 772-775. https://www.cnki.com.cn/Article/CJFDTOTAL-BCDT200605021.htm DENG You-sheng, HE Ping, ZHOU Cheng-lin, et al. Experimental study of permeability coefficient of saline soils[J]. Journal of Glaciology and Geocryology, 2006, 28(5): 772-775. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-BCDT200605021.htm
[7] 邴慧, 马巍. 盐渍土冻结温度的试验研究[J]. 冰川冻土, 2011, 33(5): 1106-1113. https://www.cnki.com.cn/Article/CJFDTOTAL-BCDT201105020.htm BING Hui, MA Wei. Experimental study on freezing point saline soil[J]. Journal of Glaciology and Geocryology, 2011, 33(5): 1106-1113. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-BCDT201105020.htm
[8] 万旭升, 赖远明. 硫酸钠溶液和硫酸钠盐渍土的冻结温度及盐晶析出试验研究[J]. 岩土工程学报, 2013, 35(11): 2090-2096. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201311023.htm WAN Xu-sheng, LAI Yuan-ming. Experimental study on freezing temperature and salt crystal precipitation of sodium sulphate solution and sodium sulphate saline soil[J]. Chinese Journal of Geotechnical Engineering, 2013, 35(11): 2090-2096. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201311023.htm
[9] 张立新, 徐学祖, 陶兆祥, 等. 含氯化钠盐冻土中溶液的二次相变分析[J]. 自然科学进展, 1993, 3(1): 48-52. https://www.cnki.com.cn/Article/CJFDTOTAL-ZKJZ199301006.htm ZHANG Li-xin, XU Xue-zu, TAO Zhao-xiang, et al. The quadratic phase change analysis in frozen soil which containing sodium chloride salt[J]. Progress in Natural Sciences, 1993, 3(1): 48-52. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-ZKJZ199301006.htm
[10] 高江平, 吴家惠, 杨荣尚. 硫酸盐渍土盐胀特性各影响因素间交互作用规律的分析[J]. 中国公路学报, 1997, 10(1): 10-15. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGGL199701002.htm GAO Jiang-ping, WU Jia-hui, YANG Rong-shang. Analysis of the interaction laws of all influencing factors upon salt heaving properties of the sulphate salty soil[J]. China Journal of Highway and Transport, 1997, 10(1): 10-15. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-ZGGL199701002.htm
[11] 邴慧, 何平, 杨成松, 等. 开放系统下硫酸钠盐对土体冻胀的影响[J]. 冰川冻土, 2006, 28(1): 126-130. https://www.cnki.com.cn/Article/CJFDTOTAL-BCDT200601017.htm BING Hui, HE Ping, YANG Cheng-song, et al. Influence of sodium sulfate on soil frost heaving in an open system[J]. Journal of Glaciology and Geocryology, 2006, 28(1): 126-130. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-BCDT200601017.htm
[12] 杨晓华, 张莎莎, 戴志仁. 天然粗颗粒盐渍土多次冻融循环盐胀试验[J]. 中国公路学报, 2009, 22(4): 28-32. https://www.cnki.com.cn/Article/CJFDTOTAL-ZGGL200904006.htm YANG Xiao-hua, ZHANG Sha-sha, DAI Zhi-ren. Freezing-thawing cycles and salt expansion test of crude coarse grain clay salty soil[J]. China Journal of Highway and Transport, 2009, 22(4): 28-32. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-ZGGL200904006.htm
[13] 吴道勇, 赖远明, 马勤国, 等. 季节冻土区水盐迁移及土体变形特性模型试验研究[J]. 岩土力学, 2016, 37(2): 465-476. WU Dao-yong, LAI Yuan-ming, MA Qin-guo, et al. Model test study of water and salt migration and deformation characteristics in seasonally frozen soil[J]. Rock and Soil Mechanics, 2016, 37(2): 465-476. (in Chinese)
[14] 肖泽岸, 赖远明, 尤哲敏. 冻融循环作用下含盐量对Na2SO4土体变形特性影响的试验研究[J]. 岩土工程学报, 2017, 39(5): 953-960. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201705028.htm XIAO Ze-an, LAI Yuan-ming, YOU Zhe-min. Experimental study on impact of salt content on deformation characteristics of sodium sulfate soil under freeze-thaw conditions[J]. Chinese Journal of Geotechnical Engineering, 2017, 39(5): 953-960. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201705028.htm
[15] 梁保民. 水盐体系相图原理及运用[M]. 北京: 轻工业出版社, 1986. LIANG Bao-min. Phase Diagram and Its Application of Water Salt System[M]. Beijing: Light Inducstry Press, 1986. (in Chinese)
[16] 马敏, 邴慧, 李国玉. 硫酸钠盐渍土未冻水含量的实验研究[J]. 冰川冻土, 2016, 38(4): 963-969. https://www.cnki.com.cn/Article/CJFDTOTAL-BCDT201604014.htm MA Min, BING Hui, LI Guo-yu. Experimental research on unfrozen water content of sodium sulfate saline soil[J]. Journal of Glaciology and Geocryology, 2016, 38(4): 963-969. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-BCDT201604014.htm
[17] 孟祥传, 周家作, 韦昌富, 等. 盐分对土的冻结温度及未冻水含量的影响研究[J]. 岩土力学, 2020, 41(3): 1-9. https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX202003026.htm MENG Xiang-chuan, ZHOU Jia-zuo, WEI Chang-fu. Effects of salinity on soil freezing temperature and unfrozen water content[J]. Rock and Soil Mechanics, 2020, 41(3): 1-9. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX202003026.htm
[18] ZENG Q. Poromechanical Behavior of Cement-Based Materials Subjected to Freeze-Thaw Actions with Salts: Modeling and Experiments[D]. Paris: Ecole des Ponts Paris Tech, 2011.
[19] XIAO Z A, LAI Y M, ZHANG M Y. Study on the freezing temperature of saline soil[J]. Acta Geotechnica, 2018, 13(1): 195-205.
[20] 化学工业部科学技术情报研究所. 氯碱工业手册[R]. 天津: 化学工业部科学技术情报研究所, 1978. Science and Technology Information Research Institute of Ministry of Chemical Industry. Handbook of Chlor-Alkali Industry[R]. Tianjin: Science and Technology Information Research Institute of Ministry of Chemical Industry, 1978. (in Chinese)
[21] SCHERER G W. Crystallization in pores[J]. Cement and Concrete Research, 1999, 29(8): 1347-1358.
[22] STEIGER M, ASMUSSEN S. Crystallization of sodium sulfate phases in porous materials: The phase diagram Na2SO4–H2O and the generation of stress[J]. Geochimica et Cosmochimica Acta, 2008, 72(17): 4291-4306.
