基于变形规律的堆石料弹、塑性湿化力学参数研究

周雄雄; 黄佳铄; 范志东; 纪天瑞; 迟世春

doi:10.11779/CJGE20240247

基于变形规律的堆石料弹、塑性湿化力学参数研究 English Version

周雄雄^{1, 2, 3,},
黄佳铄^{1, 2},
范志东^{1, 2},
纪天瑞^{1, 2},
迟世春⁴

1.
西北农林科技大学旱区农业水土工程教育部重点实验室, 陕西咸阳 712100
2.
西北农林科技大学水利与建筑工程学院, 陕西咸阳 712100
3.
陕西省水利电力勘测设计研究院, 陕西西安 712100
4.
大连理工大学海岸与近海工程国家重点实验室, 辽宁大连 116024

基金项目:

国家自然科学基金青年项目 52209168

陕西省博士后科研项目 2023BSHGZZHQYXMZZ14

中央高校基本科研业务费 2452020207

详细信息

作者简介:
周雄雄(1990— )，男，副教授，主要从事堆石料本构模型及土石坝数值模拟等研究工作。E-mail: zhouxx@nwafu.edu.cn

中图分类号: TV641
计量
- 文章访问数: 174
- HTML全文浏览量: 12
- PDF下载量: 27
出版历程
- 收稿日期: 2024-03-18
- 网络出版日期: 2024-07-30
- 刊出日期: 2025-04-30

Elastic and plastic wetting mechanical parameters of rockfill based on deformation law

ZHOU Xiongxiong^{1, 2, 3,},
HUANG jiashuo^{1, 2},
FAN Zhidong^{1, 2},
JI Tianrui^{1, 2},
CHI Shichun⁴

1.
Key Laboratory of Agricultural Soil and Water Engineering in Arid and Semiarid Areas of Ministry of Education, Northwest A & F University, Yangling 712100, China
2.
College of Water Resources and Architectural Engineering, Northwest A & F University, Yangling 712100, China
3.
Shaanxi Province Institute of Water Resources and Electric Power Investigation and Design, Xi'an 712100, China
4.
State Key Laboratory of Coastal and Offshore Engineering, Dalian University of Technology, Dalian 116024, China

摘要

摘要: 湿化变形是土石坝的主要后期变形之一，对坝体的应力变形性状及初次蓄水坝体安全具有重要影响。基于前期湿化变形特性研究成果和提出的湿化变形模型，在进一步全面分析大量湿化试验成果的基础上，总结并完善了湿化应变间的相互关系及变化规律，推导了代表此特性的弹性和塑性力学参数。在非线性弹性理论框架下，提出了新的湿化泊松比计算公式，确立了湿化泊松比、平均有效应力 $p$ 和广义剪应力 $q$ 三者之间的密切关系；在塑性理论框架下，提出了精确的湿化剪胀方程。通过多组试验数据论证，发现提出的湿化泊松比与剪胀比的计算结果与试验数据的相关系数均在0.95以上。因此，提出的湿化泊松比和湿化剪胀比的计算方法是普遍适用且精确可靠的，研究成果可为堆石料湿化变形特性和堆石坝湿化变形弹塑性模拟等方面的研究提供重要的参考和支撑。
- 堆石料 /
- 湿化变形 /
- 湿化泊松比 /
- 剪胀方程 /
- 湿化剪胀比
Abstract: Wetting deformation is part of the main post-completion deformation of earth-rock dams, which has important influences on the stress deformation behavior of dam body and the safety of dam body for the initial impoundment. Based on the previous research results of wetting deformation characteristics, the proposed wetting deformation model and further comprehensive analysis of a large number of wetting test results, the relationship between wetting strains and their variation rules are summarized and improved, and the elastic and plastic mechanical parameters representing this characteristic are deduced. Under the framework of the nonlinear elasticity theory, a new formula for calculating the Poisson's ratio of wetting is proposed, and the close relationship among the wetting Poisson's ratio, the average effective stress $p$ and the generalized shear stress $q$ is established. In the framework of the plasticity theory, an accurate wetting dilatancy equation is proposed. It is found that the correlation coefficient between the calculated results of the Poisson's ratio and the dilatancy ratio proposed in this study and the test data is above 0.95. Therefore, the proposed methods for the wetting Poisson's ratio and the wetting dilatancy ratio are generally applicable, accurate and reliable, and the research results can provide important reference and support for the study of the wetting deformation characteristics of rockfill and the elastic or plastic simulation of the wetting deformation of rockfill dams.
- rockfill /
- wetting deformation /
- wetting Poisson's ratio /
- dilatancy equation /
- wetting dilatancy ratio

HTML全文

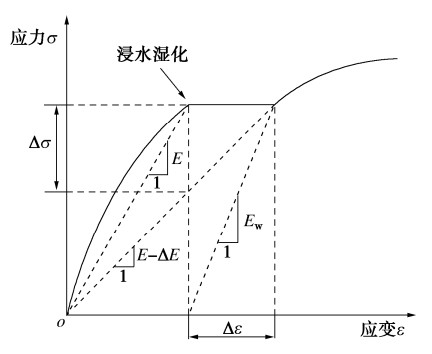

图 1 湿化过程模量变化示意图

Figure 1. Sketch map of change of modulus during wetting

下载: 全尺寸图片幻灯片

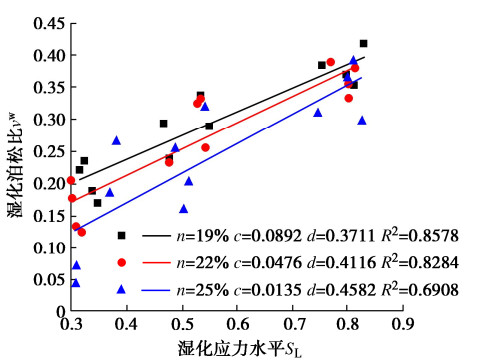

图 2 观音岩堆石料试验数据

Figure 2. Test data of Guanyinyan rockfill

下载: 全尺寸图片幻灯片

图 3 湿化泊松比与应力比的关系

Figure 3. Relationship between wetting Poisson's ratio and stress ratio

下载: 全尺寸图片幻灯片

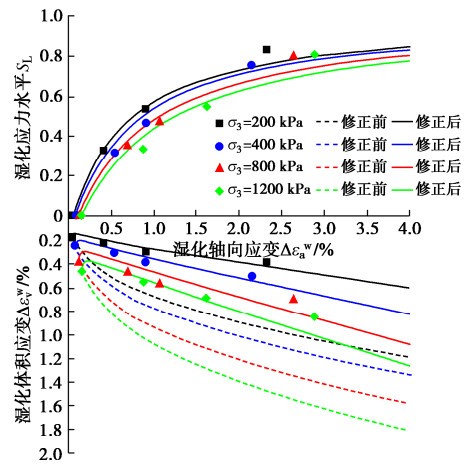

图 4 观音岩大坝堆石料湿化试验模拟

Figure 4. Simulation of wetting tests on Guanyinyan rockfill

下载: 全尺寸图片幻灯片

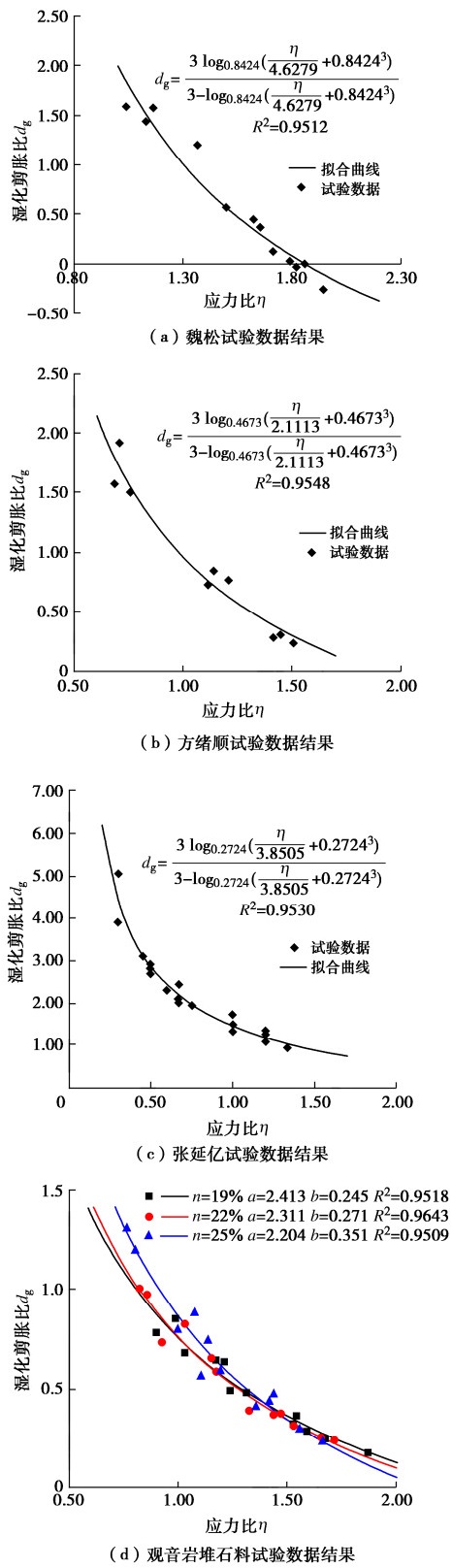

图 5 湿化剪胀比与应力比的关系

Figure 5. Relationship between wetting dilatancy ratio and stress ratio

下载: 全尺寸图片幻灯片

表 1 修正前后计算湿化泊松比与试验数据相关性对比

Table 1 Correlation between calculated Poisson's ratio and experimental data before and after correction

试验数据		修正前的R²	修正后的R²
魏松		0.8475	0.9614
方绪顺		0.9205	0.9627
张延亿		0.9509	0.9675
观音岩	n=19%	0.8578	0.9604
	n=22%	0.8284	0.9684
	n=25%	0.6908	0.9503

下载: 导出CSV

表 2 观音岩堆石料湿化试验数据

Table 2 Wetting test data of Guanyinyan rockfill materials

围压/kPa	湿化应力水平	湿化轴变/%	湿化体变/%
200	0	0.057	0.17
	0.324	0.417	0.221
	0.534	0.906	0.293
	0.830	2.322	0.378
400	0	0.081	0.244
	0.316	0.541	0.301
	0.468	0.908	0.376
	0.755	2.147	0.497
800	0	0.126	0.378
	0.347	0.695	0.459
	0.477	1.073	0.561
	0.798	2.643	0.69
1200	0	0.151	0.454
	0.337	0.876	0.544
	0.550	1.618	0.684
	0.811	2.887	0.845

下载: 导出CSV

表 3 观音岩堆石料湿化参数

Table 3 Wetting parameters of Guanyinyan rockfill materials

参数	K₀	m	K₁	A	a	b	c	d
数值	0.039	0.556	0.039	0.663	2.350	0.260	0.089	0.371

下载: 导出CSV

参考文献(21)

[1]	NOBARI E S, DUNCAN J M. Movements in dams due to reservoir filling[C]// ASCE Spec Conf on Per of Earth and Earth Supported Structures. ASCE, New York, 1972.
[2]	刘祖德. 土石坝变形计算的若干问题[J]. 岩土工程学报, 1983, 5(1): 1-13. doi: 10.3321/j.issn:1000-4548.1983.01.001 LIU Zude. Some deformation calculation problem of earth and rockfill dam[J]. Chinese Journal of Geotechnical Engineering, 1983, 5(1): 1-13. (in Chinese) doi: 10.3321/j.issn:1000-4548.1983.01.001
[3]	周雄雄. 高心墙堆石坝湿化变形与数值模拟方法研究[D]. 大连: 大连理工大学, 2020. ZHOU Xiongxiong. Study on Wetting Deformation and Numerical Simulation Method of High Core Rockfill Dam[D]. Dalian: Dalian University of Technology, 2020. (in Chinese)
[4]	迟世春, 周雄雄. 堆石料的湿化变形模型[J]. 岩土工程学报, 2017, 39(1): 48-55. doi: 10.11779/CJGE201701002 CHI Shichun, ZHOU Xiongxiong. Slaking deformation model for rockfill materials[J]. Chinese Journal of Geotechnical Engineering, 2017, 39(1): 48-55. (in Chinese) doi: 10.11779/CJGE201701002
[5]	丁艳辉, 张丙印, 钱晓翔, 等. 堆石料湿化变形特性试验研究[J]. 岩土力学, 2019, 40(8): 2975-2981. DING Yanhui, ZHANG Bingyin, QIAN Xiaoxiang, et al. Experimental study of the characteristics of wetting deformation of rockfill materials[J]. Rock and Soil Mechanics, 2019, 40(8): 2975-2981. (in Chinese)
[6]	张延亿, 邓刚, 张茵琪, 等. 土石混合料固结湿化变形试验研究[J]. 水利学报, 2020, 51(11): 1393-1400. ZHANG Yanyi, DENG Gang, ZHANG Yinqi, et al. Experimental study on the characteristics of consolidate-wetting deformation of soil-aggregate mixture materials[J]. Journal of Hydraulic Engineering, 2020, 51(11): 1393-1400. (in Chinese)
[7]	殷殷, 吴永康, 丁艳辉, 等. 堆石料非饱和湿化变形特性研究[J]. 岩石力学与工程学报, 2021, 40(增刊2): 3455-3463. YIN Yin, WU Yongkang, DING Yanhui, et al. Experimental study on the unsaturated wetting deformation behaviors of rockfill materials[J]. Chinese Journal of Rock Mechanics and Engineering, 2021, 40(S2): 3455-3463. (in Chinese)
[8]	殷殷, 刘盈斐, 吴永康, 等. 堆石料湿化试验变形过程分析[J]. 水利学报, 2022, 53(11): 1361-1368, 1382. YIN Yin, LIU Yingfei, WU Yongkang, et al. Process analysis of wetting deformation test of rockfill materials[J]. Journal of Hydraulic Engineering, 2022, 53(11): 1361-1368, 1382. (in Chinese)
[9]	左永振, 程展林, 潘家军, 等. 砾石土心墙料的湿化变形特性试验研究[J]. 岩土工程学报, 2023, 45(10): 2188-2193. doi: 10.11779/CJGE20220971 ZUO Yongzhen, CHENG Zhanlin, PAN Jiajun, et al. Experimental study on wetting deformation characteristics of gravelly soil core materials[J]. Chinese Journal of Geotechnical Engineering, 2023, 45(10): 2188-2193. (in Chinese) doi: 10.11779/CJGE20220971
[10]	ZHOU X X, CHI S C, JIA Y F. Wetting deformation of core-wall rockfill dams[J]. International Journal of Geomechanics, 2019, 19(8): 4019084. doi: 10.1061/(ASCE)GM.1943-5622.0001444
[11]	周雄雄, 迟世春, 贾宇峰. 粗粒料湿化变形特性研究[J]. 岩土工程学报, 2019, 41(10): 1943-1948. doi: 10.11779/CJGE201910020 ZHOU Xiongxiong, CHI Shichun, JIA Yufeng. Wetting deformation characteristics of coarse granular materials[J]. Chinese Journal of Geotechnical Engineering, 2019, 41(10): 1943-1948. (in Chinese) doi: 10.11779/CJGE201910020
[12]	ZHOU X X, CHI S C, WANG M H, et al. Study on wetting deformation characteristics of coarse granular materials and its simulation in core-wall rockfill dams[J]. International Journal for Numerical and Analytical Methods in Geomechanics, 2020, 44(6): 851-873. doi: 10.1002/nag.3042
[13]	SCHOFIELD A N, WROTH P. Critical State Soil Mechanics[M]. New York: McGraw-Hill, 1968.
[14]	王占军, 陈生水, 傅中志. 堆石料的剪胀特性与广义塑性本构模型[J]. 岩土力学, 2015, 36(7): 1931-1938. WANG Zhanjun, CHEN Shengshui, FU Zhongzhi. Dilatancy behaviors and generalized plasticity constitutive model of rockfill materials[J]. Rock and Soil Mechanics, 2015, 36(7): 1931-1938. (in Chinese)
[15]	傅中志, 陈生水, 张意江, 等. 堆石料加载与流变过程中塑性应变方向研究[J]. 岩土工程学报, 2018, 40(8): 1405-1414. doi: 10.11779/CJGE201808005 FU Zhongzhi, CHEN Shengshui, ZHANG Yijiang, et al. Plastic strain directions of rockfill materials during loading and creeping[J]. Chinese Journal of Geotechnical Engineering, 2018, 40(8): 1405-1414. (in Chinese) doi: 10.11779/CJGE201808005
[16]	石北啸, 刘赛朝, 吴鑫磊, 等. 考虑颗粒破碎的堆石料剪胀特性研究[J]. 岩土工程学报, 2021, 43(7): 1360-1366. doi: 10.11779/CJGE202107023 SHI Beixiao, LIU Saizhao, WU Xinlei, et al. Dilatancy behaviors of rockfill materials considering particle breakage[J]. Chinese Journal of Geotechnical Engineering, 2021, 43(7): 1360-1366. (in Chinese) doi: 10.11779/CJGE202107023
[17]	米占宽, 李国英. 观音岩水电站心墙堆石坝坝料后期变形试验研究[R]. 南京: 南京水利科学研究院, 2016. MI Zhankuan, LI Guoyin. Experimental Study on Material Late Deformation of Core Wall Cockfill Dam in Guanyinyan Hydropower Station[R]. Nanjing: Nanjing Hydraulic Research Institute, 2016. (in Chinese)
[18]	魏松. 粗粒料浸水湿化变形特性试验及其数值模型研究[D]. 南京: 河海大学, 2006. WEI Song. Experimental Study on Wetting Deformation Characteristics of Coarse Grained Materials and its Numerical Model[D]. Nanjing: Hohai University, 2006. (in Chinese)
[19]	方绪顺. 砂砾石料浸水变形特性研究及砂砾石坝蓄水变形的数值模拟[D]. 南京: 河海大学, 2005. FANG Xushun. Study on Deformation Characteristics of Gravel in Water and Numerical Simulation of Water Storage Deformation of Gravel Dam[D]. Nanjing: Hohai University, 2005. (in Chinese)
[20]	张延亿. 浸水湿化和水位升降条件下堆石材料变形特性研究[D]. 北京: 中国水利水电科学研究院, 2018. ZHANG Yanyi. Study on Deformation Characteristics of Rockfill Materials Under Wetting and Water Level Rise and Fall[D]. Beijing: China Research Institute of Water Resources and Hydropower, 2018. (in Chinese)
[21]	殷宗泽. 土工原理[M]. 北京: 中国水利水电出版社, 2007. YIN Zongze. Geotechnical Principle[M]. Beijing: China Water & Power Press, 2007. (in Chinese)
