岩石-钢纤维混凝土复合层动态抗压强度计算模型

陈猛; 田矣涵; 崔秀文; 张通

doi:10.11779/CJGE20230686

岩石-钢纤维混凝土复合层动态抗压强度计算模型 English Version

东北大学资源与土木工程学院, 辽宁沈阳 110819

基金项目:

国家自然科学基金项目 52178382

国家自然科学基金项目 52308395

博士后创新人才支持计划项目 BX20230063

中国博士后科学基金面上项目 2023M730526

中央高校基本科研业务专项资金项目 N2201023

中央高校基本科研业务专项资金项目 N2301023

辽宁省博士科研启动基金计划项目 2023-BS-058

详细信息

作者简介:
陈猛(1981—)，男，博士，教授，主要从事混凝土及岩石动态力学性能方面的研究。E-mail: chenmeng@mail.neu.edu.cn

通讯作者:
张通, E-mail: zhangtong@mail.neu.edu.cn

中图分类号: TU45
计量
- 文章访问数: 377
- HTML全文浏览量: 100
- PDF下载量: 54
出版历程
- 收稿日期: 2023-07-19
- 网络出版日期: 2024-04-25
- 刊出日期: 2024-09-30

Dynamic compressive strength model for rock-steel fiber-reinforced concrete composite layer

School of Resources and Civil Engineering, Northeastern University, Shenyang 110819, China

摘要

摘要: 为了研究冲击荷载下岩石-钢纤维混凝土（R-SFRC）复合层的抗压强度模型，利用分离式霍普金森压杆对花岗岩、混凝土和R-SFRC复合层进行动态冲击压缩试验，并通过回归试验结果得到R-SFRC复合层的对数型、幂函数型和强度-应变率依赖机制型3种强度模型，同时考虑R-SFRC复合层界面相互作用，基于Mohr-Coulomb强度准则建立复合层动态抗压强度计算模型。结果表明，R-SFRC复合层动态抗压强度随应变率及钢纤维掺量增大而增大；3种回归模型拟合复合层动态抗压强度试验结果的相关系数范围为0.918~0.999，其中依赖机制型模型与试验结果的相关性最大；基于Mohr-Coulomb强度准则的3种模型得到的复合层抗压强度计算值相对试验值的误差范围为-9.23%~3.16%，对数型模型的误差最大值较小。R-SFRC复合层动态抗压强度计算模型可为混凝土支护隧道围岩设计提供理论基础。
- 岩石 /
- 钢纤维混凝土 /
- 动态抗压强度 /
- 应变率 /
- Mohr-Coulomb强度准则 /
- 强度预测模型
Abstract: In order to study the compressive strength model for rock-steel fiber-reinforced concrete (R-SFRC) composite layer under impact loading, the dynamic impact compression tests on the granite, concrete and R-SFRC composite layer are carried out by using the separated Hopkinson pressure bar to obtain the dynamic compressive strengths of different materials. With the regression fitting of the test results, three types of strength models for the R-SFRC composite layer called logarithmic, power function and strength-strain rate dependent mechanism are obtained, and the dynamic compressive strength models for the R-SFRC composite layer are established based on the Mohr-Coulomb strength criterion considering the interface interaction of the R-SFRC composite layer. The results show that the dynamic compressive strength of the R-SFRC composite layer increases with the increase of the strain rate and steel fiber content, and the range of the correlation coefficient of three regression models is 0.918~0.999, and the R² of the dependent mechanism model is the largest. The error range of the theoretical value of the dynamic compressive strength calculated based on the Mohr-Coulomb strength criterion relative to the test value is -9.23%~3.16%, and the maximum error value of the logarithmic model is the smallest. The computational model for the dynamic compressive strength of the R-SFRC composite layer can provide a theoretical basis for the design of the surrounding rock of concrete-supported tunnels.
- rock /
- steel fiber-reinforced concrete /
- dynamic compressive strength /
- strain rate /
- Mohr-Coulomb strength criterion /
- strength prediction model

HTML全文

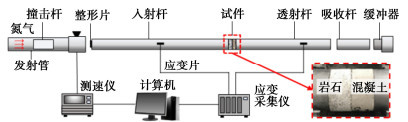

图 1 SHPB试验装置示意图

Figure 1. Schematic diagram of SHPB testing apparatus

下载: 全尺寸图片幻灯片

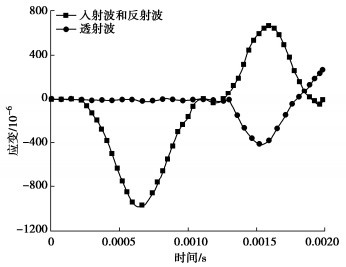

图 2 SHPB试验波形图

Figure 2. Strain waves of SHPB tests

下载: 全尺寸图片幻灯片

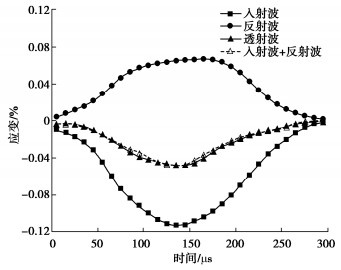

图 3 SHPB试验应力平衡波形图

Figure 3. Validation of stress equilibrium during the SHPB test

下载: 全尺寸图片幻灯片

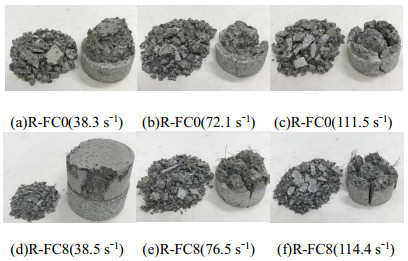

图 4 不同应变率下复合层试件的破坏形态

Figure 4. Failure modes of composite layer specimens at different strain rates

下载: 全尺寸图片幻灯片

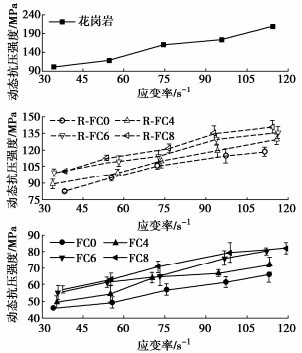

图 5 动态抗压强度随应变率变化曲线

Figure 5. Variation of dynamic compressive strength with strain rate

下载: 全尺寸图片幻灯片

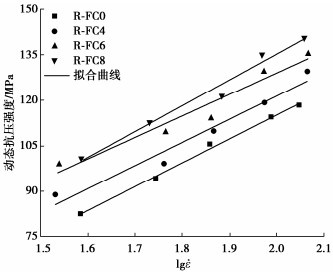

图 6 R-SFRC复合层的对数型模型拟合曲线

Figure 6. Fitting curves of logarithmic model for R-SFRC composite layer

下载: 全尺寸图片幻灯片

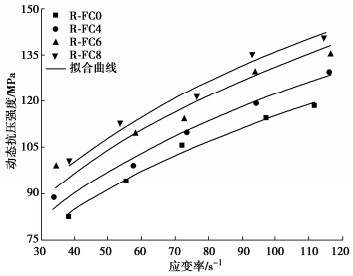

图 7 R-SFRC复合层的幂函数型模型拟合曲线

Figure 7. Fitting curves of power functional model for R-SFRC composite layer

下载: 全尺寸图片幻灯片

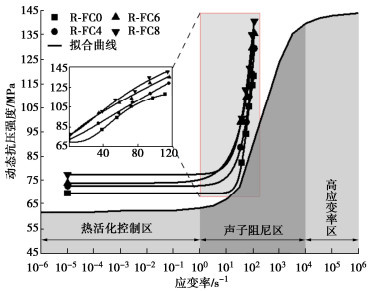

图 8 R-SFRC复合层的强度-应变率依赖机制型模型拟合曲线

Figure 8. Fitting curves of strength-strain rate dependent mechanism model for R-SFRC composite layer

下载: 全尺寸图片幻灯片

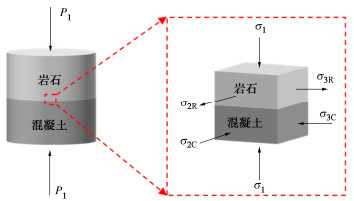

图 9 R-SFRC复合层界面处单元体应力分析图

Figure 9. Stress analysis of element at interface of R-SFRC composite layer

下载: 全尺寸图片幻灯片

表 1 花岗岩的物理及力学性能

Table 1 Physical and mechanical properties of granite

密度/ (kg·m^-3)	弹性模量/ GPa	单轴抗压强度/MPa	泊松比	内摩擦角/(°)
3000	67.41	187.1	0.207	53

下载: 导出CSV

表 2 钢纤维的物理及力学性能

Table 2 Physical and mechanical properties of steel fiber

长度/ mm	直径/ mm	密度/ (kg·m^-3)	抗拉强度/ MPa	弹性模量/ GPa
35	0.3	7850	1150	220

下载: 导出CSV

表 3 混凝土配合比

Table 3 Mixture proportions of concrete 单位: kg/m³

材料类型	水泥	水	细骨料	粗骨料	减水剂	钢纤维
FC0	418	182	611	1239	4.18	0
FC4	418	182	611	1239	4.18	40
FC6	418	182	611	1239	4.18	60
FC8	418	182	611	1239	4.18	80
注：FC4，FC6和FC8分别表示钢纤维掺量为40，60，80 kg/m³的钢纤维混凝土。

下载: 导出CSV

表 4 回归模型中R-SFRC复合层的参数拟合值

Table 4 Fitting values of parameters of R-SFRC composite layer using regression models

复合层类型	对数型			幂函数型		依赖机制型
复合层类型	k₁	${b_1}$	${R^2}$	k₂	${R^2}$	k₄	${\dot \varepsilon _{\text{s}}}$	$n$	${R^2}$
R-FC0	1.132	-0.608	0.996	0.356	0.991	0.833	61.348	2.731	0.999
R-FC4	0.998	-0.207	0.963	0.362	0.980	3.873	364.699	1.198	0.998
R-FC6	1.001	-0.172	0.942	0.382	0.918	3.623	298.722	1.196	0.971
R-FC8	1.100	-0.456	0.979	0.378	0.977	1.584	108.280	1.392	0.993

下载: 导出CSV

表 5 回归模型中混凝土的参数拟合值

Table 5 Fitting values of parameters of concrete using regression models

材料类型	对数型			幂函数型		依赖机制型
材料类型	${k_{{\text{1C}}}}$	${b_{1{\text{C}}}}$	${R^2}$	${k_{{\text{2C}}}}$	${R^2}$	${k_{{\text{4C}}}}$	${\dot \varepsilon _{{\text{sC}}}}$	${n_{\text{C}}}$	${R^2}$
FC0	0.842	-0.357	0.941	0.287	0.961	0.476	81.603	4.923	0.988
FC4	0.940	-0.448	0.957	0.309	0.961	0.494	64.627	5.211	0.980
FC6	1.031	-0.516	0.947	0.334	0.966	0.725	68.548	3.012	0.972
FC8	1.038	-0.530	0.987	0.333	0.989	0.784	71.679	2.734	0.998

下载: 导出CSV

表 6 R-SFRC复合层的动态抗压强度计算值与试验值对比

Table 6 Comparison of calculated and tested values of dynamic compressive strength of R-SFRC composite layer

复合层类型	应变率/s^-1	${f_{\text{e}}}$ /MPa	${f_{{\text{RC1}}}}$ /MPa	${f_{{\text{RC2}}}}$ /MPa	${f_{{\text{RC3}}}}$ /MPa	${x_1}$ /%	${x_2}$ /%	${x_3}$ /%
R-FC0	38.3	82.5±1.1	75.1	75.0	81.0	-8.93	-9.09	-1.87
	55.4	94.2±3.0	89.5	88.2	85.5	-5.02	-6.33	-9.23
	72.1	105.6±2.5	98.5	97.7	96.0	-6.77	-7.48	-9.08
	97.2	114.6±6.4	105.9	106.3	107.4	-7.62	-7.27	-6.31
	111.5	118.4±4.0	110.3	111.7	112.3	-6.87	-5.65	-5.17
R-FC4	33.9	88.8±4.3	82.8	83.4	83.9	-6.76	-6.03	-5.50
	57.6	99.2±3.0	97.6	96.7	94.4	-1.59	-2.54	-4.83
	73.5	109.9±5.8	105.9	104.9	106.9	-3.66	-4.52	-2.76
	94.1	119.3±5.9	115.9	115.9	118.0	-2.86	-2.85	-1.13
	115.9	129.6±4.6	121.9	123.1	120.8	-5.91	-5.03	-6.80
R-FC6	34.5	99.2±3.5	91.0	92.1	91.3	-8.28	-7.20	-8.01
	58.1	109.7±4.9	106.3	105.4	103.5	-3.13	-3.88	-5.67
	72.6	114.2±4.9	117.8	116.8	117.1	3.16	2.31	2.51
	93.8	129.8±5.3	128.3	128.2	128.6	-1.16	-1.19	-0.95
	116.3	135.6±5.4	133.8	134.7	133.2	-1.33	-0.68	-1.78
R-FC8	38.5	100.7±0.6	94.4	95.3	95.2	-6.26	-5.38	-5.51
	53.7	112.7±2.7	109.2	108.3	113.3	-3.12	-3.92	0.56
	76.5	121.5±4.0	119.7	118.6	119.3	-1.50	-2.40	-1.78
	93.0	135.2±6.4	131.6	131.5	132.6	-2.67	-2.75	-1.91
	114.4	140.7±5.7	138.9	140.0	139.0	-1.31	-0.49	-1.24
注： ${f_{\text{e}}}$ 为R-SFRC复合层的动态抗压强度试验值； ${f_{{\text{RC1}}}}$ ， ${f_{{\text{RC2}}}}$ 和 ${f_{{\text{RC3}}}}$ 分别为基于Mohr-Coulomb强度准则建立的对数型、幂函数型和强度-应变率依赖机制型模型的R-SFRC复合层动态抗压强度计算值。 ${x_i}$ 为 ${f_{{\text{RC}}i}}$ 的误差， ${x_i} = ({f_{{\text{RC}}i}} - {f_{\text{e}}}) \times 100\% /{f_{\text{e}}}$ ， $i$ =1，2，3。

下载: 导出CSV
