基于IDA方法的综合管廊纵向地震易损性分析研究

李锦强; 钟紫蓝; 申家旭; 张卜; 张亚波; 杜修力

doi:10.11779/CJGE20230397

基于IDA方法的综合管廊纵向地震易损性分析研究 English Version

北京工业大学城市与工程安全减灾教育部重点实验室, 北京 100124

基金项目:

国家自然科学基金面上项目 52378470

国家自然科学基金面上项目 51978020

中国博士后科学基金项目 2021M700311

国家重点研发计划项目 2022YFC3003603

详细信息

作者简介:
李锦强（1995—)，男，博士研究生，主要从事地下结构抗震方面的研究工作。E-mail: lijinqiangs@163.com

通讯作者:
钟紫蓝, zilanzhong@bjut.edu.cn

中图分类号: TU435;TU990.3
计量
- 文章访问数: 350
- HTML全文浏览量: 69
- PDF下载量: 72
出版历程
- 收稿日期: 2023-05-07
- 网络出版日期: 2023-12-19
- 刊出日期: 2024-07-31

Longitudinal seismic fragility analysis of utility tunnel structures based on IDA method

Key Laboratory of Urban Security and Disaster Engineering of Ministry of Education, Beijing University of Technology, Beijing 100124, China

摘要

摘要: 为了提出一种基于非线性增量动力分析（incremental dynamic analysis, IDA）的长线型综合管廊纵向地震性能评价的易损性分析方法，以单舱综合管廊为研究对象建立了简化梁-弹簧模型，合理地考虑了管廊接口的力学性能和管廊-土相互作用，将筛选的17组地震动统一调幅至不同强度水平后作为输入开展一维自由场分析以获取管廊底板位置处的地震动时程，最后开展了考虑地震动行波效应的综合管廊地震响应分析。基于IDA分析结果对地震动强度指标进行优选，最终建立了以管廊底板位置处峰值速度和地表峰值速度为地震动强度指标，以管廊接口张开量为损伤指标的易损性曲线，得到了不同地震烈度水平下综合管廊的失效概率。给出的典型Ⅱ类场地中管廊地震易损性曲线和失效概率可以作为评价该类地下结构抗震性能的有效工具，为长线型综合管廊在不同地震动强度下的损伤预测提供可靠依据。
- 综合管廊 /
- 梁-弹簧模型 /
- 增量动力分析 /
- 易损性分析 /
- 失效概率
Abstract: This study aims to propose a fragility analysis method for evaluating the longitudinal seismic performance of long-line utility tunnels based on nonlinear incremental dynamic analysis (IDA). To this end, a simplified beam-spring model is established, to reasonably consider the mechanical properties of the joint and the soil-tunnel interaction. A series of 17 sets of ground motion records are selected and uniformly scaled to different intensity levels as the input of one-dimension free filed analyses to obtain the ground motions at the bottom slab of a utility tunnel. Finally, the seismic analysis of the utility tunnel considering wave passage effects is conducted. Based on the IDA results, the optimal intensity measure is selected. With the damage measure of the peak joint opening, the fragility curves of the utility tunnel are established using the peak velocity at the bottom slab of the tunnel and the peak velocity at the ground surface as the intensity measures, respectively. The failure probability of the utility tunnel under different earthquake intensity levels is also obtained. The proposed fragility curves and failure probability of the utility tunnel in typical site Ⅱ can provide an effective tool to estimate the seismic performance of this type of underground structures and a reliable basis for predicting damage under different earthquake intensity levels.
- utility tunnel /
- beam-spring model /
- incremental dynamic analysis /
- fragility analysis /
- failure probability

HTML全文

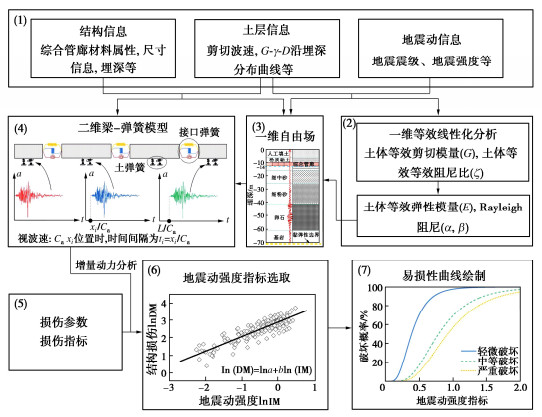

图 1 综合管廊纵向地震易损性分析流程图

Figure 1. Procedures of longitudinal seismic fragility analysis for utility tunnel

下载: 全尺寸图片幻灯片

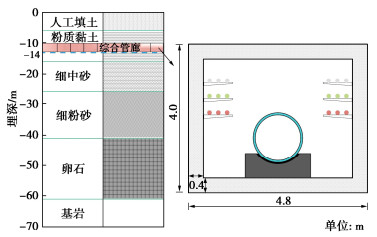

图 2 场地信息及综合管廊结构示意图

Figure 2. Schematic diagram of site information and utility tunnel

下载: 全尺寸图片幻灯片

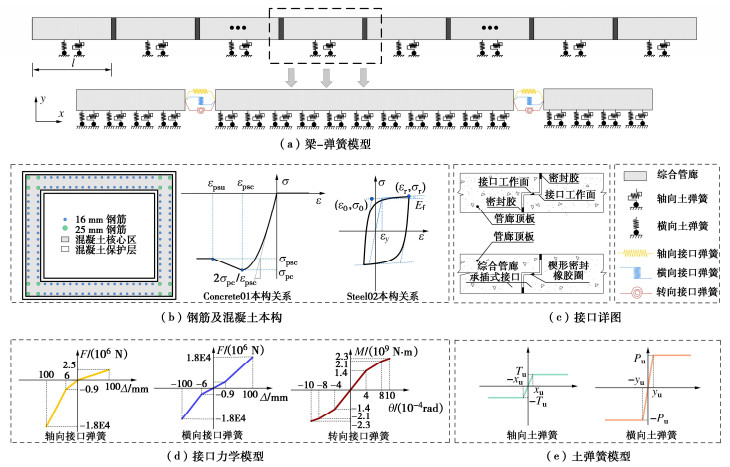

图 3 综合管廊-土体相互作用数值模型示意图

Figure 3. Schematic diagram of utility tunnel-soil interaction model

下载: 全尺寸图片幻灯片

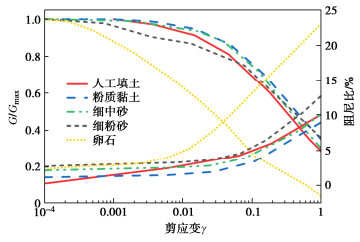

图 4 土体动剪切模量比和动阻尼比曲线

Figure 4. Curves of dynamic shear modulus and damping ratio

下载: 全尺寸图片幻灯片

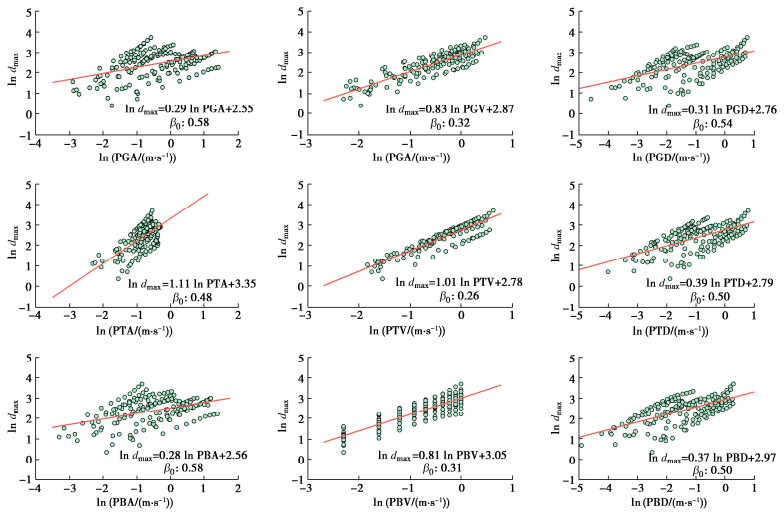

图 5 损伤指标回归分析

Figure 5. Regression analysis of damage measures

下载: 全尺寸图片幻灯片

图 6 地震动强度指标离散性对比

Figure 6. Comparison of description of different IMs

下载: 全尺寸图片幻灯片

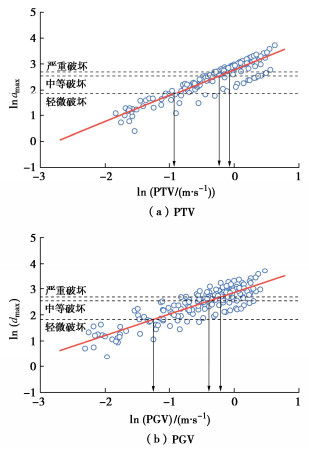

图 7 最大接口张开量d_max与IM线性拟合结果

Figure 7. Linear regression of d_max and IM

下载: 全尺寸图片幻灯片

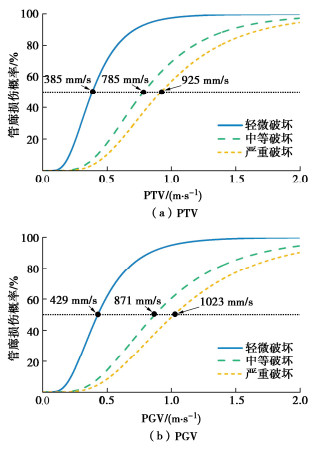

图 8 综合管廊地震易损性曲线

Figure 8. Seismic fragility curves of utility tunnel

下载: 全尺寸图片幻灯片

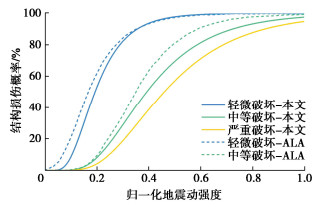

图 9 地震易损性曲线对比

Figure 9. Comparison of seismic fragility curves

下载: 全尺寸图片幻灯片

表 1 土层物理参数表

Table 1 Geotechnical properties of soil layers

土层	土质	土层厚度H/m	密度ρ/(kg·m^-3)	剪切波速v_s/(m·s^-1)
1	人工填土	6.0	1750	180
2	粉质黏土	10.0	1900	250
3	细中砂	10.0	2000	300
4	细粉砂	15.0	2000	320
5	卵石	20.0	2280	500

下载: 导出CSV

表 2 钢筋及混凝土材料参数

Table 2 Material parameters of steel rebars and concrete

材料	密度γ_u/(kg·m^-3)	弹性模量E_u/GPa	屈服强度f_y/MPa	硬化系数	轴心抗压强度f_c0/MPa	轴心抗拉强度f_t/MPa	峰值压应变ε_c0	极限压应变ε_cu
钢筋	7850	200	426	0.001	—	—	—	—
混凝土	2500	32.5	—	—	19.1	2.39	0.0020	0.0038

下载: 导出CSV

表 3 轴向和横向土弹簧参数

Table 3 Parameters for longitudinal and transverse soil springs

轴向土弹簧			横向土弹簧
T_u/kN	x_u/mm	k_l/(kN·mm^-1)	P_u/kN	y_u/mm	k_t/(kN·mm^-1)
960	10.0	96	120960	420.0	288

下载: 导出CSV

表 4 地震动记录信息

Table 4 Information of ground motion records

序号	震级	时间	地震名称	台站	PGA/g	PGV/(mm·s^-1)
1	6.69	1994	Northridge-01	LA - Wonderland Ave	0.10	76
1	6.69	1994	Northridge-01	LA - Wonderland Ave	0.16	146
2	7.62	1999	Chi-Chi_ Taiwan	CHY102	0.04	68
2	7.62	1999	Chi-Chi_ Taiwan	CHY102	0.05	56
3	7.62	1999	Chi-Chi_ Taiwan	HWA035	0.08	11
3	7.62	1999	Chi-Chi_ Taiwan	HWA035	0.07	67
4	7.62	1999	Chi-Chi_ Taiwan	KAU034	0.06	20
4	7.62	1999	Chi-Chi_ Taiwan	KAU034	0.01	25
5	7.62	1999	Chi-Chi_ Taiwan	TAP086	0.04	97
5	7.62	1999	Chi-Chi_ Taiwan	TAP086	0.05	80
6	7.62	1999	Chi-Chi_ Taiwan	TCU088	0.53	34
6	7.62	1999	Chi-Chi_ Taiwan	TCU088	0.52	14
7	7.62	1999	Chi-Chi_ Taiwan	TTN028	0.02	37
7	7.62	1999	Chi-Chi_ Taiwan	TTN028	0.02	27
8	6.05	1994	Northridge-02	Lake Hughes #12A	0.01	3
8	6.05	1994	Northridge-02	Lake Hughes #12A	0.02	4
9	5.9	1999	Chi-Chi_ Taiwan-02	ILA015	0.01	8.5
9	5.9	1999	Chi-Chi_ Taiwan-02	ILA015	0.01	10
10	6.2	1999	Chi-Chi_ Taiwan-05	HWA002	0.03	31
10	6.2	1999	Chi-Chi_ Taiwan-05	HWA002	0.03	34
11	6.3	1999	Chi-Chi_ Taiwan-06	TTN042	0.03	26
11	6.3	1999	Chi-Chi_ Taiwan-06	TTN042	0.01	23
12	6.9	2008	Iwate_ Japan	IWTH18	0.13	42
12	6.9	2008	Iwate_ Japan	IWTH18	0.04	36
13	6.9	2008	Iwate_ Japan	MYGH03	0.08	25.5
13	6.9	2008	Iwate_ Japan	MYGH03	0.09	27.3
14	5.39	2008	14383980	Mount Wilson Obsv	0.02	9.0
14	5.39	2008	14383980	Mount Wilson Obsv	0.02	8.6
15	5.89	2004	Oroville-01	Oroville Seismograph Station	0.09	21
15	5.89	2004	Oroville-01	Oroville Seismograph Station	0.07	23
16	5.19	2004	Anza (Horse Canyon)-01	Anza - Pinyon Flat	0.10	20
16	5.19	2004	Anza (Horse Canyon)-01	Anza - Pinyon Flat	0.12	50
17	5.45	2007	40204628	Hamilton Field	0.01	4.5
17	5.45	2007	40204628	Hamilton Field	0.01	5

下载: 导出CSV

表 5 综合管廊损伤状态定义

Table 5 Definition of damages states for utility tunnel

性能水准	评价指标范围/mm	评价指标中位值/mm
基本完好	d_max≤2	—
轻微破坏	2＜d_max≤10.5	6.3
中等破坏	10.5＜d_max≤15.0	12.8
严重破坏	d_max＞15.0	15.0

下载: 导出CSV

表 6 PGV转PGA系数^[36]

Table 6 Ratios of PGV to PGA

震级(M_w)	震源-场地距离/km
震级(M_w)	0~20	20~50	50~100
6.5	940	1020	1090
7.5	1400	1270	1550
8.5	1800	1880	1930

下载: 导出CSV

表 7 不同地震动强度下综合管廊的失效概率

Table 7 Failure probabilities of utility tunnel at corresponding seismic intensity levels

地震动强度	PGA/g	PGV/(mm·s^-1)	场地类别	失效概率/%
地震动强度	PGA/g	PGV/(mm·s^-1)	场地类别	基本完好	轻微破坏	中等破坏	严重破坏
多遇地震动	0.20	286	Ⅱ	78.5	20.0	0.8	0.7
设计地震动	0.40	572	Ⅱ	28.9	50.5	7.6	13.0
罕遇地震动	0.62	887	Ⅱ	7.9	40.8	12.2	39.1

下载: 导出CSV
