考虑竖向地震作用的大型地下框架结构易损性分析

邱大鹏; 陈健云; 王文明; 曹翔宇

doi:10.11779/CJGE20221053

考虑竖向地震作用的大型地下框架结构易损性分析 English Version

邱大鹏^{1, 2,},
陈健云³,
王文明^{1, 2, ,},
曹翔宇⁴

1.
山东建筑大学土木工程学院, 山东济南 250101
2.
建筑结构加固改造与地下空间工程教育部重点实验室, 山东济南 250101
3.
大连理工大学建设工程学部, 辽宁大连 116024
4.
南京水利科学研究院, 江苏南京 210029

基金项目:

国家重点研发计划项目 2020YFC1511905

国家自然科学基金项目 52208397

国家自然科学基金项目 51908340

山东省自然科学基金青年基金项目 ZR2021QE126

山东建筑大学博士科研基金项目 X20026Z0101

详细信息

作者简介:
邱大鹏(1992—)，男，博士，副教授，主要从事地下结构抗震性能与韧性提升研究。E-mail: qiudapeng20@sdjzu.edu.cn

通讯作者:
王文明, E-mail: wangwenmingmr@sdjzu.edu.cn

中图分类号: TU43
计量
- 文章访问数: 396
- HTML全文浏览量: 74
- PDF下载量: 101
出版历程
- 收稿日期: 2022-08-24
- 网络出版日期: 2023-03-16
- 刊出日期: 2023-11-30

Fragility analysis of underground large-scale frame structures considering seismic effects of vertical earthquakes

QIU Dapeng^{1, 2,},
CHEN Jianyun³,
WANG Wenming^{1, 2, ,},
CAO Xiangyu⁴

1.
School of Civil Engineering, Shandong Jianzhu University, Jinan 250101, China
2.
Key Laboratory of Building Structural Retrofitting and Underground Space Engineering (Shandong Jianzhu University), Ministry of Education, Jinan 250101, China
3.
Faculty of Infrastructure Engineering, Dalian University of Technology, Dalian 116024, China
4.
Nanjing Hydraulic Research Institute, Nanjing 210029, China

摘要

摘要: 基于增量动力分析（IDA）方法，探究了单一水平向地震及水平向与竖向地震联合作用下大型地下框架结构地震响应的IDA曲线，揭示了竖向地震对结构不同危险位置响应的影响规律；针对结构的层间水平变形与弯曲变形，提出分别选择层间位移角与层间梁柱转角作为性能评价指标，阐明了竖向地震对结构抗震性能的影响机理，得到了单向和双向地震分别作用下结构的地震易损性曲线。研究表明：竖向地震作用对结构基于层间位移角的地震易损性影响较小，但会增大外侧结构的局部弯曲变形并降低结构基于弯曲变形的抗震性能，基于层间梁柱转角的地震易损性明显提高，建议综合层间位移角与层间梁柱转角对双向地震动作用下大型地下结构的地震易损性进行全面地评估。
- 大型地下框架结构 /
- 增量动力分析 /
- 抗震性能 /
- 竖向地震 /
- 易损性分析
Abstract: The increase dynamic analysis (IDA) curves of seismic responses of the underground large-scale frame structure (ULSFS) are investigated during the single horizontal earthquakes and horizontal-vertical earthquakes, respectively. The influence mechanism of vertical earthquakes on the seismic responses of different vulnerable positions is revealed. Aiming at the interlayer drift deformation and flexural deformation in the ULSFS, the interlayer drift ratio (IDR) and interlayer rotation angle (IRA) are employed as the seismic performance evaluation indexes. Therefore, the influence mechanism of vertical earthquakes on structural seismic performance is further revealed. The seismic fragility curves of the ULSFS are achieved during horizontal earthquakes and horizontal-vertical earthquakes, respectively. The results show that the vertical earthquakes have small seismic influences on the seismic fragility of the ULSFS based on the IDR. However, the vertical earthquakes enlarge the local flexural deformation of the ULSFS and decrease the seismic performance of the ULSFS based on the IRA. The seismic fragility considerably increases after considering the vertical seismic effects. The IDR aiming at the horizontal drift deformation and the IRA aiming at the interlayer flexural deformation are advised to be employed to assess the seismic fragility of large underground structures during both horizontal and vertical earthquakes comprehensively.
- underground large-scale frame structure /
- increase dynamic analysis /
- seismic performance /
- vertical earthquake /
- fragility analysis

HTML全文

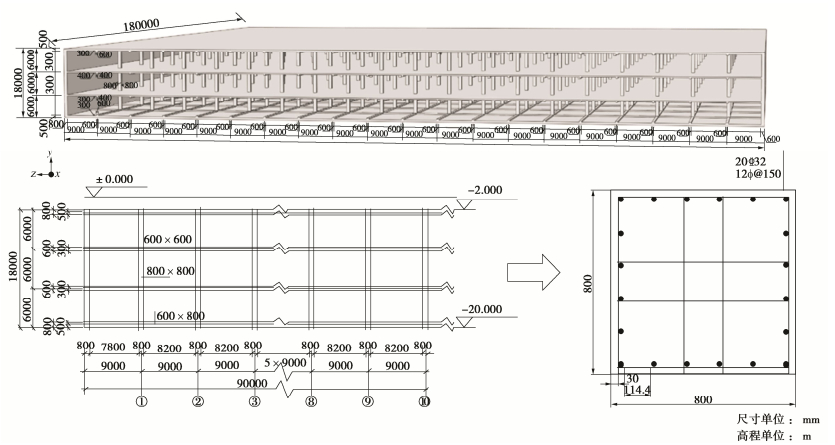

图 1 ULSFS的构造及框架柱配筋示意图

Figure 1. Structural diagram of ULSFS and reinforcements of framework columns

下载: 全尺寸图片幻灯片

图 2 土-结构有限元模型

Figure 2. Finite element models for soil and structure

下载: 全尺寸图片幻灯片

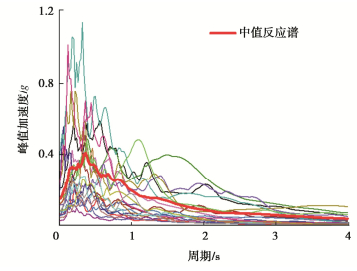

图 3 所选地震动加速度反应谱

Figure 3. Acceleration response spectra of ground motions

下载: 全尺寸图片幻灯片

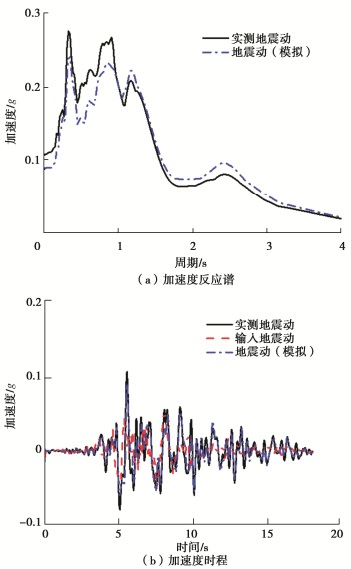

图 4 实测地震动与模拟地震动

Figure 4. Recorded and simulated ground motions

下载: 全尺寸图片幻灯片

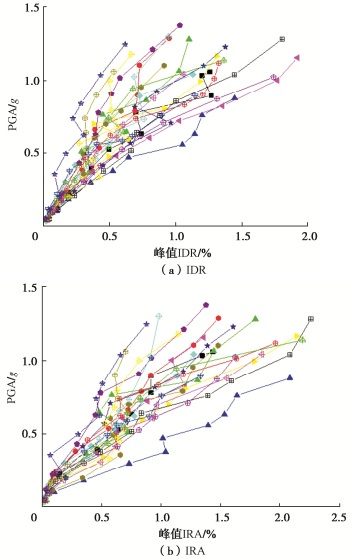

图 5 水平向地震作用下Ⅱ类场地中ULSFS的IDA曲线

Figure 5. IDA curves of ULSFS during horizontal earthquakes in site Ⅱ

下载: 全尺寸图片幻灯片

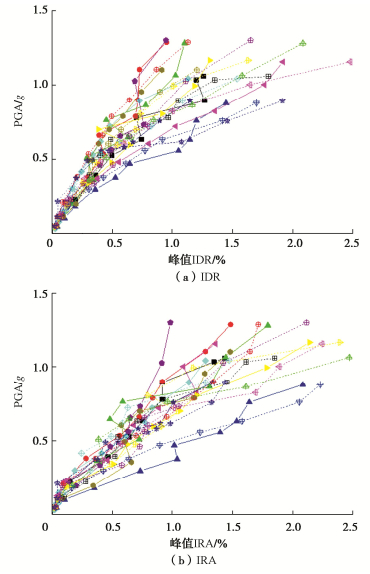

图 6 水平向与竖向地震作用下Ⅱ类场地中ULSFS的IDA曲线

Figure 6. IDA curves of ULSFS during horizontal and vertical earthquakes in site Ⅱ

下载: 全尺寸图片幻灯片

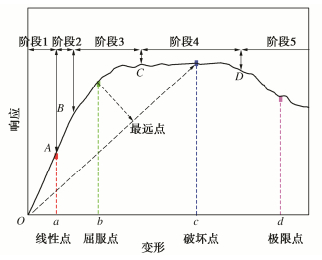

图 7 结构抗震性能曲线及“最远点法”示意图

Figure 7. Diagram of seismic performance curve and farthest point method

下载: 全尺寸图片幻灯片

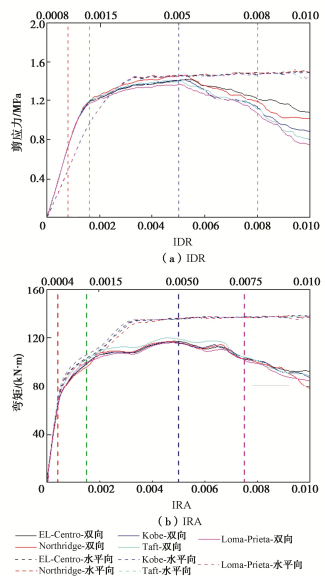

图 8 ULSFS抗震性能曲线

Figure 8. Seismic performance curves of ULSFS

下载: 全尺寸图片幻灯片

图 9 水平向地震作用下Ⅱ类场地条件中ULSFS的易损性曲线

Figure 9. Fragility curves of ULSFS during horizontal earthquakes in site Ⅱ

下载: 全尺寸图片幻灯片

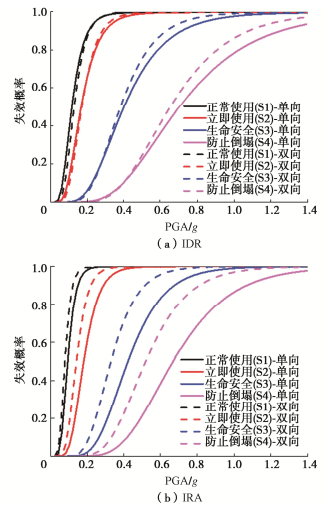

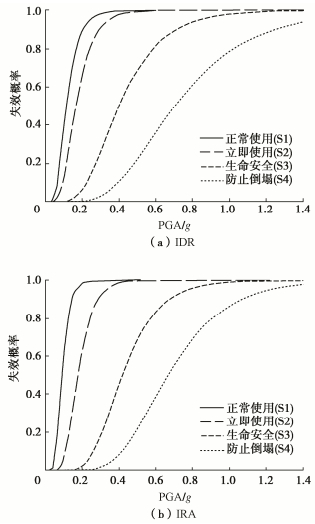

图 10 双向地震作用下Ⅱ类场地条件中ULSFS的易损性曲线

Figure 10. Fragility curves of ULSFS during bi-directional earthquakes in site Ⅱ

下载: 全尺寸图片幻灯片

表 1 ULSFS本构与材料属性

Table 1 Material constitutive models of ULSFS

材料	混凝土								钢筋
材料	密度 ${\rho _{{\text{c1}}}}$ /(kg·m^-3)	弹性模量 ${E_{{\text{s1}}}}$ /GPa	泊松比	扩张角 ${\psi _{\text{c}}}$ /(°)	偏心率η	${K_{{\text{t1}}}}$	拉伸屈服强度 ${\sigma _{{\text{t1}}}}$ /MPa	压缩屈服强度 ${\sigma _{{\text{c1}}}}$ /MPa	密度 ${\rho _{\text{r}}}$ /(kg·m^-3)	弹性模量 ${E_{{\text{sr}}}}$ /GPa	屈服强度 ${\sigma _{\text{r}}}$ /MPa
数值	2400	32.5	0.20	15	0.1	0.666	3	30	7800	200	400

下载: 导出CSV

表 2 实际场地各土层参数

Table 2 Parameters of soil layers in actual site

土层	土壤类型	埋深/m	密度/(kg·m^-3)	泊松比	内摩擦角/(°)	黏聚力/kPa	剪切波速/(m·s^-1)
1	回填土	0~4	1870	0.33	20	20	181
2	粉质黏土	4~12	1900	0.28	18	40	193
3	粉质黏土	12~20	1900	0.28	20	25	405
4	粉质黏土	20~34	1850	0.30	20	10	247
5	粉质黏土	34~42	1850	0.28	20	20	271
6	黏土	42~54	1900	0.25	30	30	303
7	砾石	54~74	1950	0.20	20	1	427

下载: 导出CSV

表 3 所选地震动信息

Table 3 Data of selected ground motions

编号	地震动名称	震级M_w	${v_{{\text{s20}}}}$ / (m·s^-1)	Rrup/km	编号	地震动名称	震级M_w	${v_{{\text{s20}}}}$ /(m·s^-1)	Rrup/km
GM-1	"Imperial Valley-02"	6.95	213.44	6.09	GM-11	"San Fernando"	6.61	385.69	112.52
GM-2	"Northwest Calif-02"	6.6	219.31	91.22	GM-12	"Managua_Nicaragua-01"	6.24	288.77	4.06
GM-3	"Kern County"	7.36	316.46	117.75	GM-13	"Loma Prieta"	6.93	304.08	67.52
GM-4	"Kern County"	7.36	385.43	38.89	GM-14	"Loma Prieta"	6.93	331.21	50.99
GM-5	"Northern Calif-03"	6.5	219.31	27.02	GM-15	"Loma Prieta"	6.93	333.85	22.68
GM-6	"Parkfield"	6.19	289.56	9.58	GM-16	"Northridge-01"	6.69	269.29	68.62
GM-7	"Borrego Mtn"	6.63	316.46	222.42	GM-17	"Northridge-01"	6.69	301.23	41.17
GM-8	"San Fernando"	6.61	280.56	55.20	GM-18	"Kobe_Japan"	6.90	312.14	0.96
GM-9	"San Fernando"	6.61	316.46	22.77	GM-19	"Chi-Chi_Taiwan-05"	6.20	330.55	54.76
GM-10	"San Fernando"	6.61	303.79	193.91	GM-20	"Chi-Chi_Taiwan-06"	6.30	297.86	61.03

下载: 导出CSV

表 4 ULSFS抗震性能评价指标及状态阈值

Table 4 Seismic performance evaluation indexes and thresholds of ULSFS

项目	性能指标	基本完好	轻微破坏	中等破坏	严重破坏	塌毁
未考虑竖向地震	IDR-本文	$\theta < 0.10\%$	$0.10\% \leqslant \theta < 0.15\%$	$0.15\% \leqslant \theta < 0.40\%$	$0.40\% \leqslant \theta < 0.75\%$	$0.75\% \leqslant \theta$
	IDR-文章^[4]	$\theta < 0.12\%$	$0.12\% < \theta < 0.25\%$	$0.25\% \leqslant \theta < 0.40\%$	$0.40\% \leqslant \theta < 0.6\%$	$0.60\% \leqslant \theta$
	IDR-文章^[9]	$\theta < 0.08\%$	$0.08\% < \theta < 0.29\%$	$0.29\% \leqslant \theta < 0.60\%$	$0.60\% \leqslant \theta < 0.95\%$	$0.95\% \leqslant \theta$
	IDR-文章^[10]	$\theta < 0.12\%$	$0.12\% \leqslant \theta < 0.32\%$	$0.32\% \leqslant \theta < 0.73\%$	$0.73\% \leqslant \theta < 1.29\%$	$1.29\% \leqslant \theta$
	IRA-本文	$\theta < 0.05\%$	$0.05\% \leqslant \theta < 0.125\%$	$0.125\% \leqslant \theta < 0.40\%$	$0.40\% \leqslant \theta < 0.75\%$	$0.75\% \leqslant \theta$
考虑竖向地震动	IDR-本文	$\theta < 0.08\%$	$0.08\% \leqslant \theta < 0.12\%$	$0.12\% \leqslant \theta < 0.33\%$	$0.33\% \leqslant \theta < 0.65\%$	$0.65\% \leqslant \theta$
	IDR-文章^[8]	$\theta < 0.05\%$	$0.05\% \leqslant \theta < 0.21\%$	$0.21\% \leqslant \theta < 0.46\%$	$0.46\% \leqslant \theta < 0.72\%$	$0.72\% \leqslant \theta$
	IRA-本文	$\theta < 0.04\%$	$0.04\% \leqslant \theta < 0.1\%$	$0.1\% \leqslant \theta < 0.33\%$	$0.33\% \leqslant \theta < 0.63\%$	$0.63\% \leqslant \theta$

下载: 导出CSV

表 5 地震强度指标与结构性能评价指标平均标准偏差

${\beta _{\text{D}}}$ between ${\text{IM}}$ and ${u_{\text{d}}}$

${\beta _{\text{D}}}$	${\text{PGA}}$	${\text{PBA}}$	${\text{PGV}}$
${\text{IDR}}$	0.35	0.41	0.38
${\text{IRA}}$	0.39	0.36	0.43

下载: 导出CSV

表 6 Ⅱ场地条件下ULSFS地震失效概率50%所对应PGA

Table 6 PGAs corresponding to failure probability of ULSFS with value of 50% in site Ⅱ

失效概率（50%）	单向地震-IDR	单向地震-IRA	双向地震-IDR	双向地震-IRA
正常使用（S1）	0.11g	0.09g	0.13g	0.08g
立即使用（S2）	0.17g	0.18g	0.17g	0.15g
生命安全（S3）	0.40g	0.42g	0.38g	0.33g
防止倒塌（S4）	0.70g	0.67g	0.65g	0.52g

下载: 导出CSV
