Relaxation time-space effects of columnar jointed basalt and their control technologies
-
摘要: 柱状节理玄武岩表现出开挖后易松弛的特性，对白鹤滩水电站拱坝变形和地下洞室群稳定都有重要影响，是该工程的关键岩石力学问题之一。白鹤滩水电站柱状节理玄武岩表现出卸荷松弛、破裂松弛和坍塌松弛3种类型，采用钻孔声波测试为主、钻孔电视全景成像测试为辅的方法开展监测，并建立松弛层划分标准；发现开挖松弛具有显著的时间效应和空间效应；松弛时间效应可用对数函数表征，松弛大致在开挖35 d后趋于稳定，松弛与支护的及时性和有效性密切相关；松弛深度随着洞室跨度、开挖高度和断面面积的增加而不断增大，边墙松弛增幅尤其显著；开挖松弛是岩性、结构面、岩体结构和地应力共同控制的结果；提出成型成套松弛控制技术，取得了良好的控制效果。Abstract: It is easy for the columnar jointed basalt to relax after excavation, which has important influences on the deformation of arch dam and the stability of the surrounding rock of underground caverns. Therefore, the relaxation of the columnar jointed basalt is one of the main rock mechanics problems in Baihetan Hydropower Station. It mainly includes three types: unloading relaxation, fracturing relaxation and collapse relaxation. The relaxation of columnar jointed basalt is monitored by using the borehole acoustic wave tests as the main monitoring method and the borehole TV panoramic imaging tests as the auxiliary monitoring method. It is found that the excavation-induced relaxation has significant time effects and space effects. The time effects of relaxation can be represented by the logarithmic function, and the relaxation tends to be stable after about 35 days of excavation. The macroscopic relaxation failure is closely related to timeliness and limitation of support. The relaxation depth, especially for side walls, increases gradually with the increase of the cavern span, excavation height and cross-sectional area. The relaxation of the columnar jointed basalt is the combined effects of lithology, structural plane, rock mass structure and in-situ stress. A series of control technologies are put forward, and good control effects are achieved.
-
Keywords:
- columnar jointed basalt /
- relaxation /
- time effect /
- space effect /
- control technology
-
-
![]()

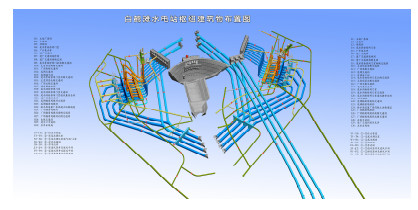

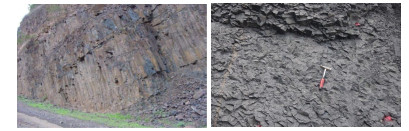

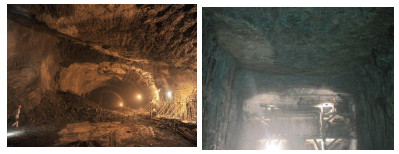

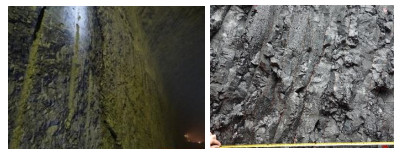

图 2 白鹤滩水电站第一类柱状节理玄武岩典型照片
Figure 2. Typical photos of the first type of columnar jointed basalt in Baihetan Hydropower Station
![]()

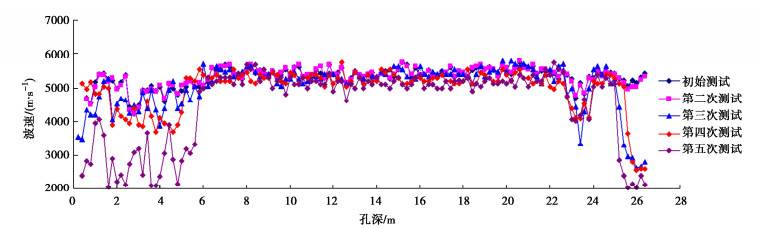

图 6 试验洞柱状节理玄武岩声波测试典型结果
Figure 6. Typical acoustic wave test results of columnar jointed basalt in test tunnel
![]()

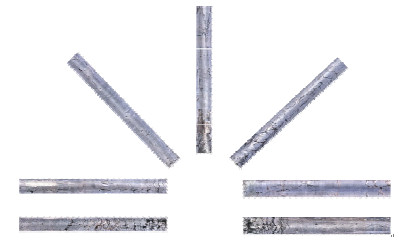

图 7 试验洞柱状节理玄武岩钻孔全景成像测试典型结果
Figure 7. Typical panoramic imaging test results of columnar jointed basalt in test tunnel
![]()

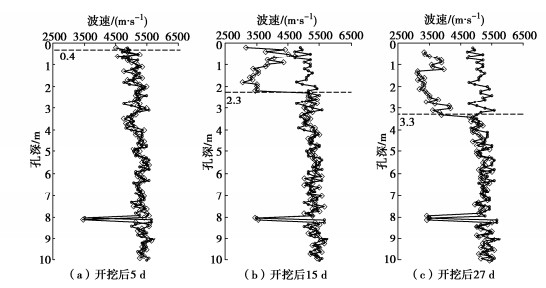

图 8 柱状节理玄武岩松弛发展的声波测试结果
Figure 8. Acoustic wave test results of relaxation evolution process of columnar jointed basalt
![]()

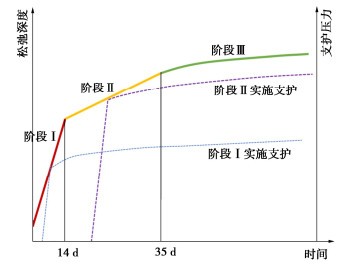

图 9 柱状节理玄武岩松弛概化模型
Figure 9. Conceptual model for relaxation of columnar jointed basalt
![]()

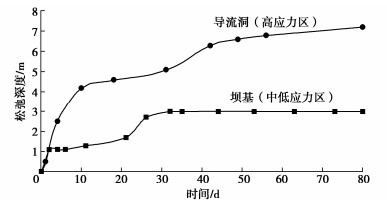

图 10 不同应力水平下柱状节理玄武岩松弛曲线
Figure 10. Relaxation curves of columnar jointed basalt under different stress levels
![]()

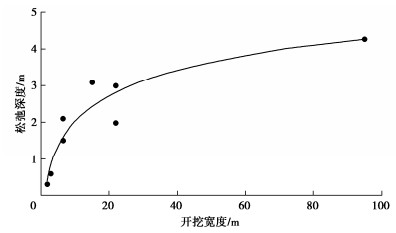

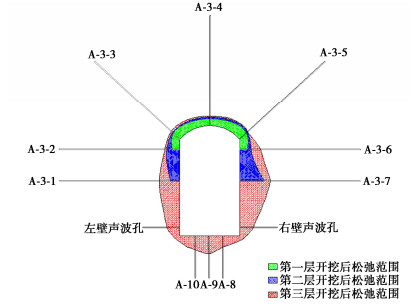

图 11 柱状节理玄武岩松弛与开挖宽度的关系
Figure 11. Relationship between excavation width and relaxation of columnar jointed basalt
![]()

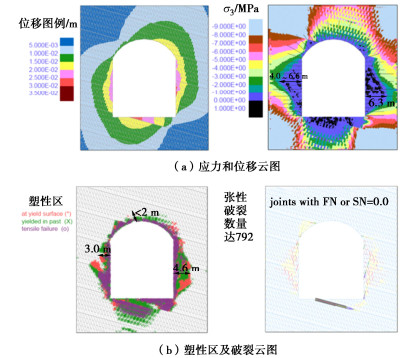

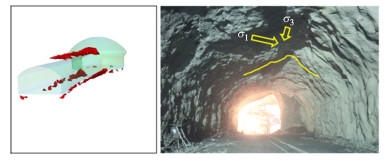

图 13 柱状节理玄武岩洞室开挖响应特征
Figure 13. Responses of columnar jointed basalt cavern to excavation process
![]()

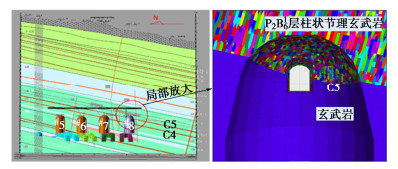

图 14 柱状节理玄武岩洞室应力分布
Figure 14. Distribution of stress of surrounding rock in cavern wall of columnar jointed basalt
![]()
图 15 不连续结构面切割柱状节理岩体的破坏结果
Figure 15. Failure results of columnar jointed rock mass influenced by discontinuous structural plane
![]()
图 16 坝基柱状节理岩体松弛控制技术
Figure 16. Relaxation control technologies of columnar jointed rock mass in dam foundation
![]()

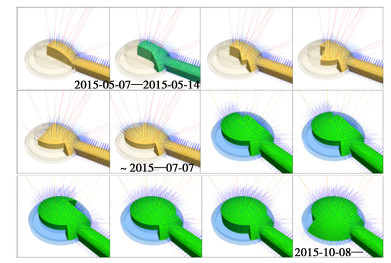

图 17 尾水调压室柱状节理岩体开挖与支护过程
Figure 17. Excavation and support process of columnar jointed rock mass in downstream surge chamber
![]()

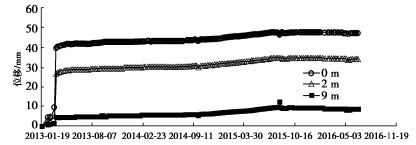

图 18 导流洞典型柱状节理岩体位移时序过程线
Figure 18. Variation curves of displacement of columnar jointed rock mass in diversion tunnel
表 1 柱状节理玄武岩松弛层划分标准表
Table 1 Standard division table of relaxation layers of columnar jointed basalt
岩体
类别岩性 波速/(m·s-1) 未松弛岩体 松弛岩体 Ⅱ 第二类柱状节理玄武岩 ≥5100 5100~4500 Ⅲ1 第一类、第二类柱状节理玄武岩 4700~5100 4000~3500 Ⅲ2 第一类、第二类柱状节理玄武岩 4000~4700
下载: 导出CSV
表 2 各监测部位松弛深度统计表
Table 2 Statistical values of relaxation depth at monitoring positions
检测位置 勘探平洞 模拟试验洞 灌浆
试验区导流洞 左岸坝基 河床坝基 编号 — — 未锚固区 锚固区 — #3 #4 开挖
试验区
(660~650)保护层
开挖面(650~628)建基面 建基面 尺寸/m 2×2 3×3 6.5×13 15 17.5×22 95 95 95 95 部位 洞壁 全洞 底板 底板 底板 洞壁 洞壁 斜坡 斜坡 斜坡 斜坡—平面 松弛深度/m 1.0~2.1 0.7~1.5 1.3~3.1 2.5~3.0 5.2~7.7 0.1~4.3 1.1~3.2 0.4~4.0 0.2~2.8 平均松弛
深度/m0.32 0.60 1.40 1.09 2.11 — — 2.31 1.98 1.20 1.30 与柱状节理交角 平行 横切 横切 横切 平行 平行 斜切 斜切 斜切 斜切—横切
下载: 导出CSV
-
