Deformation and stress of concrete cut-off wall of Hongshiyan dammed body at initial stage of water storage
-

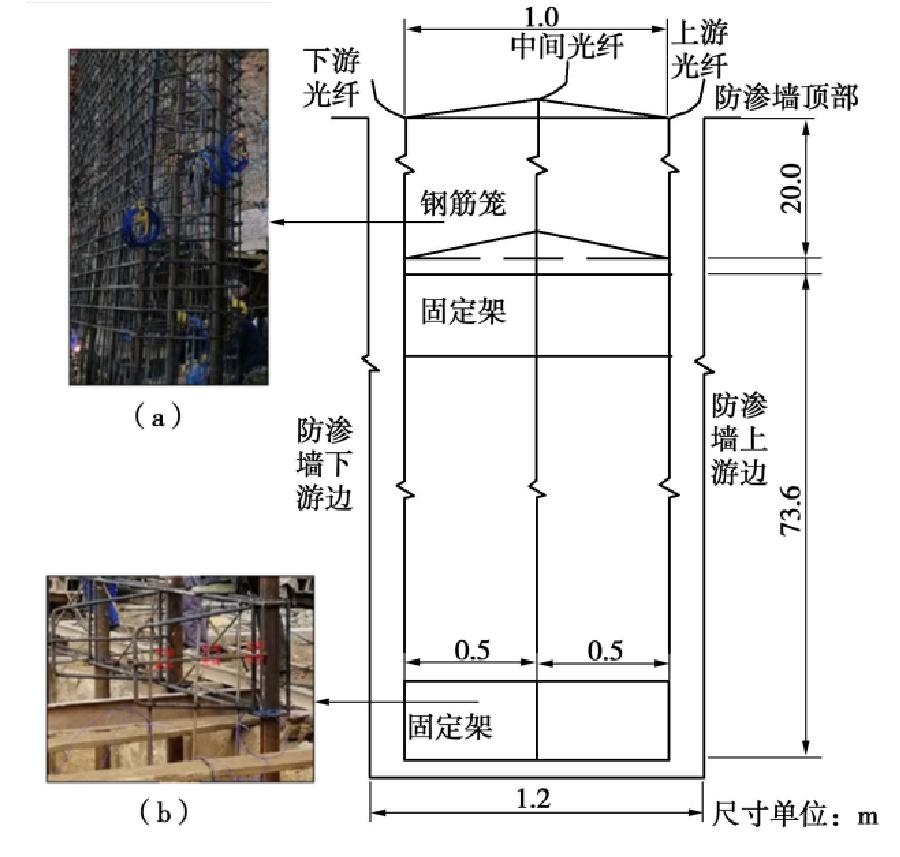

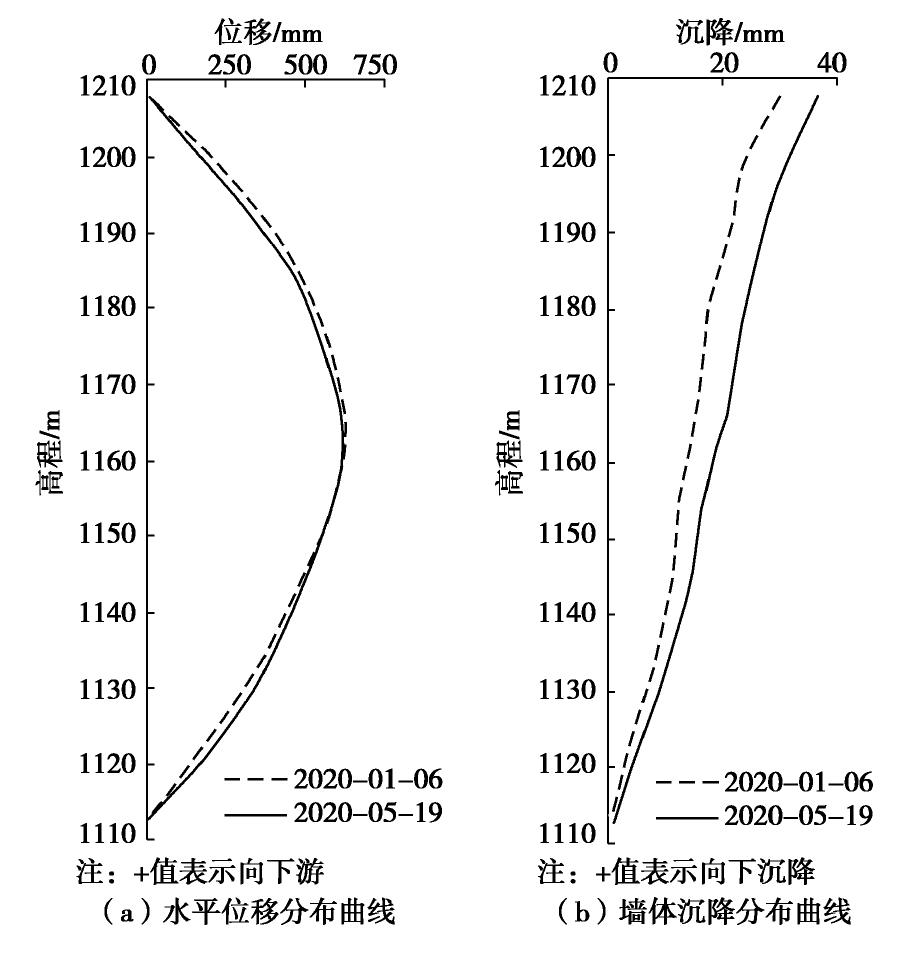

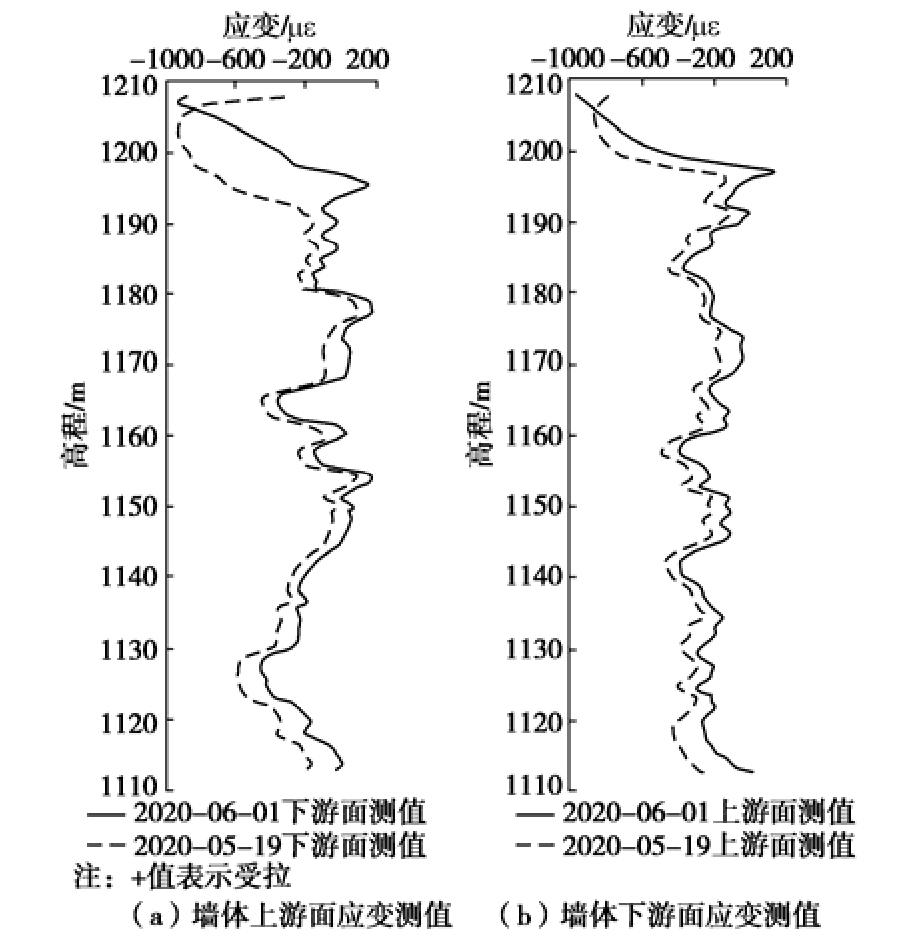

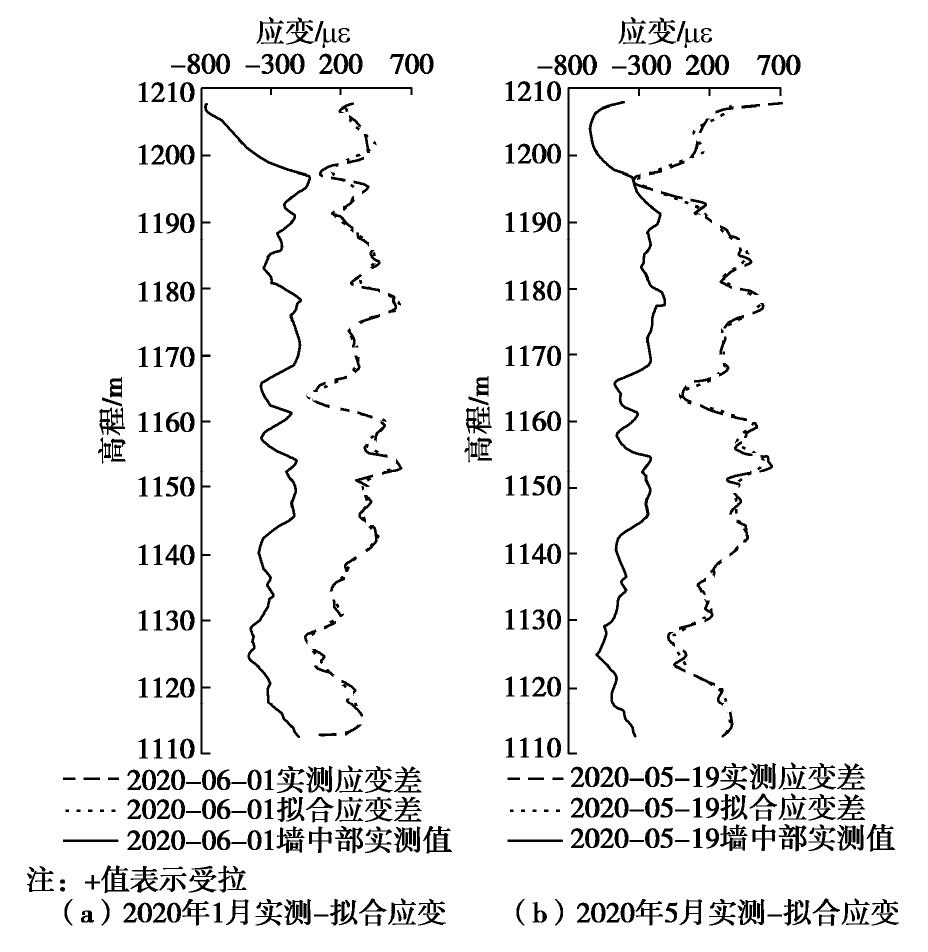

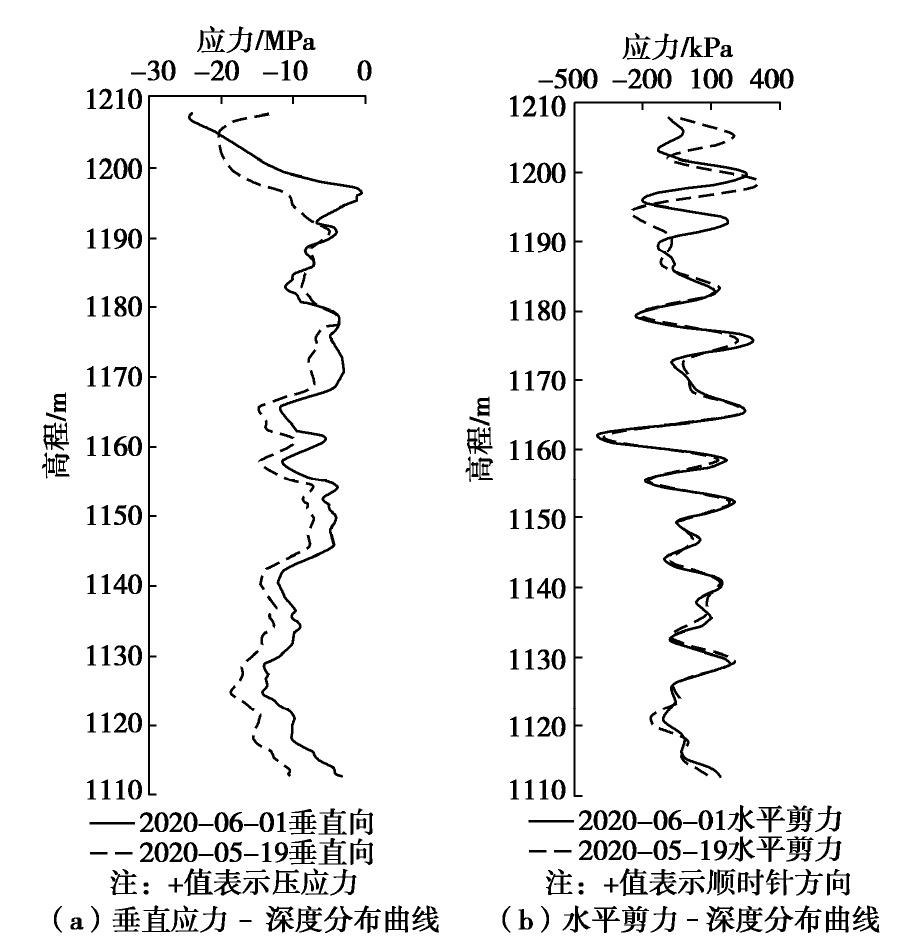

摘要: 针对堰塞湖开发利用工程安全保障等技术理论问题,以牛栏江红石岩堰塞湖综合水利枢纽为工程依托,设计提出了基于分布式光纤传感技术的堰塞坝混凝土防渗墙变形与受力监测技术及其埋设安装方法,首次实施并成功应用于红石岩堰塞坝混凝土防渗墙安全监测。分析讨论了蓄水初期堰塞坝混凝土防渗墙变形与受力规律：分布式光纤传感测量技术满足防渗墙变形受力监测需要和精度要求,蓄水初期墙体混凝土总体受压,受蓄水过程影响明显；堆石体对防渗墙的支撑力存在较多应力集中,堰塞坝堆石体材料呈明显不均匀性；蓄水初期墙体混凝土受力总体小于混凝土材料强度指标,防渗墙保有良好安全余量,可有效保障防渗墙长期变形和受力安全。Abstract: With regard to the technical and theoretical problems of development and engineering safety guarantee of landslide-dammed lakes, the deformation and stress monitoring technology of concrete cut-off wall of dammed body and its installation method based on the distributed optical fiber sensing technology are designed and proposed. It has been successfully implemented and applied to the safety monitoring of the concrete cut-off wall of Hongshiyan dammed body. The deformation and stress regulations of the concrete cut-off wall of the Hongshiyan dammed body at the initial stage of water storage are analyzed and discussed. At the initial stage of water storage, the wall concrete is subjected to pressure in general and obviously affected by the impoundment process. There is more stress concentration in the supporting force of rockfill to the cut-off wall, and the materials of dammed body are obviously inhomogeneous. At the initial stage of water storage, the stress of concrete wall is far less than the strength index of concrete materials. The cut-off wall has good safety margin, and can effectively ensure its long-term deformation and stresssafety.
-
-
[1] COSTA J E, SCHUSTER R L. The formation and failure of natural dams[J]. Geological Society of America Bulletin, 1988, 100(7): 1054-1068. doi: 10.1130/0016-7606(1988)100<1054:TFAFON>2.3.CO;2
[2] ERMINI L, CASAGLI N. Prediction of the behavior of landslide dams using a geomorphological dimensionless index[J]. Earth Surface Processes & Landforms, 2003, 28(1): 31-47.
[3] 刘宁, 杨启贵, 陈祖煜. 堰塞湖风险处置[M]. 武汉: 长江出版社, 2016. LIU Ning, YANG Qi-gui, CHEN Zu-yu. Hazard Mitigation for Barrier Lakes[M]. Wuhan: Changjiang Press, 2016. (in Chinese)
[4] 堰塞湖风险等级划分标准：SL450—2009[S]. 2009. Standard for Classification of Risk Grade of Landslide Lake: SL450—2009[S]. 2009. (in Chinese)
[5] 刘建康, 程尊兰, 佘涛. 云南鲁甸红石岩堰塞湖溃坝风险及其影响[J]. 山地学报, 2016, 34(2): 208-215. https://www.cnki.com.cn/Article/CJFDTOTAL-SDYA201602013.htm LIU Jian-kan, CHENG Zun-lan, SHE Tao. Assessment of dam failure and secondary hazards for hongshiyan dammed lake caused by Ludian Earthquake in Niulanjiang River[J]. Mounn'i'ain Research, 2016, 34(2): 208-215. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-SDYA201602013.htm
[6] 中国电建集团昆明勘测设计研究院有限公司. 云南省鲁甸“8.03”地震牛栏江红石岩堰塞湖堰塞体安全评价报告[R]. 昆明: 中国电建集团昆明勘测设计研究院有限公司. 2015. Kunming Engineering Corporation Limited. Safety evaluation report on Hongshiyan lake of Niulan Riverduring the "8.03" earthquake in Ludian, Yunnan Province[R]. Kunming: Kunming Engineering Corporation Limited. 2015. (in Chinese)
[7] 中国电建集团昆明勘测设计研究院有限公司. 云南省牛栏江红石岩整治工程——堰塞湖风险等级评估与应急抢险、后续处置措施研究及应用[R]. 昆明: 中国电建集团昆明勘测设计研究院有限公司. 2015. Kunming Engineering Corporation Limited. Hongshiyan regulation project of Niulanjiang, Yunnan Province-Research and application of risk grade assessment, emergency rescue and follow-up treatment measures for landslide lake[R]. Kunming: Kunming Engineering Corporation Limited. 2015. (in Chinese)
[8] 张宗亮, 张天明, 杨再宏, 等. 牛栏江红石岩堰塞湖整治工程[J]. 水力发电, 2016, 42(9): 83-86. https://www.cnki.com.cn/Article/CJFDTOTAL-SLFD201609024.htm ZHANG Zong-liang, ZHANG Tian-ming, YANG Zai-hong, et al. Remediation project of Hongshiyan dammed Lake in Niulan River[J]. Water Power, 2016, 42(9): 83-86. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-SLFD201609024.htm
[9] 丁勇, 王平, 何宁, 等. 基于BOTDA光纤传感技术的SMW工法桩分布式测量研究[J]. 岩土工程学报, 2011, 33(5): 719-724. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201105013.htm DING Yong, WANG Ping, HE Ning, et al. Application of intelligent SMW pile based on BOTDA[J]. Chinese Journal of Geotechnical Engineering, 2011, 33(5): 719-724. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201105013.htm
[10] 张诚成, 施斌, 朱鸿鹄, 等. 地面沉降分布式光纤监测土-缆耦合性分析[J]. 岩土工程学报, 2019, 41(9): 1670-1678. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201909012.htm ZHANG Cheng-cheng, SHI Bin, ZHU Hong-hu1, et al. Theoretical analysis of mechanical coupling between soil and fiber optic strain sensing cable for distributed monitoring of ground settlement[J]. Chinese Journal of Geotechnical Engineering, 2019, 41(9): 1670-1678. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201909012.htm
[11] 许滨华, 何宁, 何斌, 等. 基于分布式光纤传感器的管道受弯变形监测试验研究[J]. 仪器仪表学报, 2019, 40(8): 20-30. https://www.cnki.com.cn/Article/CJFDTOTAL-YQXB201908003.htm XU Bin-hua, HE Ning, HE Bin, et al. Experiment study on pipeline bending deformation monitoring based on distributed optical fiber sensor[J]. Chinese Journal of Scientific Instrument, 2019, 40(8): 20-30. (inChinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YQXB201908003.htm
[12] 何斌, 何宁, 许滨华, 等. 混凝土面板堆石坝面板挠度分布式监测试验[J]. 岩土工程学报, 2020, 42(5): 837-844. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC202005008.htm HE Bin, HE Ning, XU Bin-hua, et al. Tests on distributed monitoring of deflection of concrete faces of CFRDs[J]. Chinese Journal of Geotechnical Engineering, 2020, 42(5): 837-844. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC202005008.htm
[13] 孙训方, 方孝淑, 关来泰. 材料力学[M]. 北京: 高等教育出版社, 2008. SUN Xun-fang, FANG Xiao-shu, GUAN Lai-tai. Material Mechanics[M]. Beijing: Higher Education Press, 2008. (in Chinese)
[14] 中国电建集团昆明勘测设计研究院有限公司.石成金红石岩堰塞坝蓄水期安全监测分析报告[R]. 昆明: 中国电建集团昆明勘测设计研究院有限公司. 2015. Kunming Engineering Corporation Limited. Analysis report on safety monitoring of Hongshiyan dammed body during water storage period[R]. Kunming: Kunming Engineering Corporation Limited. 2015. (in Chinese)
[15] 赵新瑞, 吕晓曼, 黄耀英, 等. 基于进化神经网络模型的面板堆石坝沉降和面板挠度预测[J]. 水力发电, 2017, 43(3): 68-72. https://www.cnki.com.cn/Article/CJFDTOTAL-SLFD201703016.htm ZHAO Xin-rui, LU Xiao-man, HUANG Yao-ying, et al. Settlement and slab deflection prediction of concrete face rockfill dam based on evolutionary neural network model[J]. Water Power, 2017, 43(3): 68-72. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-SLFD201703016.htm
[16] 贾金生, 郦能惠. 高混凝土面板堆石坝安全关键技术研究[M]. 北京: 中国水利水电出版社, 2014. JIA Jin-shen, LI Neng-hui. Study on Key Technology for the Safety of High CFRDs[M]. Beijing: China Water Power Press, 2014. (in Chinese)
