盾构隧道环间纵向压力时变规律研究

柳献; 杨振华; 门燕青

doi:10.11779/CJGE202101022

盾构隧道环间纵向压力时变规律研究 English Version

1.
同济大学地下建筑与工程系,上海　200092
2.
济南轨道交通集团有限公司,山东　济南　250101

基金项目:

上海市科学技术委员会科研计划项目 17DZ1203902

详细信息

作者简介:
柳献(1977— ),男,湖北武汉人,博士,教授,主要从事隧道与地下建筑结构方面的教学和科研工作。E-mail: xianliu@tongji.edu.cn

中图分类号: U45
计量
- 文章访问数: 286
- HTML全文浏览量: 30
- PDF下载量: 129
出版历程
- 收稿日期: 2020-02-18
- 网络出版日期: 2022-12-04
- 刊出日期: 2020-12-31

Temporal variation laws of longitudinal stress on cross section of shield tunnels

1.
Department of Geotechnical Engineering, Tongji University, Shanghai 200092, China
2.
Jinan Rail Transit Group Co., Ltd., Jinan250101, China

摘要

摘要: 盾构隧道断面上受到纵向压力的大小,一方面影响环缝止水垫的防水性能；另一方面影响环缝刚度,从而影响隧道纵向不均匀沉降的发展。目前实际工程中主要依据经验估测隧道中残留的纵向力。通过求解描述隧道受力变形特征的微分方程,建立了隧道任意断面纵向力随时间的变化关系,并将理论解与现场试验实测结果进行了对比,二者具有良好的匹配性。研究结果表明,隧道纵向力在波动中下降,最终残留的纵向力大小与混凝土徐变系数和周围土体的压缩模量有关,约为掘进阶段千斤顶顶力的20.4%～44%。
- 盾构隧道 /
- 纵向力消散 /
- 拼装过程 /
- 混凝土徐变 /
- 压缩模量
Abstract: The longitudinal stress acting on the cross section of shield tunnels will affect the waterproof properties of the segments and the stiffness of the circumferential joints, which will thus affect the development trend of the longitudinal nonuniform settlements. At present, the longitudinal stress is estimated based on the experience in actual engineering. By solving the differential equation, the temporal variation laws of the longitudinal stress are proposed. The theoretical solution is also compared with meatured data from field experiments, and they matches well. The results show that the longitudinal stress decreases in fluctuations with time. The magnitude of the remaining stress is related to the creep coefficient of concrete and the compression modulus of formation. There is 20.4%~44% of the initial longitudinal stress left.
- shield tunnel /
- longitudinal stress dissipation /
- construction process /
- creep of concrete /
- compression modulus

HTML全文

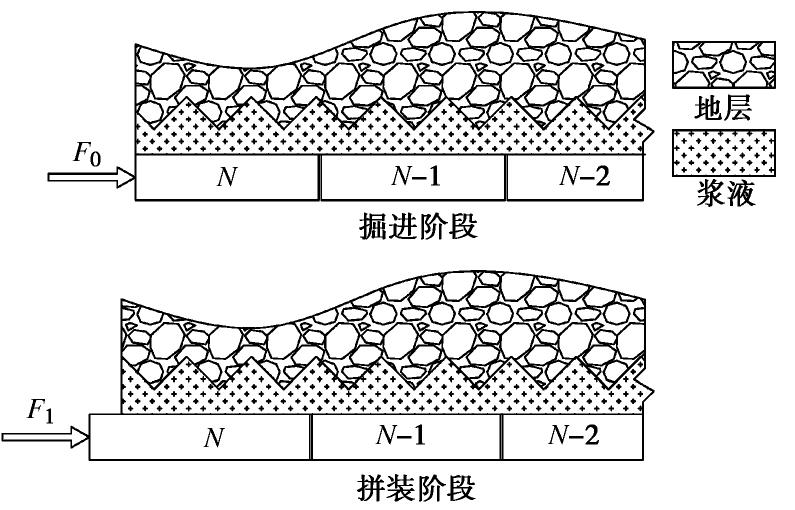

图 1 管片环回弹

Figure 1. Resilience of linings

下载: 全尺寸图片幻灯片

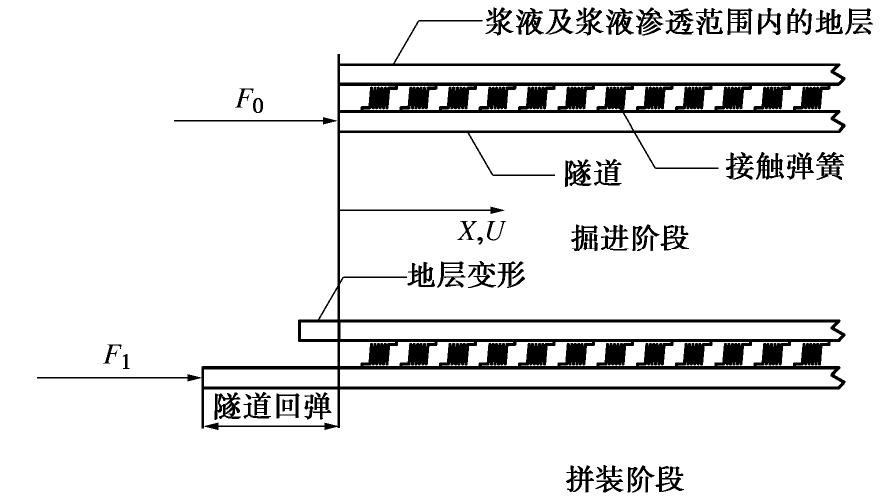

图 2 计算简图

Figure 2. Diagram of calculation

下载: 全尺寸图片幻灯片

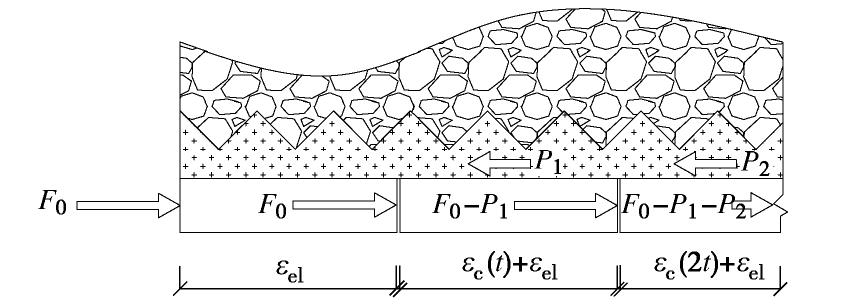

图 3 徐变引起的应力重分布效应

Figure 3. Redistribution of stress caused by creep of linings

下载: 全尺寸图片幻灯片

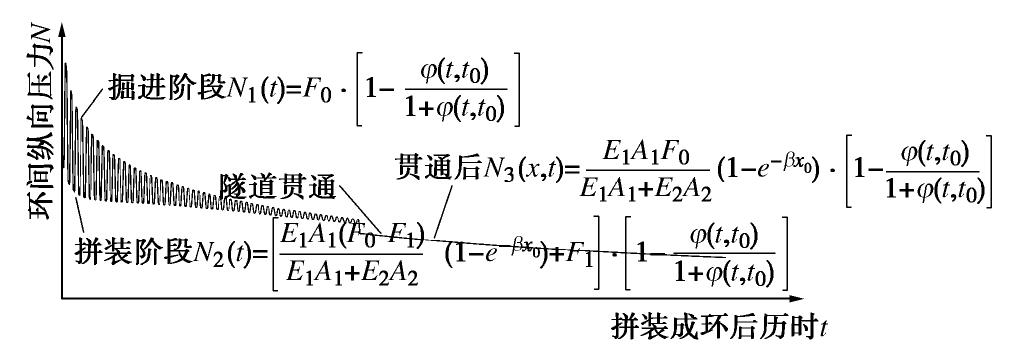

图 4 环间纵向压力时变曲线

Figure 4. Changing curve of longitudinal force

下载: 全尺寸图片幻灯片

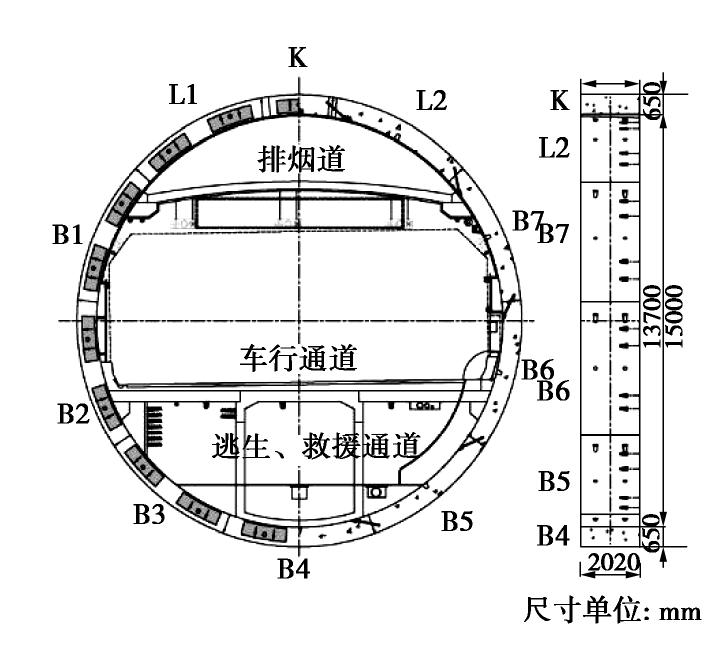

图 5 钱江隧道结构及内部布置图

Figure 5. Structure of Qianjiang tunnel

下载: 全尺寸图片幻灯片

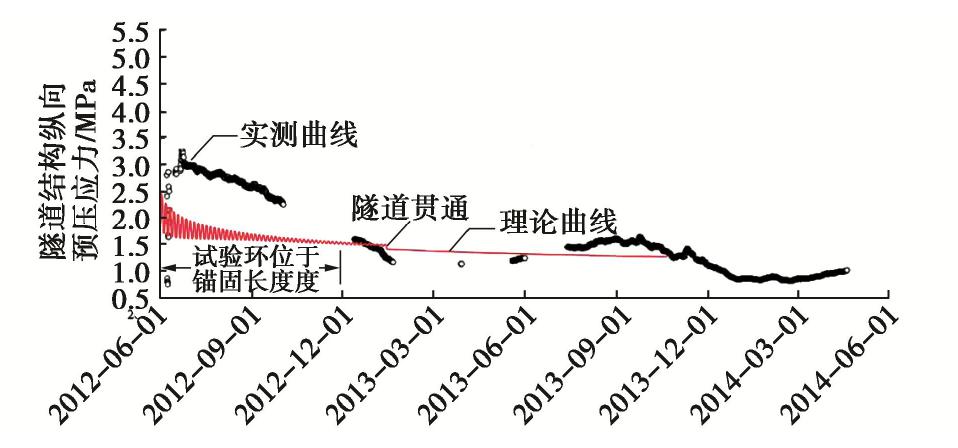

图 6 理论纵向力时变曲线

Figure 6. Theoretical curve of temporal variation of longitudinal stress

下载: 全尺寸图片幻灯片

参考文献(12)

[1]	BLOM C B M, HORST E J V D, JOVANOVIC P S. Three-dimensional structural analyses of the shield-driven “Green Heart” tunnel of the high-speed line south[J]. Tunnelling & Underground Space Technology, 1999, 14(2): 217-224.
[2]	KLAPPERS C, GRÜBL F, OSTERMEIER B. Structural analyses of segmental lining - coupled beam and spring analyses versus 3D-FEM calculations with shell elements[J]. Tunnelling and Underground Space Technology, 2006, 21(3).
[3]	MO H H, CHEN J S. Study on inner force and dislocation of segments caused by shield machine attitude[J]. Tunnelling and Underground Space Technology, 2008, 23(3): 281-291. doi: 10.1016/j.tust.2007.06.007
[4]	ARNAU O, MOLINS C, BLOM C B M, et al. Longitudinal time-dependent response of segmental tunnel linings[J]. Tunnelling and Underground Space Technology, 2011, 28(1): 98.
[5]	门燕青. 盾构法隧道纵向应力松弛的发生机理及其效应[D]. 上海: 同济大学, 2017. MEN Yan-qing. The Origination and Effect of Longitudinal Stress Relaxation Along the Shield Tunnel[D]. Shanghai: Tongji University, 2017. (in Chinese)
[6]	孙肖辉, 马孝春, 黄峰, 等. 小直径盾构施工中管片纵向应力监测研究[J]. 隧道建设(中英文), 2017, 37(11): 1436-1441. doi: 10.3973/j.issn.2096-4498.2017.11.012 SUN Xiao-hui, MA Xiao-chun, HUANG Feng, et al. Study of monitoring of longitudinal stress of small-diameter shield tunnel segment during construction[J]. Tunnel Construction, 2017, 37(11): 1436-1441. (in Chinese) doi: 10.3973/j.issn.2096-4498.2017.11.012
[7]	廖少明, 门燕青, 肖明清, 等. 软土盾构法隧道纵向应力松弛规律的实测分析[J]. 岩土工程学报, 2016, 39(5): 795-803. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201705005.htm LIAO Shao-ming, MEN Yan-qing, XIAO Ming-qing, et al. Field tests on longitudinal stress relaxation along shield tunnel in soft ground[J]. Chinese Journal of Geotechnical Engineering, 2017, 39(5): 795-803. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC201705005.htm
[8]	CEB-FIP. CEB-FIP Model Code 1990[S]. London: Thomas Telford, 1993.
[9]	公路钢筋混凝土及预应力混凝土桥涵设计规范：JTG D62—2004[S]. 北京: 人民交通出版社, 2004. Code for Design of High Way Reinforced Concrete and Prestressed Concrete Bridge and Culverts: JTG D62—2004[S]. Beijing: Chinese Communications Publishing, 2004. (in Chinese)
[10]	KOEK A J. Axiale voorspanning in de lining van een geboorde tunnel[D]. Delft: Delft University of Technology, 2004. (in Dutch)
[11]	SALTELLI A. Sensitivity Analysis[M]. Chichester: Wiley, 2000.
[12]	蔡毅, 邢岩, 胡丹. 敏感性分析综述[J]. 北京师范大学学报(自然科学版), 2008, 44(1): 9-16. https://www.cnki.com.cn/Article/CJFDTOTAL-BSDZ200801004.htm CAI Yi, XING Yan, HU Dan. On sensitivity analysis[J]. Journal of Beijing Normal University (Natural Science), 2008, 44(1): 9-16. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-BSDZ200801004.htm
