Effects of temperature on swelling characteristics of GMZ bentonite
-
摘要: 在25℃,40℃,60℃和90℃的蒸馏水中对高庙子（GMZ）膨润土进行了膨胀性能试验。由于在试验条件下渗透膨胀占主导地位,GMZ膨润土的膨胀性能随温度的升高而增大,其中最大膨胀率随温度线性增加,而膨胀力随温度呈指数增加。压实GMZ膨润土的膨胀性能可用em=KpD-3表示。N2吸附试验结果表明温度对GMZ膨润土的表面分维D基本没有影响。在渗透膨胀条件下,采用扩散双层模型计算发现膨胀系数K与温度Tc之间存在线性关系,并且通过GMZ膨润土和Bikaner膨润土的膨胀试验进行了验证。将K-Tc线性关系与em-p分形关系相结合,提出了温度作用下GMZ膨润土膨胀性能的一种简便定量评价方法。Abstract: The buffer/backfill performance of bentonite-based materials may be affected by the influences of temperature fields, thereby leading to uncertainties in the safe operation of repositories. In order to address this issue, the swelling tests on Gaomiaozi (GMZ) bentonite are carried out in distilled water at 25, 40, 60, and 90 °C. The results show that the swelling of GMZ bentonite increases with the temperature, owing to that the osmotic swelling dominates the swelling of compacted GMZ bentonite under the experimental conditions. The maximum swelling strain increases linearly with the temperature, whereas the swelling pressure increases exponentially with the temperature. The swelling characteristics of compacted GMZ bentonite can be expressed as em=KpD-3. According to the results of N2 adsorption tests, the fractal dimension, D, of GMZ bentonite is unaffected by the temperature. Calculated by the diffuse double layer model under osmotic swelling, a linear relation is found between the montmorillonite swelling coefficient K and the temperature Tc, which is verified by the swelling tests on GMZ bentonite and Bikaner bentonite. Combining the linear K−Tc relation and the fractal em-p relation, a simple method for evaluating the swelling of GMZ bentonite affected by the temperature is proposed.
-
Keywords:
- bentonite /
- temperature /
- swelling property /
- fractal dimension /
- fractal method
-
-
![]()

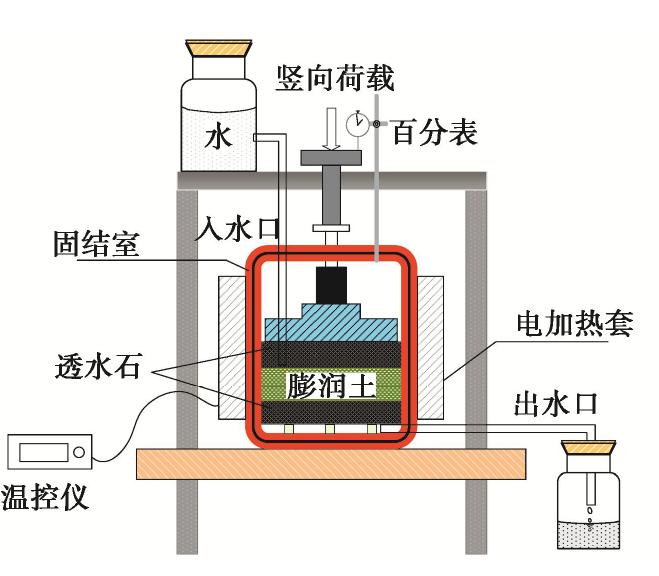

图 1 温度作用下膨胀性能试验装置
Figure 1. Experimental apparatus for swelling tests under different temperatures
![]()

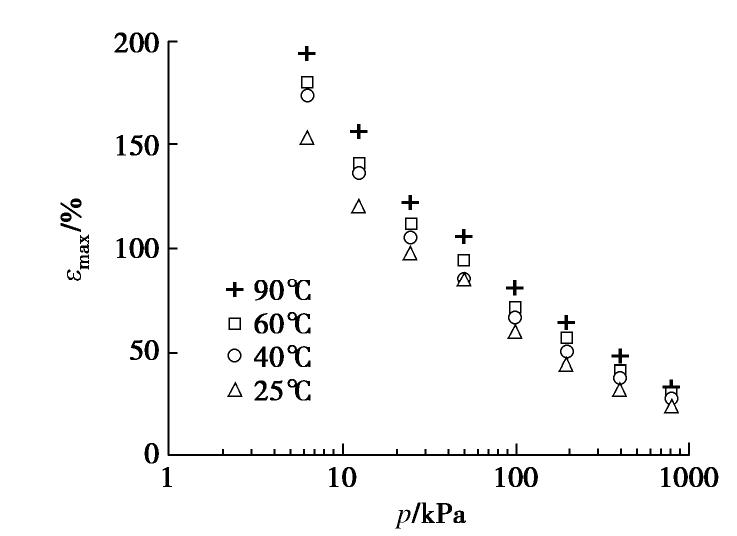

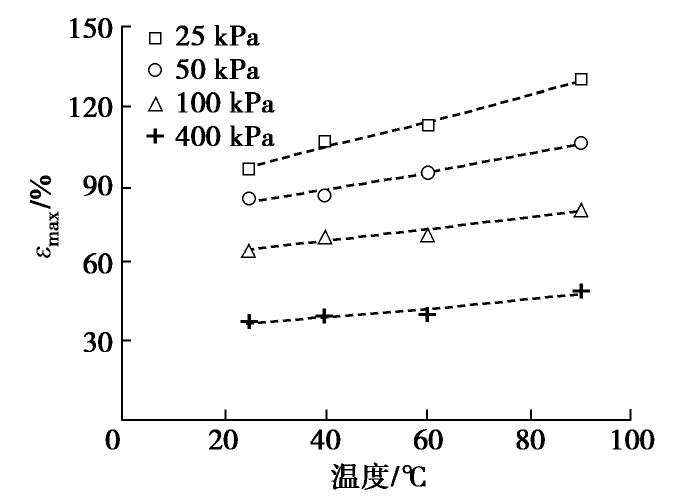

图 3 不同荷载作用下GMZ膨润土的εmax-Tc关系
Figure 3. Relationship between εmax and Tc of GMZ bentonite under different stresses
![]()

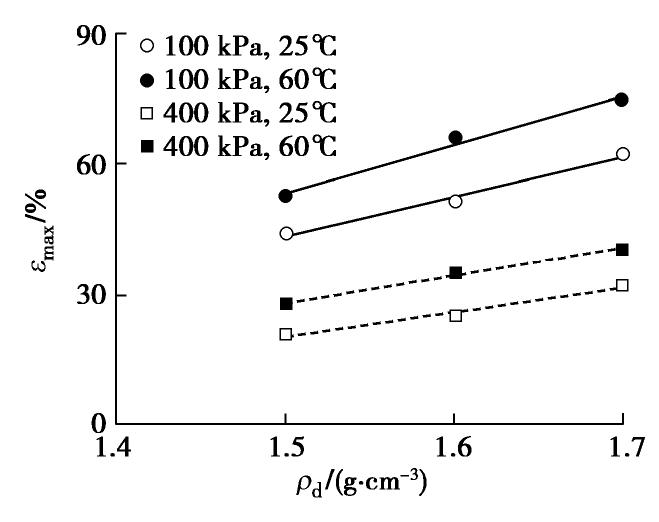

图 4 25℃和60℃时GMZ膨润土的εmax-ρd关系
Figure 4. Relationship between εmax and ρd for GMZ bentonite at 25℃ and 60℃
![]()

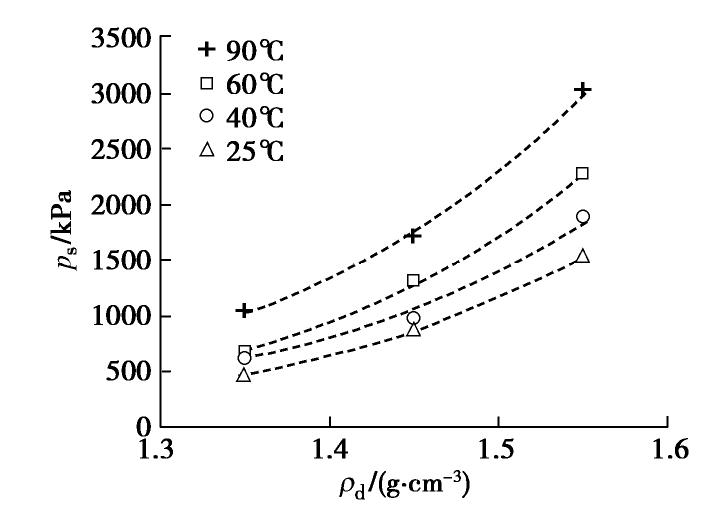

图 5 不同温度下GMZ膨润土的ps-ρd关系
Figure 5. Relationship between ps and ρd for GMZ bentonite under different temperatures
![]()

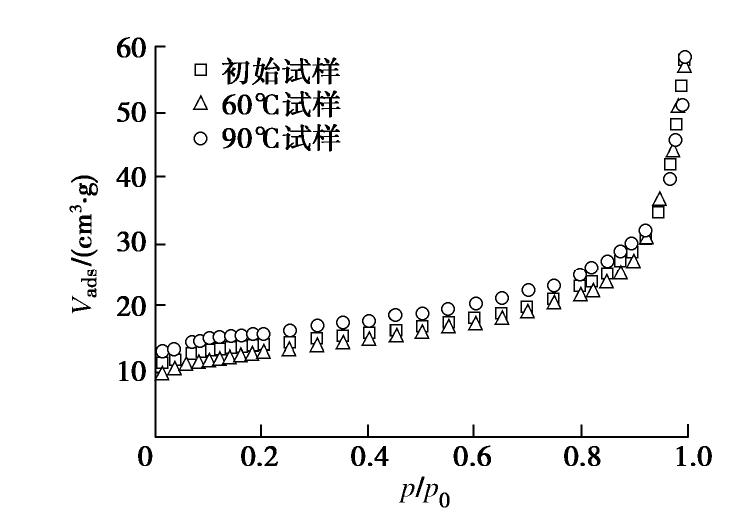

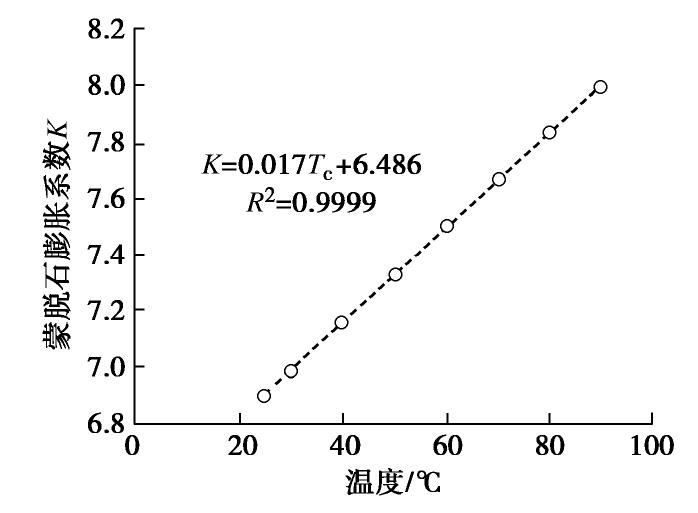

图 7 计算的GMZ膨润土K-Tc关系
Figure 7. Calculated relationship between K and Tc for GMZ bentonite
![]()

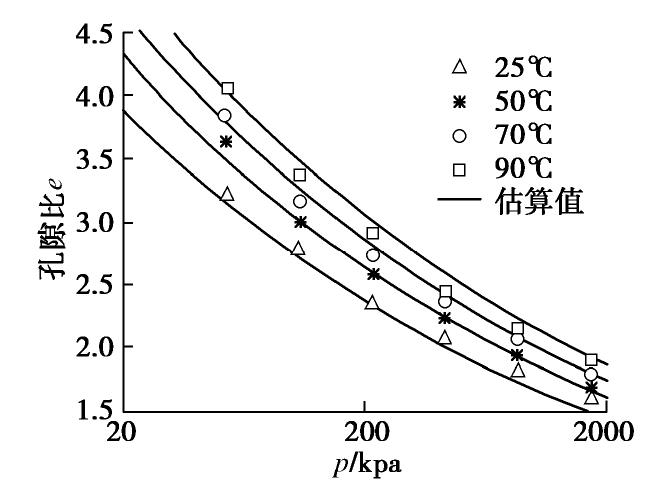

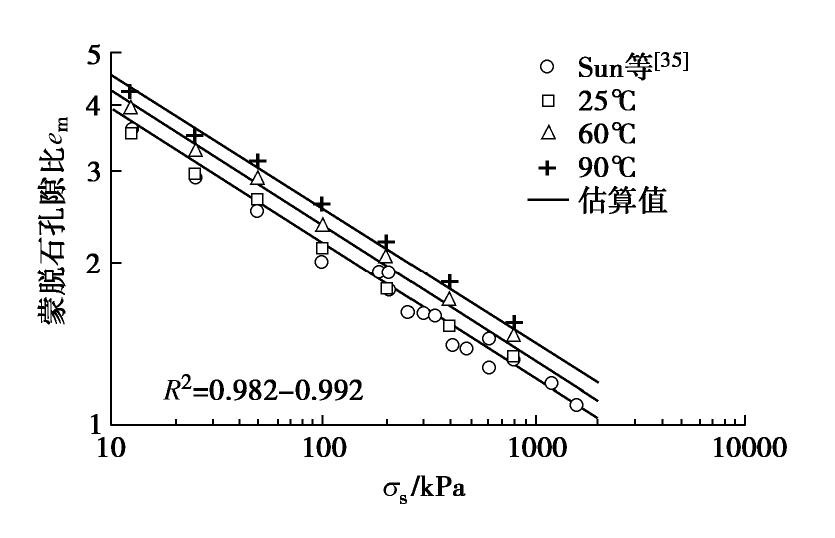

图 8 不同温度下GMZ膨润土的蒙脱石孔隙比估算值
Figure 8. Estimation of montmorillonite void ratio of GMZ bentonite under different temperatures
![]()
图 9 不同温度下GMZ膨润土的蒙脱石孔隙比估算值[13]
Figure 9. Estimation of void ratio for Bikaner bentonite under different temperatures
![]()

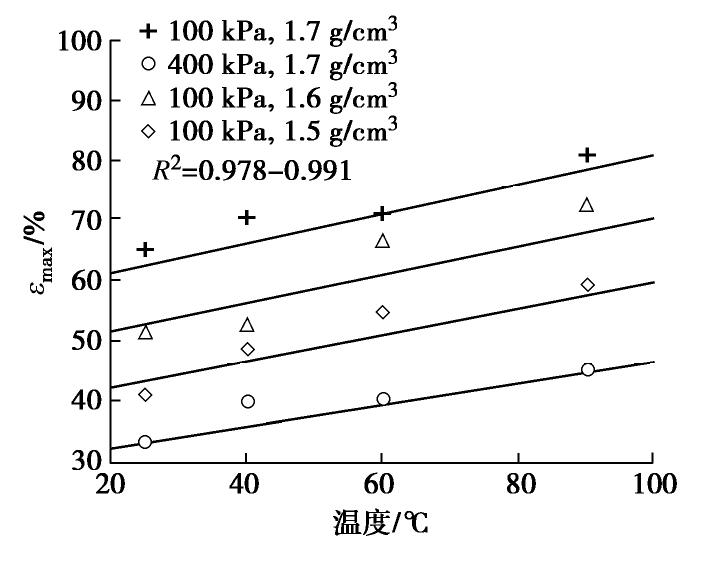

图 10 不同温度下GMZ膨润土最大膨胀率的预测值
Figure 10. Prediction of maximum swelling strain of GMZ bentonite at different temperatures
![]()

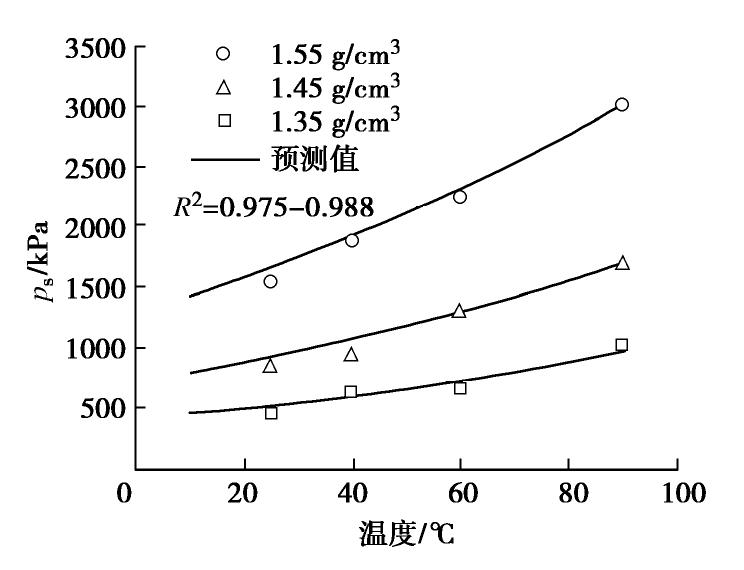

图 11 不同干密度不同温度时GMZ膨润土的膨胀力
Figure 11. Prediction of swelling pressure of GMZ bentonite with different densities under different temperatures
表 1 GMZ膨润土的物理化学指标[22]
Table 1 Physicochemical indices of GMZ bentonite
土粒相对质量密度 液限wL/% 塑限wP/% 塑性指数IP 蒙脱石含量Cm/% 阳离子交换量/(cmol·kg-1) 主要交换性阳离子/(cmol·kg-1) Na+ Ca2+ Mg2+ K+ 2.66 276 37 239 75 75.1 36.2 24.7 11.9 3.62
下载: 导出CSV
表 2 膨胀变形试验中试样的初始状态和试验条件
Table 2 Initial and experimental conditions of samples in swelling deformation tests
初始干密度/(g·cm-3) 初始含水率/% 温度/℃ 竖向荷载/kPa 1.70 ± 0.03 17.7~18.1 25,40,60,90 6.25,12.5,25,50,100,200,400,800 1.50 ± 0.03 17.5~17.9 25,40,60,90 100,400 1.60 ± 0.03 17.6~18.2 25,40,60,90 100,400
下载: 导出CSV
表 3 不同温度下膨胀系数K计算
Table 3 Calculated values of swelling coefficient K under different temperatures
Tc/℃ Z κ/m-1 u p/kPa K 25 19.172 691409134 3.456 1393.12 6.904 30 19.156 685683554 3.485 1465.08 6.992 40 19.123 674646562 3.542 1615.84 7.165 50 19.092 664125934 3.598 1775.94 7.336 60 19.061 654082622 3.652 1945.66 7.506 70 19.032 644481593 3.705 2125.26 7.673 80 19.003 635291309 3.756 2315.02 7.839 90 18.975 626483295 3.806 2515.22 8.003
下载: 导出CSV
-
