Influences of soil disintegration in water on slope stability
-
摘要: 库岸边坡失稳会对库区人民的生命财产造成巨大损失。水库滑坡不仅发生水位骤降时期,在水库蓄水水位上升时期,边坡同样会发生滑坡。从土体在水中崩解性状的角度探究水位上升期边坡滑坡机理。进行了相同体积不同底面边长（直径）的棱柱体和圆柱体试样在水中的崩解试验,以及4种不同含砂率圆柱试样在水中的崩解试验。结果表明：相同体积试样,比表面积越大,崩解速度越快；试样在水中的位置越深,试样崩解时间越短；随着试样含砂率的增大,试样崩解速度越来越快。土质边坡含砂率越大,越易失稳破坏。Abstract: The instability of the bank slope of the reservoir will cause great loss to the life and property of the people in the reservoir area. The landslide of the reservoir occurs in the periods of rapid falling and rising water level. The mechanism of slope landslide in the rising stage of water level is studied from the perspective of soil disintegration in water. A series of experiments on the disintegration of prisms and cylinders with the same volume and different bottom side lengths (diameters) are carried out. The disintegration tests on four kinds of cylinder samples with different sand contents in water are conducted. The results show that the larger the specific surface area of the same shape sample is, the faster the disintegration speed is. The deeper the water depth is, the shorter the disintegration time is. With the increase of the sand content, the disintegration rate of the soil sample is faster and faster. The larger the sand content of soil slope is, the more likely it is to be unstable.
-
-
![]()

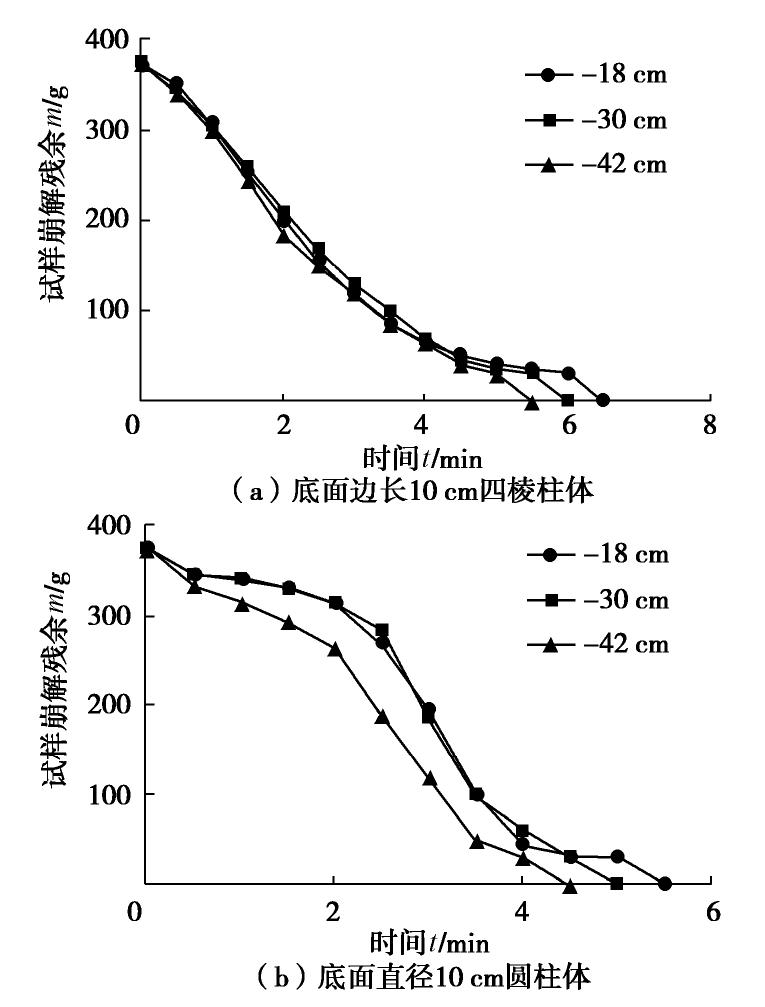

图 3 不同水深相同体积试样崩解时程曲线
Figure 3. Disintegration curves of soil samples with same volume at different water depths
![]()

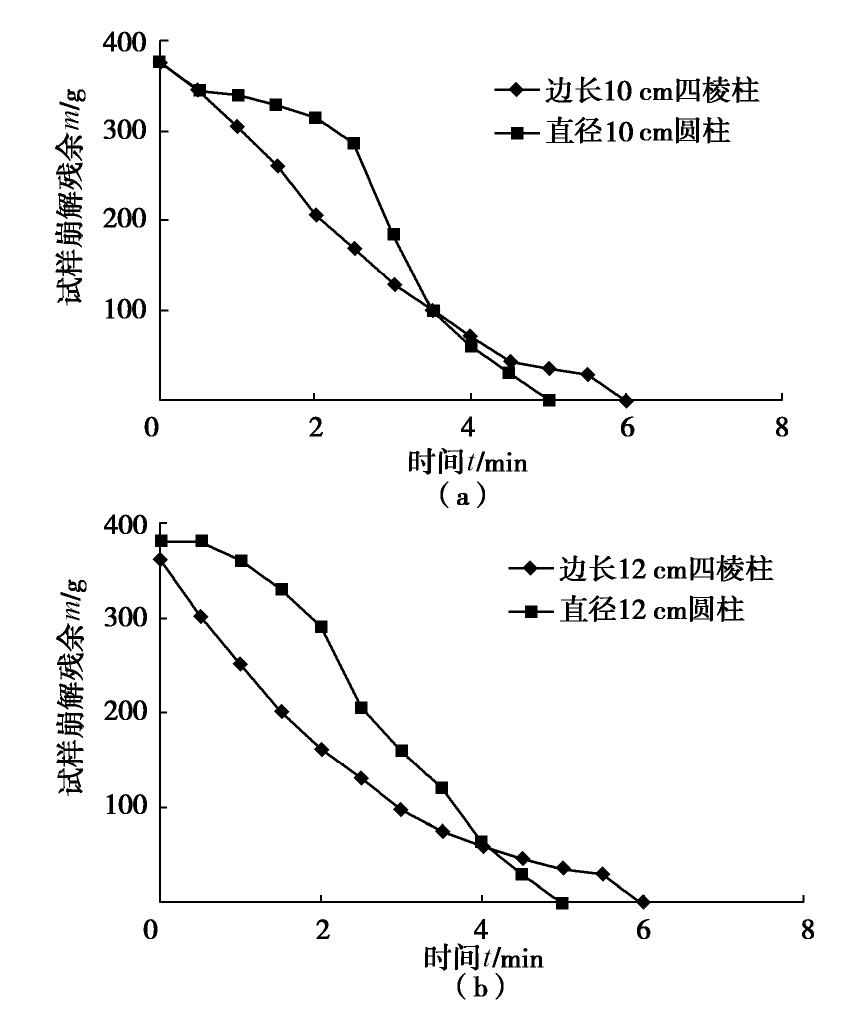

图 4 相同水深不同外形试样崩解时程曲线（水深30 cm）
Figure 4. Disintegration curves of soil samples with same water depth and different shapes（-30 cm）
![]()

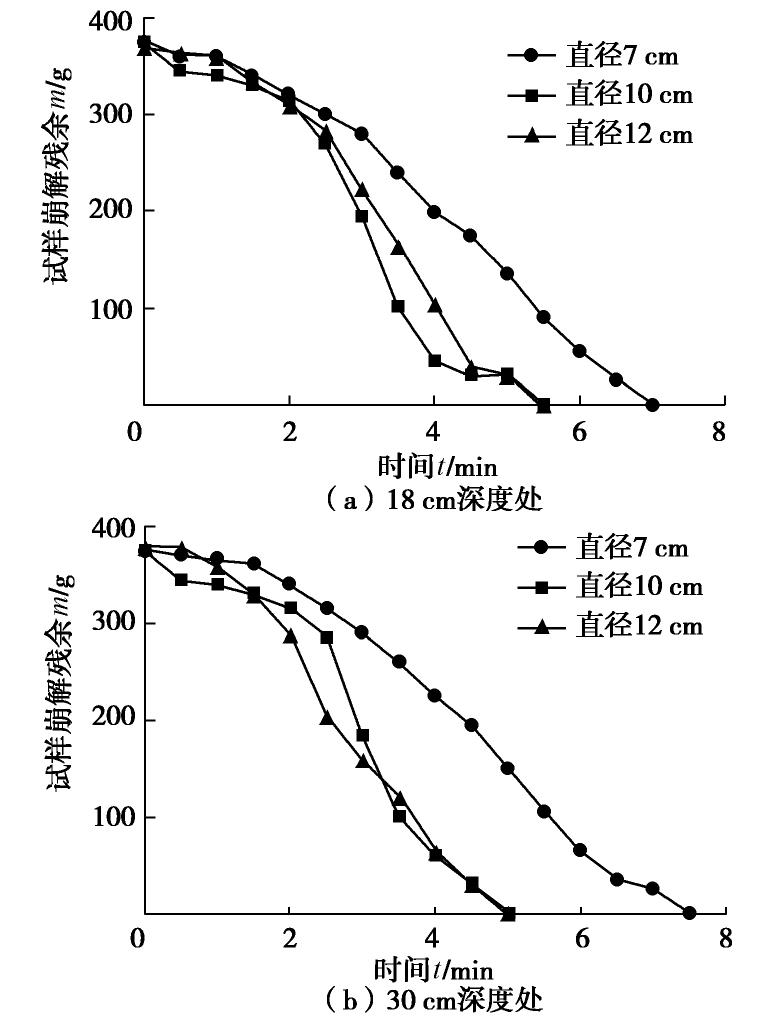

图 5 相同水深不同直径试样崩解时程曲线
Figure 5. Disintegration curves of soil samples with same water depth and different diameters
![]()

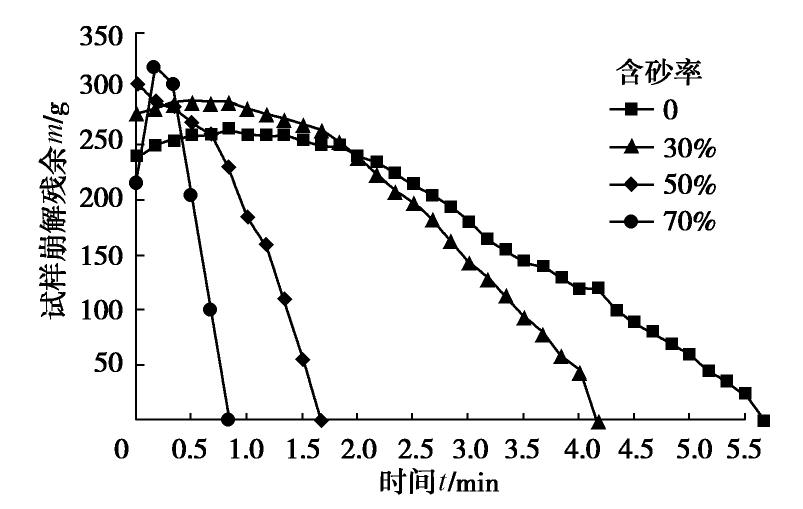

图 6 不同含砂率试样崩解时程曲线
Figure 6. Disintegration curves of soil samples with different sand contents
![]()

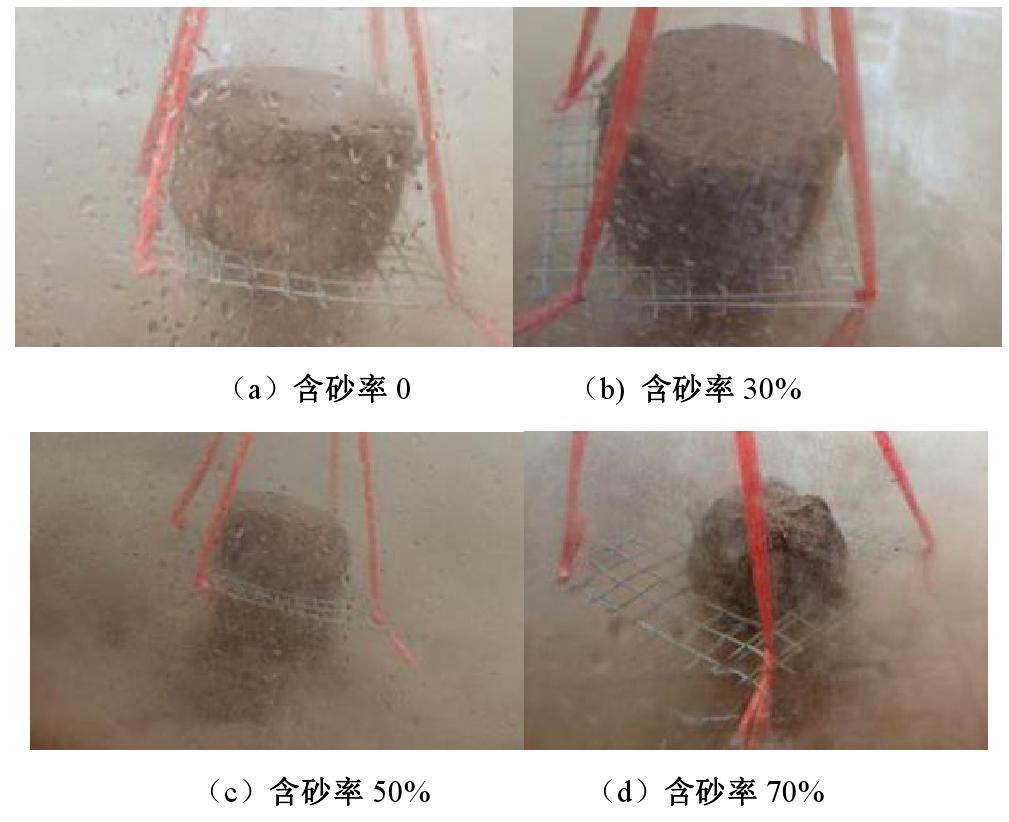

图 7 不同含砂率试样第40 s时崩解图
Figure 7. Collapse of samples with different sand contents at 40 s
表 1 下蜀土的基本物理指标
Table 1 Basic physical indexes of soil sample
名称 含水率w/% 重度 /(kN·m-3) 颗粒相对质量密度 Gs 塑限 wP /% 液限 wL /% 塑性指数IP 下蜀黄土 23.7 19.9 2.73 19.2 34.8 15.6
下载: 导出CSV
-
[1] 钟立勋. 意大利瓦依昂水库滑坡事件的启示[J]. 中国地质灾害与防治学报, 1994, 5(2): 77-84. ZHONG Li-xun. Enlightenments from the accident of vaiont landslide in Italy[J]. The Chinese Journal of Geological Hazardand Control, 1994, 5(2): 77-84. (in Chinese)
[2] 中村浩之, 王恭先. 论水库滑坡[J]. 水土保持通报, 1990, 10(1): 53-64. https://www.cnki.com.cn/Article/CJFDTOTAL-STTB199001008.htm NAKAMURA K, WANG Gong-xian. On reservoir landslide[J]. Bulletin of Soil and Water Conservation, 1990, 10(1): 53-64. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-STTB199001008.htm
[3] 陈晓平. 基于滑带土强度特性的水库蓄水诱发滑坡研究综述[J]. 水利水电科技进展, 2010, 30(3): 77-83. CHEN Xiao-ping. Overview of landslides due to reservoir impoundment based on shear strength properties of sliding zone soils[J]. Advances in Science and Technology of Water Resources, 2010, 30(3): 77-83. (in Chinese)
[4] 刘才华, 陈从新, 冯夏庭. 库水位上升诱发边坡失稳机理研究[J]. 岩土力学, 2005, 26(5): 769-772. LIU Cai-hua, CHEN Cong-xin, FENG Xia-ting. Study on the Mechanism of Slope instability induced by rising Reservoir Water level[J]. Rock and Soil Mechanics, 2005, 26(5): 769-772. (in Chinese)
[5] 崔洁. 不同库水位升降速度对大坝边坡稳定性的影响研究[J]. 水利水电技术, 2017, 48(2): 155-159. https://www.cnki.com.cn/Article/CJFDTOTAL-SJWJ201702026.htm CUI Jie. Study on the in fluence of different reservoir water level rise and fall velocity on dam slope stability[J]. Water Conservancy and Hydropower Technology, 2017, 48(2): 155-159. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-SJWJ201702026.htm
[6] PAN H Z, QIN R, HAN L F, et al. Analysis of the seepage velocity dynamic characteristics under reservoir water level lifting[J]. Electronic Journal of Geotechnical Engineering, 2014(19): 6663-6673.
[7] 刘博, 李江腾, 王泽伟, 等. 非饱和土渗流特性对库岸边坡稳定性的影响[J]. 中南大学学报(自然科学版), 2014, 45(2): 515-516. LIU Bo, LI Jiang-teng, WANG Ze-wei, et al. The influence of the seepage characteristics of unsaturated soil on the stability of the bank slope[J]. Journal of Central South University (Natural Science Edition), 2014, 45(2): 515-516. (in Chinese)
[8] 简文彬, 黄聪惠, 罗阳华, 等. 降雨入渗下非饱和坡残积土湿润锋运移试验研究[J]. 岩土力学, 2020, 41(4): 1-9. JIAN Wen-bin, HUANG Cong-hui, LUO Yang-hua, et al Experimental study on wetting Front Movement of residual soil on unsaturated Slope under rainfall infiltration[J]. Rock and Soil Mechanics, 2020, 41(4): 1-9. (in Chinese)
[9] 袁亮. 黄土崩解特性试验研究[D]. 西安: 西北大学, 2017. YUAN Liang. Experimental Study on Disintegration Characteristics of Loess[D]. Xi'an: Northwest University, 2017. (in Chinese)
[10] 唐大雄, 刘佑荣, 张文殊, 等. 工程岩土学[M]. 北京: 地质出版社, 1999. TANG Da-yong, LIU You-rong, ZHANG Wen-shu, et al. Rock and Soil Engineering[M]. Beijing: Geological Publishing House, 1999. (in Chinese)
[11] PHIENWEJ N. Ground Response and Support Performance in a Sheared Shale[D]. Urbana: University of Iuinois, 1987.
[12] MORIWAKI Y. Causes of Slaking in Argillaceous Materials[D]. Berkeley: Berkeley University of California, 1975.
[13] 郑敏洲. 残积土的崩解特性及其土坡位移的非线性时序分析[D]. 福州: 福州大学, 2006. ZHENG Min-zhou. Non-Linear Time-Series Analysis of Disintegration Characteristics of Residual Soil and Soil Slope Displacement[D]. Fuzhou: Fuzhou University, 2006. (in Chinese)
[14] 徐清扬. 影响土的崩解特性因素初步研究[C]//中国地质学会工程地质专业委员会, 2016年全国工程地质学术年会论文集, 2016: 872-877. XU Qing-yang. Preliminary research on the factors affecting soil disintegration characteristics of soil[C]//Engineering Geology Committee of Chinese Geological Society, Proceedings of the 2016 National Engineering Geology Academic Conference, 2016: 872-877. (in Chinese)
