水平受荷桩桩身响应的线性方程解及应用分析

李炀; 吴曙光; 张四平; 高倩德; 黄磊

doi:10.11779/CJGE2020S1014

水平受荷桩桩身响应的线性方程解及应用分析 English Version

重庆大学土木工程学院,重庆　400045

详细信息

作者简介:
李炀（1993— ）,男,硕士,主要从事岩土工程方面的研究工作。E-mail：906075057@qq.com

通讯作者:
吴曙光, E-mail：wushuguang@cqu.edu.cn

中图分类号: TU473.1
计量
- 文章访问数: 259
- HTML全文浏览量: 37
- PDF下载量: 145
出版历程
- 收稿日期: 2020-06-03
- 网络出版日期: 2022-12-07
- 刊出日期: 2020-10-31

Linear equation solution of horizontally loaded piles and its application

College of Civil Engineering, Chongqing University, Chongqing 400045, China

摘要

摘要: 根据Winkler地基梁理论,将地基系数沿着深度方向的任意函数以积分中值定理为原则进行微段常数化,引入四阶微分方程的张氏解析解,通过结点内力与位移连续的条件对全桩全结点构建线性方程组,避免矩阵多次传递即可一次性解得所有结点的内力与位移,相比幂级数法与有限元法更加简单,将此过程用matlab编制程序进行实现,通过两个算例验证了线性方程解法在单层地基与多层地基情况下水平受荷桩桩身响应计算的正确性。最后分别在算例基础上更改多组参数,表明在桩顶水平荷载的作用下,桩身弯矩最大值、弯矩零点值与位移零点值出现的位置分别受桩顶附近土层抗力、桩中部土层的抗力与整个桩周土层抗力大小控制,且对于同一种情况下的桩身水平响应而言,其弯矩零点所出现的位置将比位移零点所出现的位置滞后（2～3）d。
- 水平受荷桩 /
- Winkler地基梁 /
- m法 /
- 矩阵传递法 /
- 线性方程
Abstract: According to the Winkler foundation beam theory, the foundation function is constantized by the integral median theorem, and a linear equation system is constructed for the entire pile and all nodes through the condition that the internal forces and displacements of the nodes are continuous. This process is implemented by matlab programming, and two examples are used to verify the correctness of the calculation of the response of the horizontally loaded pile body in the case of single-layer foundation and multi-layer foundation. In the calculation example, multiple sets of parameters are changed, which shows that the location of the maximum value of the bending moment of the pile body, the zero point value of the bending moment and the zero point value of displacement are affected by the resistance of the soil layer near the pile top and the soil layer in the middle of the pile under the horizontal load of the pile top. The resistance is controlled by the resistance of the entire soil layer around the pile, and for the horizontal response of the pile body under the same situation, the position where the bending moment zero appears will lag behind the position where the displacement zero appears by about (2~3)d.
- pile foundation /
- Winkler foundation beam /
- m method /
- matrix transfer method /
- linear equation

HTML全文

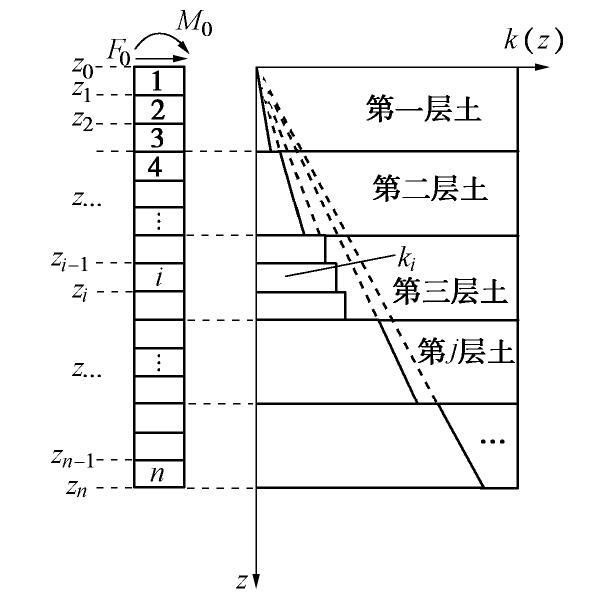

图 1 线性方程力学模型

Figure 1. Linear equation mechanics model

下载: 全尺寸图片幻灯片

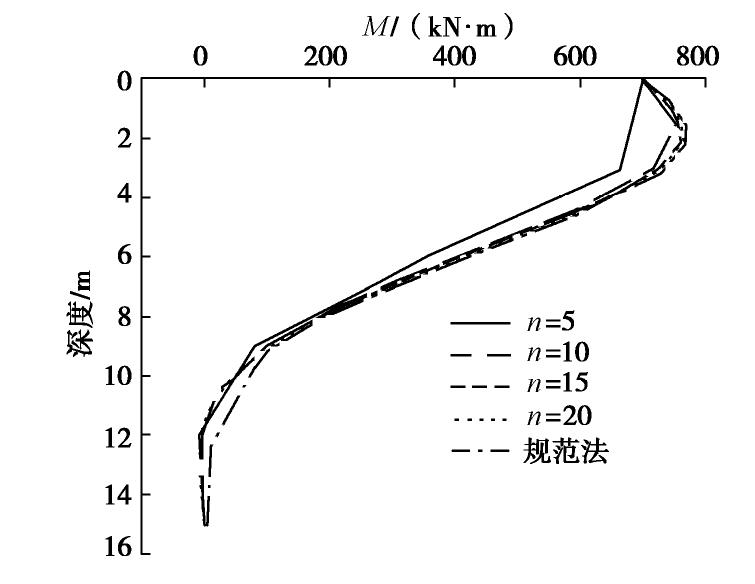

图 2 不同分段数桩身弯矩

Figure 2. Moments of pile body with different numbers of sections

下载: 全尺寸图片幻灯片

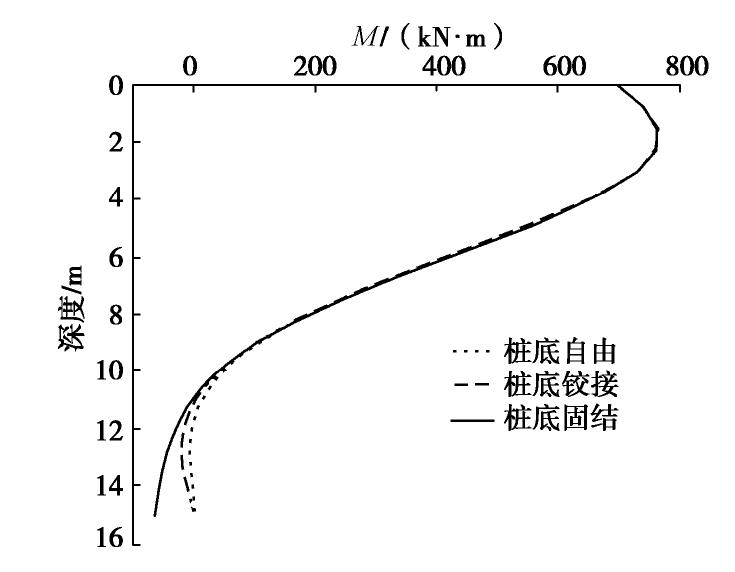

图 3 不同桩端约束的桩身弯矩

Figure 3. Moments of pile body restrained by different pile ends

下载: 全尺寸图片幻灯片

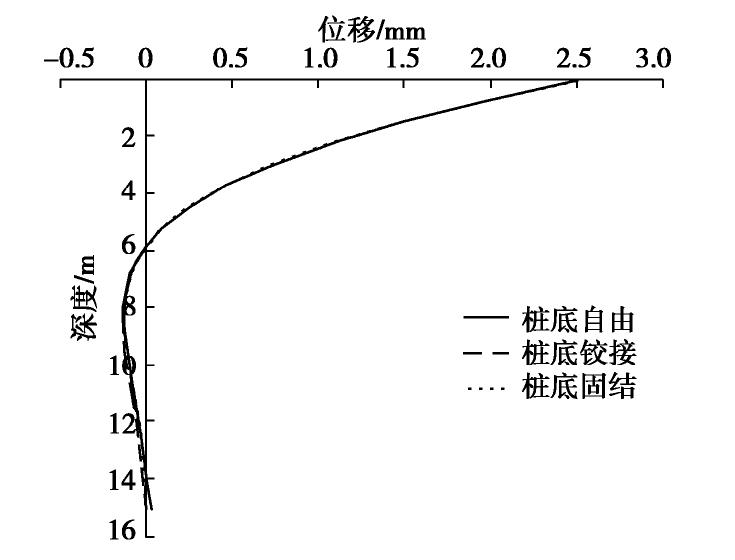

图 4 不同桩端约束的桩身位移

Figure 4. Displacements of pile body with different pile end constraints

下载: 全尺寸图片幻灯片

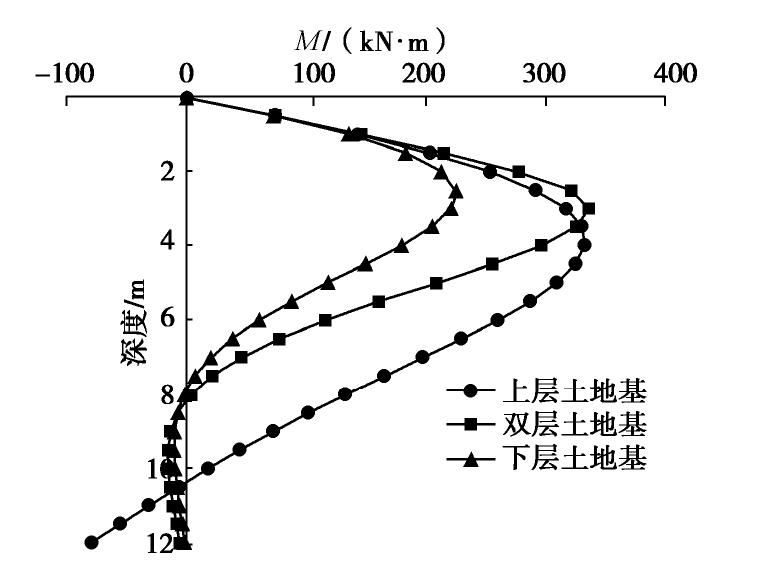

图 5 不同地层情况桩身弯矩

Figure 5. Moments of pile body in different strata

下载: 全尺寸图片幻灯片

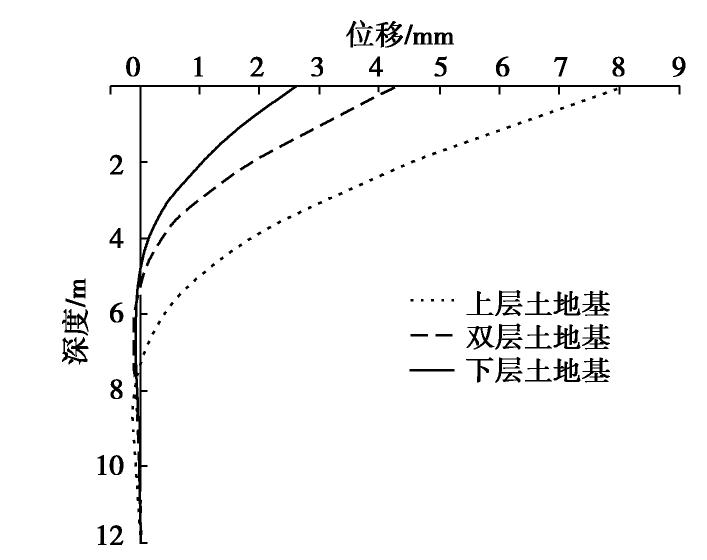

图 6 不同地层情况桩身位移

Figure 6. Pile displacements in different strata

下载: 全尺寸图片幻灯片

表 1 不同计算方法结果对比

Table 1 Results of different calculation methods

计算方法	桩顶位移/mm	最大弯矩/(kN·m)	最大弯矩位置/m
精确解^[18]	4.3735	336.81	3
规范解^[6]	3.0156	238.95	3
挠度加权换算^[9]	4.2093	343.83	3
有限差分法^[11]	4.2989	337.60	3
杆系有限元法^[11]	4.2520	336.07	3
矩阵传递法^[12]	4.2990	337.60	3
本文法	4.2703	335.85	3

下载: 导出CSV

参考文献(18)

[1]	ROWE R K. Pile foundation analysis and design: Book review[J]. Canadian Geotechnical Journal, 1981, 18(3): 472-473. doi: 10.1139/t81-056
[2]	龚晓南. 桩基工程手册[M]. 北京: 中国建筑工业出版社, 2016. GONG Xiao-nan, Handbook of Pile Foundation of Engineering[M]. Beijing: China Architecture and Building Press, 2016. (in Chinese)
[3]	吴恒立. 计算弹性地基中推力桩的双参数法(推力桩计算理论研究报告之一)[J]. 重庆交通大学学报(自然科学版, 1983(1): 11-24. https://www.cnki.com.cn/Article/CJFDTOTAL-CQJT198301001.htm WU Heng-li. Double-parameter method used in calculating the laterally loaded pile in the elastic foundation[J]. Journal of Chongqing Jiaotong University, 1983(1): 11-24. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-CQJT198301001.htm
[4]	竹下淳. 横向重な受けゐ有限长クィの数值解法[J]. 土木技术, 1966, 24(5): 32-46. TAKESHITA Jun. Numerical solution of finite-length piles under lateral and vertical loads[J]. Civil Engineering Technology, 1966, 24(5): 32-46. (in Japanese)
[5]	PISE P J. Laterally loaded piles in a two-layer soil system[J]. J Geotech Engng Div, ASCE, 1982, 108: 1177-1181. doi: 10.1061/AJGEB6.0001342
[6]	中国建筑科学研究院. 建筑桩基技术规范：JGJ 94—2008[S]. 北京: 中国建筑工业出版社, 2008. China Academy of Building Sciences. Technical Code for Building Pile Foundation: JGJ 94—2008[S]. Beijing: China Architecture and Building Press, 2008. (in Chinese)
[7]	公路桥涵地基与基础设计规范：JTG D63—2007[S]. 北京: 人民交通出版社, 2007. Code for Design of Ground Base and Foundation of Highway Bridges and Culverts: JTG D63—2007[S]. Beijing: China Communications Press, 2007. (in Chinese)
[8]	赵明华. 多层地基及横向荷载下桩的分析[J]. 中南公路工程, 1986(4): 54-60. https://www.cnki.com.cn/Article/CJFDTOTAL-ZNGL198604007.htm ZHAO Ming-hua. Analysis of pile under multi-layer foundation and transverse load[J]. Central South Highway Engineering, 1986(4): 54-60. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-ZNGL198604007.htm
[9]	赵明华, 王贻荪, 肖鹤松. 多层地基横向受荷桩的分析[J]. 建筑结构, 1994(2): 6-10. https://www.cnki.com.cn/Article/CJFDTOTAL-JCJG199402001.htm ZHAO Ming-hua, WANG Yi-sun, XIAO Sun-he. Analysis of laterally loaded pile in multi-layer foundation[J]. Building Structure, 1994(2): 6-10. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-JCJG199402001.htm
[10]	彭文祥, 赵明华. 成层地基中倾斜荷载作用下桩的受力研究[J]. 中南公路工程, 1999(1): 27-30. https://www.cnki.com.cn/Article/CJFDTOTAL-ZNGL199901009.htm PENG Wen-xiang, ZHAO Ming-hua. Study on the force of pile under inclined load in layered foundation[J]. Central South Highway Engineering, 1999(1): 27-30. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-ZNGL199901009.htm
[11]	戴自航, 陈林靖. 多层地基中水平荷载桩计算m法的两种数值解[J]. 岩土工程学报, 2007, 29(5): 690-696. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC200705010.htm DAI Zi-hang, CHEN Lin-qing. Two numerical solutions of laterally loaded piles installed in multi-layered soils by m method[J]. Chinese Journal of Geotechnical Engineering, 2007, 29(5): 690-696. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC200705010.htm
[12]	竺明星, 龚维明, 何小元. 成层地基土中水平受荷桩桩身响应的矩阵传递解[J]. 岩土工程学报, 2015, 37(增刊2): 46-50. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC2015S2011.htm ZHU Ming-xing, GONG Wei-ming, HE Xiao-yuan. Transfer matrix solutions for responses of laterally loaded piles in multilayered soil deposits[J]. Chinese Journal of Geotechnical Engineering, 2015, 37(S2): 46-50. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC2015S2011.htm
[13]	詹红志, 王亮清, 王昌硕, 等. 考虑滑床不同地基系数的抗滑桩受力特征研究[J]. 岩土力学, 2014, 35(增刊2): 250-256. https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX2014S2035.htm ZHAN Hong-zhi, WANG Liang-qing, WANG Chang-shuo, et al. Study of mechanical characters of anti-sliding piles considering different foundation coefficients of sliding bed[J]. Rock and Soil Mechanics, 2014, 35(S2): 250-256. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX2014S2035.htm
[14]	竺明星, 龚维明, 何小元, 等. 纵横向受荷基桩变形内力的矩阵传递解[J]. 岩土力学, 2014, 35(11): 3281-3288. https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX201411037.htm ZHU Ming-xing, GONG Wei-ming, HE Xiao-yuan, et al. Matrix transfer solutions to deformation and internal forces of piles under combined vertical and lateral loads[J]. Rock and Soil Mechanics, 2014, 35(11): 3281-3288. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTLX201411037.htm
[15]	赵明华, 邹新军, 罗松南, 等. 横向受荷桩桩侧土体位移应力分布弹性解[J]. 岩土工程学报, 2004, 26(6): 767-771. https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC200406007.htm ZHAO Ming-hua, ZHOU Xin-jun, LUO Song-nan, et al. Elastic analytic solution to the displacement and stress distribution in the soil around laterally loaded piles[J]. Chinese Journal of Geotechnical Engineering, 2004, 26(6): 767-771. (in Chinese) https://www.cnki.com.cn/Article/CJFDTOTAL-YTGC200406007.htm
[16]	杨明辉. 岩质陡坡桥梁桩基承载机理及其分析方法研究[D]. 长沙: 湖南大学, 2006. YANG Ming-hui. Study on bearing mechanism and analysis method of pile foundation of rock steep slope bridge[D]. Changsha: Hunan University,2006. (in Chinese)
[17]	冯忠居, 赵明华. 特殊地区基础工程[M]. 北京: 人民交通出版社, 2008. FENG Zhong-ju, ZHAO Ming-hua. Basic Engineering in Special Area[M]. Beijing: China Communications Press, 2008. (in Chinese)
[18]	赵明华. 桥梁桩基计算与检测[M]. 北京: 人民交通出版社, 2000. ZHAO Ming-hua. Calculation and Test of Bridge Pile Foundation[M]. Beijing: China Communications Press, 2000. (in Chinese)
