残积土孔内剪切试验的强度特性及广义邓肯–张模型研究

安然; 孔令伟; 张先伟

doi:10.11779/CJGE202009017

残积土孔内剪切试验的强度特性及广义邓肯–张模型研究 English Version

安然^{1, 2,},
孔令伟^{1, 2, ,},
张先伟^{1, 2}

1.
中国科学院武汉岩土力学研究所岩土力学与工程国家重点实验室,湖北　武汉　430071
2.
中国科学院大学,北京　100049

详细信息

作者简介:
安然(1992—),男,安徽池州人,博士研究生,主要从事特殊土的力学特性与基坑工程研究。E-mail：arwhrsm@163.com

通讯作者:
孔令伟, E-mail：lwkong@whrsm.ac.cn

中图分类号: TU432
计量
- 文章访问数: 296
- HTML全文浏览量: 12
- PDF下载量: 146
出版历程
- 收稿日期: 2019-12-26
- 网络出版日期: 2022-12-07
- 刊出日期: 2020-08-31

Mechanical properties and generalized Duncan-Chang model for granite residual soils using borehole shear tests

AN Ran^{1, 2,},
KONG Ling-wei^{1, 2, ,},
ZHANG Xian-wei^{1, 2}

1.
Institute of Rock and Soil Mechanics, Chinese Academy of Sciences, Wuhan 430071, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China

摘要

摘要: 花岗岩残积土广泛分布在中国东南沿海地区,是近地表花岗岩的风化产物。为了研究花岗岩残积土原位力学行为及其受风化程度的影响,开展不同深度土层的原位孔内剪切试验,获得了不同法向应力下的应力–应变关系曲线和广义邓肯–张模型参数。以砾粒含量表征残积土的风化程度,基于考虑砾粒含量影响的广义邓肯–张模型预测了土体的力学行为,并与实测数据进行对比。结果表明,花岗岩残积土的颗粒级配与土层深度有明显的关联性,用砾粒含量可以表征其风化程度；由孔内剪切试验得到应力–应变曲线呈应变硬化型特征；根据孔内剪切试验的应力–应变关系可以有效地反演广义邓肯–张双曲线模型参数,包括黏聚力c、内摩擦角 $φ$ $φ$ 、应力破坏比R_f以及拟合参数K和n；经回归分析发现5种参数均可由砾粒含量的相应函数关系进行拟合求解；由模型计算得到的应力–应变曲线与实测结果吻合度较高,说明采用广义邓肯–张模型描述花岗岩残积土的原位力学行为具有合理性,分析结果拓展了邓肯–张本构模型的适用范围。
- 花岗岩残积土 /
- 风化程度 /
- 孔内剪切试验 /
- 原位力学特性 /
- 广义邓肯–张模型
Abstract: Granite residual soil, as the weathering product of near-surface granite, is widely distributed in the southeast coastal areas of China. In order to study the influences of weathering degree on the in-situ mechanical properties of granite residual soil, the borehole shear tests are carried out for the residual soil along the depth of foundation pit. The in-situ stress-strian curves under different normal stresses and parameters of the Duncan-Chang model are obtained. Then, the regression relationships between the five model parameters and the weathering degree index represented by the gravel content are determined. According to the Duncan-Chang model, the stress-strain curves of residual soil with different weathering degrees are predicted and compared with the measured data. The results show that the grain compositions of residual soil are significantly correlated with the depth of soil layers. The stress-strain curves obtained by the borehole shear tests show the characteristics of strain-hardening deformation. According to $φ$ $φ$ the stress-strain relationship of in-situ tests, the parameters of the generalized Duncan-Chang model, including cohesion c, internal friction angle, stress failure ratio R_f and fitting parameters K and n, can be deduced effectively. Through regression analysis, the parameters can be fitted by the corresponding functions for the gravel content. The stress-strain curves calculated by the modified model are in good agreement with the experimental results, which shows that the generalized Duncan-Chang model can reasonably describe the in-situ mechanical behavior of granite residual soil. This study extends the applicability of the Duncan-Chang constitutive model.
- granite residual soil /
- weathering degree /
- borehole shear test /
- in situ mechanical property /
- generalized Duncan-Chang model

HTML全文

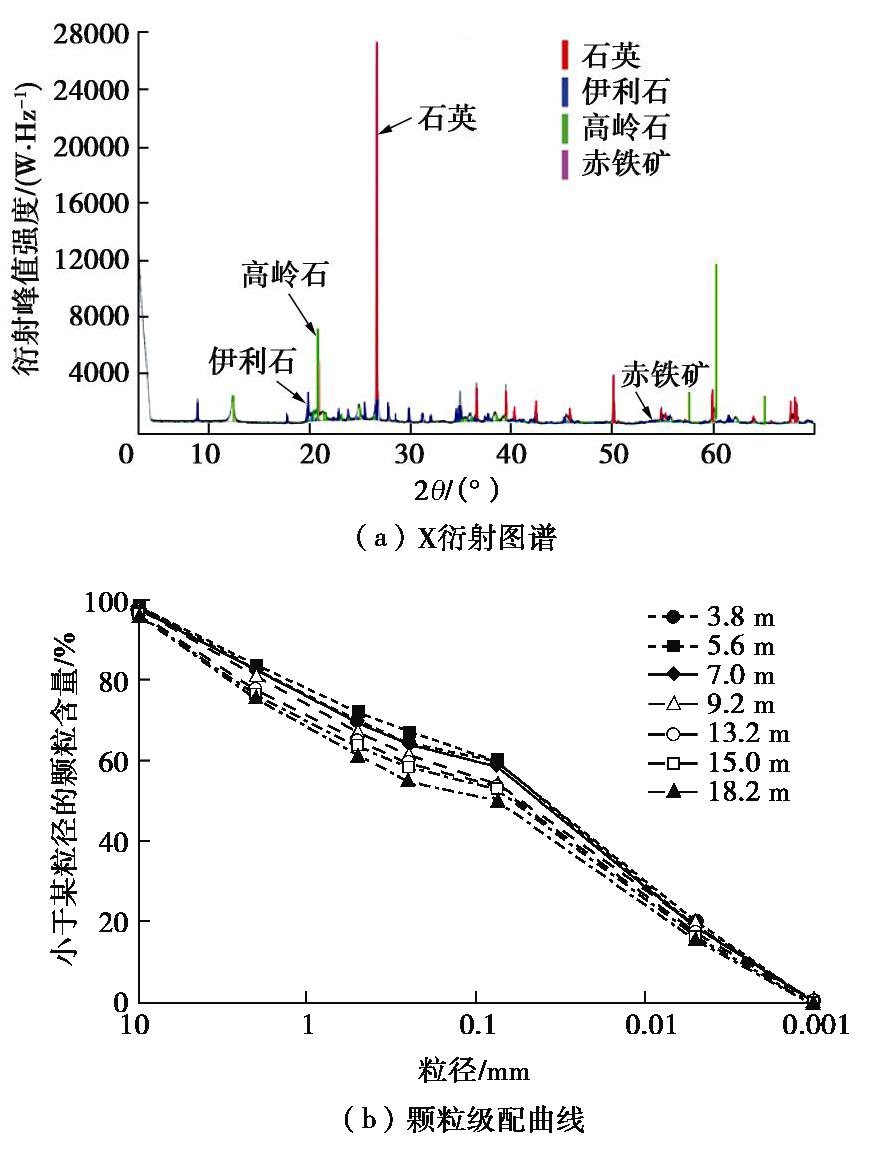

图 1 厦门花岗岩残积土的矿物成分与颗粒粒级结果

Figure 1. Results of mineral composition and grain size of granite residual soil in Xiamen

下载: 全尺寸图片幻灯片

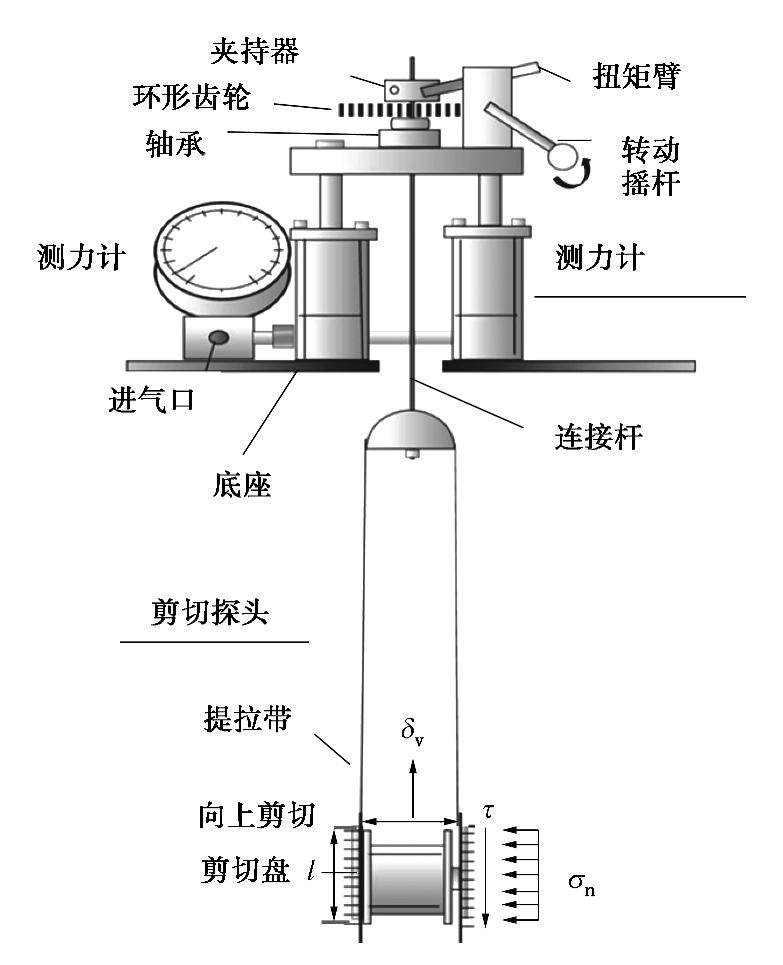

图 2 孔内剪切试验仪器的示意图

Figure 2. Diagrammatic drawing of in-situ borehole shear testing devices

下载: 全尺寸图片幻灯片

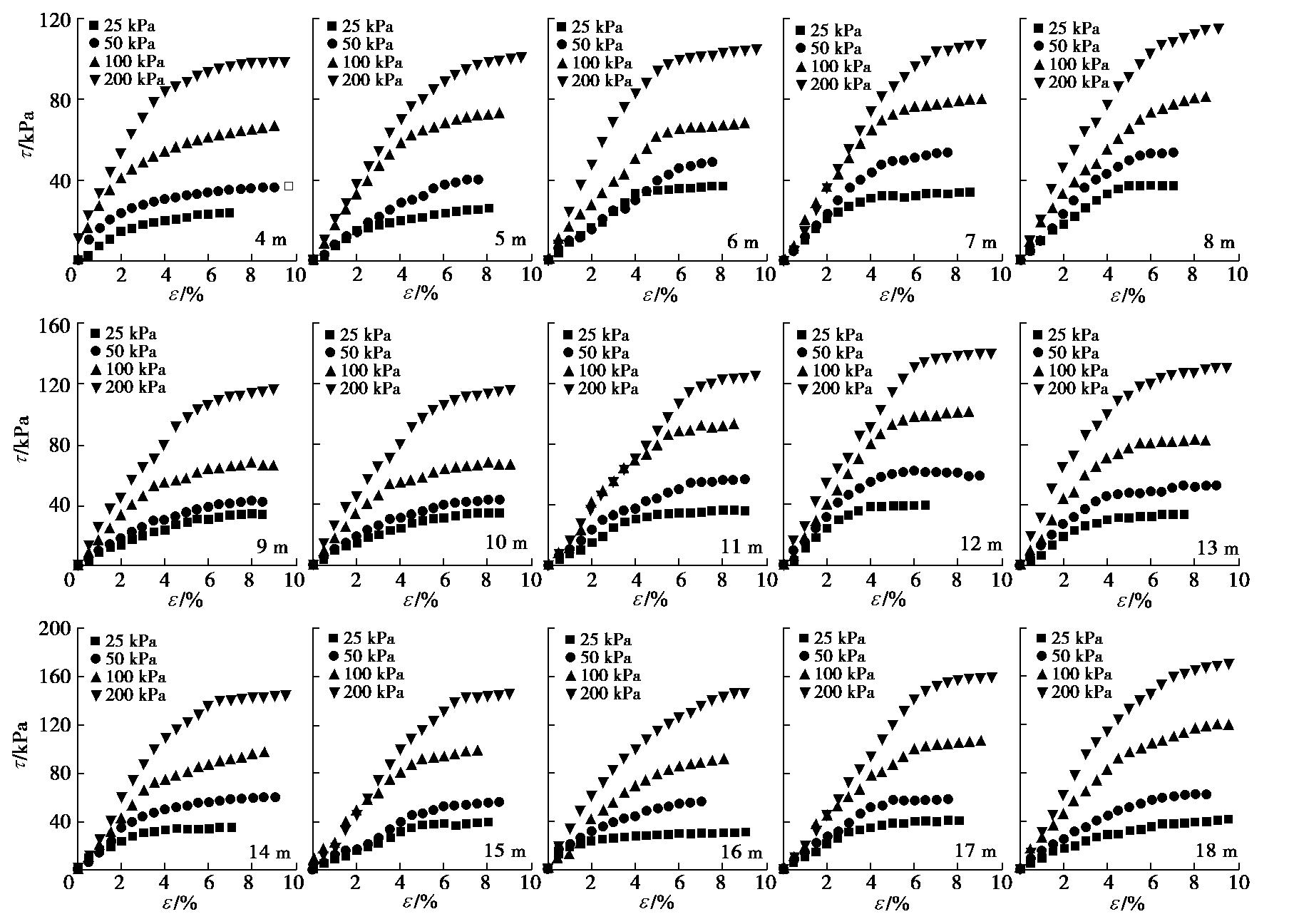

图 3 花岗岩残积土BST应力–应变曲线(4~18 m)

Figure 3. Stress-strain curves of granite residual soil based on BST measurements (4~18 m)

下载: 全尺寸图片幻灯片

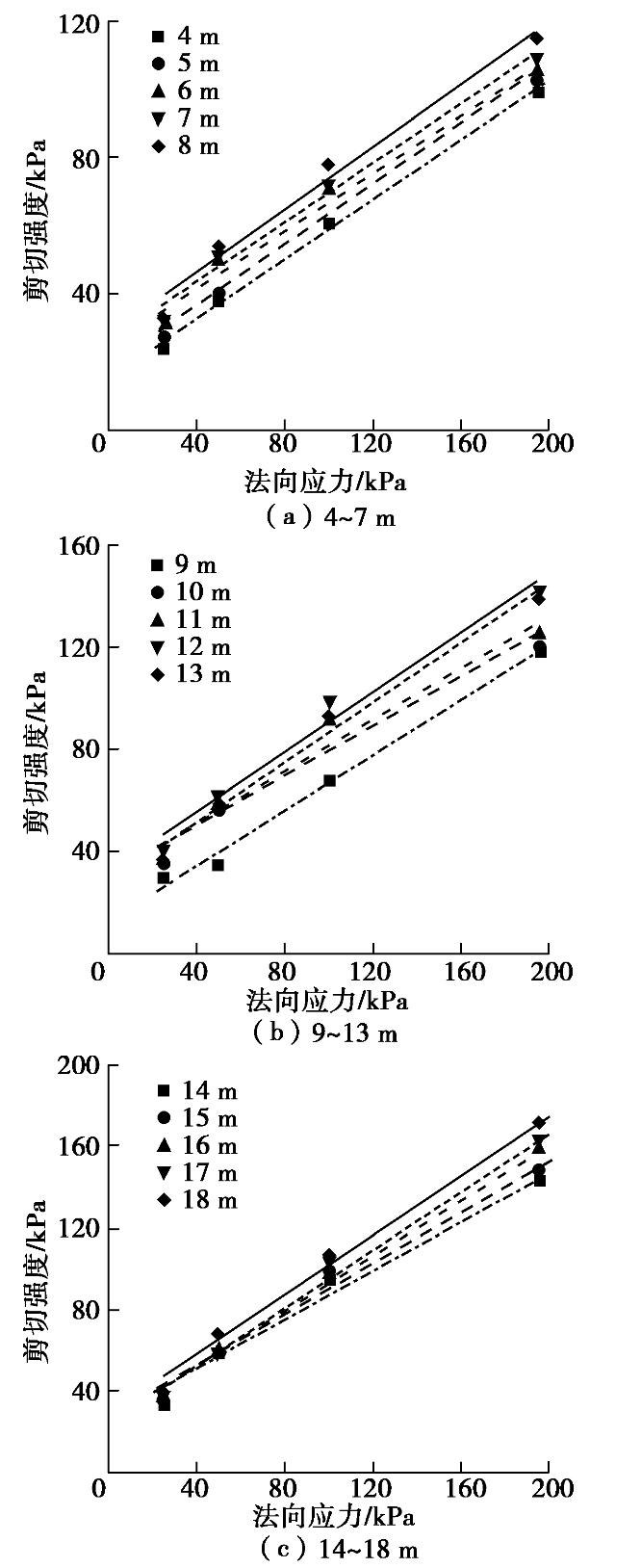

图 4 BST试验的剪切强度与法向应力的关系曲线

Figure 4. Relationship between shear strength and normal stress from BST results

下载: 全尺寸图片幻灯片

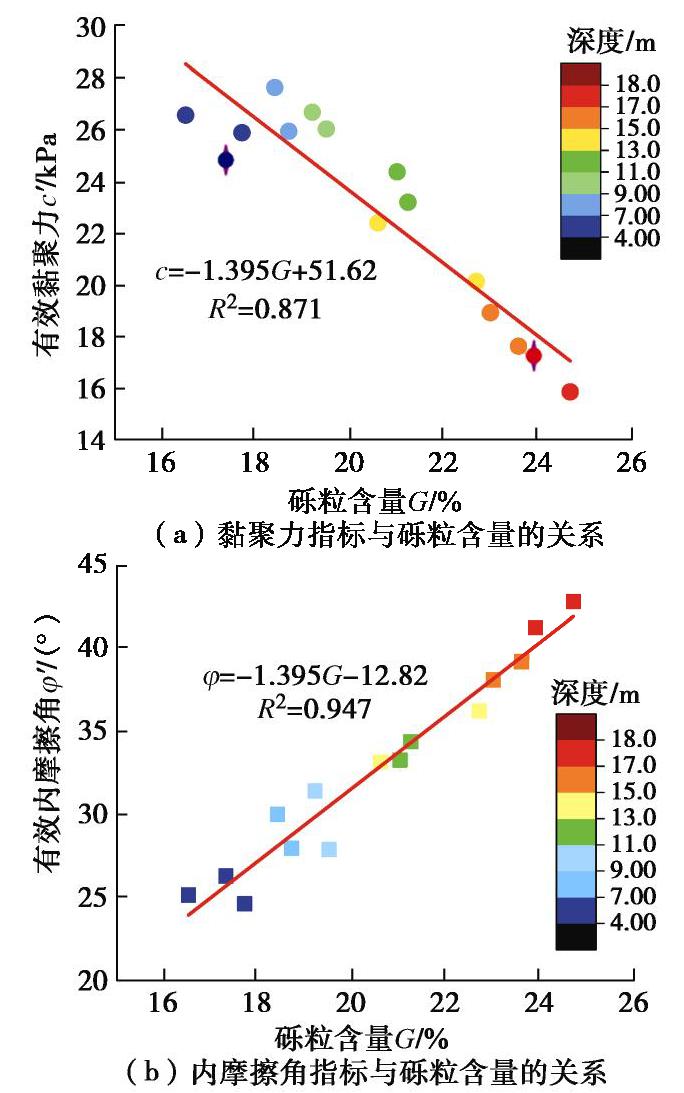

图 5 抗剪强度指标与砾粒含量的关系曲线

Figure 5. Relationship between shear strength and gravel content

下载: 全尺寸图片幻灯片

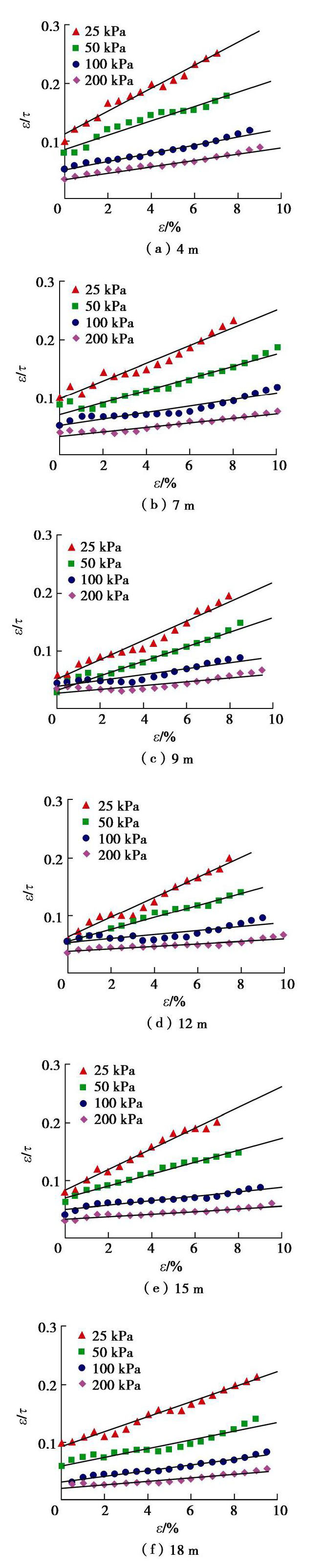

图 6 应力–应变双曲线的关系验证

Figure 6. Relational verification of stress-strain curves

下载: 全尺寸图片幻灯片

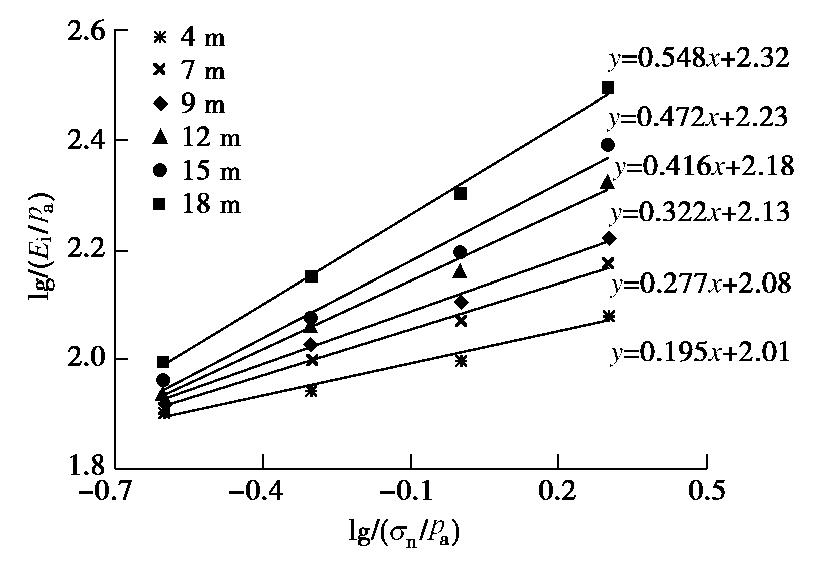

图 7 初始切线模量的适用性条件验证

Figure 7. Relational verification of initial tangent modulus

下载: 全尺寸图片幻灯片

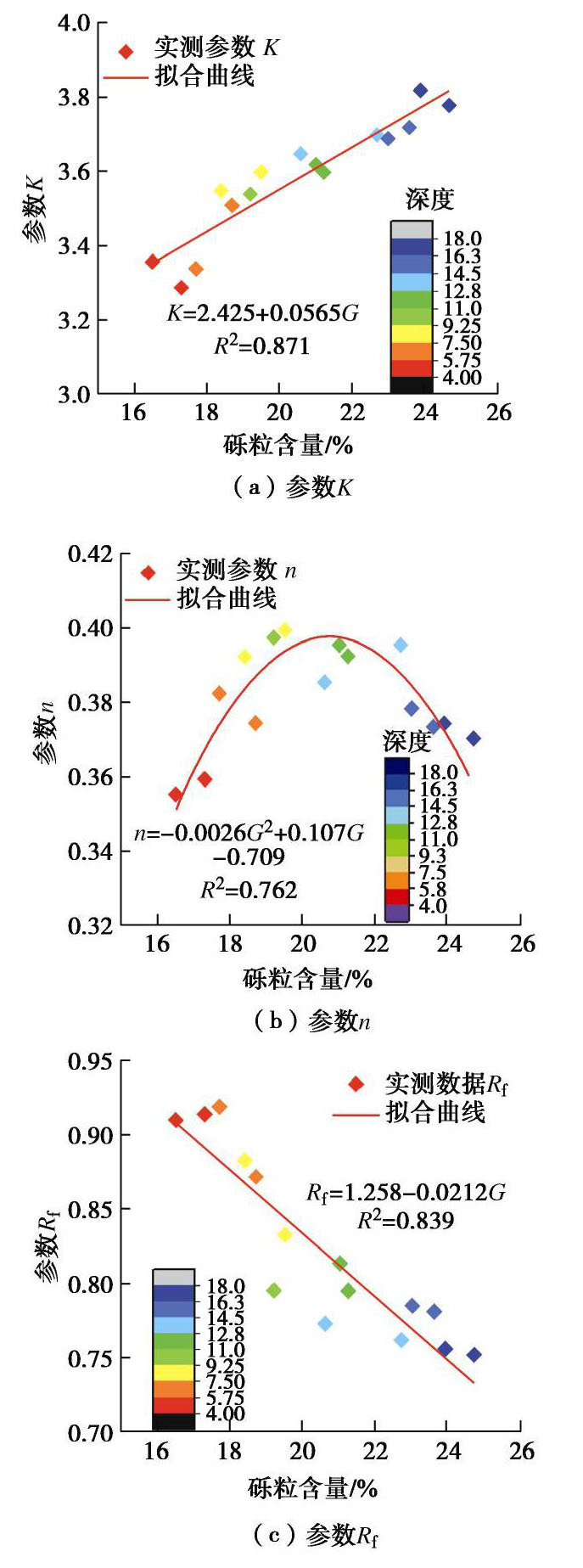

图 8 基于孔内剪切试验的邓肯-张模型参数与砾粒含量的关系

Figure 8. Relationship between model parameters and gravel content based on borehole shear tests

下载: 全尺寸图片幻灯片

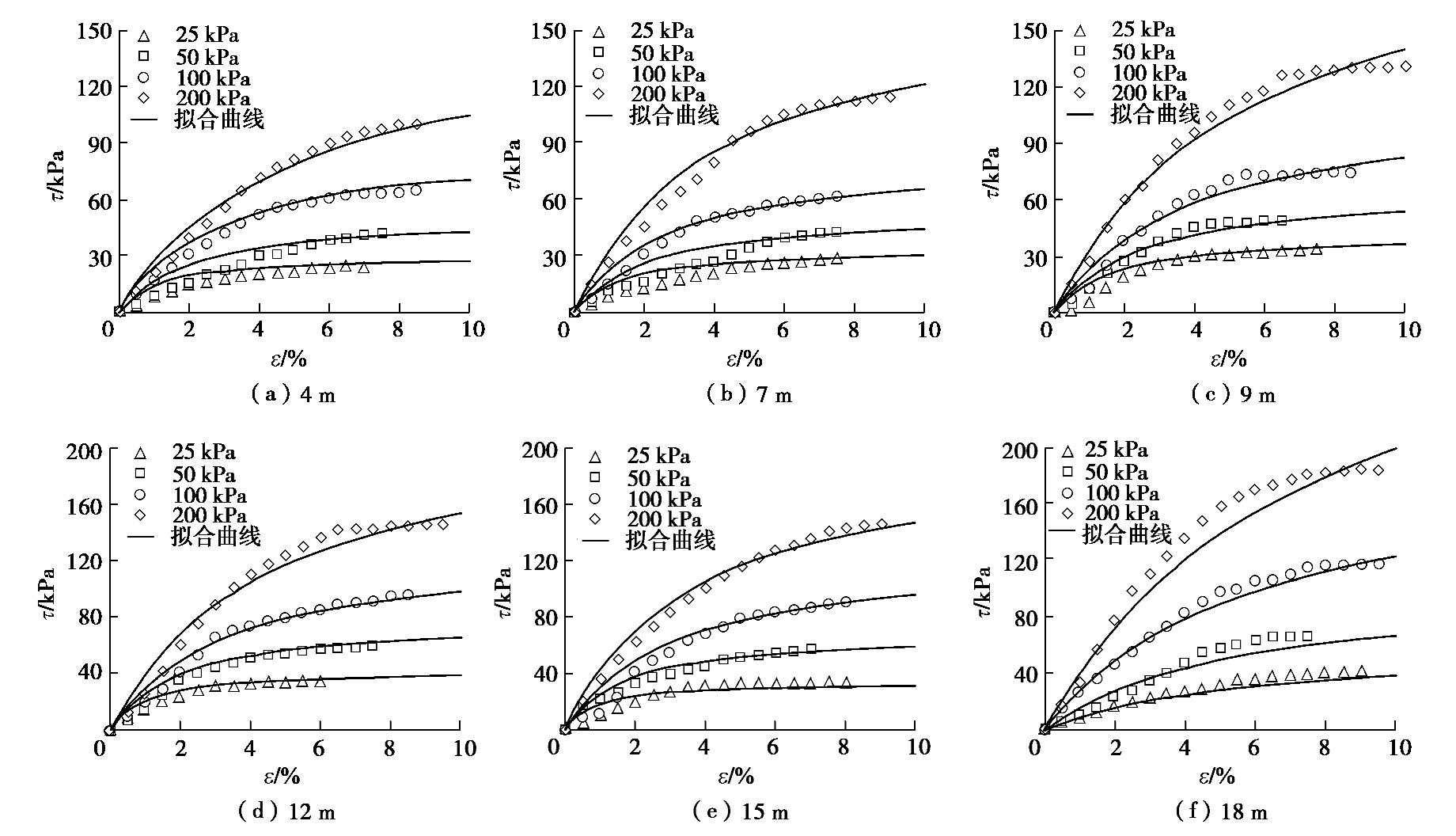

图 9 邓肯-张模型计算值与试验值比较

Figure 9. Comparison between calculated and test values

下载: 全尺寸图片幻灯片

表 1 土的基本物理力学性质指标

Table 1 Basic physical and mechanical properties of soil

埋深/m	相对密度G_s	天然密度ρ/(g·cm^-3)	孔隙比e₀	含水率/%	液限/%	塑限/%	塑性指数	渗透系数/(10^-6m·s^-1)	砾粒含量G/%
3.8	2.73	1.75	0.74	26.7	48.3	27.2	21.1	7.12	17.3
5.6	2.72	1.75	0.77	26.4	44.8	25.5	19.3	5.17	16.5
7.0	2.71	1.78	0.78	27.0	47.9	24.5	23.4	5.32	19.0
8.0	2.73	1.81	0.75	30.4	50.2	24.2	26.0	5.01	18.9
9.2	2.73	1.75	0.84	26.7	48.5	27.1	21.1	5.12	19.9
10.0	2.72	1.75	0.77	26.4	44.8	25.5	19.3	4.97	19.4
11.0	2.71	1.77	0.80	28.1	45.2	25.2	20.0	4.50	20.5
12.2	2.71	1.78	0.78	27.0	48.2	24.1	24.1	3.92	20.7
13.2	2.73	1.81	0.75	30.4	50.1	24.2	25.9	4.01	22.5
15.0	2.73	1.75	0.84	26.7	48.4	27.3	21.1	3.42	23.8
16.2	2.72	1.75	0.77	26.4	44.3	25.5	18.8	3.17	24.6
18.2	2.71	1,78	0.78	27.0	48.0	24.5	23.5	3.32	24.5

下载: 导出CSV

表 2 广义邓肯-张模型参数

Table 2 Parameters of generalized Duncan-Chang model

深度/m	模型参数
深度/m	$c$ $c$ /kPa	$φ$ $φ$ /(°)	K	n	R_f
4	18.2	25.1	3.19	0.356	0.913
5	23.1	23.6	3.36	0.347	0.909
6	19.7	24.4	3.34	0.382	0.918
7	28.5	27.0	3.51	0.374	0.871
8	28.0	29.4	3.55	0.392	0.882
9	27.1	28.1	3.60	0.399	0.832
10	26.5	31.8	3.54	0.397	0.795
11	26.0	32.1	3.62	0.409	0.813
12	25.0	33.8	3.60	0.382	0.795
13	23.4	33.2	3.65	0.418	0.773
14	22.9	33.6	3.70	0.372	0.752
15	21.6	36.3	3.69	0.371	0.785
16	20.9	38.1	3.72	0.355	0.781
17	18.8	43.2	3.78	0.375	0.752
18	18.1	41.9	3.82	0.384	0.756

下载: 导出CSV
