非饱和砂土及黏土的水-力耦合双屈服面模型

李舰; 刘凯; 尹振宇; 崔玉军; 殷建华

doi:10.11779/CJGE202001008

非饱和砂土及黏土的水-力耦合双屈服面模型 English Version

李舰^1,,
刘凯²,
尹振宇^2, ,,
崔玉军³,
殷建华²

1.
北京交通大学土木建筑工程学院,北京100044
2.
香港理工大学土木与环境工程学系,香港
3.
法国国立路桥大学,巴黎

基金项目:

中央高校基本科研业务费专项资金项目 2019JBM083

详细信息

作者简介:
李舰（1985— ）,男,讲师,主要从事非饱和土本构模型及其数值计算方面的研究工作。E-mail：jianli@bjtu.edu.cn

通讯作者:
尹振宇, E-mail：zhenyu.yin@polyu.edu.hk; zhenyu.yin@gmail.com

中图分类号: TU43
计量
- 文章访问数: 402
- HTML全文浏览量: 50
- PDF下载量: 409
出版历程
- 收稿日期: 2018-08-20
- 网络出版日期: 2022-12-07
- 刊出日期: 2019-12-31

Hydro-mechanical double-yield-surface model for unsaturated sand and clay

1.
School of Civil Engineering, Beijing Jiaotong University, Beijing 100044, China
2.
Department of Civil and Environmental Engineering, The Hong Kong Polytechnic University, Hong Kong, China
3.
Ecole des Ponts ParisTech, Laboratoire Navier/CERMES, Paris, France

摘要

摘要: 使用精细的本构模型来同时分析非饱和砂土和黏土水力耦合特性依旧是一个挑战。提出了一种包含加载湿陷及剪切滑移双重塑性机制的水-力耦合模型。力学模型中选取Bishop应力作为应力变量,采用孔隙比和有效饱和度作为状态变量。模型中给出了孔隙比-平均土骨架应力的半对数坐标系内依赖于有效饱和度的临界状态线的表达式,其与剪切滑动屈服面的非关联流动准则的结合保证了模型可以更合理地预测非饱和土（包括砂土和黏土）的剪胀和剪缩性质。通过模拟粉砂和高岭土的三轴试验,对该模型预测非饱和土主要特征的能力进行了分析。
- 剪胀性 /
- 有效饱和度 /
- 临界状态 /
- 水-力耦合 /
- 非饱和土
Abstract: Hydro-mechanical coupling behavior analysis with a sophisticated model for both unsaturated sand and clay is still a challenge. In this study, a hydro-mechanical coupling model with two plastic deformation mechanisms, i.e., loading collapse and shear sliding, for unsaturated soils is formulated using the Bishop’s stress as the stress variable and using the void ratio and the effective degree of saturation as the state variables. An expression for the critical state line related to the effective degree of saturation in the void ratio-soil skeleton stress semilog plane is explicitly implemented, which is combined with a non-associated flow rule for the shear sliding yield surface to guarantee the satisfactory simulation of the dilation or contraction during shear for unsaturated soils including sand and clay. The predictive capability of the model to reproduce the main features of unsaturated soil behavior is analyzed by simulating the triaxial tests on silty sand and kaolin.
- dilatancy /
- effective degree of saturation /
- critical state /
- hydro-mechanical coupling /
- unsaturated soil

HTML全文

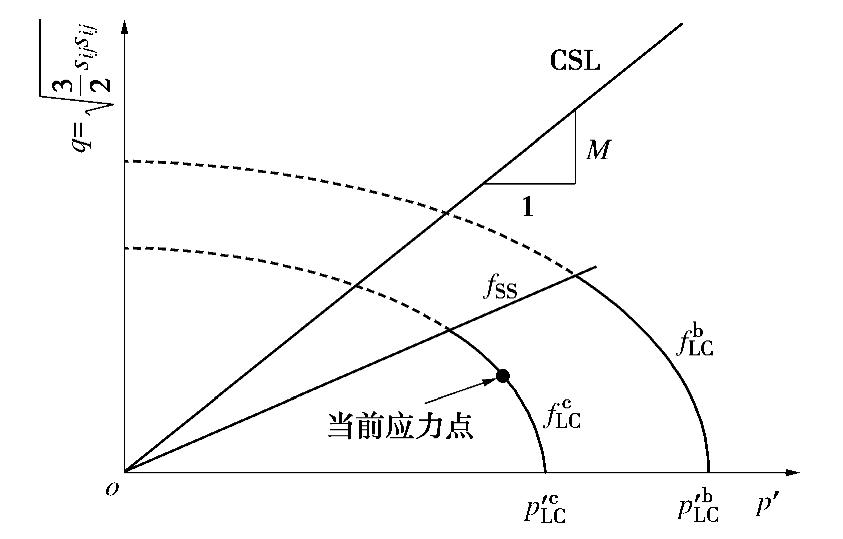

图 1 在 $p^{'}$ -q平面上加载湿陷边界面、加载湿陷当前应力面.和剪切滑动屈服面

Figure 1. Loading collapse bounding surface, loading collapse current stress surface and shear-sliding yield surface on $p^{'}$ -q plane

下载: 全尺寸图片幻灯片

图 2 压实高岭土的临界状态线以及截距与有效饱和度间关系^[40]

Figure 2. Critical state lines, and relationship between intercept and effective degree of saturation of compacted Speswhite kaolin^[40]

下载: 全尺寸图片幻灯片

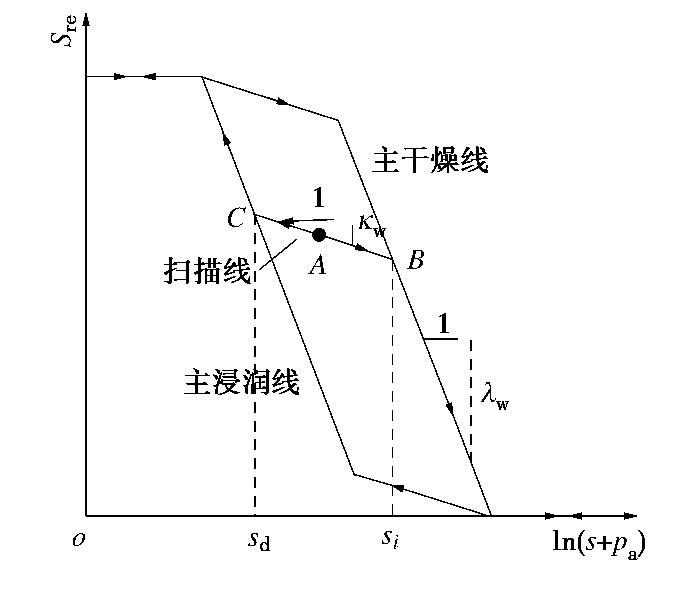

图 3 土持水特征曲线模型

Figure 3. Model for water-retention behaviors

下载: 全尺寸图片幻灯片

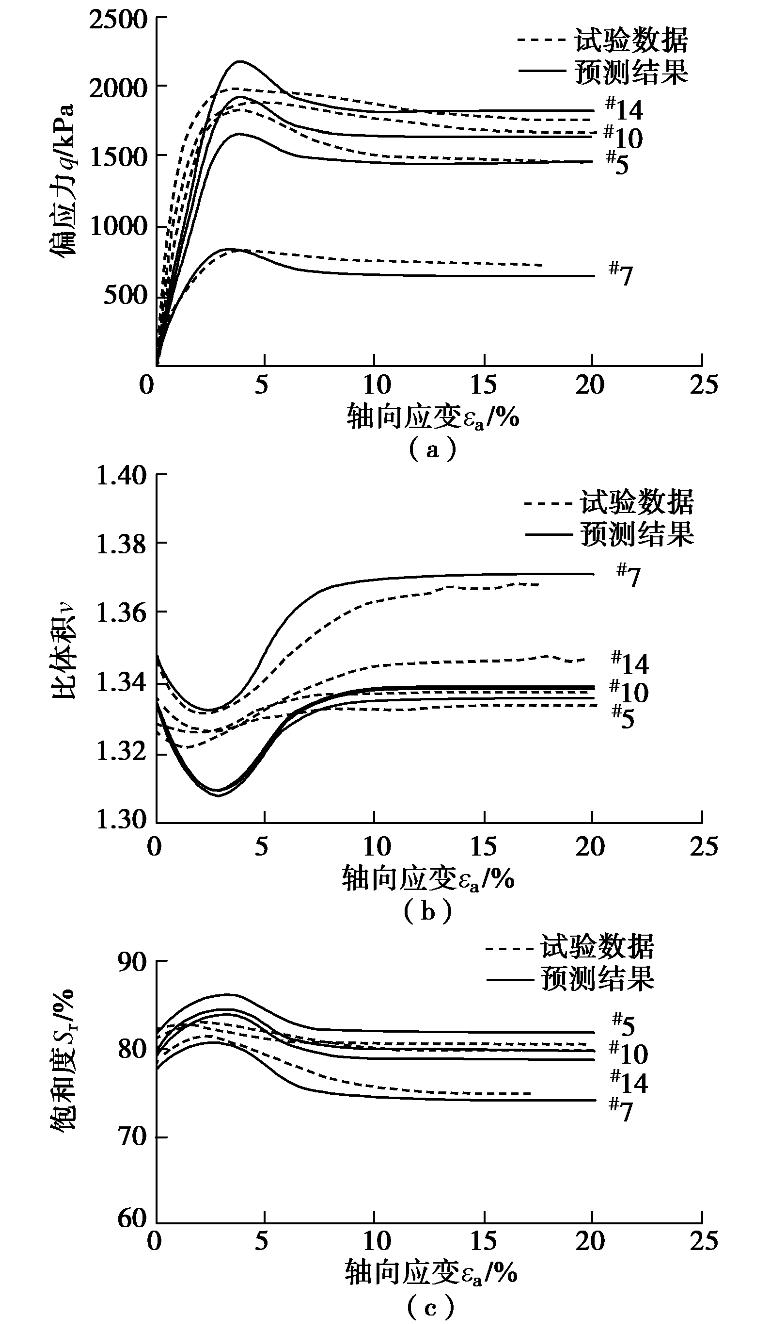

图 4 粉砂在不同基质吸力和净平均应力下排水三轴试验结果.与模拟结果对比

Figure 4. Comparison between measured and computed results from drained triaxial compression tests at different suctions and net confining stresses on silty sand

下载: 全尺寸图片幻灯片

图 5 高岭土在不同基质吸力和净平均应力下排水三轴试验结果与模拟结果对比

Figure 5. Comparison between measured and computed results from drained triaxial compression tests at different suctions and net confining stresses on kaolin

下载: 全尺寸图片幻灯片

表 1 粉砂和高岭土模型参数及初始状态参数表

Table 1 Values of model parameters and initial values of soil state for tests on silty sand and kaolin

类型	$λ$	$κ$	$ν$	$b_{sw}$	$M$	$G_{p0}$
粉砂	0.019	0.003	0.3	5.5	1.523	2000
高岭土	0.110	0.011	0.3	3.0	0.793	40
类型	$Γ_{csat}$	$a_{Γ}$	$n_{G}$	$n_{p}$	$D$	$n_{pt}$
粉砂	0.560	0.140	1.0	2.5	1.0	30.0
高岭土	2.000	0.490	1.0	2.0	0.7	2.0
类型	$λ_{w}$	$κ_{w}$	$p_{a}$	$b_{ws}$	$S_{rres}$ /%
粉砂	0.04	0.001	1.0	3.2	45.5
高岭土	0.23	0.010	101.3	1.1	25.0
类型	$e_{0}$	$ρ_{d}$ /(g·cm^-3)	$S_{r0}$ /%	${p^{'}}_{c}^{c}$ /kPa	$s_{i}$ /kPa	$s_{d}$ /kPa
粉砂	0.347	2.00	75.0	450	1000	800
高岭土	1.206	1.20	60.1	210	350	300

下载: 导出CSV
